Elite Mini B550

The Minisforum Elitemini B550, powered by AMD Ryzen™ 7 5700G and AMD Radeon™ graphics, is a high-performance mini PC designed specifically for gaming enthusiasts.

Two highlights of the B550 are that you can swap out its CPU to meet your speed needs and that it can be connected to a discrete graphics card via the included dock for excellent graphics quality in demanding games.

Elite Mini B550

The Minisforum Elitemini B550, powered by AMD Ryzen™ 7 5700G and AMD Radeon™ graphics, is a high-performance mini PC designed specifically for gaming enthusiasts.

Fresh reviews of the B550

Taki Udon

ETA PRIME

Tech tablets

Setup Guide

overview
specification
FAQ

Processor & graphics

The features and benefits of the B550 depend on the excellent system configuration.

When it comes to CPU, there are two options to choose from, namely AMD Ryzen™ 7 5700G and AMD Ryzen™ 7 4700G. The graphics processor combined with the CPU is Radeon™ Graphics.

With good clock frequencies and high performance, B550 offers you a smooth gaming experience and efficient working environment. Enjoy good performance in your gaming PC, office PC or business PC.

AMD Ryzen™ 5

4700G, 8 cores 16 threads

Up to

4.4GHz.

Graphics Frequency

2000MHz

AMD Ryzen™ 5

5700G, 8 cores 16 threads

Up to

4.6GHz.

Graphics Frequency

2100MHz

Why B550

Replaceable CPU

The B550's unique CPU DIY mode allows you to replace your machine's CPU. B550 supports AM4 socket Ryzen 4000/5000 series CPUs with TDP lower or equal to 65W（Not support 5950X/5900X/5800X).You can choose the most suitable one among the specified CPUs according to your own needs and preferences.

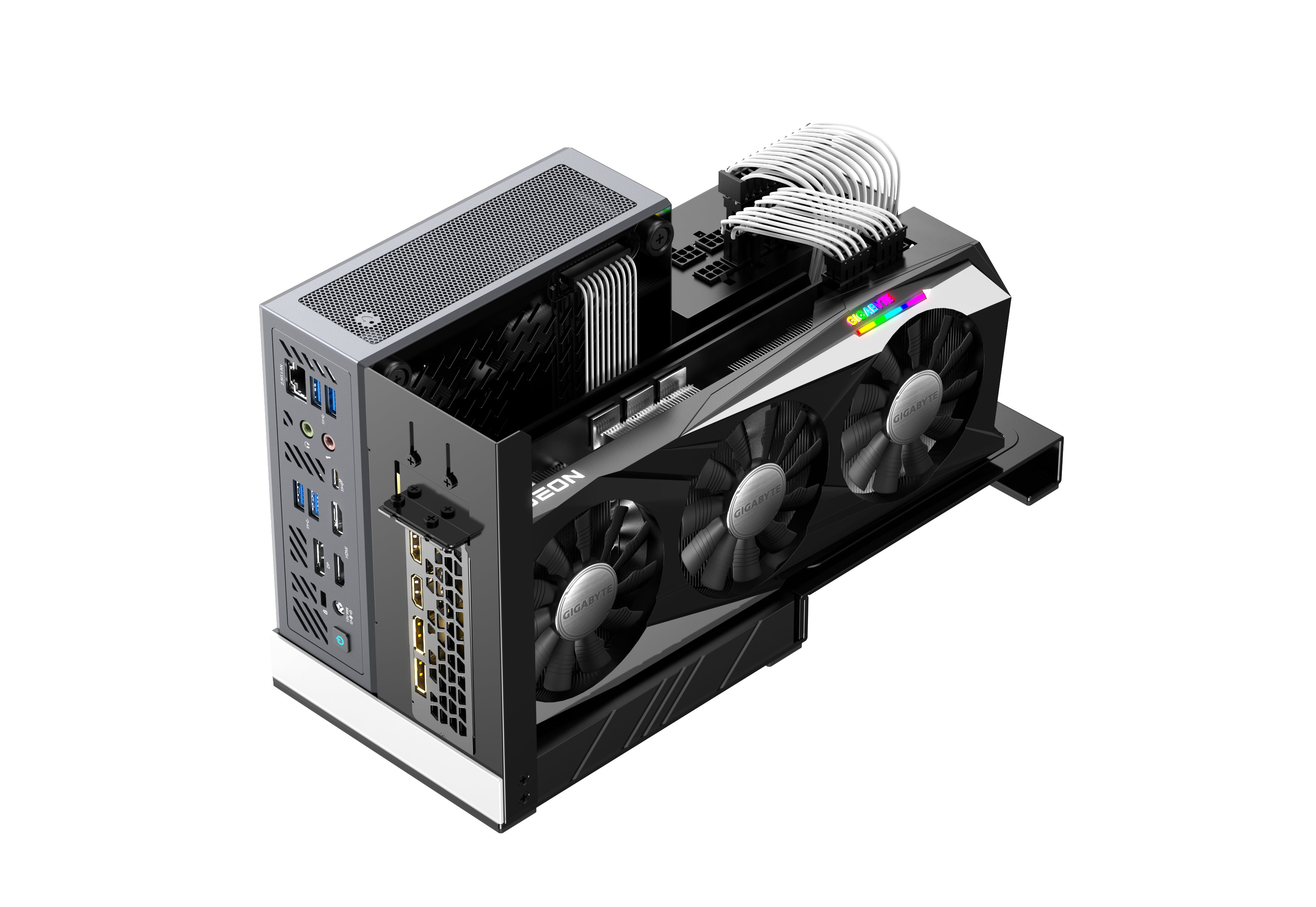

Discrete graphics card

Each B550 comes with a dock to support an external graphics card. The dock supports the vast majority of graphics cards on the market up to 7cm thick and is unlimited in length and width.

Triple 4K displays

AMD Radeon™ Graphics can meet all your display needs, including support for up to three displays with two HDMI and one Display ports. Each output can drive a 4K panel at 60 Hz.

Mini size

Free durable and lightweight orange carrying case to store or carry your B550.You can take the B550 to work and bring it back after work.The B550 can definitely provide strong performance support for your office and entertainment.

Quad 4K displays

AMD Radeon™ Graphics can meet all your display needs, including support for up to three displays with two HDMI and one Display ports. Each output can drive a 4K panel at 60 Hz.

Mini size

Test data

Test environment:

CPU AMD Ryzen™ 7 5700G;
Monitor: 1920*1080 60Hz;

Power supply

There are two ways to power the PC. If you're using an AMD APU like the 5600G or 5700G, a standard 19V power supply is included that you can use directly without using the supporting dock. However, if you want to tinker and connect the system to a dedicated graphics card, you will need your own ATX or SFX power supply. In this way, you can use a desktop CPU like the 5600X in this mini PC and the power consumption of the entire system will be more than 600W. The B550's mini host features a cooling solution that supports 65W TDP.

Update Friendly

The optional configuration includes barebone / 16GB (8GB x 2) / 32GB (16GB x 2) memory and 256 / 512GB SSD. S There are three types of expansion options inside the PC. You can further increase the capacity according to your own needs.

Thoughtful design

Easy to carry

Each standard package includes a case that easily fits your B550 and adapter. Simple and elegant shape.

What's in the box?

brand

MINI FORUM

Product model

Elite Mini B550

CPU

AMD Ryzen™ 7 5700G, 8 cores/16 threads
(L2 cache total 4 MB, L3 cache total 16 MB, base clock 3.8 GHz, up to 4.6 GHz)

GPU

Radeon™ graphics (graphics frequency 2000 MHz)

System compatibility

Pre-installed Windows 11 pro

Storage

DDR4 3200 Two Channels (SODIMM Slot × 2, Supports Maximum 64GB)

hard disk

1 × 2.5-inch SATA HDD slot (SATA 3.0 6.0 Gb/s)
2 × M.2 2280 SSD slot (supports NGFF SATA or NVMe PCIe3.0)

Wireless connection

M.2 2230 WIFI support (Dual-Band Wi-Fi, BlueTooth)

Video output

① HDMI (4K@60Hz) ×2

②Display Port (4K@60Hz)×1

Audio output

HDMI×2, DisplayPort, 3.5mm headphone jack (Green)

Electricity

DC 19V (power adapter included)

Port & buttons

1 × RJ45 2.5 Gigabit Ethernet port

4 × USB3.2 port (Gen2)

1 × USB-C (Gen2)

1 × 3.5mm MIC jack

1×Clear CMOS

1 × LED light (Blue)

16 × PCIe3.0 port
(※ To use this function, you need to use the supporting docking board)

Product dimension

15.8 x 16.65 x 6.7 cm

Net weight

1155g

Package dimensions

24x24x22.5cm

Package weight

3208g

Introductory date

April, 2022

Package contents

B550 ; power adapter ; Power cord
power adapter cable ; HDMI cable ; SATA cable
10Pin power cable; Acrylic decorative panel
Adapter for graphics card base
Base extension bracket
Graphics card panel
L-shaped graphics card holder
VESA mount ; Suitcasa
technical documents
Anti-slip silicone pad

Notification of the delivery of the B550.

For customers who placed their order before June 1st : Your B550 will arrive in Germany shortly and you are expected to receive it by July 8th .
For customers who placed an order between June 1st and June 28th : Your B550 will soon be shipped from China to Germany. You are expected to receive your B550 around July 25th.
For orders placed after June 28th , our factory is working diligently to produce your B550 and is expected to deliver it to you by August 10th.

Thank you for your patience and support.

To the product

F2. What is the maximum memory and speed of the B550?

The B550's maximum memory is 64GB — 2x32GB stick, and the speed is 3200MHz.

F3. Is the RAM dual rank or single rank?

16GB RAM is single-rank, and 32GB RAM is dual-rank.

F4. Are there any restrictions on the M.2 PCIe expansion bays for SSD cards?

No, there is no limit, it is a standard PCIE 3.0 x4 SSD

Q5. How many monitors does B550 support?

B550 can be connected to 3 monitors at the same time.

Q6: B550 Setup Guide

This is the installation guide (English version) that we uploaded to Youtube for your information: https://youtu.be/t3fr0jc1Yt0

Further information

Q1: How long does it take from purchasing to receiving the product?

After ordering an item, it takes approximately 1-2 working days for it to be ready for dispatch. When shipping from our German warehouse, the logistics time is 2 to 5 days depending on the destination country. If the goods are shipped from the Hong Kong warehouse, the logistics time is about 18 to 23 days.

Q2: What is the reason that no tracking number is provided for orders shipped from Hong Kong warehouse?

This is because the package is on the way from Hong Kong to Germany. The tracking information is updated once the shipment arrives in Germany and customs clearance is completed, this process usually takes 15 to 18 days.

Q3: Do I need to pay the shipping fee and tax for the product?

The price is exclusive of VAT, and it is originally shipped from HK, China. Since most of our customers are taxed when purchasing the goods abroad, we offer our customers an exclusive service, namely "Duty Free Shipping" (30 euros). We will then take care of the customs and additional tax for you. Then you don't have to pay any other fees other than €30.

Q4: What should I do if I still receive an invoice from Fedex after purchasing “Duty free shipping”?

We have covered all taxes for you when you purchase the Duty Free Shipping service. However, there may be times when you have to submit your own customs declaration or pay additional taxes due to procedural errors. Do not worry. Our solution is as follows

1 ) Please pay the tax first and keep the payment receipt for customs .
2 ) Send the payment slip to us .
3 ) The refund ( the same amount as on your Fedex invoice ) will be sent within 1-2 working days of your original payment m e tho de over how to .

To the product

F1. Is the Windows operating system preinstalled?

A: Hello, yes, other versions of the B550 come pre-installed with Windows 11 except the barebone version.

F2. What is the maximum memory and speed of the UM560?

A: The maximum memory of B550 is 64GB —2x32GB stick, and the speed is 3200MHz.

F3. Is the RAM dual rank or single rank?

A: 16GB RAM is single rank, and 32GB RAM is dual rank.

F4. Are there any restrictions on the M.2 PCIe expansion bays for SSD cards?

A: No, there is no limit, it is a standard PCIE 3.0 x4 SSD

Q5. How many monitors does B550 support?

A: B550 can connect to 3 monitors at the same time.

Other important information

Q1: How long does it take from purchasing to receiving the product?

A: After you order an item, it will take approximately 1-2 business days for it to be ready for shipment. When shipping from our German warehouse, the logistics time is 2 to 5 days depending on the destination country. If the goods are shipped from the Hong Kong warehouse, the logistics time is about 18 to 23 days .

Q2: What is the reason that no tracking number is provided for orders shipped from Hong Kong warehouse?

A: This is because the package is on the way from Hong Kong to Germany. The tracking information is updated once the shipment arrives in Germany and customs clearance is completed, this process usually takes 15 to 18 days.

Q3: Do I need to pay the shipping fee and tax for the product?

A: The price is exclusive of VAT, and it is originally shipped from HK, China. Since most of our customers are taxed when purchasing the goods abroad, we offer our customers an exclusive service, namely "Duty Free Shipping" (30 euros). We will then take care of the customs and additional tax for you. Then you don't have to pay any other fees other than €30.

Q4: What should I do if I still receive an invoice from Fedex/DHL/TNT after purchasing the “Duty free shipping”?

A: We have covered all the taxes for you when you purchase the "Duty Free Shipping" service. However, there may be times when you have to submit your own customs declaration or pay additional taxes due to procedural errors. Do not worry. Our solution is as follows

1 ) Please pay the tax first and keep the payment receipt for customs .

2 ) Send the payment slip to us .

3 ) The refund ( the same amount as on your Fedex invoice ) will be sent within 1-2 working days of your original payment m e tho de over how to .

Fresh reviews of the B550

Taki Udon

ETA PRIME

Tech tablets

B550 Setup Guide

Fresh reviews of the B550

Taki Udon

ETA PRIME

Tech tablets

Setup Guide

overview
specification
FAQ

Why B550

Replaceable CPU

Discrete graphics card

Each B550 comes with a dock to support an external graphics card. The dock supports the vast majority of graphics cards on the market up to 7cm thick and is unlimited in length and width.

Triple 4K displays

AMD Radeon™ Graphics can meet all your display needs, including support for up to three displays with two HDMI and one Display ports. Each output can drive a 4K panel at 60 Hz.

Mini size

Powerful processor & graphics

The features and benefits of the B550 depend on the excellent system configuration.

When it comes to CPU, there are two options to choose from, namely AMD Ryzen™ 7 5700G and AMD Ryzen™ 7 4700G. The graphics processor combined with the CPU is Radeon™ Graphics.

With good clock frequencies and high performance, B550 offers you a smooth gaming experience and efficient working environment. Enjoy good performance in your gaming PC, office PC or business PC.

AMD Ryzen™ 5

4700G

8 cores 16 threads

Up to

4.4GHz.

Graphics Frequency

2000MHz

AMD Ryzen™ 5

5700G

8 cores 16 threads

Up to

4.6GHz.

Graphics Frequency

2100MHz

Triple 4K displays

AMD Radeon™ Graphics can meet all your display needs, including support for up to three displays with two HDMI and one Display ports. Each output can drive a 4K panel at 60 Hz.

Mini size

Test data

Test environment:

CPU AMD Ryzen™ 7 5700G; Monitor: 1920*1080 60Hz;

Power supply

Update Friendly

Text DDR4 3200 Two Channels

(SODIMM Slot × 2, Maximum 64GB)

M.2 2280 PCle 3.0 SSD
(no capacity limits)

2.5" SATA hard drive slot
(no capacity limits)

Thoughtful design

Easy to carry

Each standard package includes a case that easily fits your B550 and adapter. Simple and elegant shape.

What's in the box?

Test environment: CPU-AMD Ryzen™ 9 5900HX ; Monitor: 1920*1080 60Hz; RAM: DDR4 16G x2

brand

MINI FORUM

Product model

Elite Mini B550

CPU

AMD Ryzen™ 7 5700G, 8 cores/16 threads
(L2 cache total 4 MB, L3 cache total 16 MB, base clock 3.8 GHz, up to 4.6 GHz)

GPU

Radeon™ graphics (graphics frequency 2000 MHz)

System compatibility

Pre-installed Windows 11 pro

Storage

DDR4 3200 Two Channels (SODIMM Slot × 2, Supports Maximum 64GB)

hard disk

1 × 2.5-inch SATA HDD slot (SATA 3.0 6.0 Gb/s)
2 × M.2 2280 SSD slot (supports NGFF SATA or NVMe PCIe3.0)

Wireless connection

M.2 2230 WIFI support (Dual-Band Wi-Fi, BlueTooth)

Video output

① HDMI (4K@60Hz) ×2

②Display Port (4K@60Hz)×1

Audio output

HDMI×2, DisplayPort, 3.5mm headphone jack (Green)

Electricity

DC 19V (power adapter included)

Port & buttons

1 × RJ45 2.5 Gigabit Ethernet port

4 × USB3.2 port (Gen2)

1 × USB-C (Gen2)

1 × 3.5mm MIC jack

1×Clear CMOS

1 × LED light (Blue)

16 × PCIe3.0 port (※To use this function, you need to use the supporting docking board)

Product dimension

15.8 x 16.65 x 6.7 cm

Net weight

1155g

Package dimensions

24x24x22.5cm

Package weight

3208g

Introductory date

April, 2022

Package contents

B550
Power adapter
Power cord
Power adapter cable
HDMI cable
SATA cable
10Pin power cable
Acrylic decorative panel

Adapter for graphics card base
Base extension bracket
Graphics card panel
L-shaped graphics card holder
VESA mount
Suitcasa
technical documents
Anti-slip silicone pad

Notification of the delivery of the B550.

For customers who placed their order before June 1st : Your B550 will arrive in Germany shortly and you are expected to receive it by July 8th .
For customers who placed an order between June 1st and June 28th : Your B550 will soon be shipped from China to Germany. You are expected to receive your B550 around July 25th.
For orders placed after June 28th , our factory is working diligently to produce your B550 and is expected to deliver it to you by August 10th.

Thank you for your patience and support.

To the product

F1. Is the Windows operating system preinstalled?

Hello, yes, apart from the barebone version, other versions of the B550 come pre-installed with Windows 11 .

F2. What is the maximum memory and speed of the B550?

The B550's maximum memory is 64GB — 2x32GB stick, and the speed is 3200MHz.

F3. Is the RAM dual rank or single rank?

16GB RAM is single-rank, and 32GB RAM is dual-rank.

F4. Are there any restrictions on the M.2 PCIe expansion bays for SSD cards?

No, there is no limit, it is a standard PCIE 3.0 x4 SSD

Q5. How many monitors does B550 support?

B550 can be connected to 3 monitors at the same time.

Q6: B550 Setup Guide

This is the installation guide (English version) that we uploaded to Youtube for your information: https://youtu.be/t3fr0jc1Yt0

Other important information

Q1: How long does it take from purchasing to receiving the product?

Q2: What is the reason that no tracking number is provided for orders shipped from Hong Kong warehouse?

Q3: Do I need to pay the shipping fee and tax for the product?

Q4: What should I do if I still receive an invoice from Fedex after purchasing “Duty free shipping”?

1 ) Please pay the tax first and keep the payment receipt for customs .

2 ) Send the payment slip to us .

3 ) The refund ( the same amount as on your Fedex invoice ) will be sent within 1-2 working days of your original payment m e tho de over how to .
