BD790i CPU
Minisforum Montherboard Refurbished
Support method
Duties Included
30-Days Hassle-Free Local Returns
Minisforum Montherboard Refurbished
Sale price€999,00
Lower power consumption, higher performance
The BD795M motherboard is equipped with the AMD Ryzen™ 9 7945HX processor, which has 16 cores and 32 threads and reaches up to 5.4 GHz, giving you unprecedented computing power.
AMD Radeon 610M graphics
Equipped with integrated AMD Radeon 610M graphics, it offers you the possibility of a dual monitor display and excellent graphics processing capabilities even without a dedicated graphics card installed, allowing you to enjoy a smooth visual experience in multimedia applications.
Efficient heat dissipation system
The BD795M doesn't have a CPU cooler, but supports an air/water cooling system according to the standard LGA 1700 specification. This type of cooler can help the CPU stay cool and operate at lower temperatures, ensuring stable computer performance and extending the lifespan of the hardware.
High-speed storage
PCIe 4.0 x16 graphics card slot of the BD795M with metallic reinforcement
Dual-channel DDR5 memory, supports a frequency of up to 5200MT/s and a capacity of 96GB.
Recommended ATX power supply (>200W)
Selecting the power supply
Product Comparison
Differences between motherboards with the same CPU
Models
BD790i
BD795i SE
BD795M
Memory
M.2 2280 PCIe 5.0 SSD*2
(with active cooler)
M.2 2280 PCIe4.0 SSD*2
M.2 2280 PCIe4.0 SSD*2
SATA3.0 *2
Slot
PCIe5.0
PCIe5.0
PCIe4.0
Network card
AX1675
M.2 2230 Key E Slot
M.2 2230 Key E Slot
CPU cooler
Standard heatsink (fanless)
Standard heatsink (fanless)
No heatsink
Supports LGA1700 (requires purchase)
SSD fan connector
Ja
Without
Without
IPEX U.FL MHF4 Coaxial Pigtail Cable
Ja
Without
Ja
BD790i
AMD RyzenTM 9 7945HX, 16 Kerne/32 Threads (64M Cache, bis zu 5,4 GHz)
GPU
AMD RadeonTM 610M Grafik
Speicher
DDR5 Zweikanal (SODIMM-Steckplätze×2, bis zu 5200 MT/s, maximal 64 GB)
Festplatte
2×M.2 2280 PCIe5.0 SSD-Steckplätze
Festplattenerweiterung
PCle 5.0 x16-Anschluss x1
Kabellose Verbindung
M.2 2230 Key E Slot
Ethernet
RJ45 2.5G Ethernet-Anschluss×1
Video-Ausgang
HDMI 2.0 x1; DisplayPort1.4 x1; USB-C x1
Audio-Ausgang
HDMI 2.0 x1; DisplayPort1.4 x1; USB-C x1; Line Out x1
USB-Anschlüsse
USB3.2 Gen2 Typ-C-Anschluss ×1 (Alt/DP)
USB3.2 Gen1 Anschluss Typ-A ×2
USB2.0 TypeA Port x2
E/A-Anschlüsse
4-pin CPU-Lüfter-Anschluss ×1
4-pin Systemlüfter-Anschluss ×2
4-Pin-SSD-Lüfterleiste x1
USB 3.2 Gen 1-Anschlussleiste ×1
Panel-Audio-Anschlussleiste ×1 (Vorderseite)
Anschlussleiste der Systempanel ×1
Formfaktor
Mini-ITX Formfaktor (170x170x1.6mm)
DIY-Kompatible Modelle
DIY-Kompatible Modelle
BD795i SE
CPU
AMD RyzenTM 9 7945HX, 16 Kerne/32 Threads (64MB Cache, bis zu 5,4 GHz)
GPU
AMD RadeonTM 610M Grafik
Speicher
DDR5 Zweikanal (SODIMM-Steckplätze×2, bis zu 5200 MT/s, maximal 64 GB)
Festplatte
2×M.2 2280 PCIe4.0 SSD-Steckplätze
Festplattenerweiterung
PCle 5.0 x16-Anschluss x1
Ethernet
RJ45 2.5G Ethernet-Anschluss×1
Video-Ausgang
HDMI 2.1 x1; DisplayPort1.4 x1; USB-C x1
Audio-Ausgang
HDMI 2.0 x1; DisplayPort1.4 x1; USB-C x1; Audio-Buchse, Line Out x1
IO(Rückseite)
HDMI 2.1 х 1
DP 1.4 х 1
USB 3.2 Gen2 Typ-C Anschluss ×1 (Alt DP)
USB 3.2 Gen1 Typ-A Anschluss ×2
USB 2.0 Typ-A Anschluss ×2
LINE IN ×1
LINE OUT ×1
MIC-IN ×1
IO (Vorderseite)
Audio-Buchse ×1
USB_C 3.2 Gen1 ×1 (5Gbps)
USB_A 3.2 Gen1 ×1 (5Gbps)
Netzschalter ×1
Reset-Taste ×1
Formfaktor
Mini-ITX Formfaktor (170x170x1.6mm)
DIY-Kompatible Modelle
BD795M
CPU
AMD RyzenTM 9 7945HX, 16 Kerne/32 Threads (64MB Cache, bis zu 5,4 GHz)
GPU
AMD RadeonTM 610M Grafik
Speicher
DDR5 Zweikanal (SODIMM-Steckplätze×2, bis zu 5200 MT/s, maximal 96 GB)
Festplatte

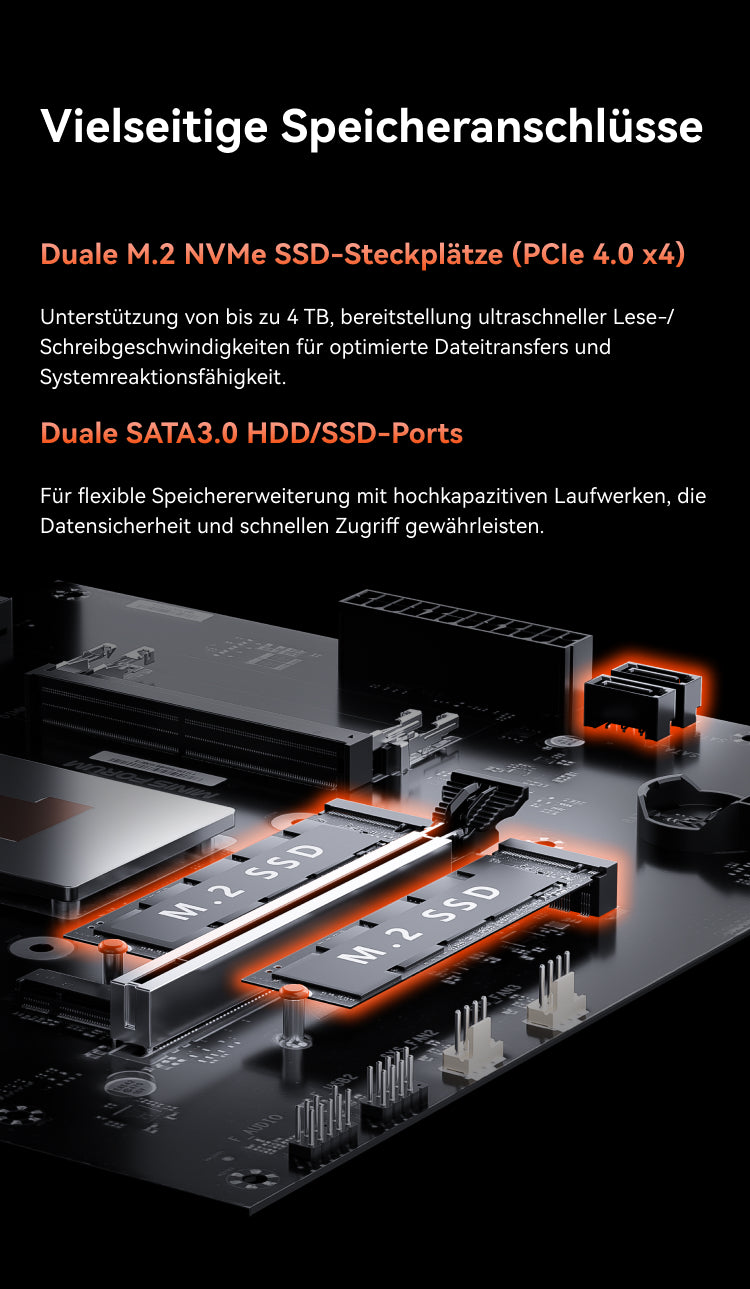

2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
2×SATA HDD/SSD Slot(SATA3.0)
Kabellose Verbindung

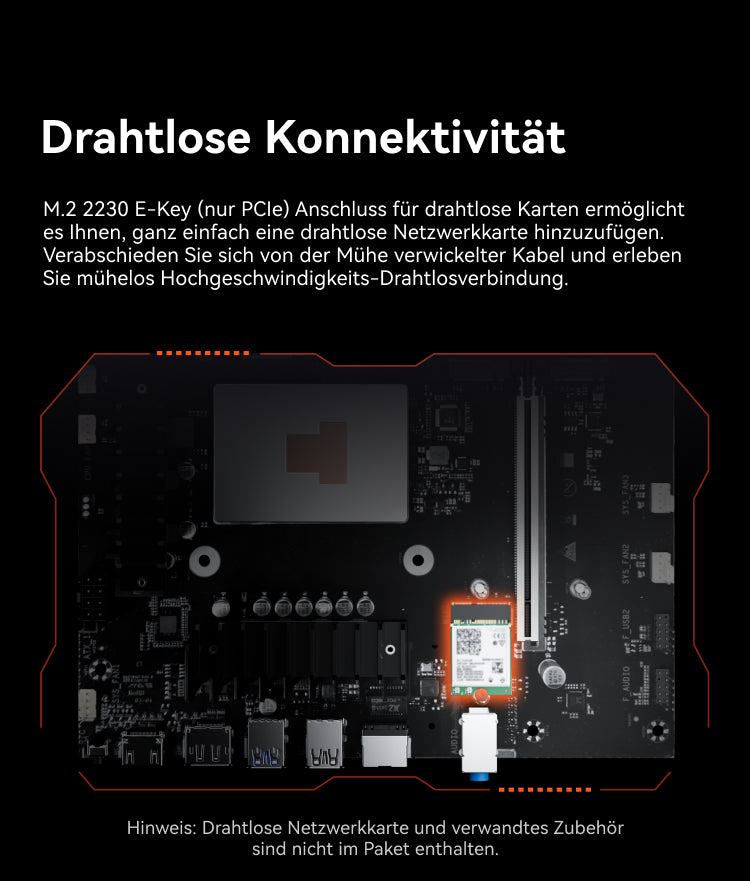

M.2 2230 Key E Slot
Ethernet
RJ45 2.5G Ethernet-Anschluss×1
Video-Ausgang
HDMI 2.1 FRL x 1 (Up to 8K@60Hz/4K@120Hz)
DP1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
Audio-Ausgang
HDMI x1; Line Out х 1
Audio-Eingang
Line in х 1; Mic х 1
Anschluss
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin SYS Fan header
1 x System Panel header
1 x Front Panel Audio header (F_AUDIO)
1 x USB 3.2 Gen1 header
1 x USB 2.0 header
I/O(Anschuluss)
USB Type A(USB2.0) х 2
USB Type A(USB3.2 Gen1) х 2
HDMI 2.1 х 1
DP1.4 х 1
Line in х 1
Line Out х 1
Mic *1
CLR COMS х 1
Abmessungen
M-ATX Formfaktor (240х220х1.6mm)
Gewicht
457g
System
Windows 11
DIY-Kompatible Modelle
FAQ
If you have any further questions, please contact customer service.
eu@minisforum.com
Q1: Do the CPU and memory support overclocking (PBO, EXPO)?
A: Unfortunately, the BD790i does not support overclocking.
Q2: Can the CPU be replaced?
A: BD790i comes with an integrated AMD Ryzen™ 7 7745HX and is not replaceable.
Q3: Is there a built-in fan and is the fan speed adjustable?
A: The BD790i model does not come with a fan; you'll need to purchase a 12025 fan separately.
The fan speed is currently not adjustable via software, but you can adjust it in the BIOS.
Q4: Is there support for different power supplies?
Q4: Is there support for different power supplies?
Q5: Can I install it in any size case?
A: Yes, it can be used in ITX cases. Note: Without fans, the thickness of the motherboard + heatsink is 37mm.
Our customer support is available Monday to Friday: 9:00am-6:30pm.Average response time: 24h
