Minisforum MS-02 Ultra

Sale price€1.279,00 Regular price€1.599,00

Duties Included

30-Days Hassle-Free Local Returns

MS-02U-285HX is currently in stock and can be shipped from Hong Kong.

MS-02U-275HX is expected to be shipped from Hong Kong in early December.

CPU: Intel® Core™ Ultra 9 285HX
Type: Barebone (Not include os license)
Engineering the Future
Redefining Mini Workstations
All-Core Synergy
Powered by Intel® Core™ Ultra 9 285HX with CPU, GPU, and NPU synergy for all-scenario performance.
Ultimate PCIe 5.0
Up to 3 PCIe slots and 4× M.2 PCIe 4.0 expansion for unlimited modularity.
Enterprise-Grade Reliability
ECC memory & Intel vPro® enable 24/7/365 continuous operation and remote control.
Ultra-Fast 25 Gb Networking
Dual 25 GbE with 10 GbE & 2.5 GbE LAN for lightning-speed data transfer.
High-Speed DDR5 Memory
4× DDR5 SODIMM slots, up to 256 GB memory,high-speed and responsive for smooth multitasking.
Data Protection Guaranteed
Supports multi-drive expansion and RAID 0/1/5/10, providing both high-speed performance and data protection.
Server-Grade Thermal Design
6 heat pipes + dual-fan cooler efficiently dissipate 100W TDP CPU heat with low noise at 36 dB.

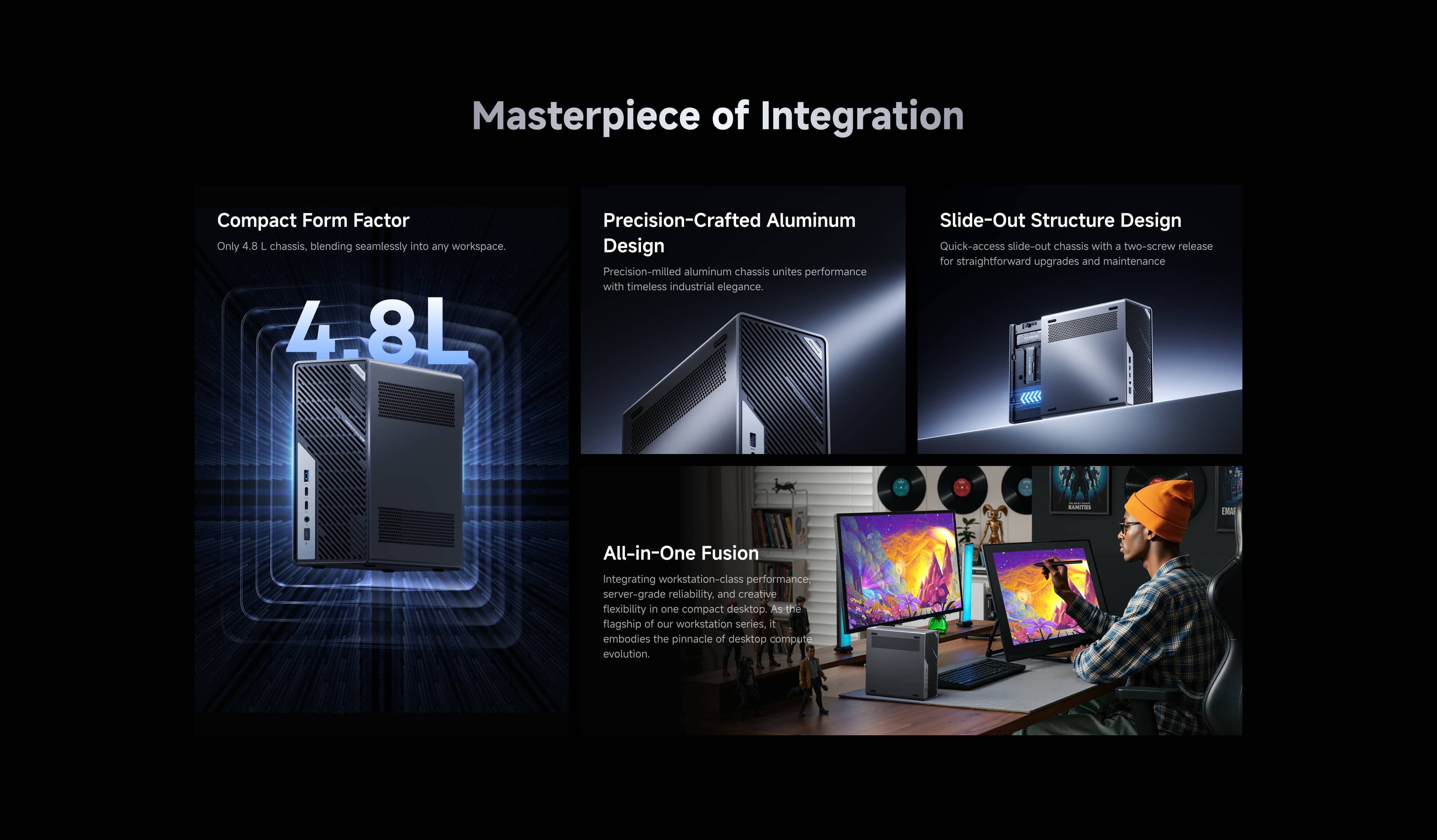

Compact Yet Accessible
4.8 L slide-out chassis with built-in 350 W power supply —small outside, limitless inside.
Dual-Slot GPU Support
Supports PCIe ×16 dual-slot desktop GPUs, enabling powerful graphics rendering, AI acceleration, and multi-display output.
The All-Purpose Platform

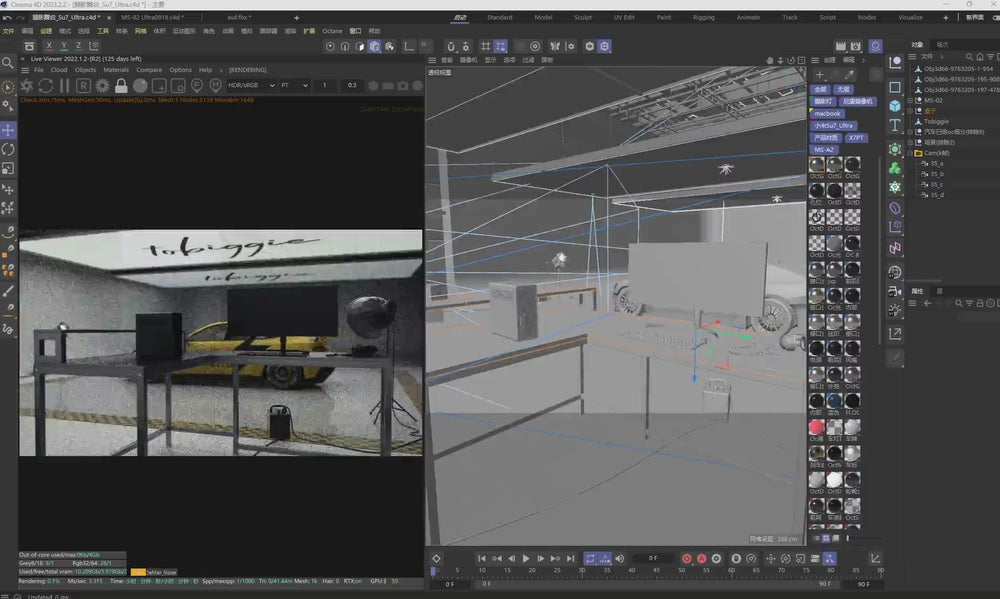

Professional Creators
Lightning-Fast Transfers for Creative Workflows Dual 25 GbE & USB4 v2 (80 Gbps) deliver instant data sync and smooth multi-task editing. Up to 4×8K display outputs for editing, color grading, and 3D modeling workflows.
AI Developers & Engineers
Powered by Intel® Core™ Ultra 9 285HX with 13 TOPS NPU and 24-core CPU,delivering solid compute for AI inference and engineering workloads.PCIe ×16 expansion allows external GPUs to unlock advanced model training and data processing potential.
Enterprise IT & SMBs
Efficient IT Management Made Simple Intel vPro®, ECC memory and slide-out maintenance reduce downtime and service costs.
Tech Enthusiasts & Power Users
Freedom to expand and customize your performance. Three PCIe slots allow flexible installation of GPUs, NICs, or capture cards for limitless customization.

Multi-Engine Computing Core

Powered by Intel® Core™ Ultra 9 285HX with a 24-core CPU (8P + 16E)

and a 13 TOPS NPU, the system delivers both speed and efficiency for

AI and media workloads, while PCIe GPU expansion unlocks advanced

computing performance.

Zero Error, Zero Downtime

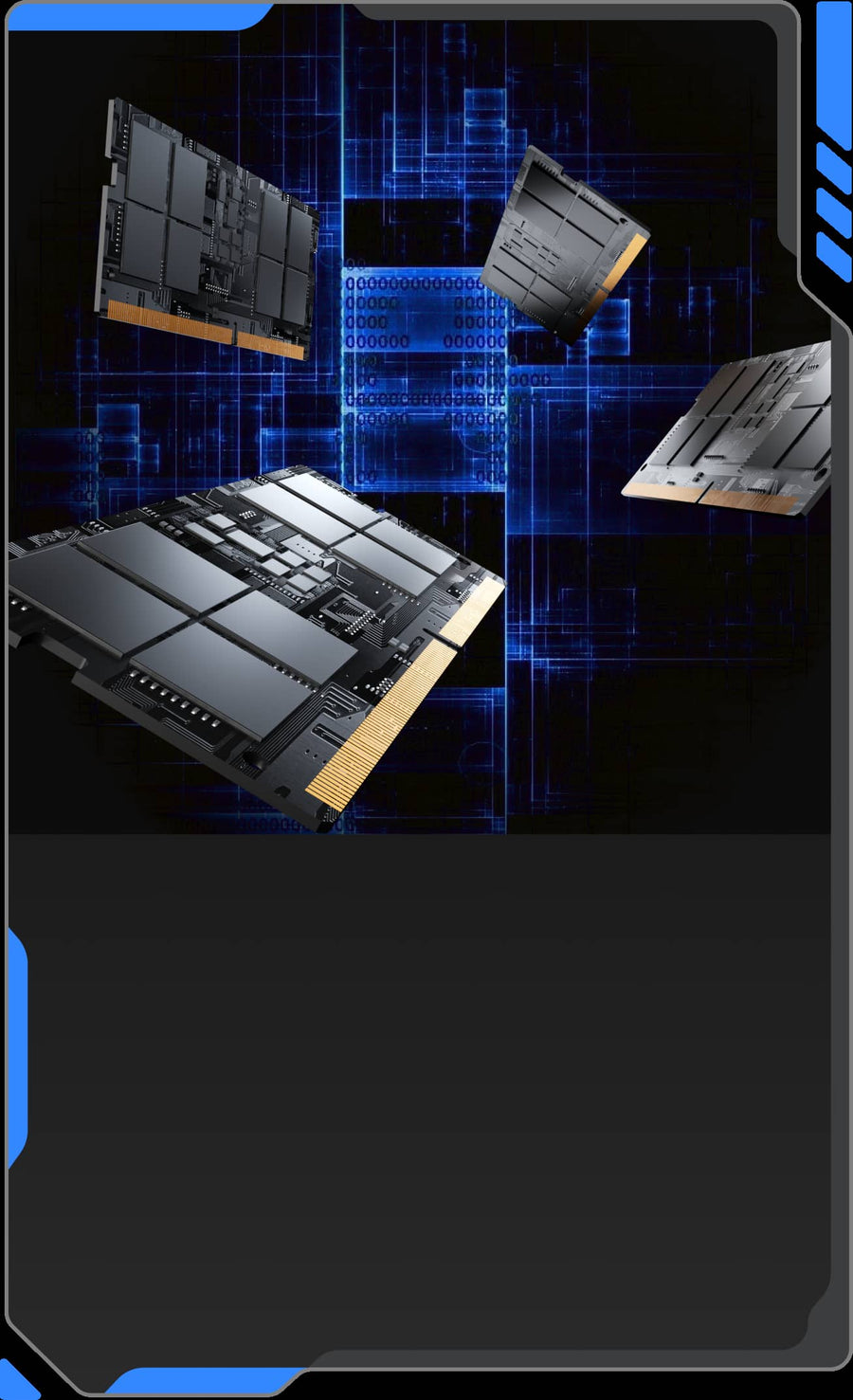

Up to 256 GB DDR5 Memory

Up to 256 GB DDR5 handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability

Scalable RAID Storage Architecture

Supports multi-drive expansion and RAID 0/1/5/10 configurations,combining high-speed throughput with data redundancy for demanding workloads.

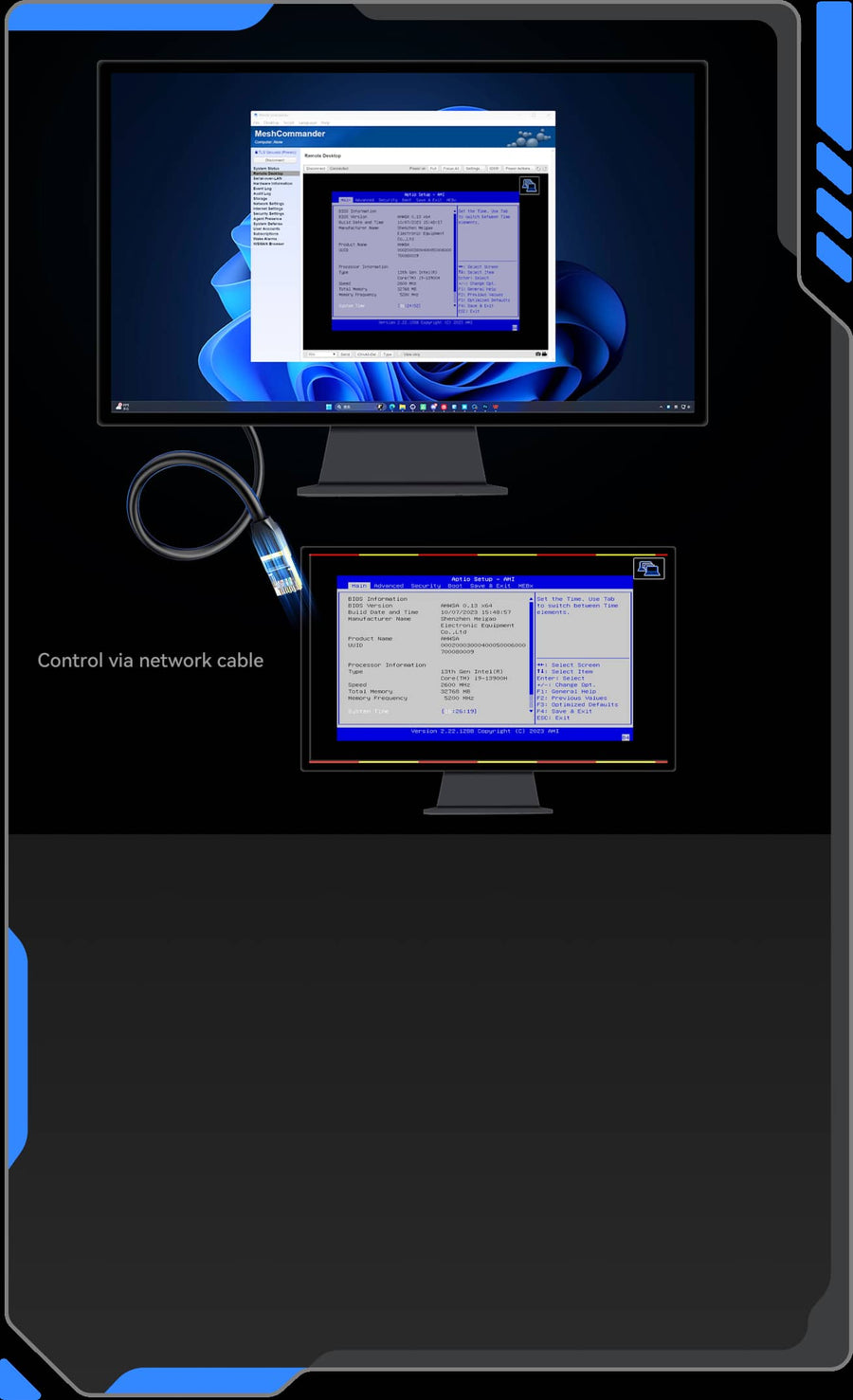

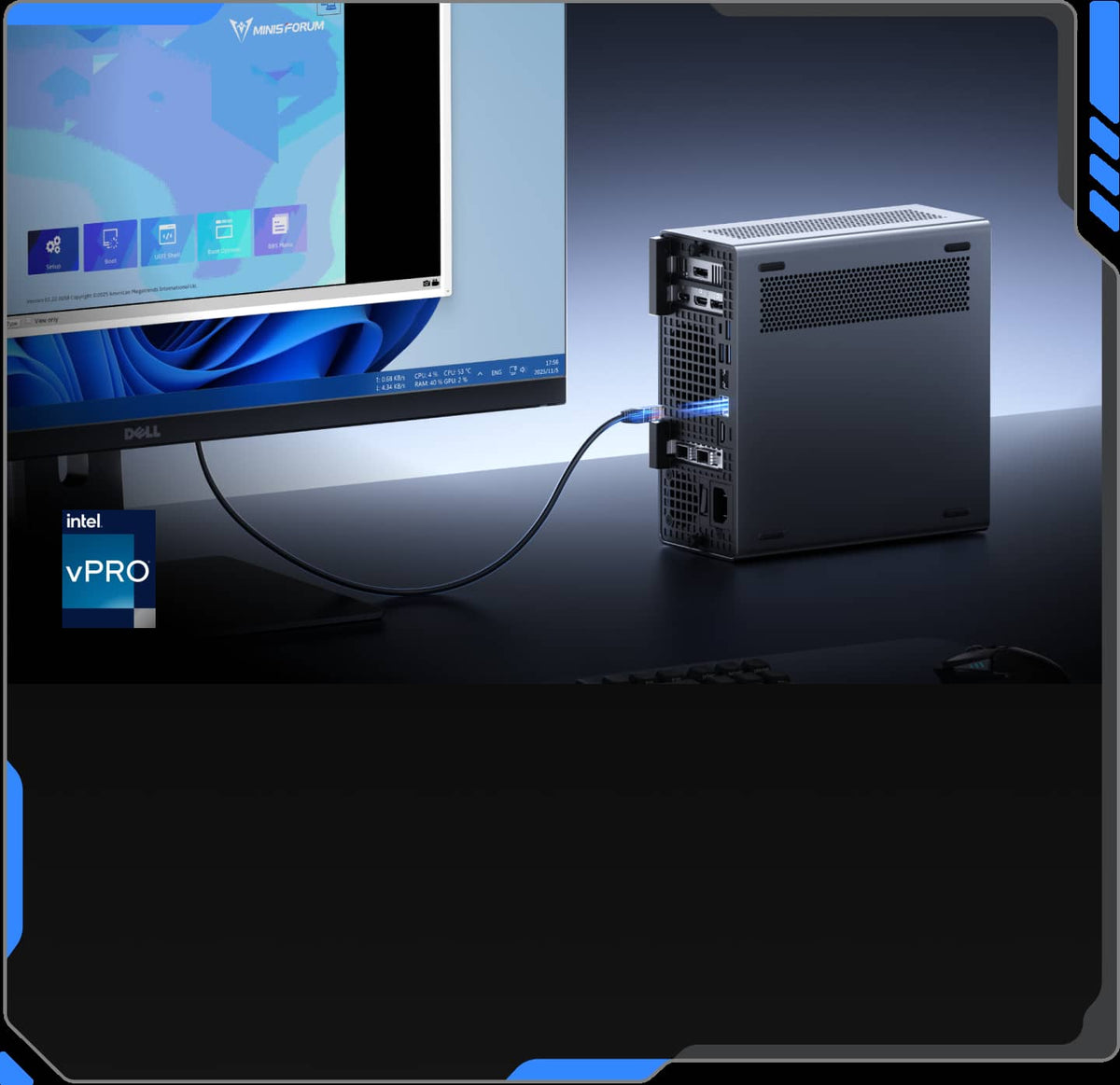

Intel® vPro® Remote Management

Intel® vPro® with BIOS-level KVM enables full remote control and 24/7 uptime.
Certified for industrial-grade reliability under sustained workloads.

Up to 256 GB DDR5 Memory

Up to 256 GB DDR5 handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability

Scalable RAID Storage Architecture

Supports multi-drive expansion and RAID 0/1/5/10 configurations,combining high-speed throughput with data redundancy for demanding workloads.

Intel® vPro® Remote Management

Intel® vPro® with BIOS-level KVM enables full remote control and 24/7 uptime.
Certified for industrial-grade reliability under sustained workloads.

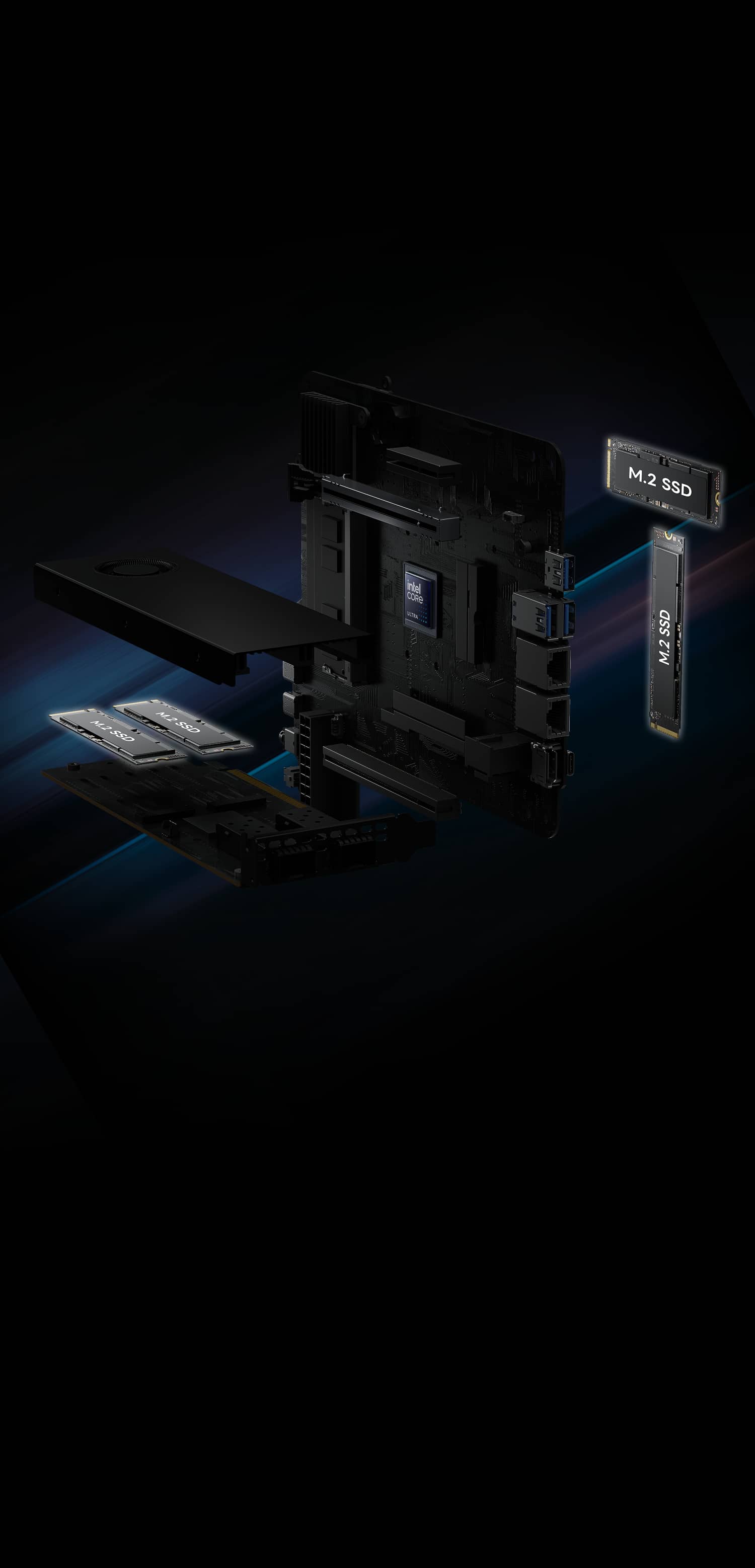

Mini yet Limitless Expansion

Mini yet Limitless Expansion

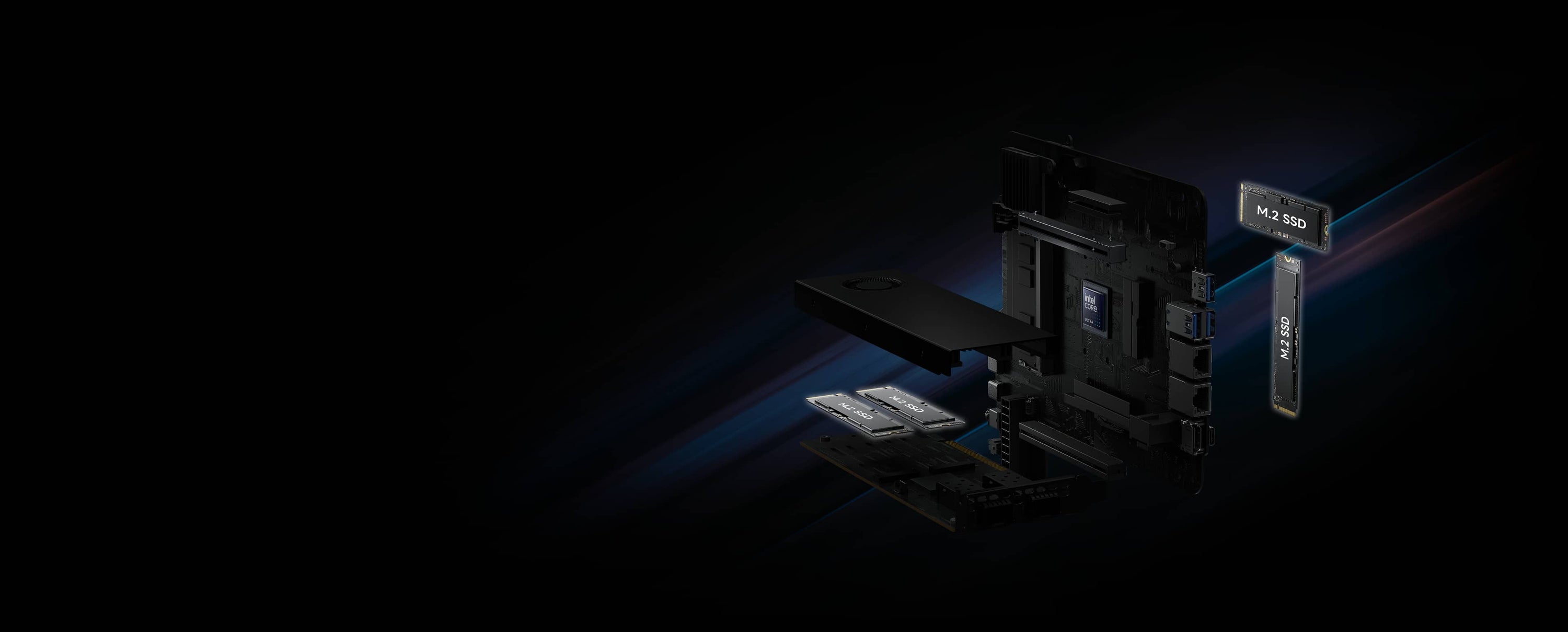

M.2 Storage Slots

4× M.2 2280 slots supporting both PCIe 4.0 ×4 NVMe, expandable up to 24 TB total capacity with RAID 0/1/5/10,enabling independent drives for projects, media, and cache with ultra-fast performance.

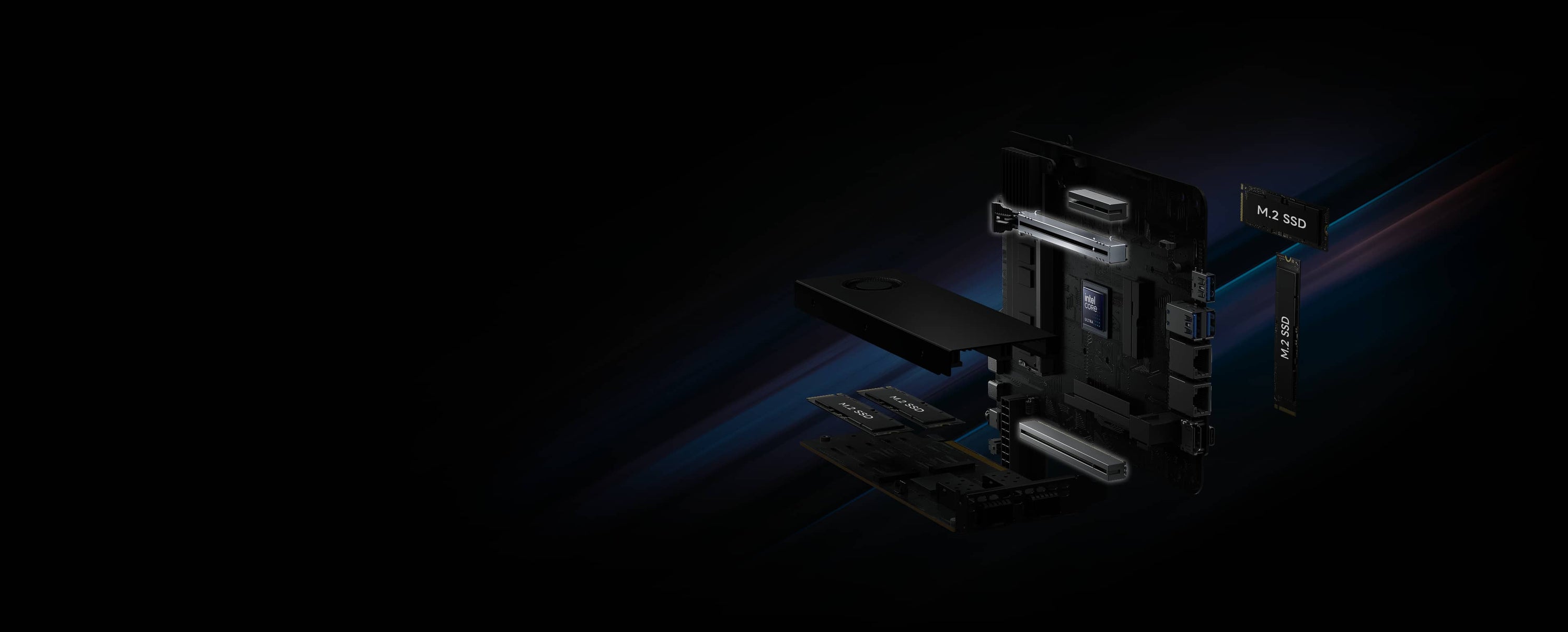

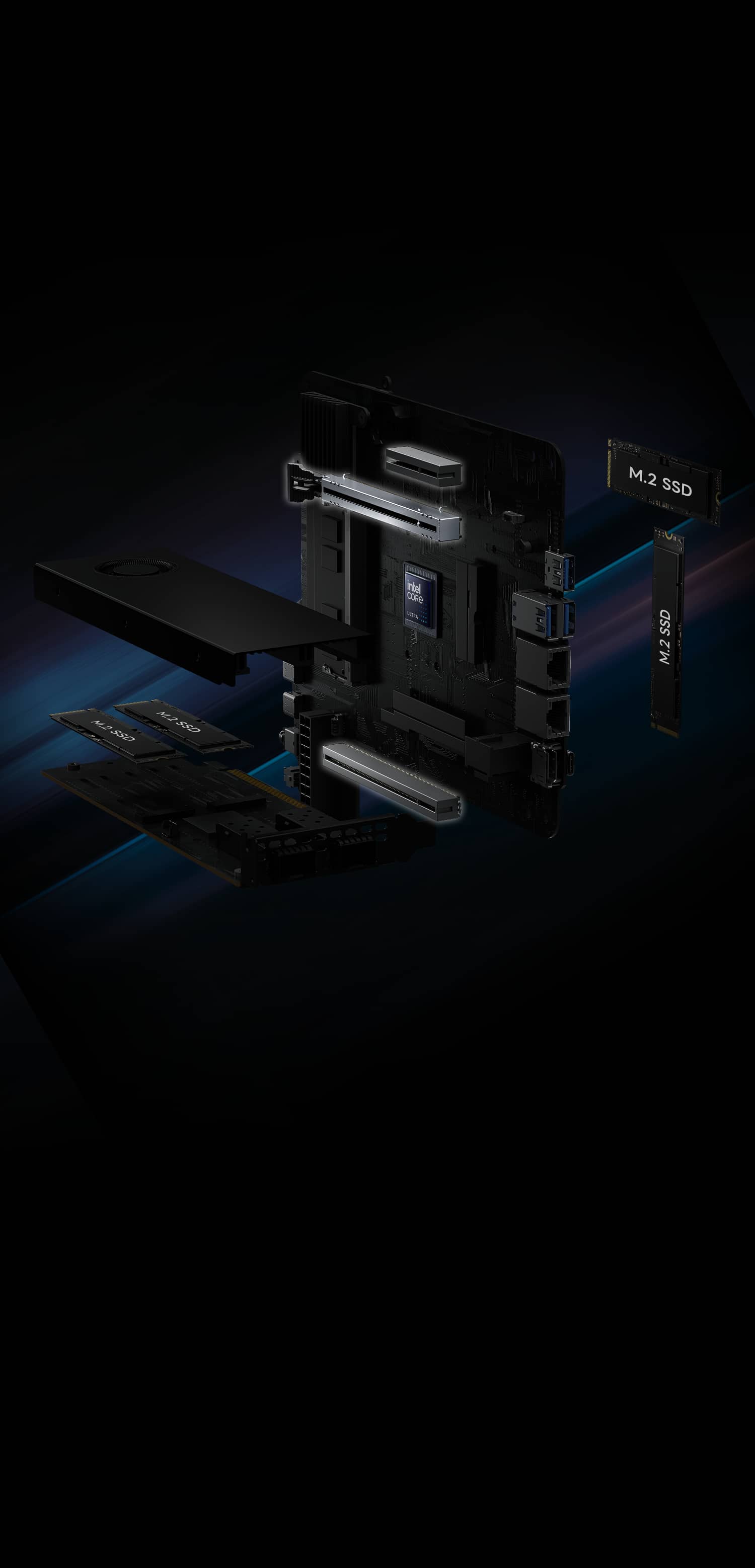

PCIe Expansion

Up to 3 PCIe slots including a ×16 dual-slot GPU,with the primary slot supporting PCIe 5.0 for high-bandwidth creative and computing workloads.

Ultra-Fast Networking
Smart Bandwidth Switching
Adaptive bandwidth switching ensures peak performance across enterprise or local networks. Revolutionizing team collaboration with ultra-low latency for 4K/8K media and AI data workflows.

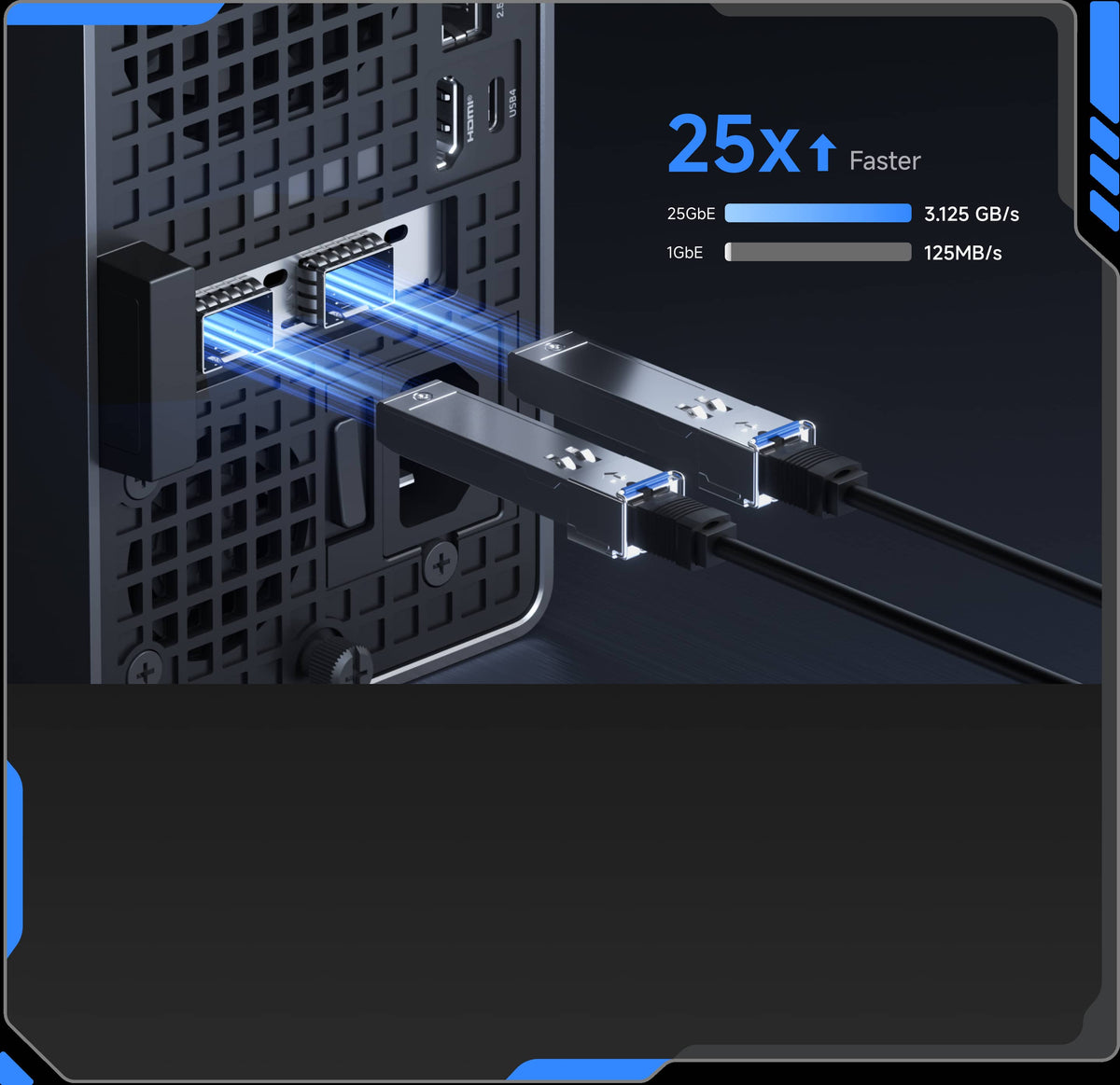

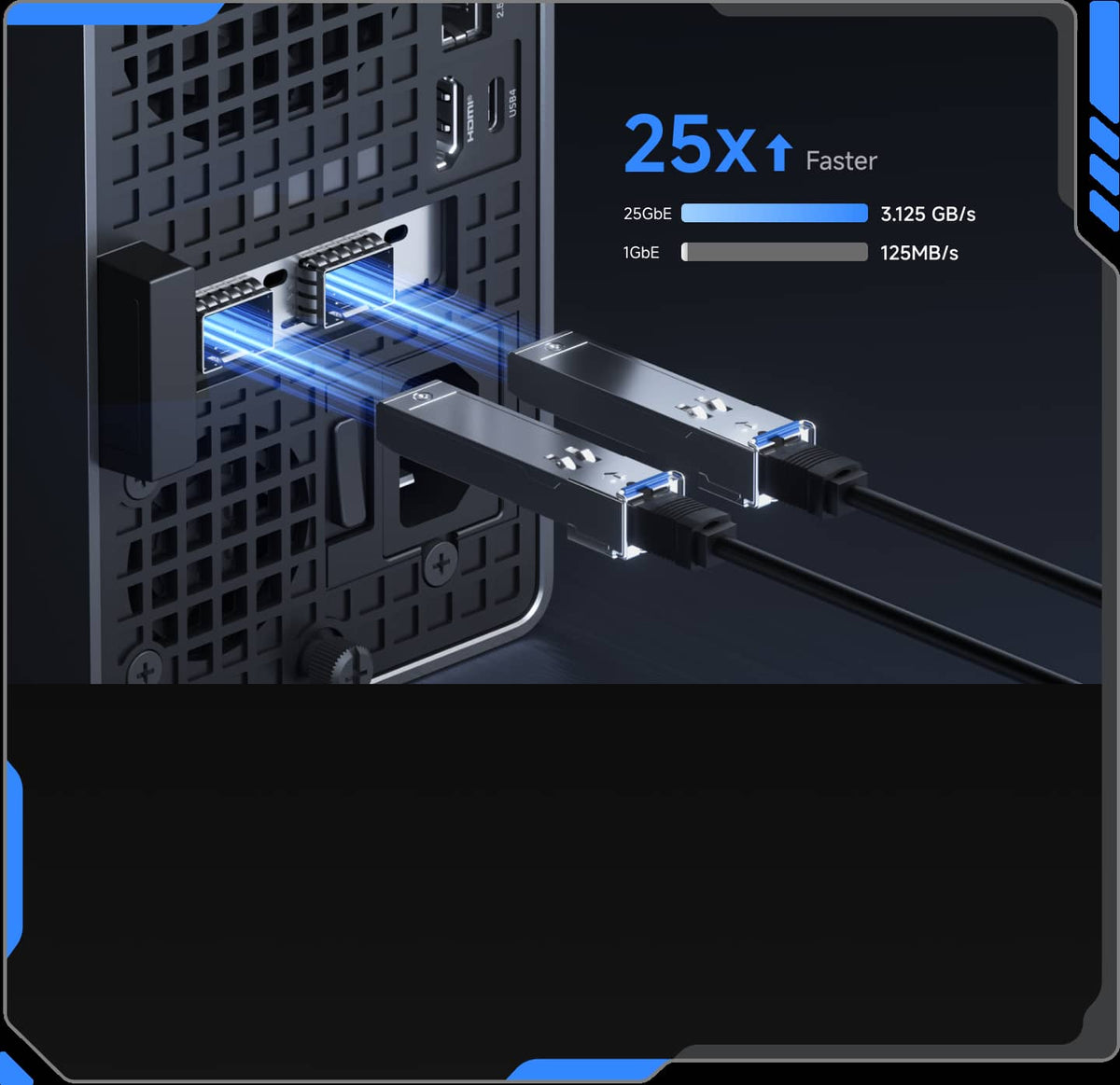

Dual 25GbE ports
Deliver a theoretical peak bandwidth of ~3.125 GB/s, compared to 1 GbE at ~125 MB/s, enabling large-scale data transfer and parallel computing with ease.
Multi-Tier LAN Architecture
10 Gb + 2.5 Gb RJ45 Ports with vPro support for enterprise deployments.

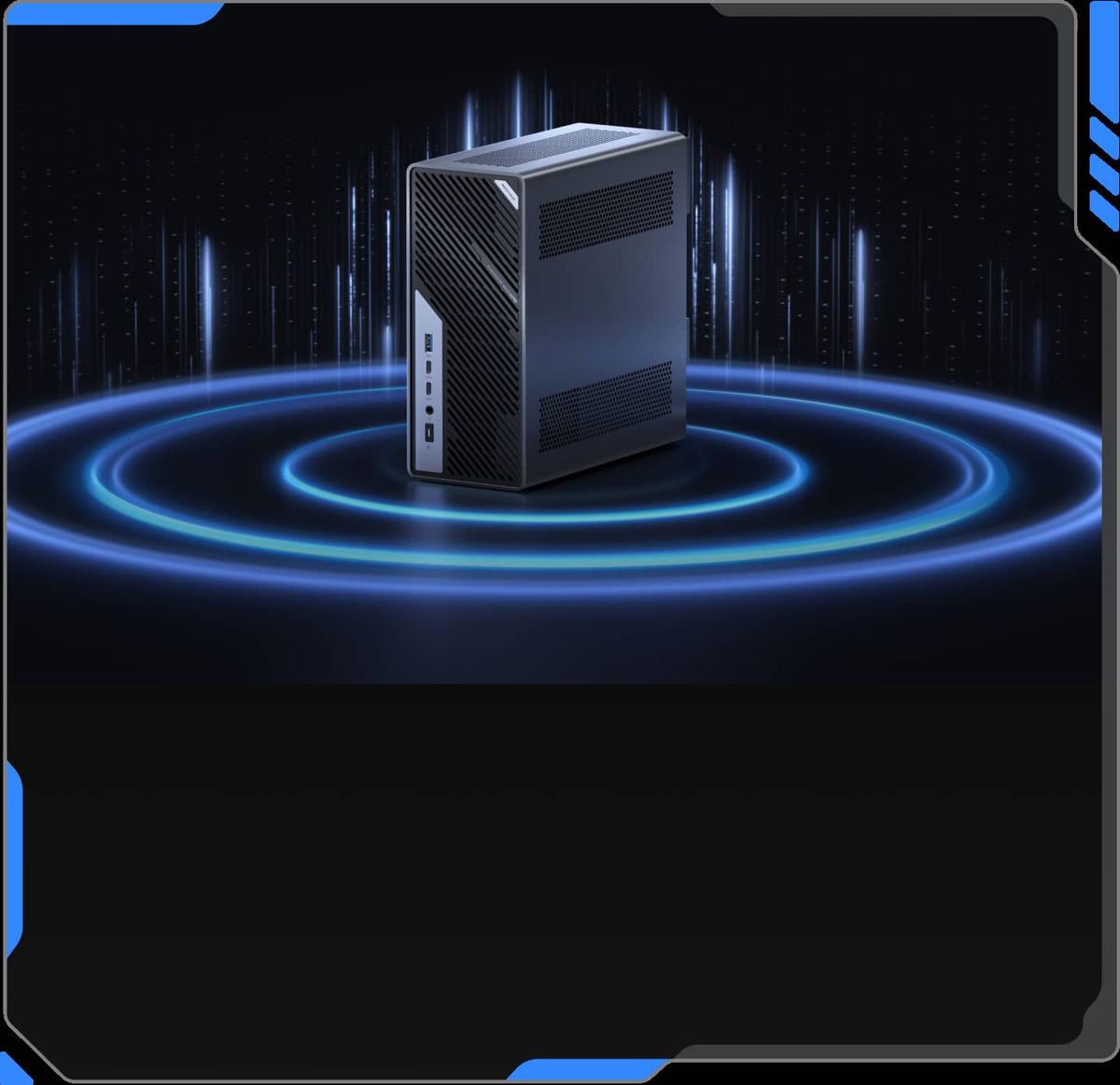

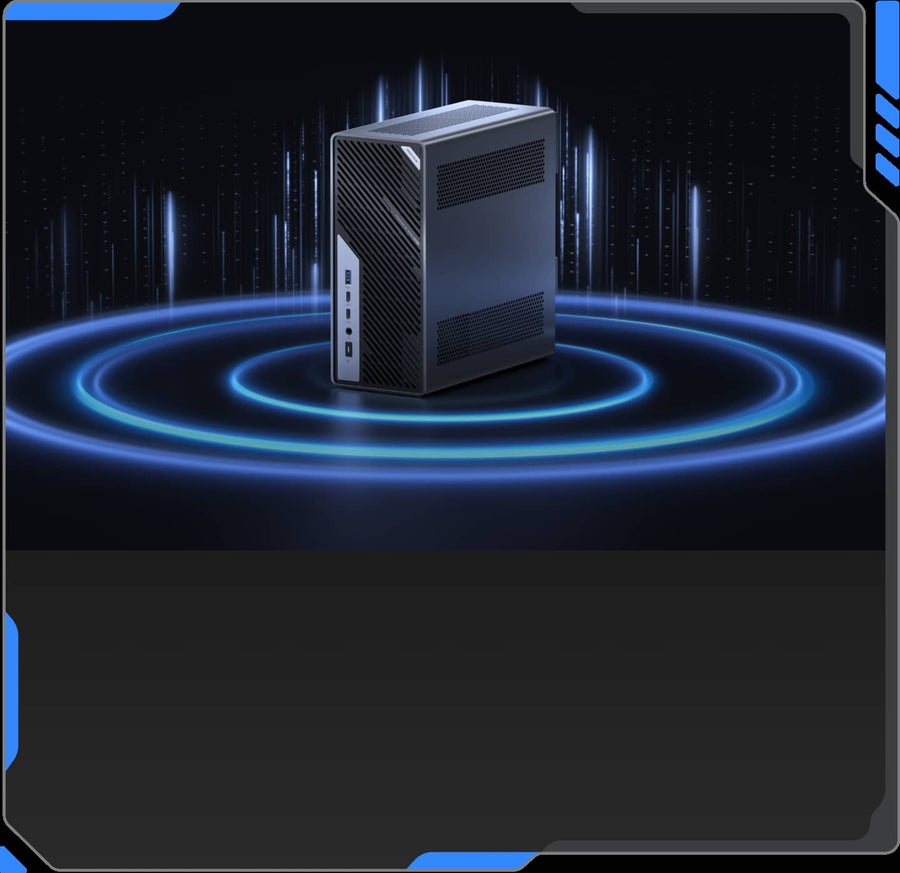

Wi-Fi 7 Connectivity
Wi-Fi 7 (6 GHz Band) delivers next-generation wireless speed and stability.

Efficient CoolingPerformance Unleashed

Efficient CoolingPerformance Unleashed

Server-Grade Airflow Design

Dedicated CPU/GPU airflow channels with a server-grade exhaust layoutensure precise thermal control and sustained system stability.

Efficient & Quiet Cooling

6 heat pipes and dual fans efficiently handle 100W TDP CPU heat, maintaining stable and quiet operation at 36 dB.

Built-in 350 W Power Supply

Integrated 350 W power design delivers reliable and efficient power for sustained performance — easy to deploy and maintain.

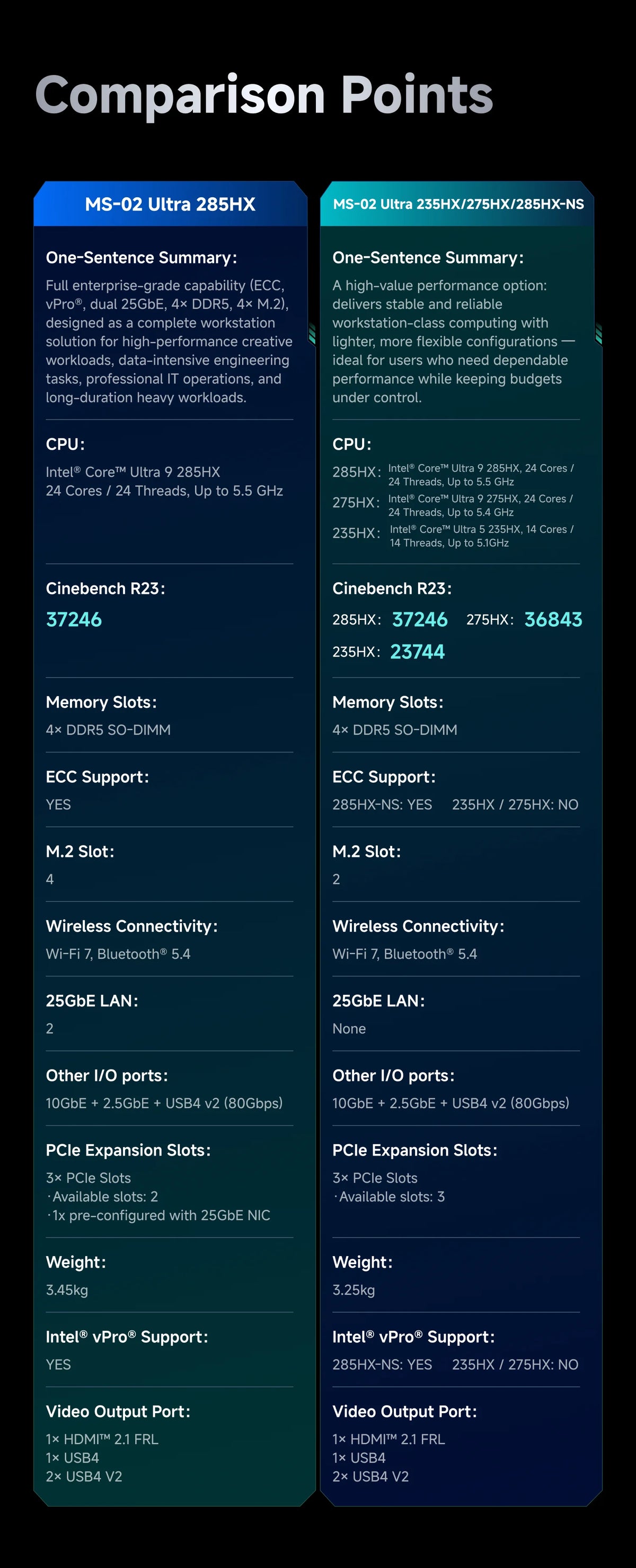

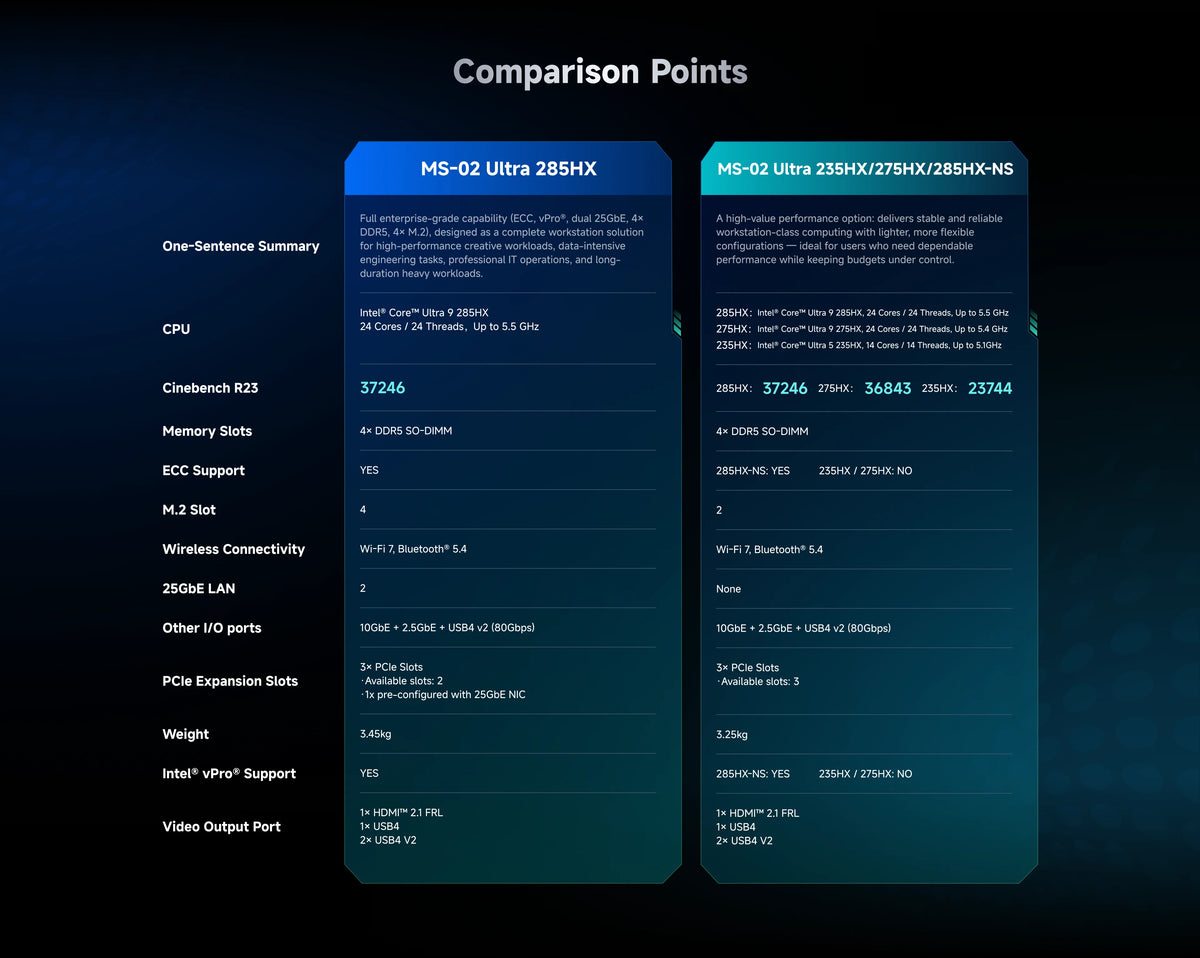

Product comparison

Model

MS-02U-285HX

MS-02U-275HX / 235HX

CPU
  • Intel® Core™ Ultra 9 285HX (24C/24T)
  • Max Turbo Frequency: 5.5 GHz
  • Intel® Core™ Ultra 9 275HX (24C/24T)
  • Intel® Core™Ultra 5 235HX (14C/14T)
TDP
  • 100W PL1 / 140W PL2 (Balance)
  • 90W PL1 / 110W PL2 (With dGPU)
  • 100W PL1 / 140W PL2 (275HX)
  • 80W PL1 / 100W PL2 (235HX)
GPU

Intel® Graphics (Internal)

Intel® Graphics (Internal)

AI Engine Performance

Intel®AI Boost, up to 13 TOPS(NPU TOPS)

Intel® AI Boost, up to 13 TOPS(NPU TOPS)

RAM

4 × DDR5 SO-DIMM slots (ECC supported; XMP overclocking not supported)

4 × DDR5 SO-DIMM slots (non-ECC; XMP overclocking not supported)

SSD
  • 2 × M.2 2280 NVMe SSD slots (PCIe 4.0 x4 , Up to 8TB each)
  • 2 × M.2 2280 NVMe SSD slots (integrated on the 25GbE NIC; up to 8 TB/slot PCIe 3.0 ×4 or 4 TB/slot PCIe 4.0 ×4)

2 x M.2 2280 (PCIe 4.0 x4 NVMe) | Up to 8TB each

Heat Dissipation
  • Six-heatpipe radiator with Phase Change Material (PCM)
  • Dual Fans: 1 x 70x25mm + 1 x 60x20mm
  • Max Fan Speed: 5000 RPM
  • Six-heatpipe radiator with Phase Change Material (PCM)
  • Dual Fans: 1 x 70x25mm + 1 x 60x20mm
  • Max Fan Speed: 5000 RPM
Wireless Connectivity

Wi-Fi 7 & Bluetooth® 5.4 (Module:Intel® BE200)

Wi-Fi 7 & Bluetooth® 5.4 (Module:Intel®BE200)

Ethernet Controller
  • 1 × 10 GbE LAN RJ45
  • 1 × 2.5 GbE LAN RJ45
  • 1 × 10 GbE LAN RJ45
  • 1 × 2.5 GbE LAN RJ45
Video Output
  • ​1 x HDMI™ 2.1 FRL​ (8K@60Hz, 4K@120Hz)
  • ​1 x USB4 with DP Alt Mode​ (8K@60Hz, 4K@120Hz)
  • 2 x USB4 V2 with DP Alt Mode ​(8K@60Hz, 4K@120Hz)
  • ​1 x HDMI™ 2.1 FRL​ (8K@60Hz, 4K@120Hz)
  • ​1 x USB4 with DP Alt Mode​ (8K@60Hz, 4K@120Hz)
  • ​2 x USB4 V2 with DP Alt Mode​ (8K@60Hz, 4K@120Hz)
Audio Output
  • 1 х HDMI™
  • 1 х USB4
  • 2 х USB4 V2
  • 1 х 3.5mm Audio Jack
  • 1 х HDMI™
  • 1 х USB4
  • 2 х USB4 V2
  • 1 х 3.5mm Audio Jack
Audio Input

3.5mm Combo Jack(TRRS) х1

3.5mmCombo Jack(TRRS) х1

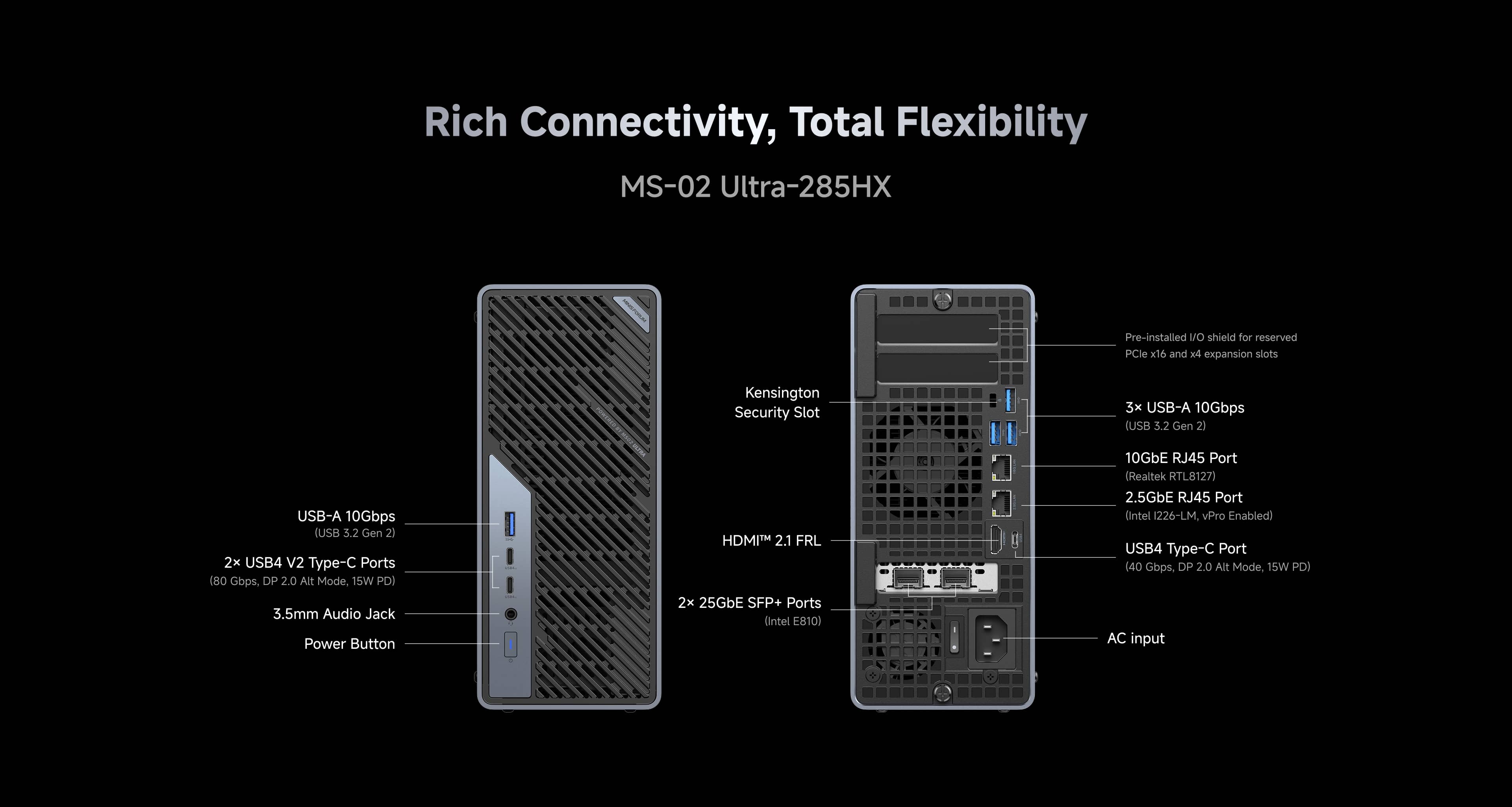

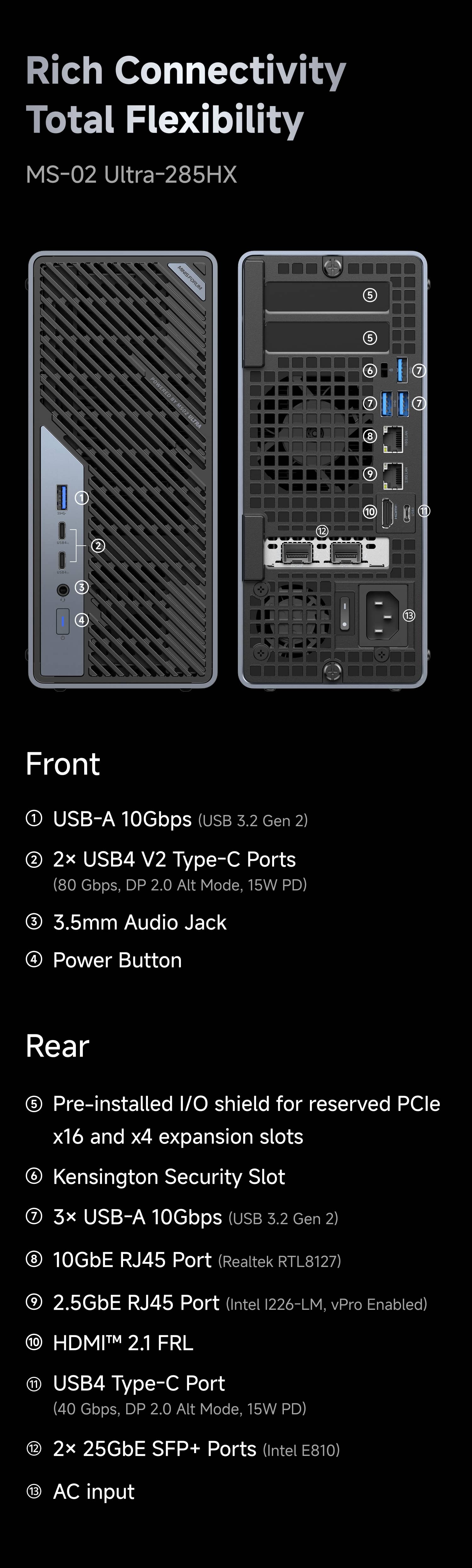

I/O Ports (Front)
  • 1 x 10GbE RJ45 Port (Realtek RTL8127)
  • 1 x 2.5GbE RJ45 Port (Intel I226-LM, vPro Enabled)
  • 1 × HDMI™ 2.1 FRL​
  • 1 x USB4 Type-C Port​(40 Gbps, DP 2.0 Alt Mode, 15W PD)
  • 3 x USB-A 10Gbps(USB 3.2 Gen 2)
  • 1 x 10GbE RJ45 Port (Realtek RTL8127)
  • 1 x 2.5GbE RJ45 Port (Intel I226-LM, vPro Enabled)
  • 1 × HDMI™ 2.1 FRL​1 x USB4 Type-C Port​(40 Gbps, DP 2.0 Alt Mode, 15W PD)
  • 3 x USB-A 10Gbps (USB 3.2 Gen 2)
I/O Ports (Rear)
  • ​2 x USB4 V2 Type-C Ports​(80 Gbps, DP 2.0 Alt Mode, 15W PD)​
  • 1 x USB 10Gbps Type-A Port​(USB 3.2 Gen 2)​
  • 1 x 3.5mm Audio Jack​​
  • 1 x Power Button
  • ​2 x USB4 V2 Type-C Ports​ (80 Gbps, DP 2.0 Alt Mode, 15W PD)​
  • 1 x USB 10Gbps Type-A Port​ (USB 3.2 Gen 2)​
  • 1 x 3.5mm Audio Jack​​
  • 1 x Power Button
I/O Ports (Internal)
  • 1 × PCIe​5.0 x16 Slot (bifurcation support )
  • 1 × PCIe​4.0 x16 Slot​(PCIe​4.0 x4+x4+x4)​
  • 1 × PCIe​4.0 x4 Slot
  • 1 × PCIe​5.0 x16 Slot (bifurcation support)
  • 1 × PCIe​4.0 x16 Slot ​(PCIe​4.0 x4+x4+x4)
  • ​1 × PCIe​4.0 x4 Slot
OS Support

Windows 11 Pro

Windows 11 Pro

Power

AC input (100-240V ~6A 50-60Hz, 1U 350W MAX)

AC input (100-240V ~6A 50-60Hz, 1U 350W MAX)
