Minisforum TL50/TH50/TH60/TH80 Refurbished
| Model | TH50 | TH60 | TH80 |
| Processor |
Intel® Core™ i5-11320H Processor 4 Cores/8 Threads(8M Cache, up to 4.50 GHz) |
Intel® Core™ i5-11400H Processor 6 Cores/12 Threads(12M Cache, up to 4.50 GHz) |
AMD Ryzen™ 9 4900H , 8 Cores/16 Threads (Total L2 Cache 4MB , Total L3 Cache 8MB , Base Clock 3.3 GHz , up to 4.4 GHz) |
| GPU | Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.35 GHz) | Intel® UHD Graphics for 11th Gen Intel® Processors (Graphics Frequency 1.45 GHz) | AMD Radeon™ Graphics (Graphics Frequency 1750 MHz) |

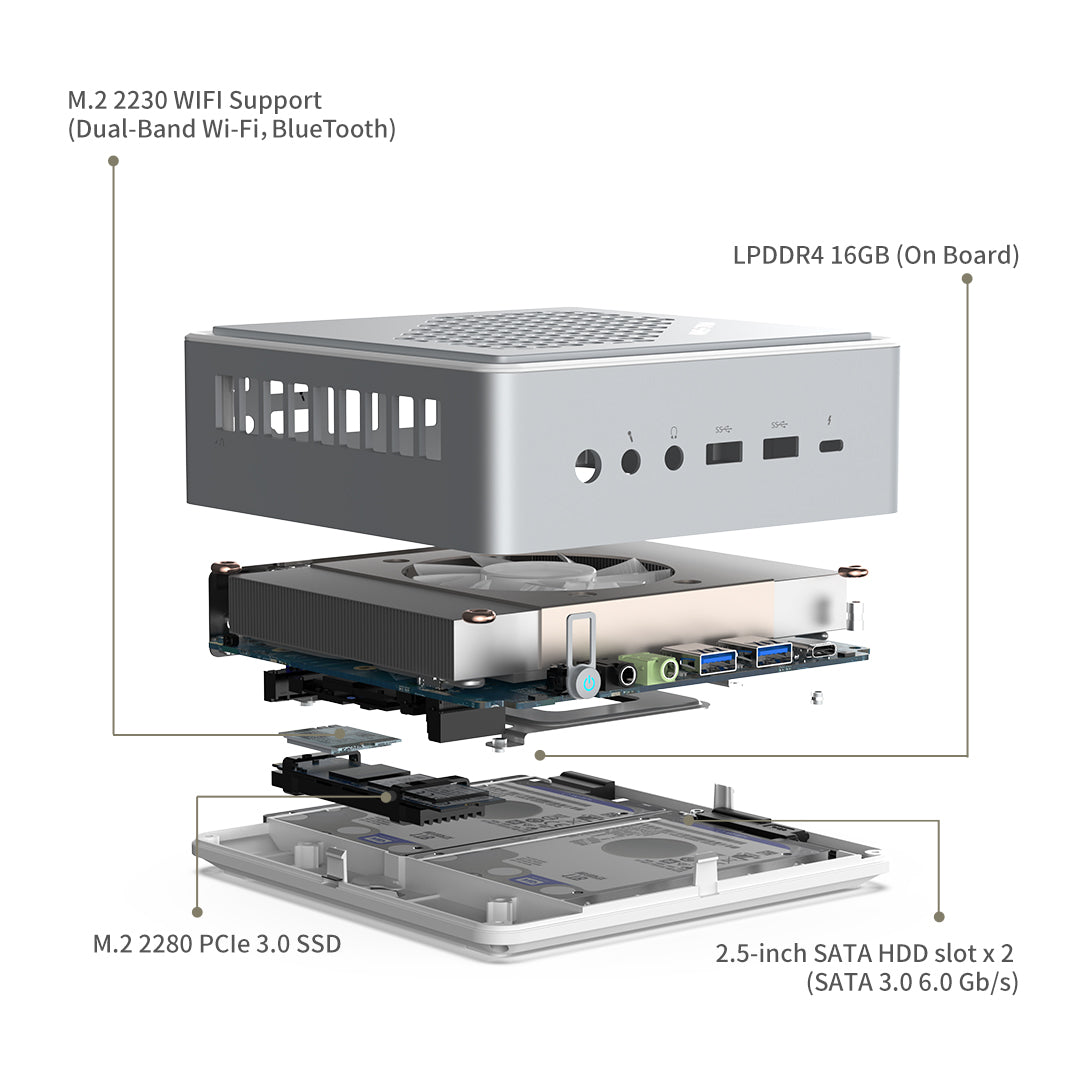

| Memory | LPDDR4 16GB (On Board) | DDR4 Dual channel (SODIMM Slots×2 ,up to 64GB) | DDR4 8GB×2 Dual channel (SODIMM Slots×2) |
| Storage | M.2 2280 128GB PCIe SSD | M.2 2280 NVMe PCIe3.0 SSD(up to 2TB) | M.2 2280 256GB PCIe SSD |
| Storage Expansion | 2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s) | M.2 2280 NVMe PCIe4.0 Slot | 2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s) |
| Wireless Connectivity | M.2 2230 WIFI Support (Dual-Band Wi-Fi, BlueTooth) | M.2 2230 WIFI Support (Wi-Fi, BlueTooth) | M.2 2230 WIFI Support (Dual-Band Wi-Fi，BlueTooth) |
| Video Output |

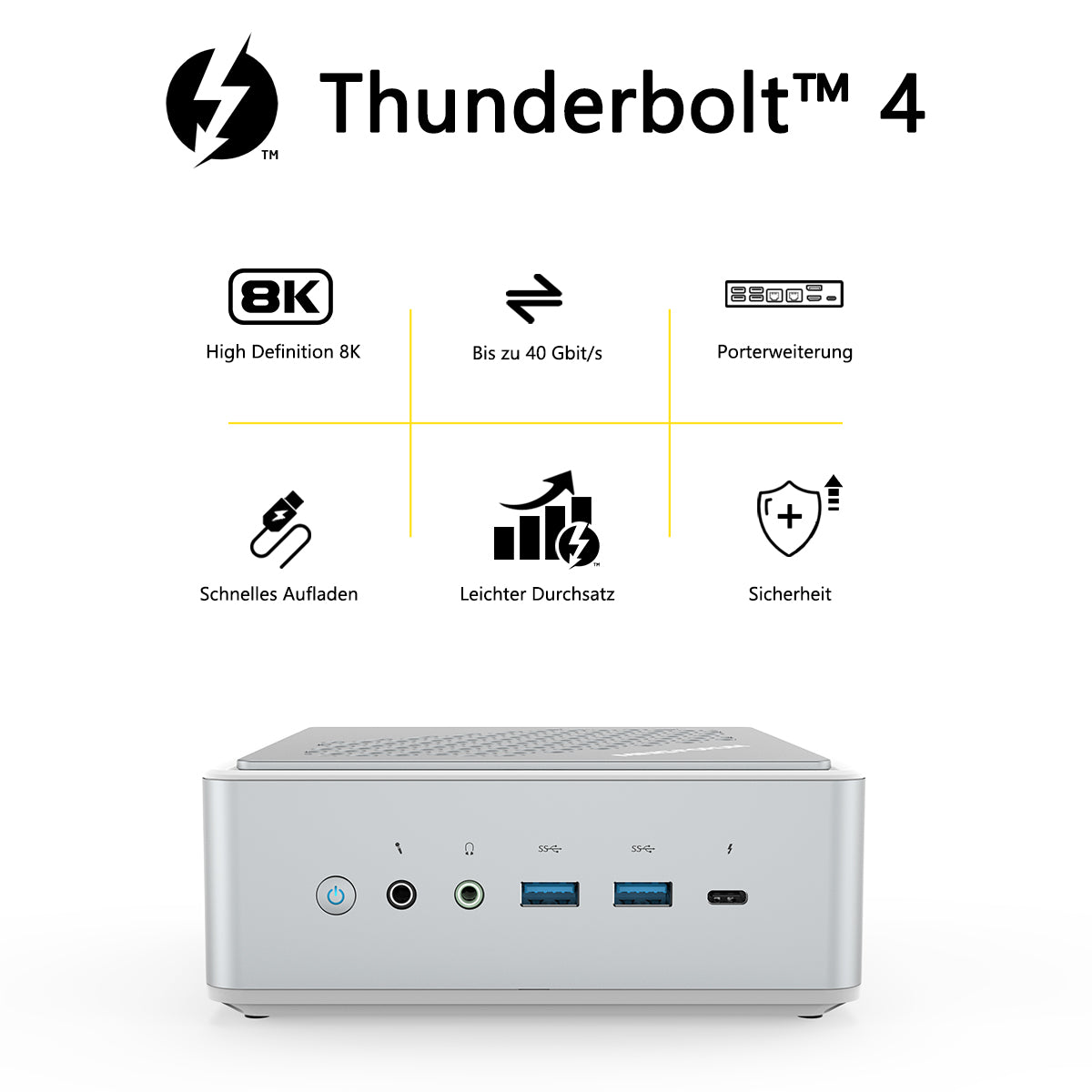

① HDMI (4K@60Hz) ② DisplayPort(8K@60Hz) ③ Thunderbolt 4 (8K@60Hz, In Front) |
① HDMI (4K@60Hz) ② DisplayPort(4K@60Hz) ③ USB Type-C(4K@60Hz, In Front) |
① 1000Mbps LAN ② 2500Mbps LAN |
| Audio Output |
① HDMI ② DisplayPort ③ 3.5mm Audio Jack(Green) |
① HDMI ② DisplayPort ③ 3.5mm comboJack |
① HDMI (4K@60Hz) ② DisplayPort(4K@60Hz) ③ USB-C Port(4K@60Hz , In Front) |

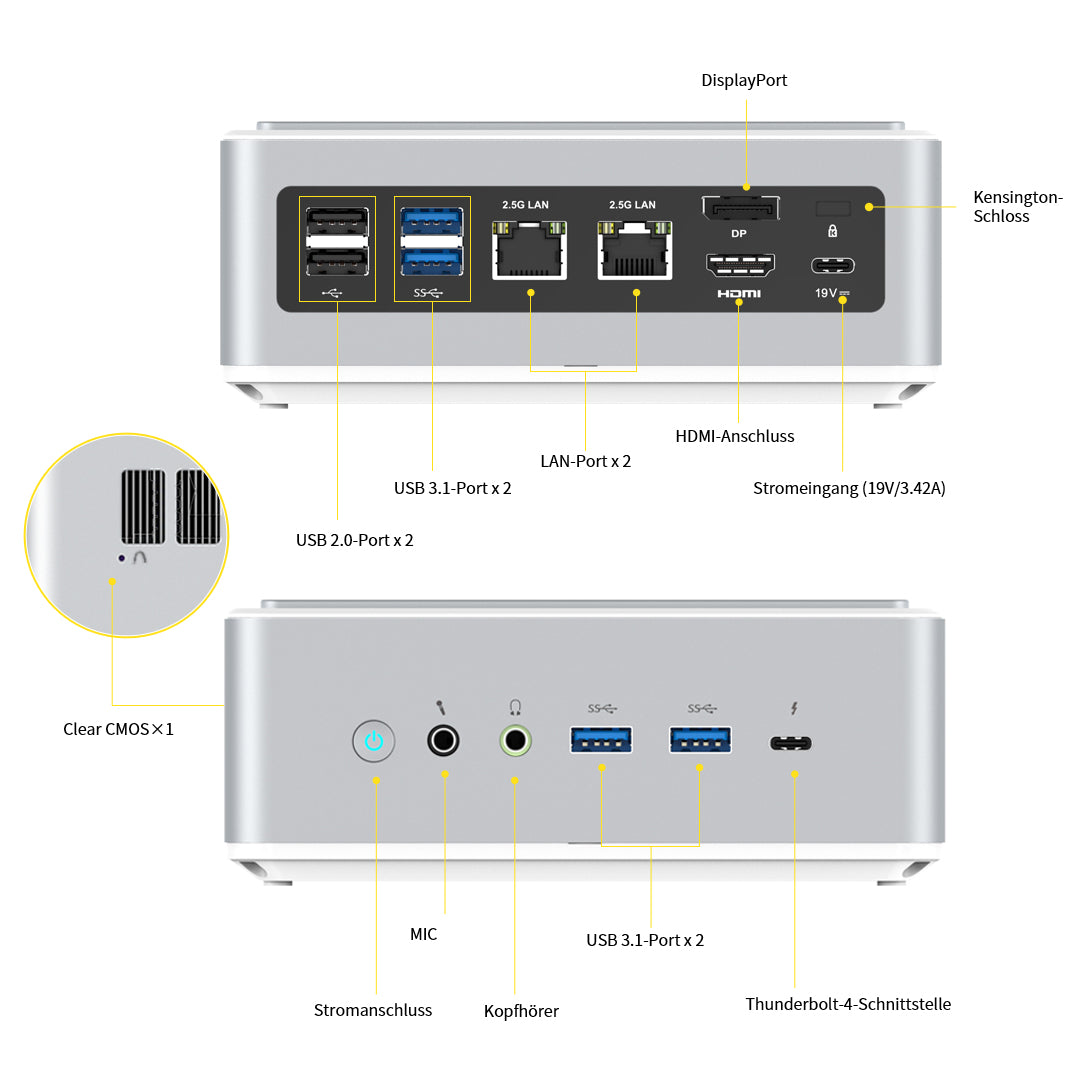

| Peripherals Interface |
RJ45 2.5 Gigabit Ethernet Port ×2 USB 2.0 Port ×2(Left Side Of The Back) USB 3.1 Port ×4(Gen2) Clear CMOS ×1 |
RJ45 2.5 Gigabit Ethernet Port ×1 USB3.2 Gen2 Type-A Port ×5 USB Type-C ×1 HDMI ×1 DisplayPort ×1 Clear CMOS ×1 MIC IN Jack ×1 Headphone Jack ×1 3.5mm combo Jack ×1 |
RJ45 Gigabit Ethernet Port×1 RJ45 2.5 Gigabit Ethernet Port×1 USB 3.0 Port×4(The Back) USB 3.1 Port×2(Gen2, In Front) Clear CMOS ×1 COM PIN ×1(internal) |
| Power | DC 19V (Adapter Included) , via USB-C(Power Port) | DC 19V (Adapter Included) | DC 19V(adapter included) , via USB-C(power port) |
| System | Windows 11 Pro | Windows 11 Pro | Windows 11 Pro |
