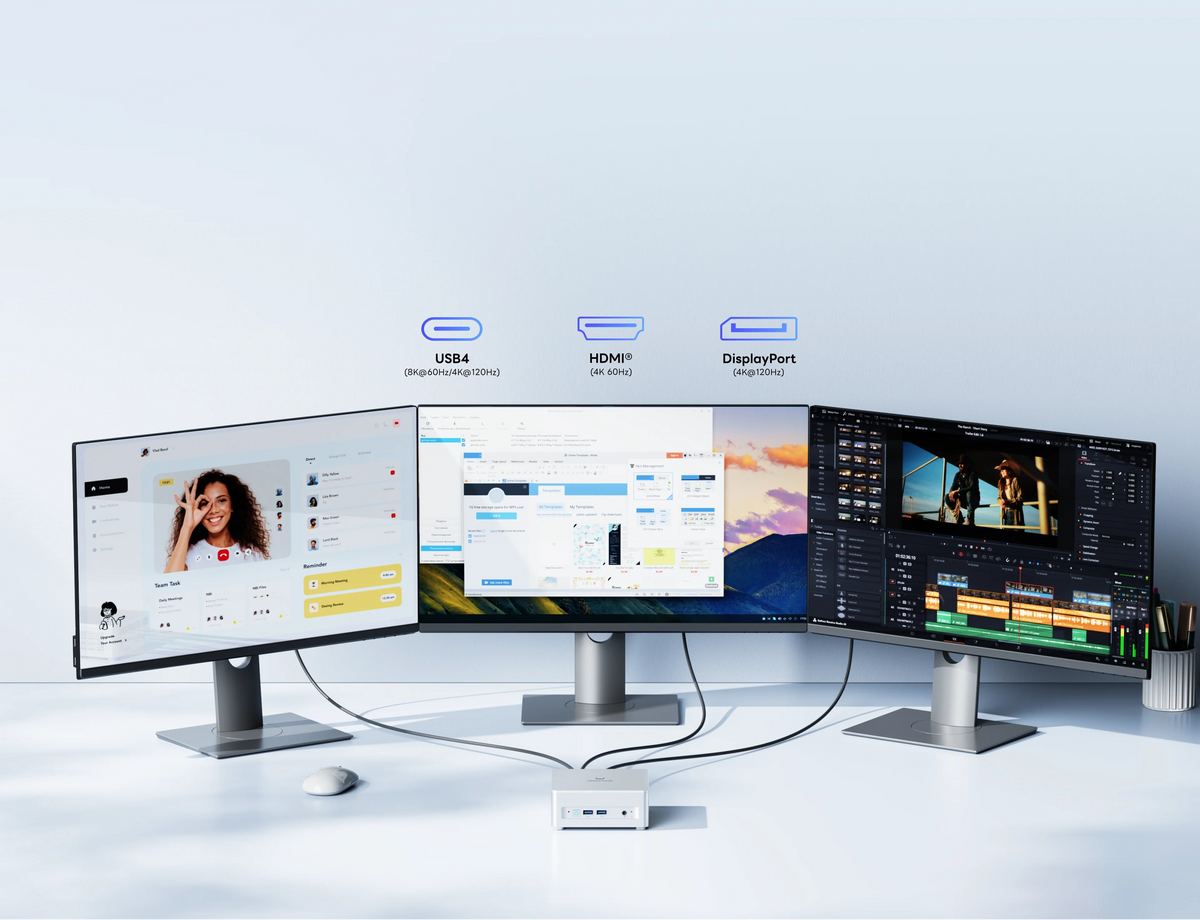

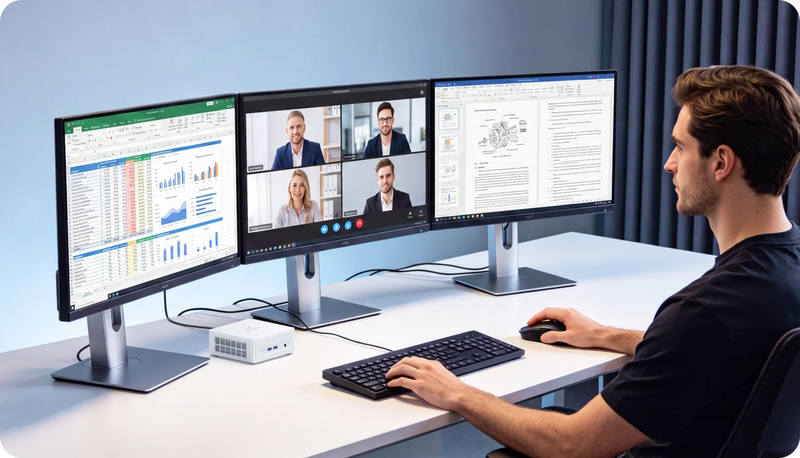

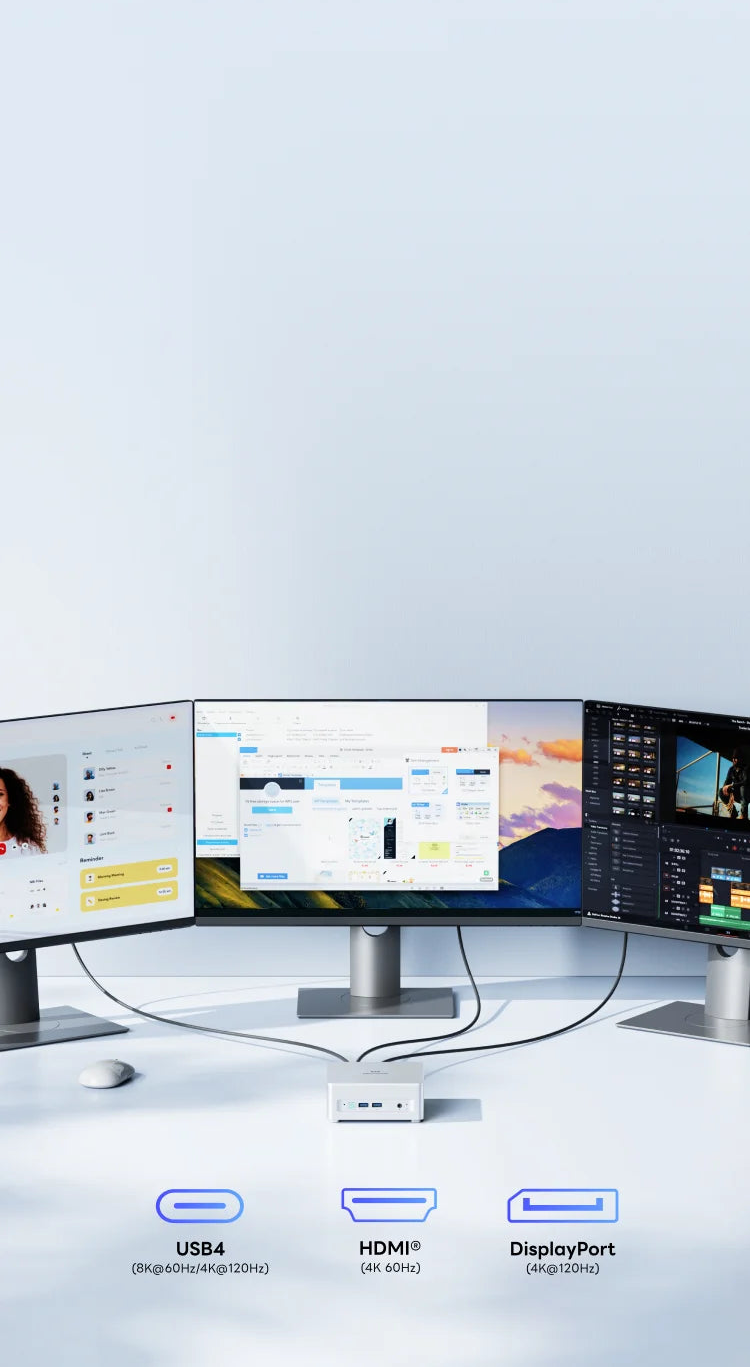

Spread spreadsheets, meetings, reference materials and dashboards across up to three displays. Ryzen 7 processing keeps applications responsive, while HDMI, DisplayPort and USB4 build a productive workspace without the bulk of a traditional tower. All three outputs run independently, so no dock sits in between — and the DisplayPort output carries 4K at 120Hz.
Switch from work to esports, indie titles and selected AAA games at 1080p. Radeon 780M graphics draw on high-bandwidth LPDDR5X memory to deliver stronger integrated gaming performance without adding a discrete GPU. Light Content Creation
Edit photos, cut short-form video, build presentations and manage everyday design work. Hardware AV1 encode and decode keeps exports and streams on dedicated silicon. The 8-core processor, Radeon 780M graphics and LPDDR5X-7500 memory help previews, filters and exports move faster.
Set it beside a monitor, under a TV or behind a display. Its compact footprint, Wi-Fi 6E connectivity, wall-mount support and adjustable performance profiles make it easy to use in bedrooms, study spaces and shared living areas. At 26 dB idle it sits below the noise floor of most rooms, so it can stay on overnight without anyone noticing.

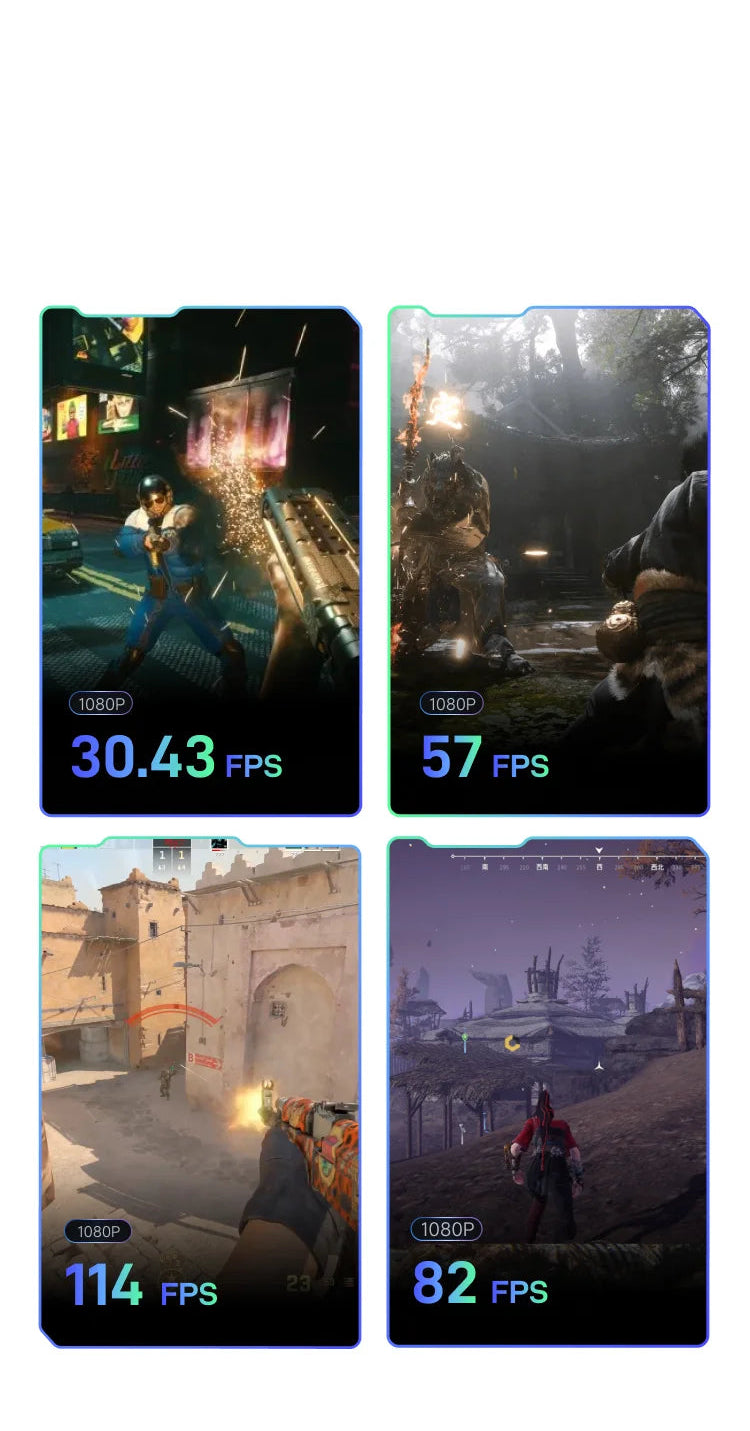

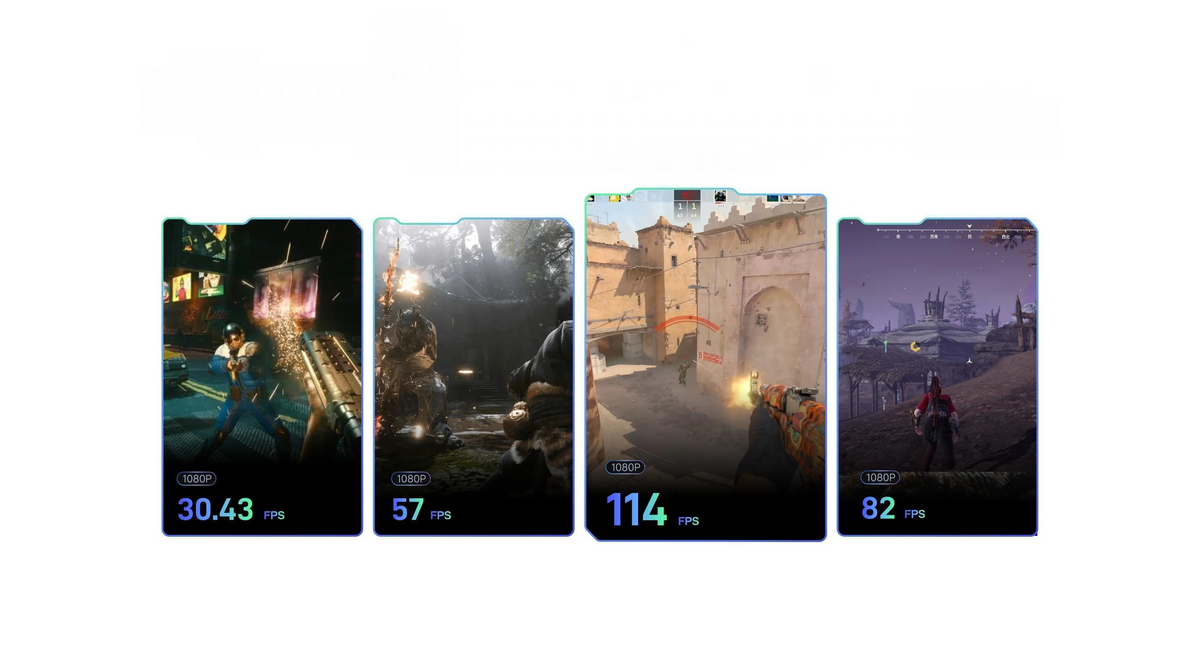

Create, stream and play without adding a discrete GPU. Internal testing reached 114 FPS in CS2 and 82 FPS in NARAKA: BLADEPOINT at 1080p Low.
AI Power, Built In
LPDDR5X
Max Speed Support

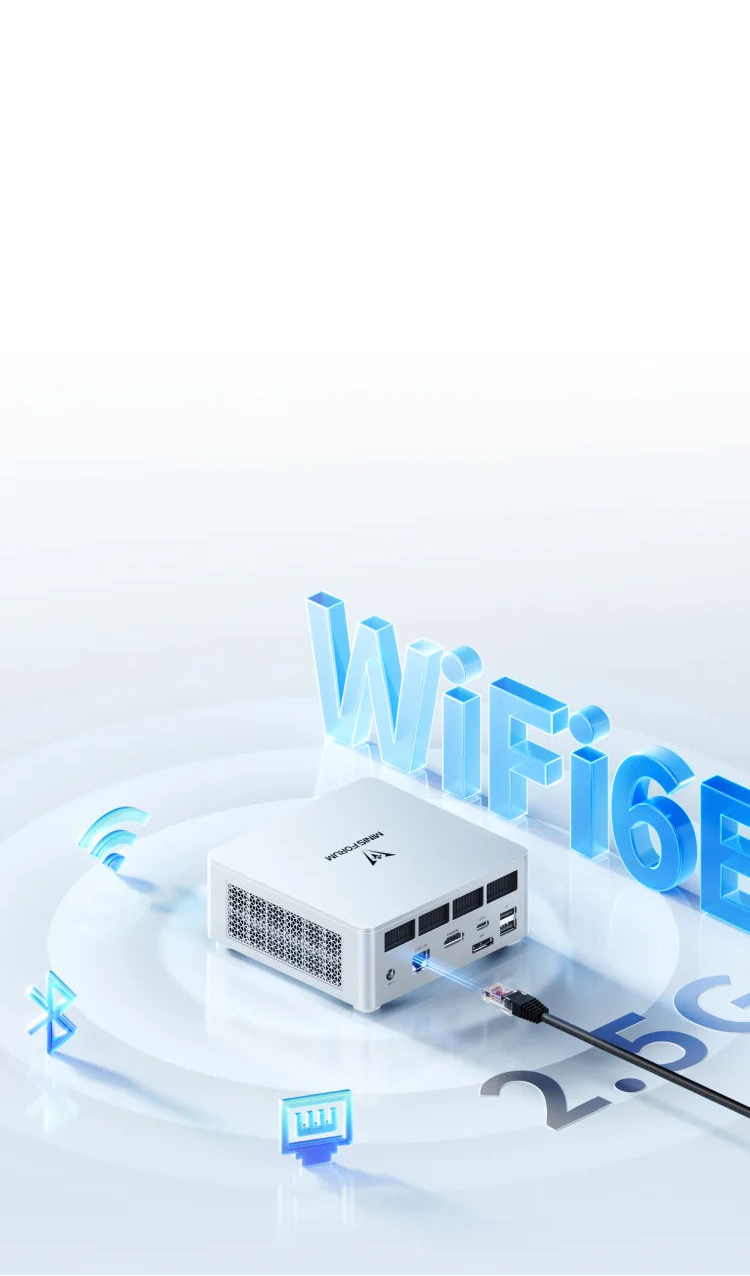

A 2.5G Ethernet connection offers up to 2.5 times the link rate of standard Gigabit Ethernet. Move large files from a NAS, sync projects, download games and stream high-bitrate content faster, then switch to Wi-Fi 6E when the cable needs to disappear.
Connect More Without Building Around a Dock.

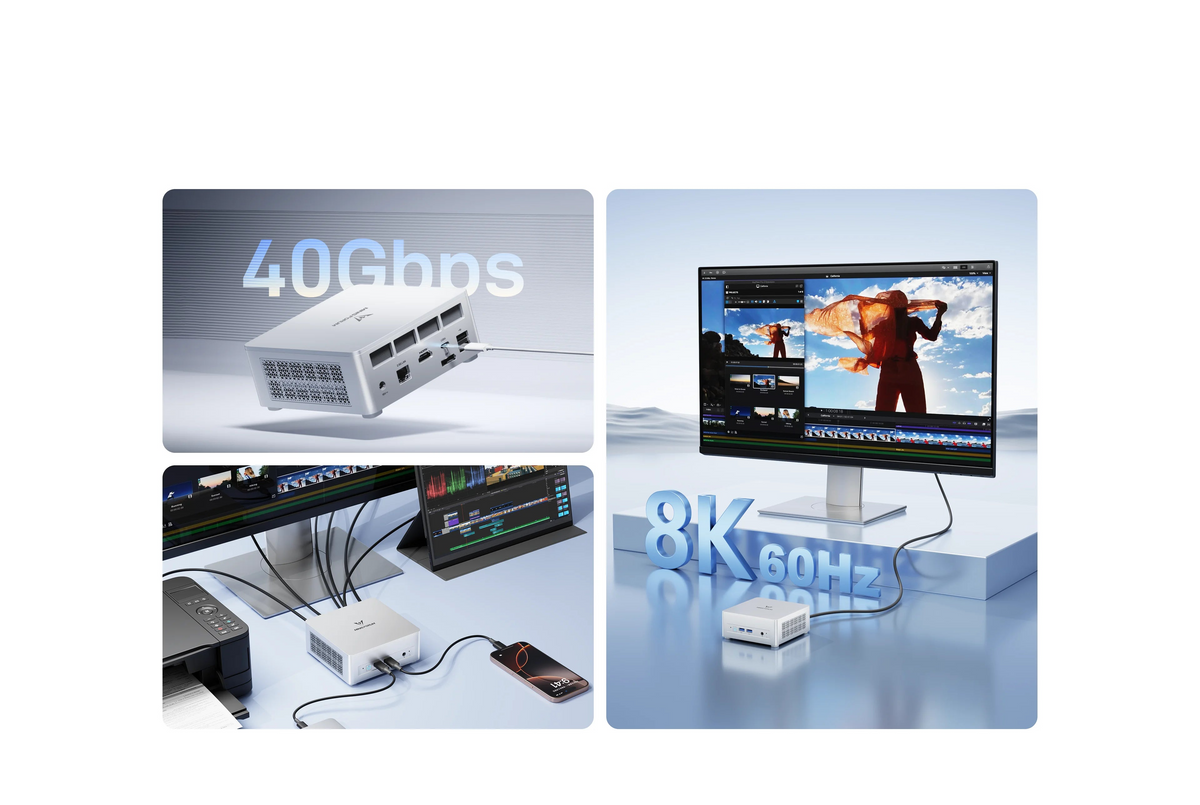

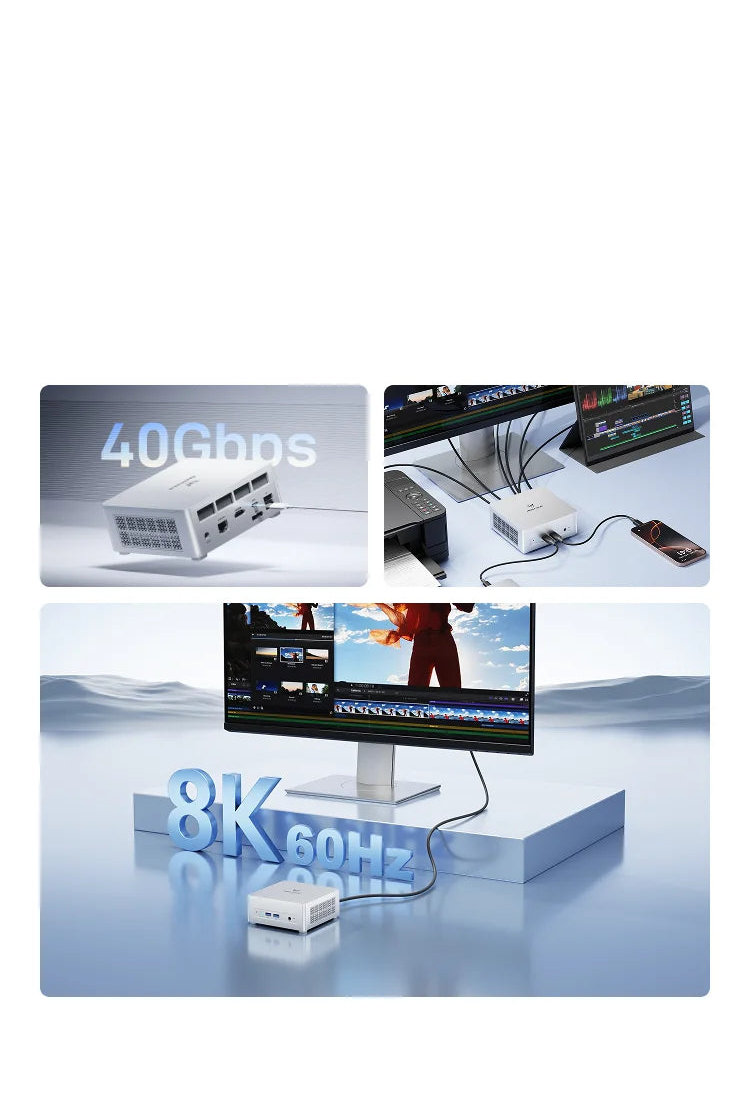

USB4 delivers four times the theoretical bandwidth of a 10Gbps USB connection, with high-speed data, display output and compatible power functions in one port. Connect up to three screens and give timelines, previews, meetings and reference material their own space.
High-speed ports stay within reach at the front, while display, network and permanent peripherals connect neatly at the rear. USB4 supports output up to 8K 60Hz or 4K 120Hz for compatible displays.
2 × M.2 2280
Up to

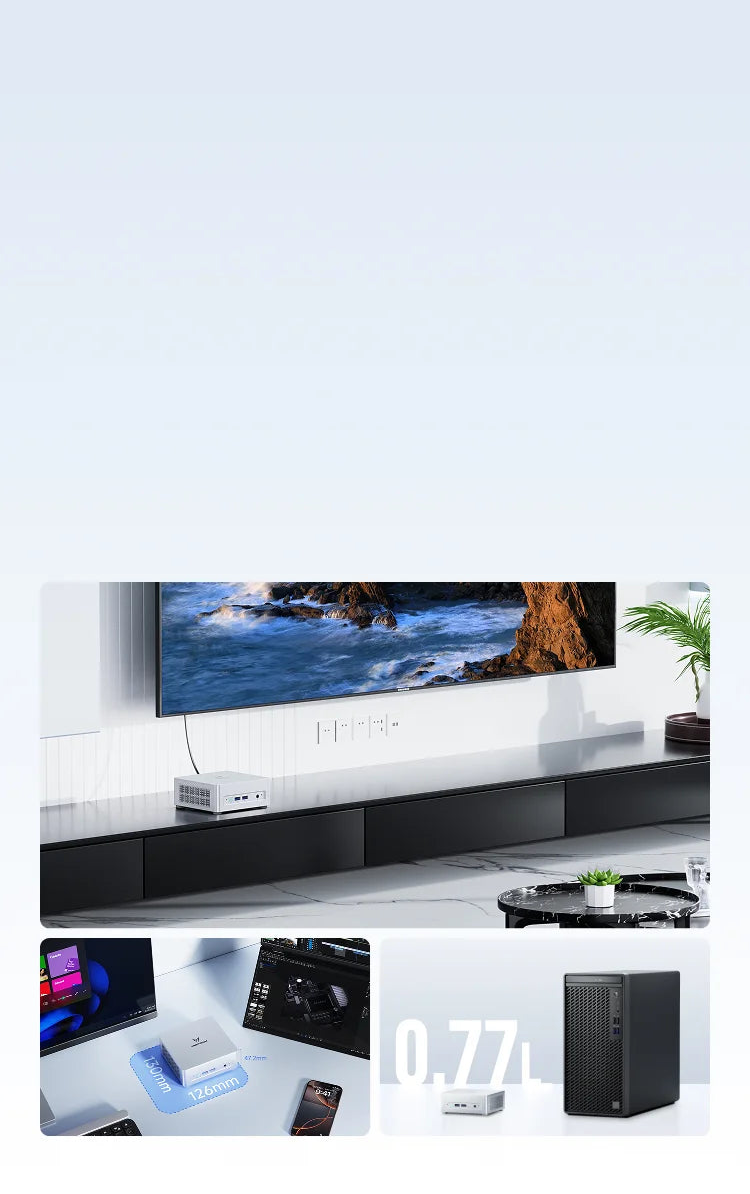

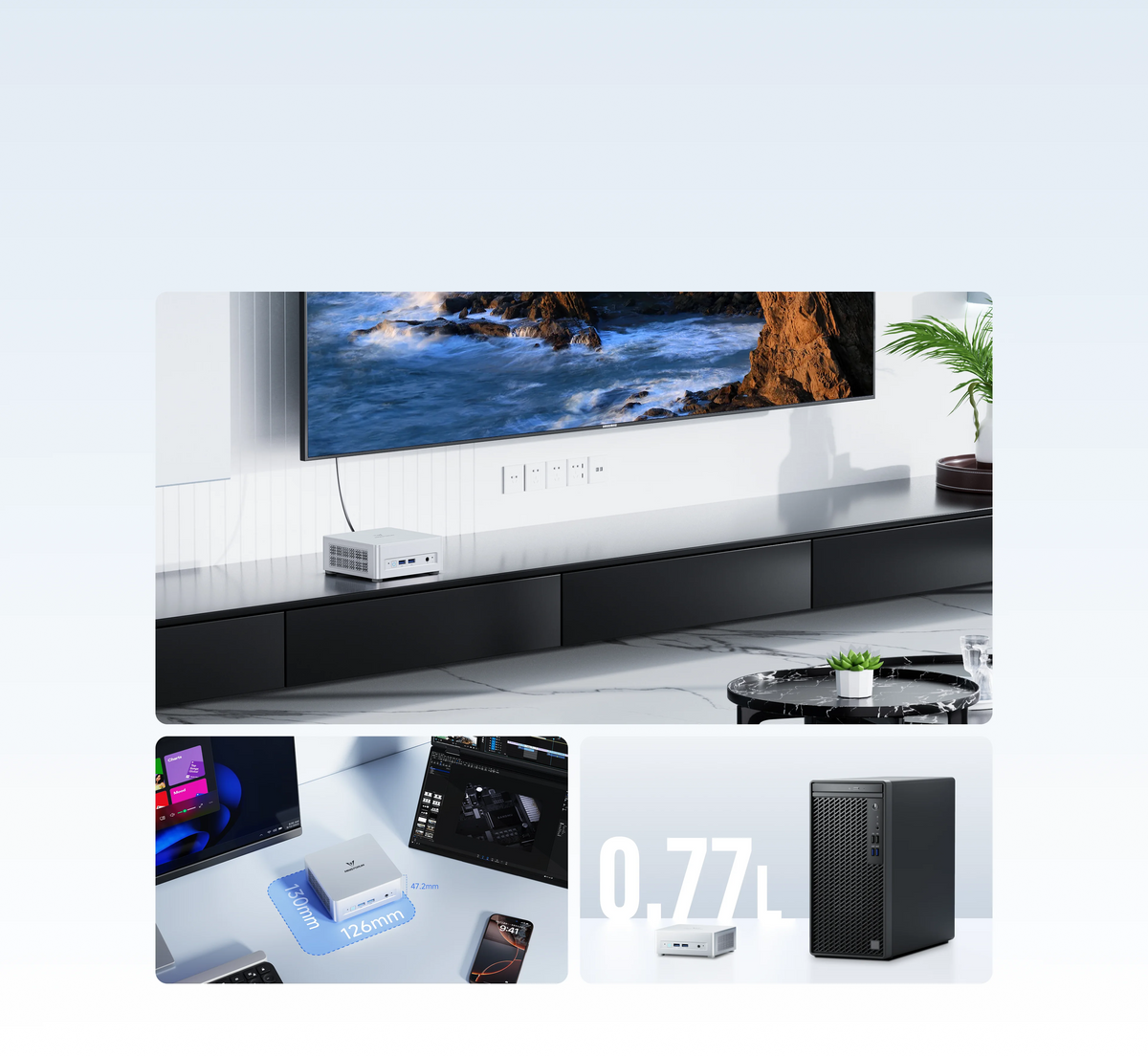

A Full PC in 0.77 Liters.
Place it beside a monitor, under a TV or inside a compact workspace. The smaller chassis leaves more room for the screen, keyboard and everything that matters.

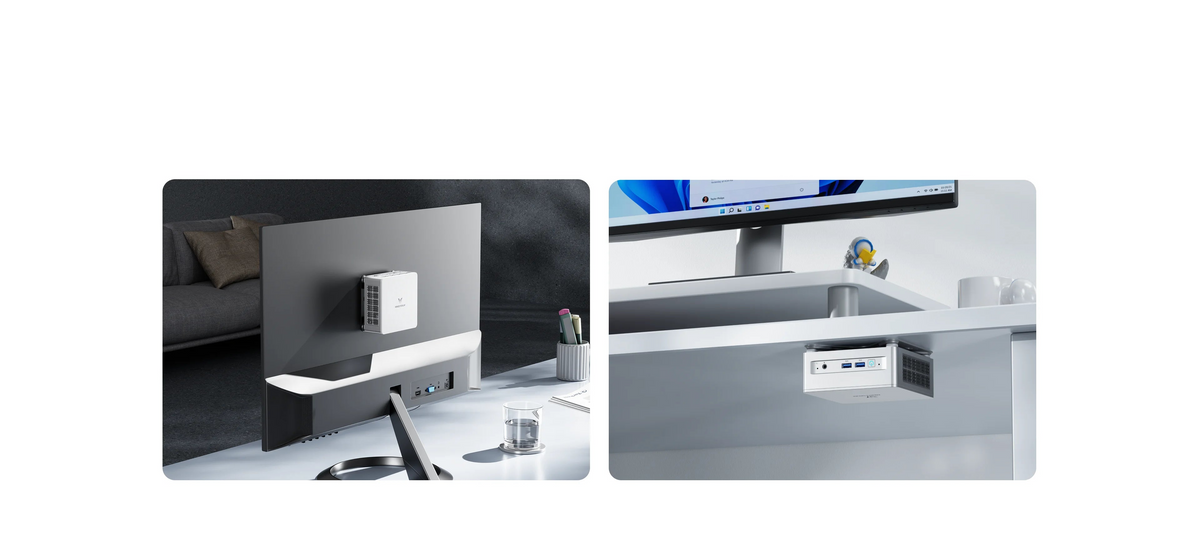

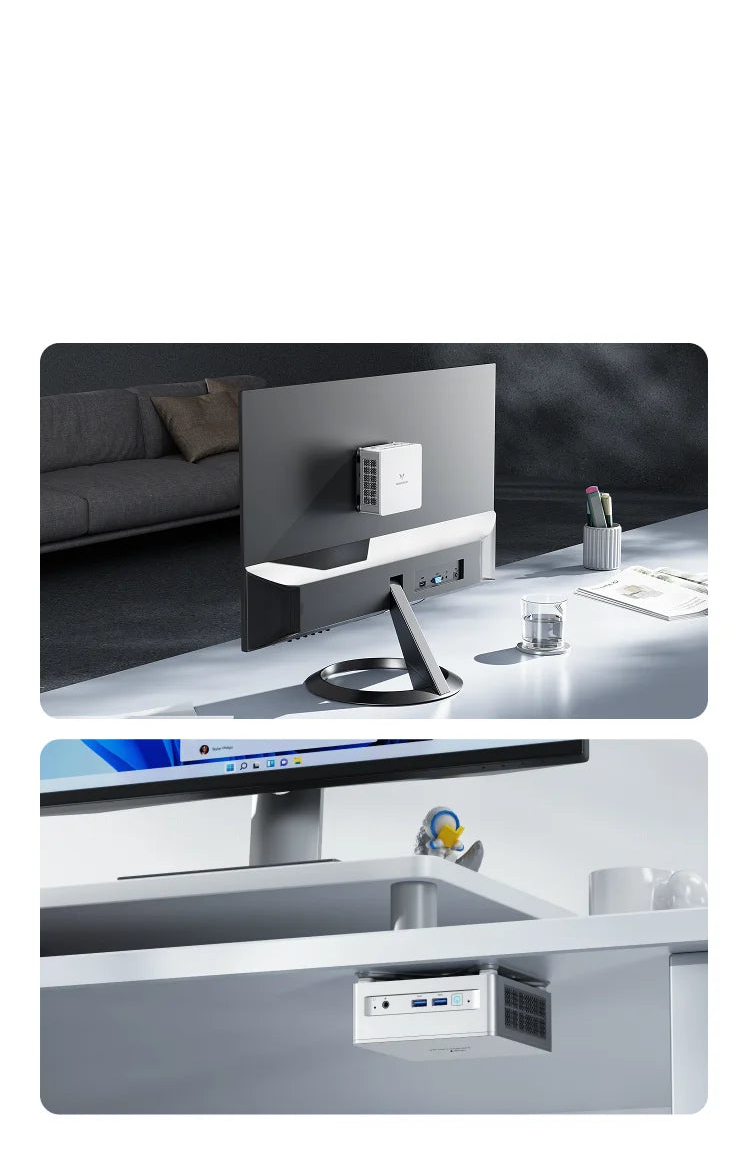

Install UM780L Slim behind a compatible display or beneath the desk. The computer stays close, while cables and hardware move out of view.

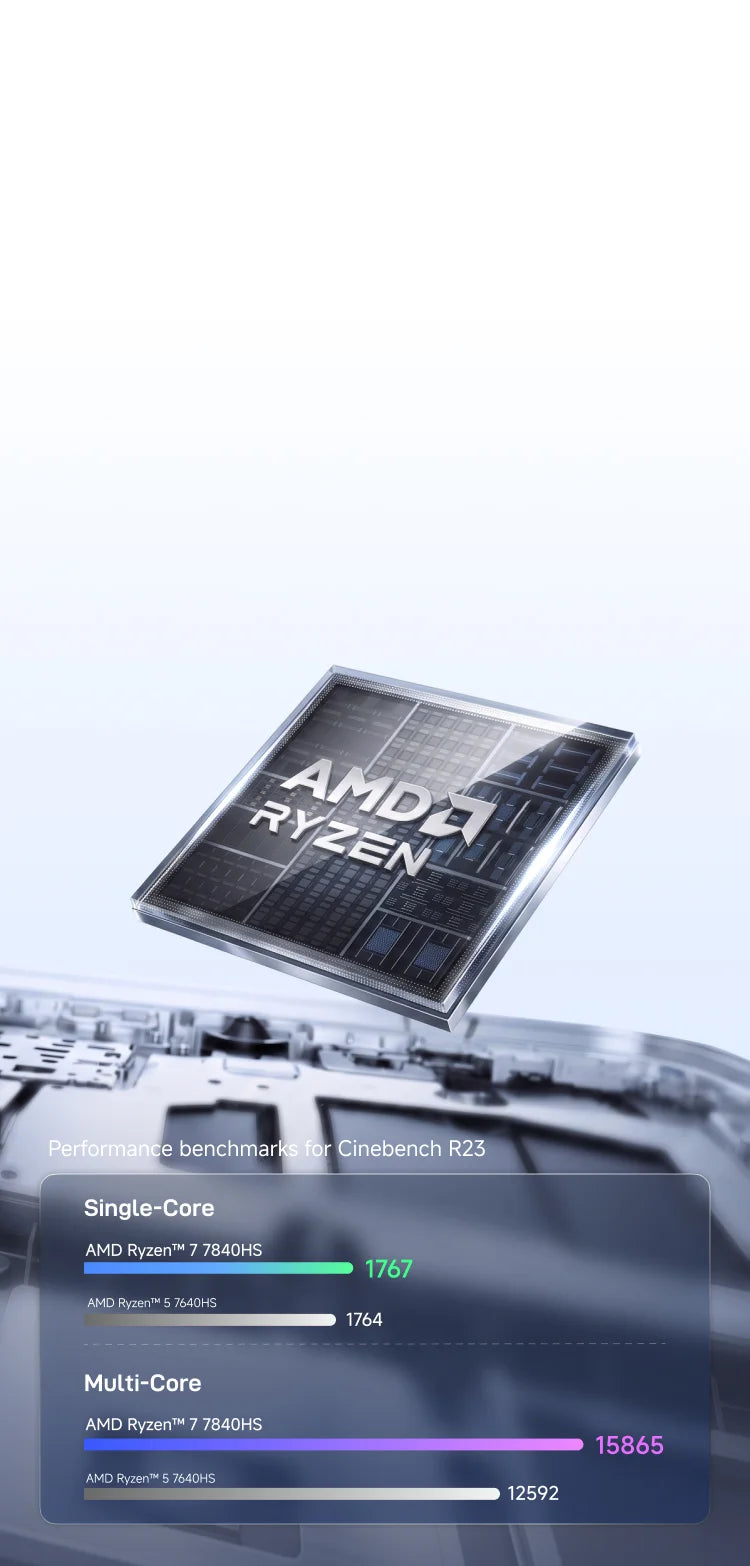

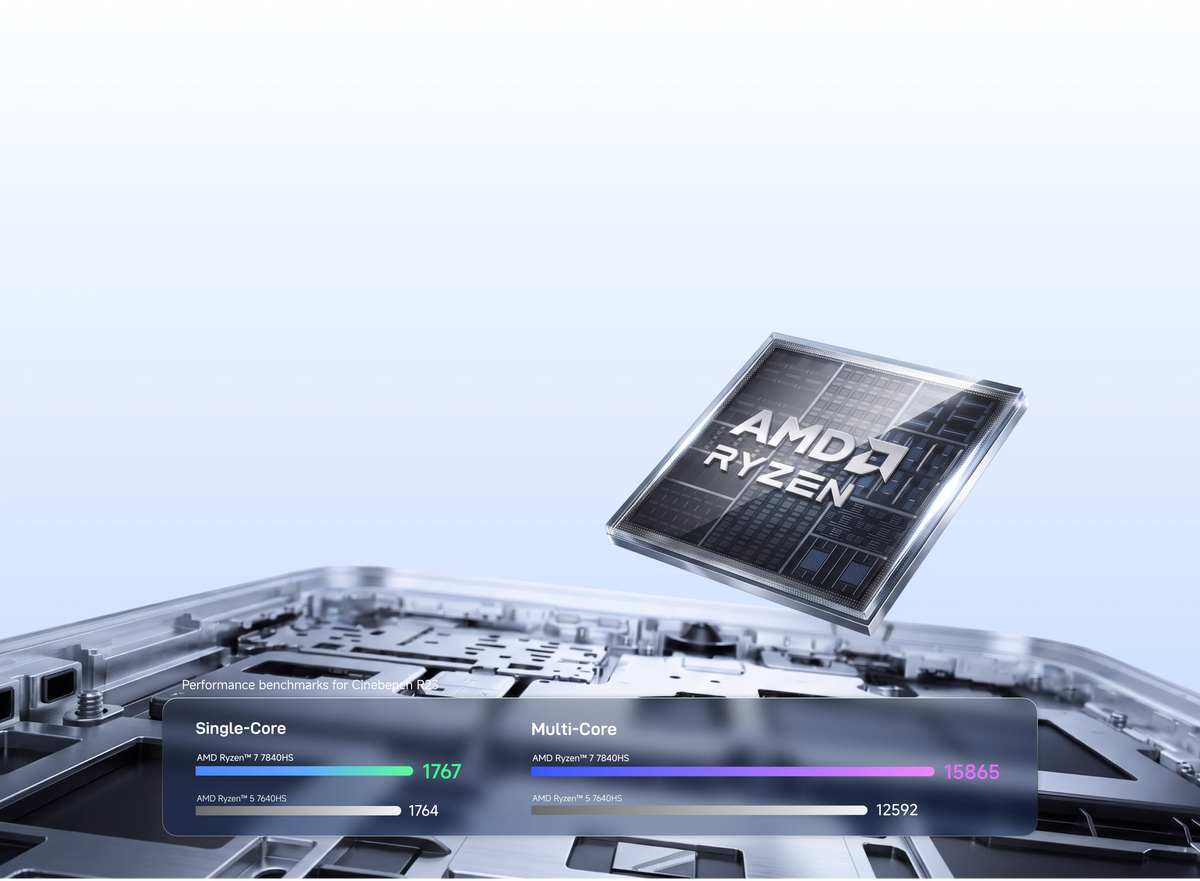

AMD R7-7840HS (8 Cores / 16 Threads, up to 5.1 GHz）
AMD Radeon™ 780M
N/A
LPDDR5X
Optional SKU DDR Capacity: 16GB/32GB
Max Speed Support: 7500MT/S
Max Capacity Support: N/A

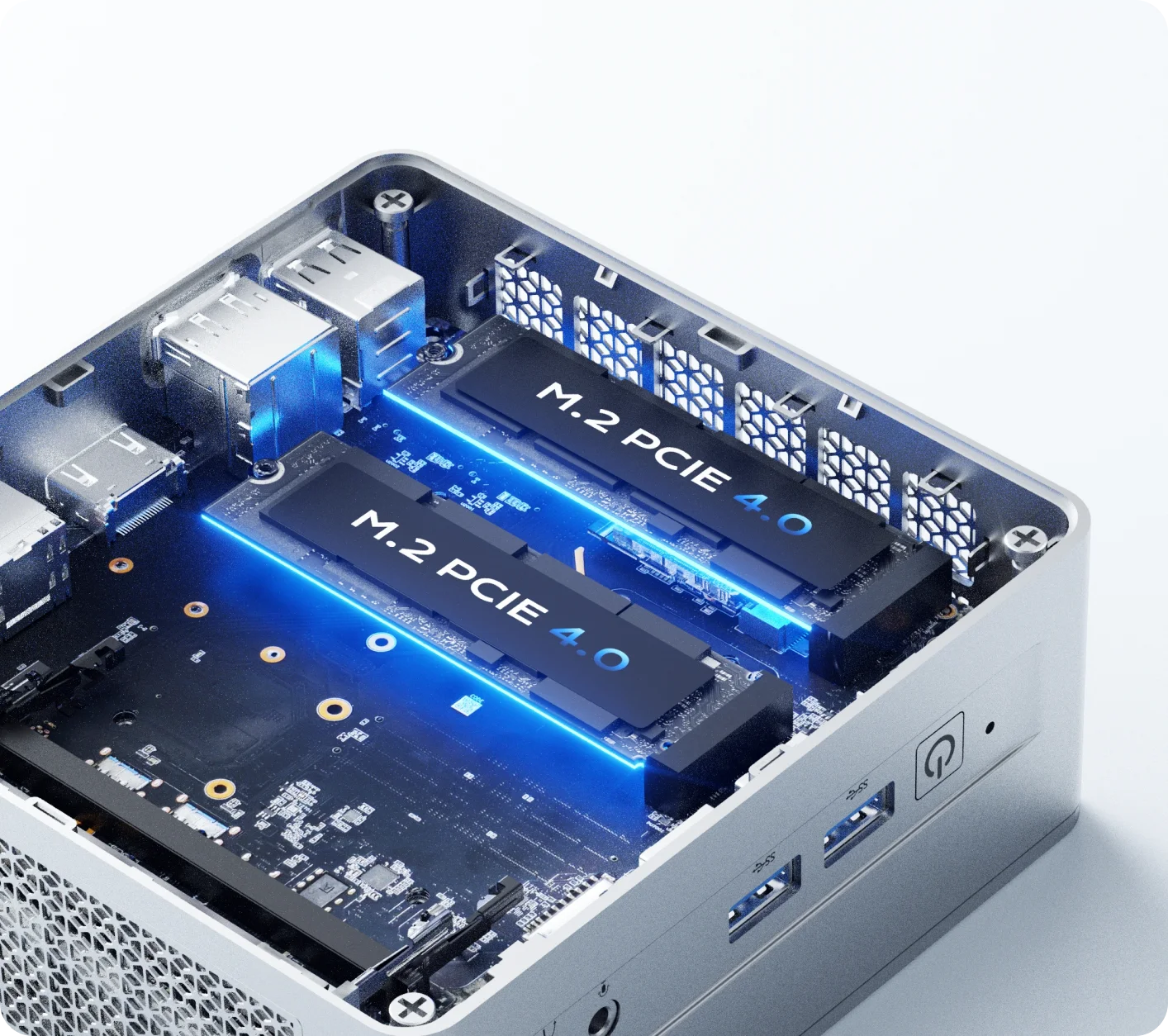

2× M.2 Key M 2280 (PCIe x4 Gen4)
Optional SKU SSD Capacity： 0/512GB/1TB

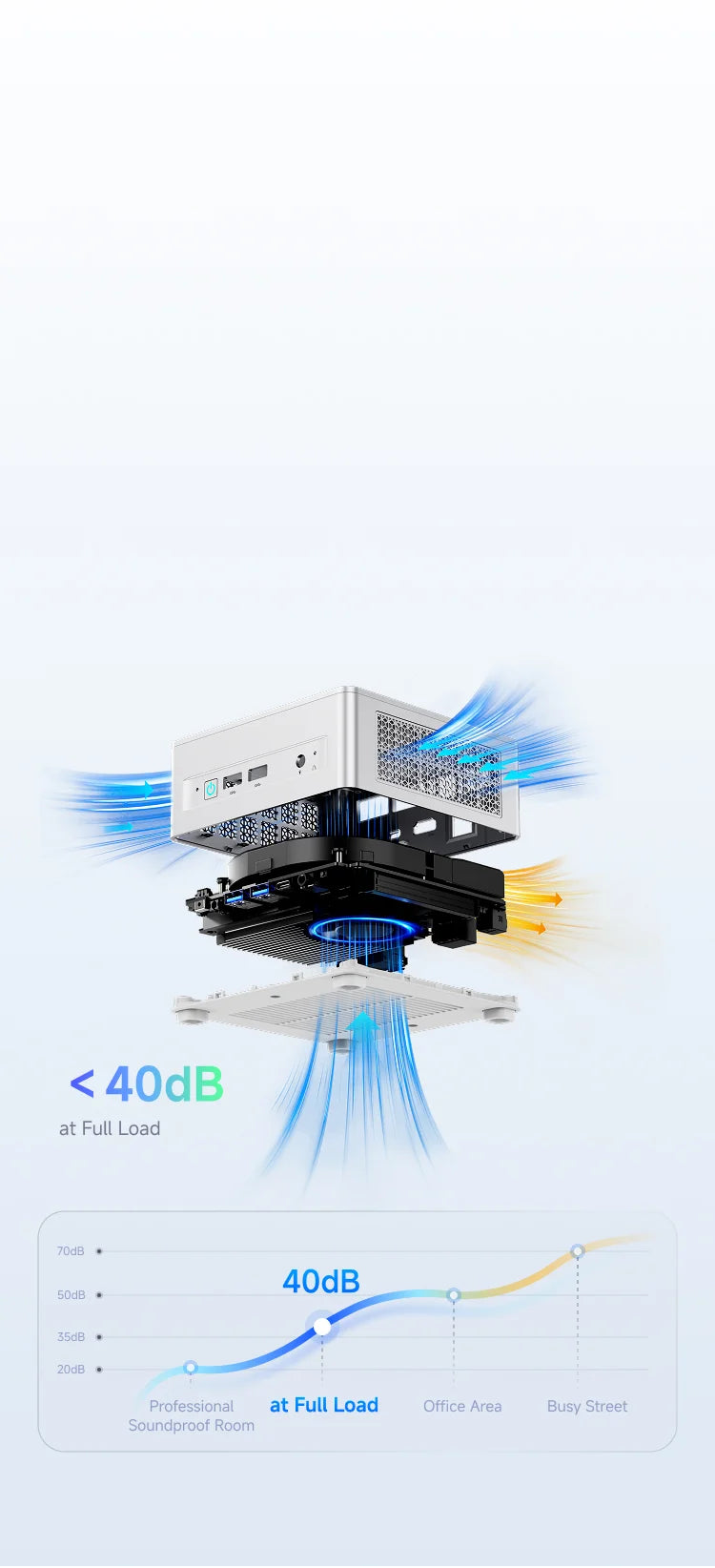

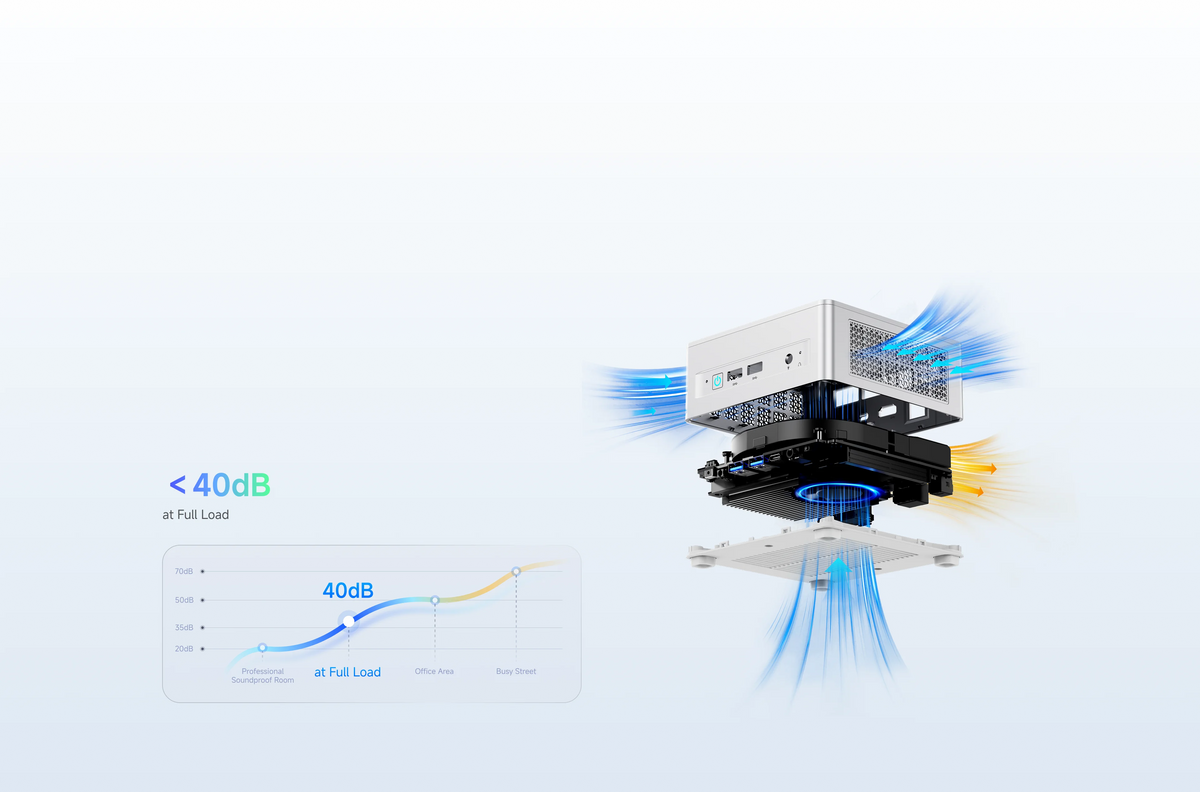

Phase Change Material (PCM)
CPU Fan Type: Blower Fan
MAX Speed (CPU Fan): 4pin/+P-F/5000RPM/12V0.5A
Noise (Balance Mode): <40dB
M.2 2230 E-Key WiFi/BT Combo Module (PCIe Only)
Wi-Fi 6e (Module: MT7902)
Bluetooth 5.2
2.5Gigabit LAN (RJ45) × 1(Module: RTL8125BG)
1 × HDMI® (4K@60Hz)
1 × DP (4K@120Hz)
1 × Type C_USB4 ( up to 8K@60Hz/4K@120Hz)
1 × HDMI®
1 × DP
1 × 3.5mm Combo Jack
1 × 3.5mm Combo Jack 4 in 1

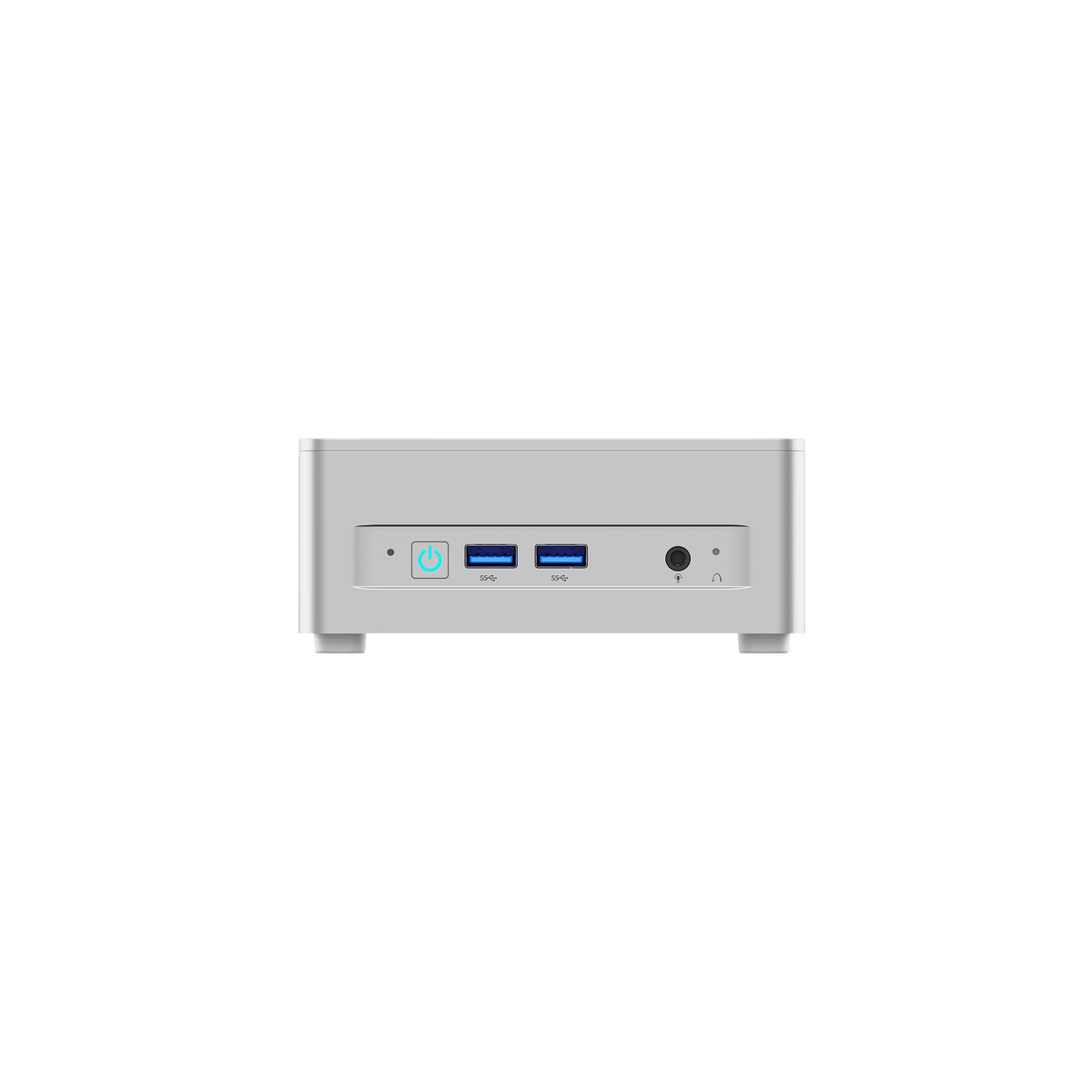

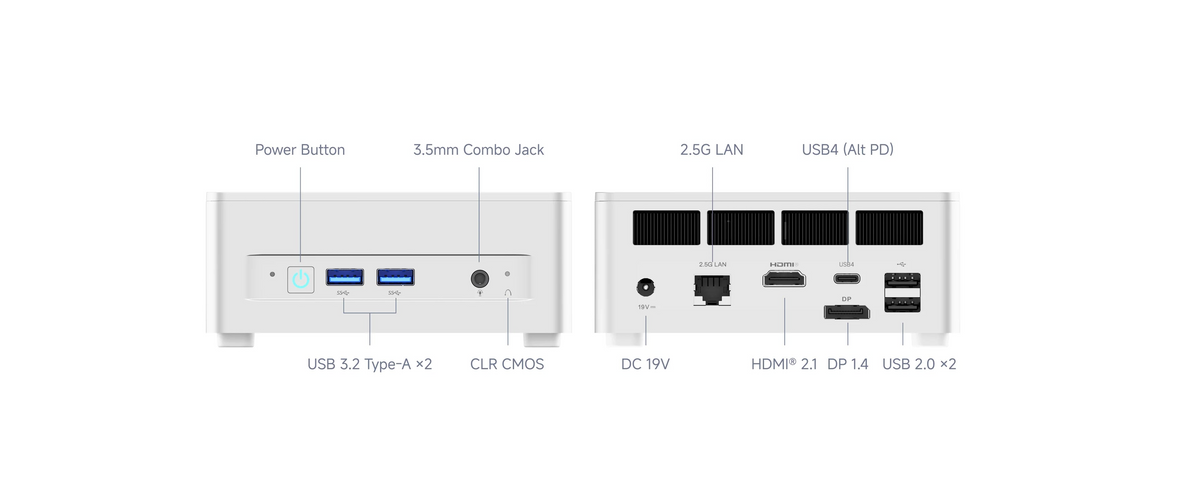

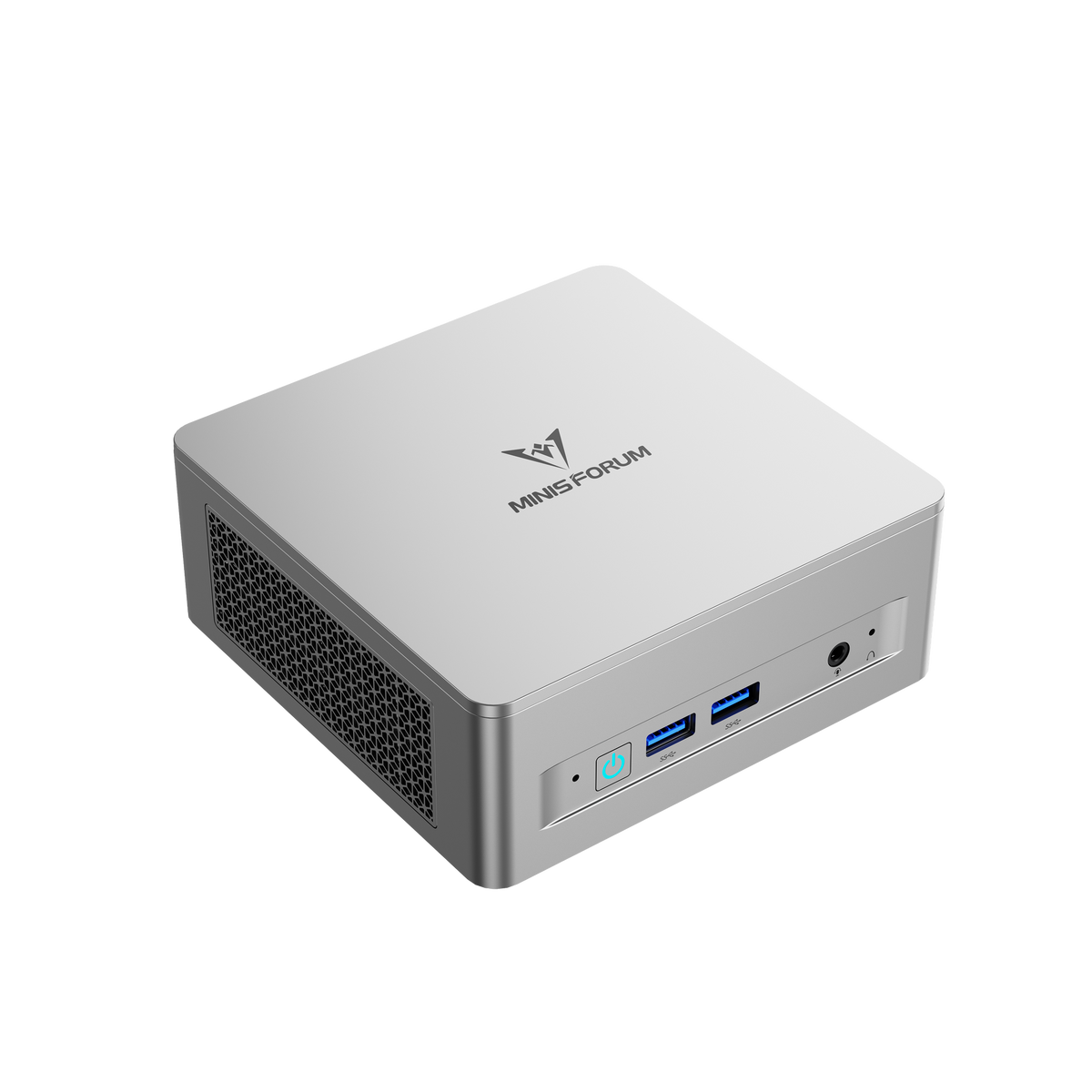

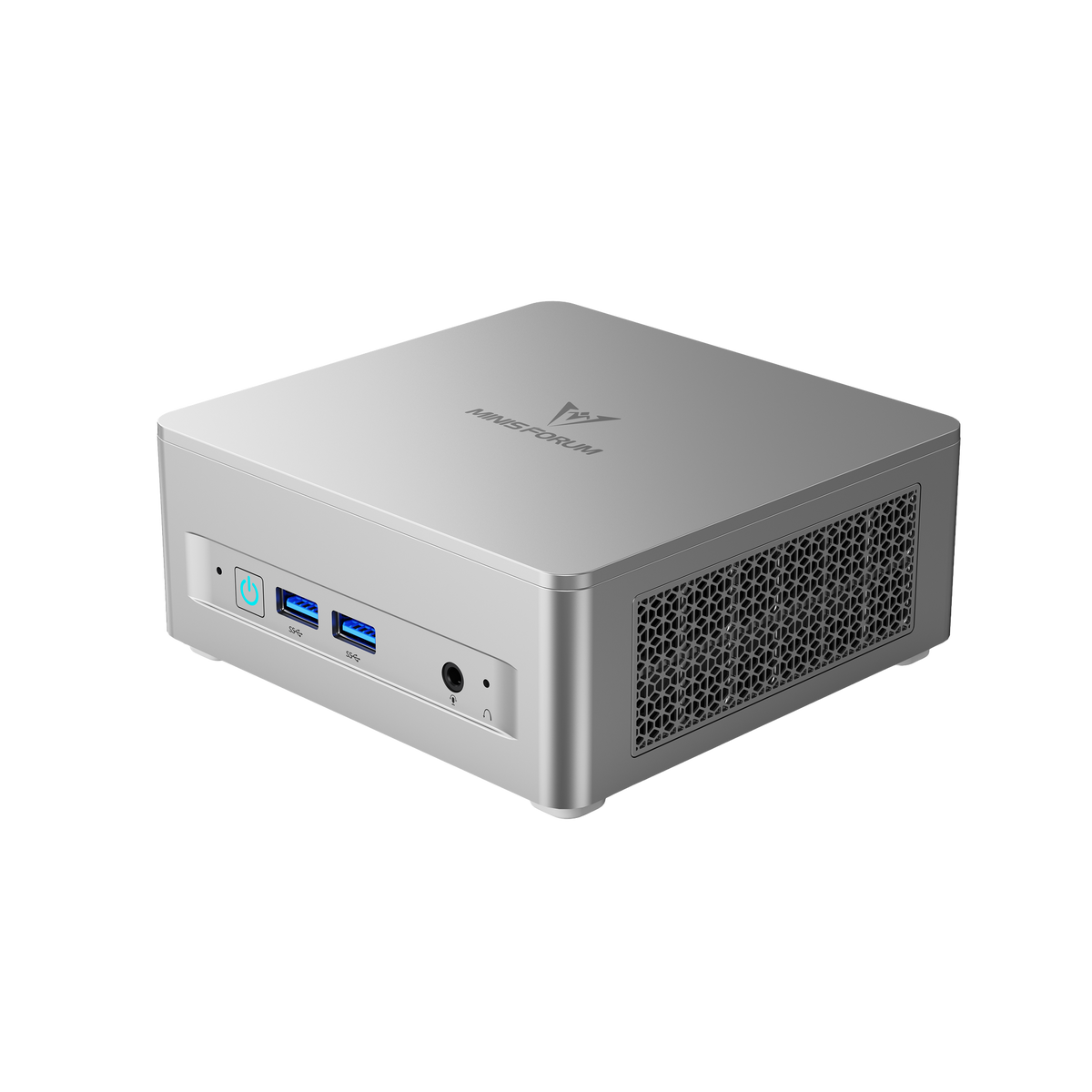

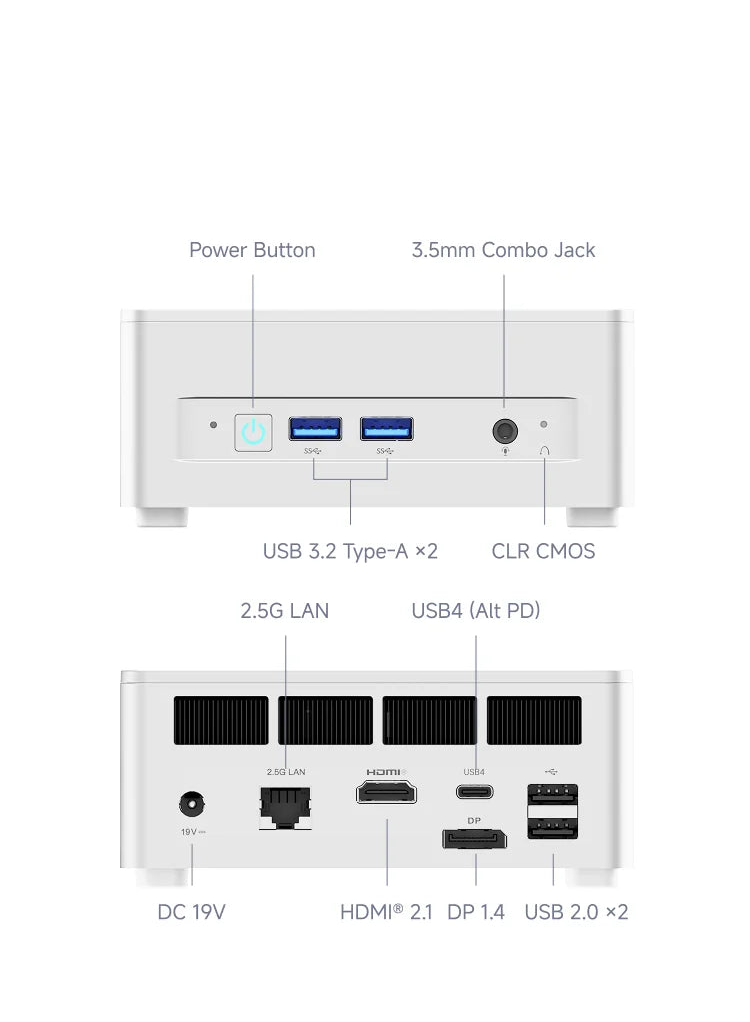

Front:
2 × USB Type A(USB3.2 Gen2)
1 × 3.5mm Combo Jack
1× Reset Hole
1× Power Button

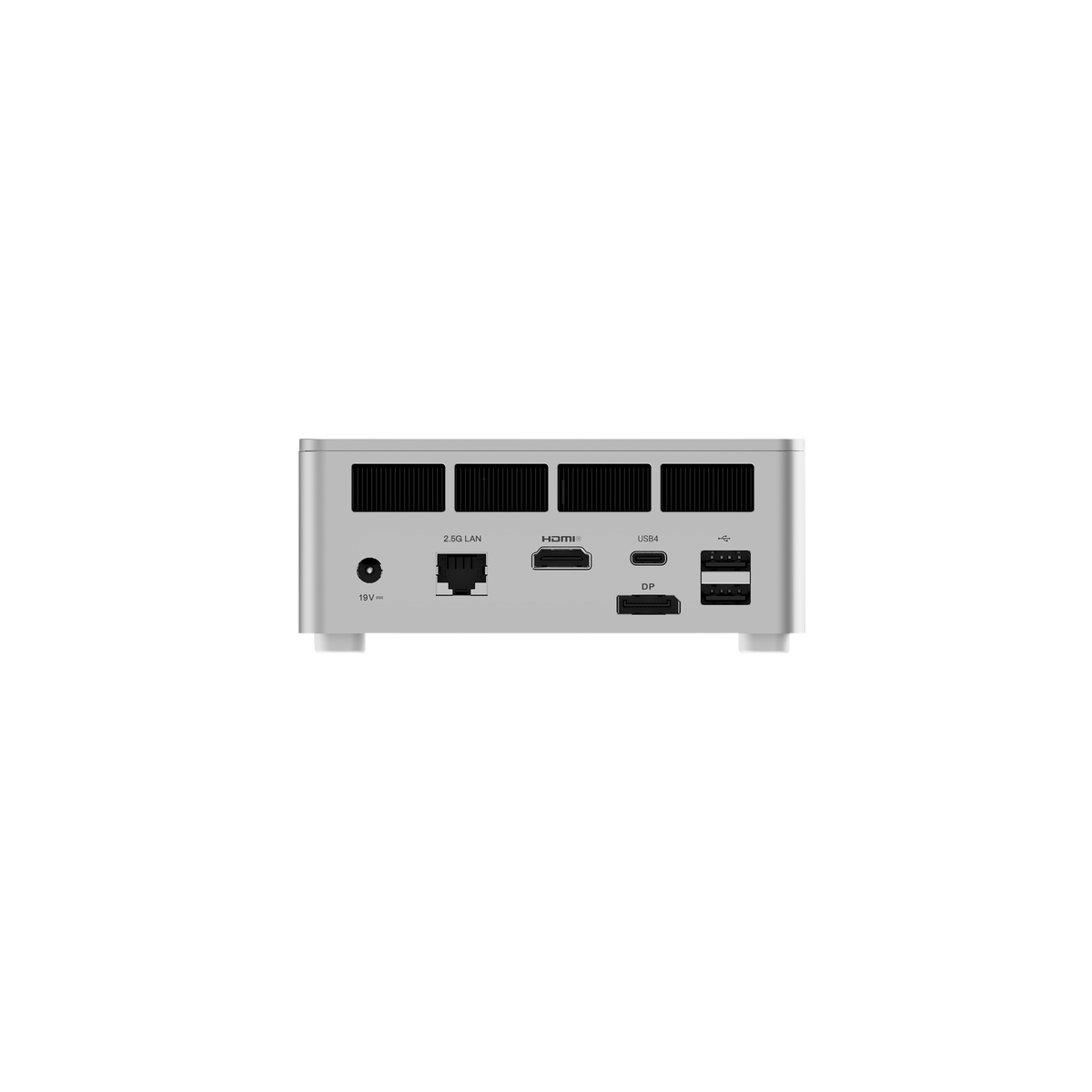

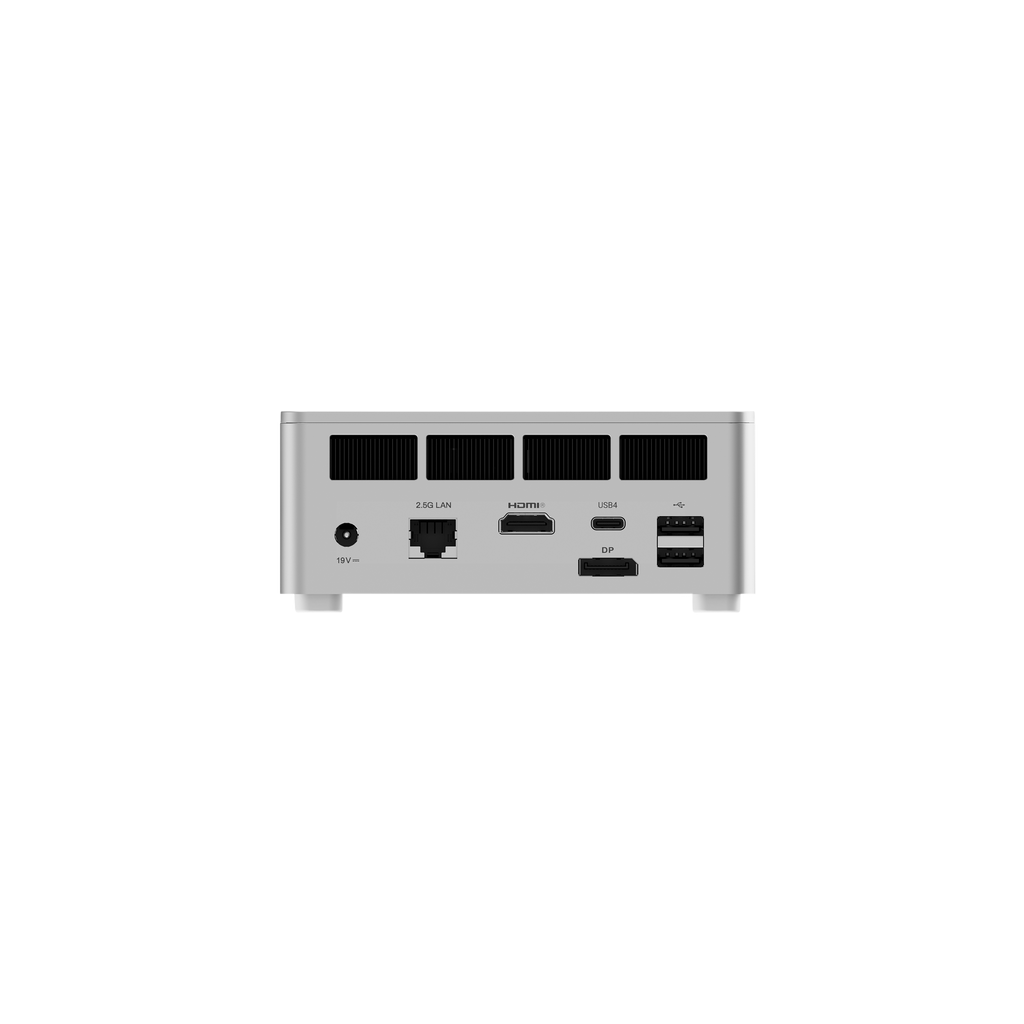

Rear:
1 × DC-IN Jack (DC 5.5*2.5 19V6.32A)
1 × Type C_USB4 (40Gbps+Alt DP+PD IN 65-100W+PD OUT 15W)
2 × USB_Type A (USB2.0 )
1 × 2.5 GbE LAN(RJ45) x1 ( RTL8125BG )
1 × DP (4K/120Hz ) DP1.4
1 × HDMI® (4K/60Hz) HDMI 2.1 TMDS
1 × Power Button
1 × Reset Hole
YES
Windows 11
DC 5.5*2.5 19V6.32A
130 × 126 × 47.2mm
0.6kg
