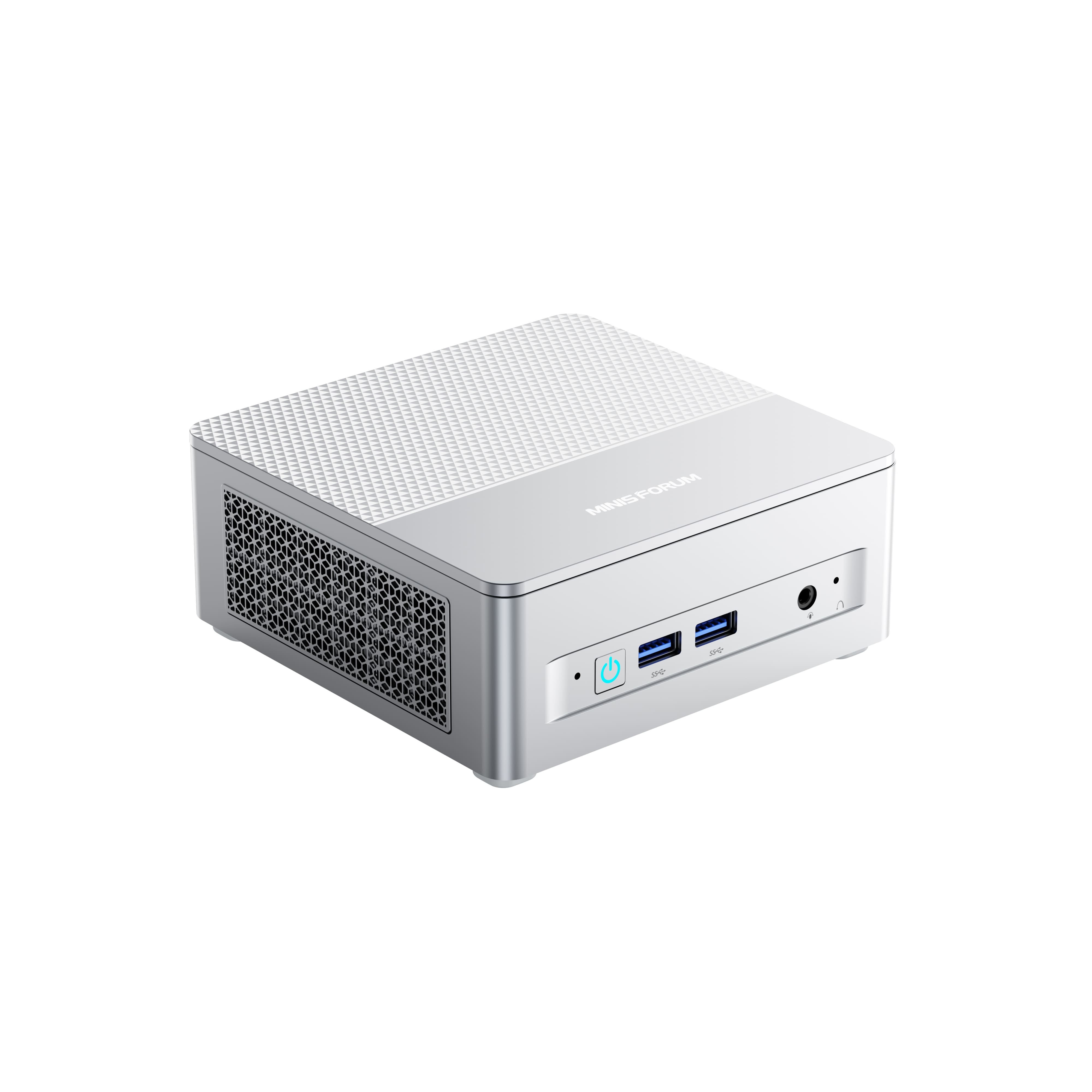

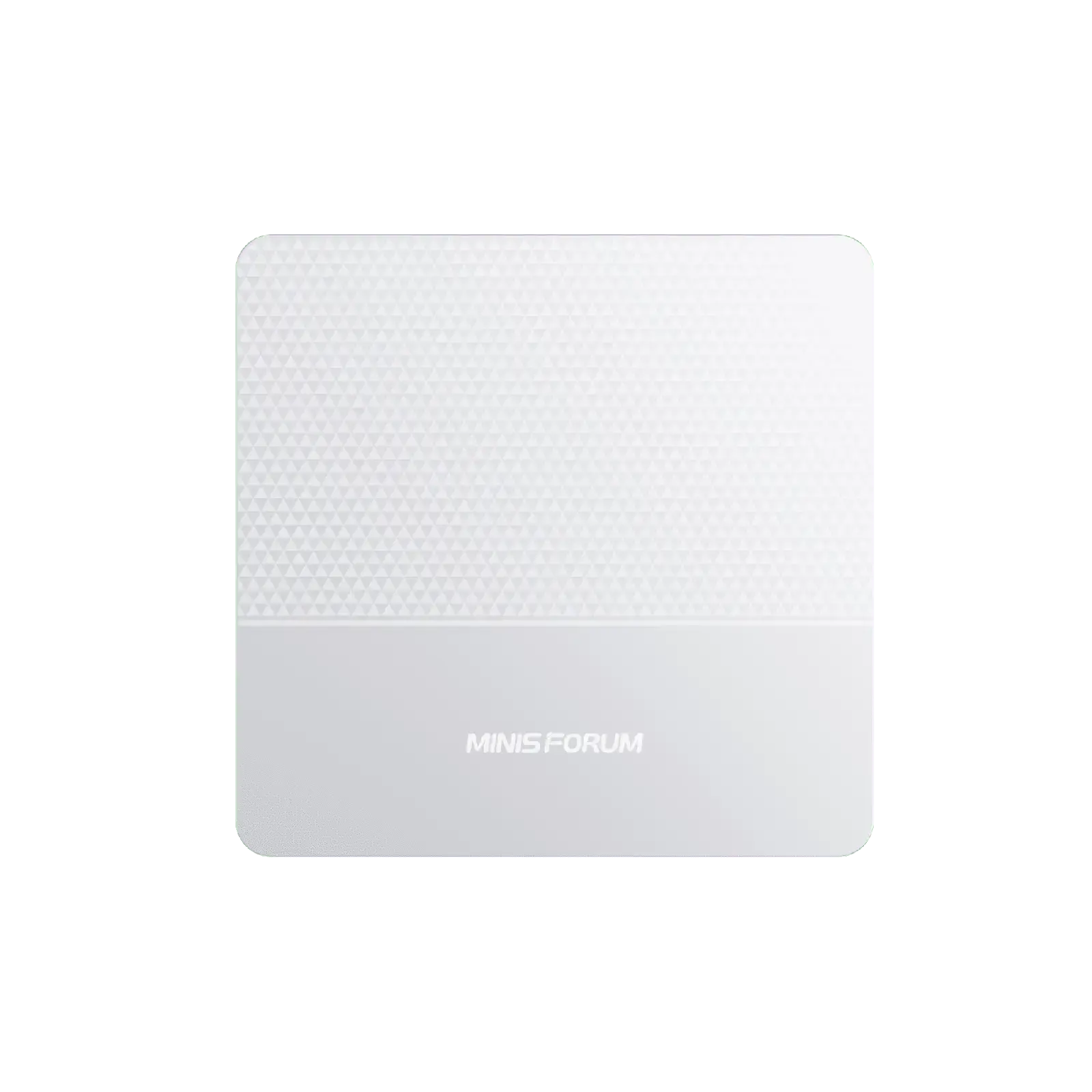

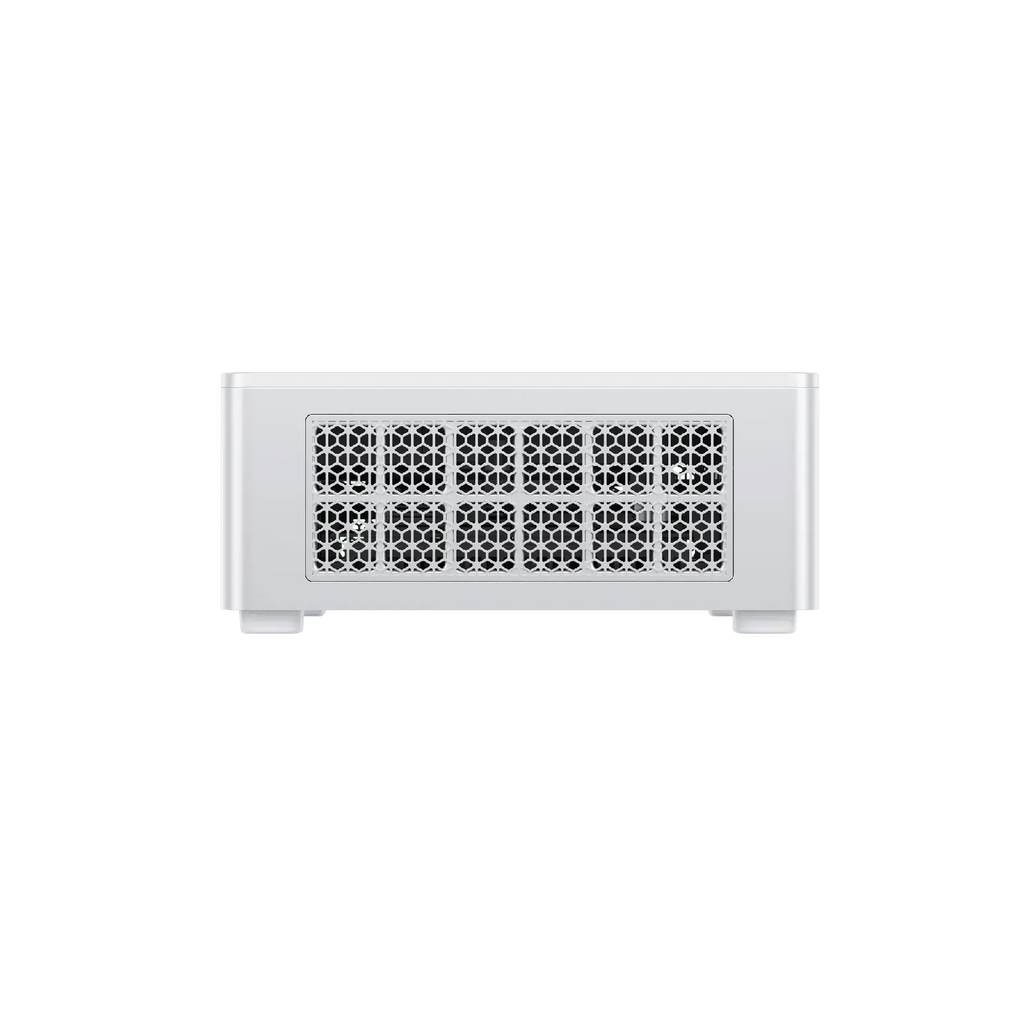

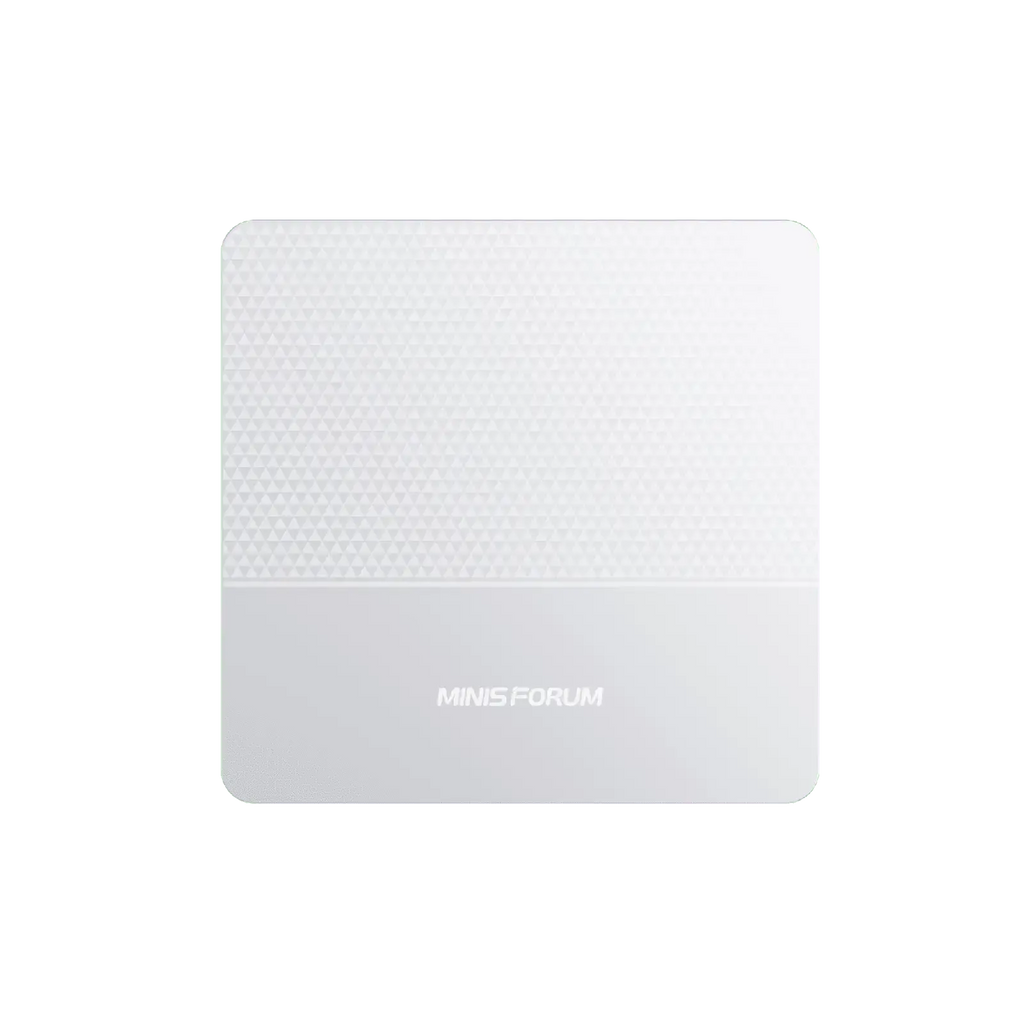

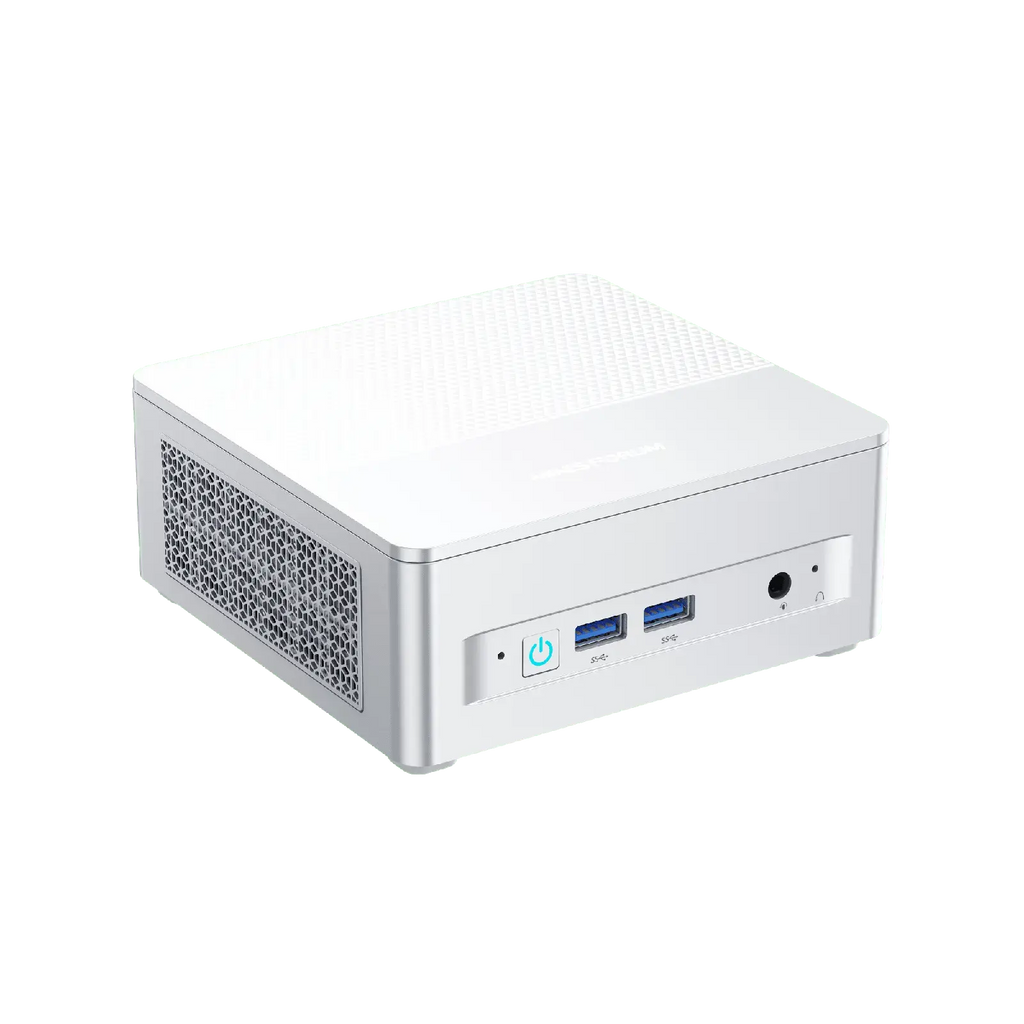

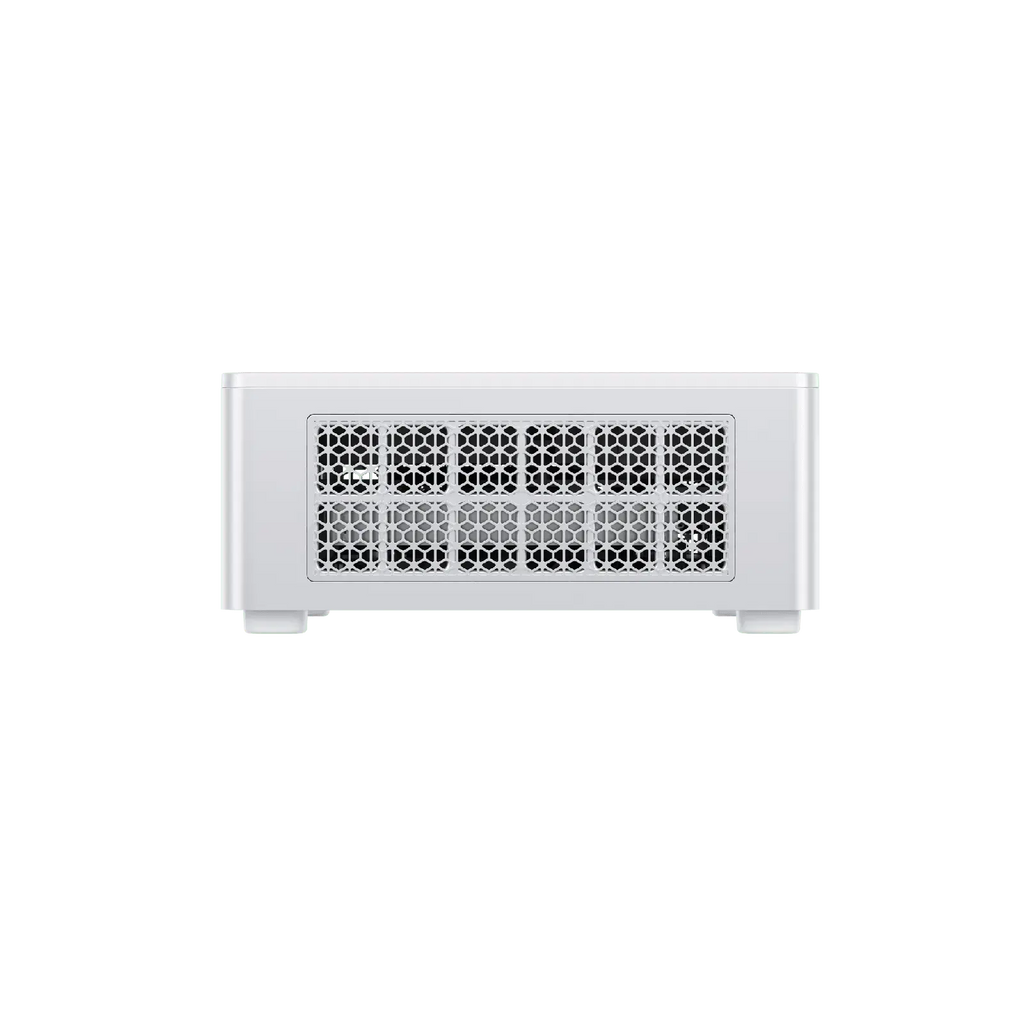

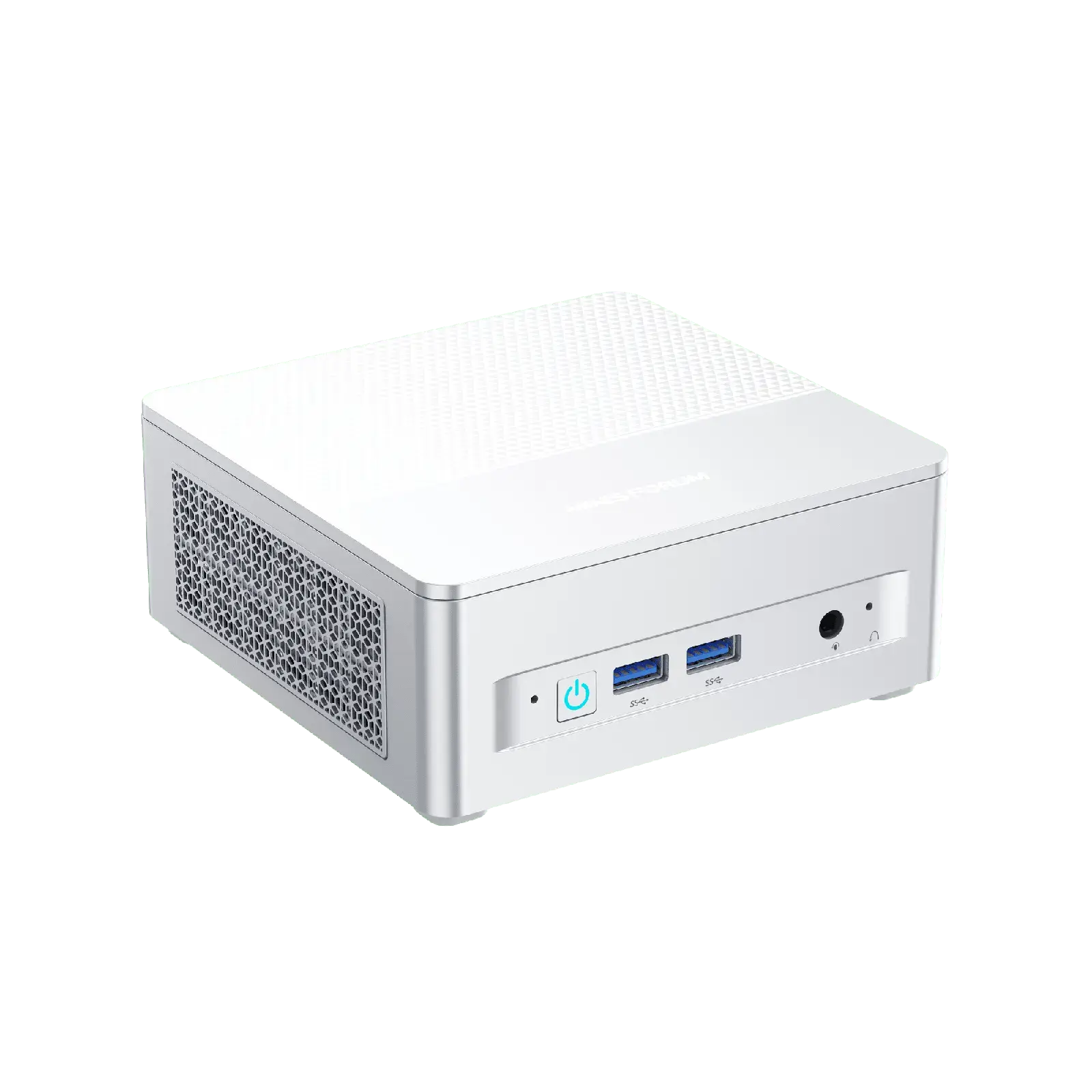

Minisforum X1 Lite
Duties Included
30-Days Hassle-Free Local Returns
Pre-order: Expected to ship from Hong Kong at the end of November.

Worry-free RAM+SSD Expansion
Dual channel DDR5 + Dual M.2 SSD slots, configurable up to 64GB RAM + 1TB SSD, expandable to 128GB RAM + 8TB SSD.

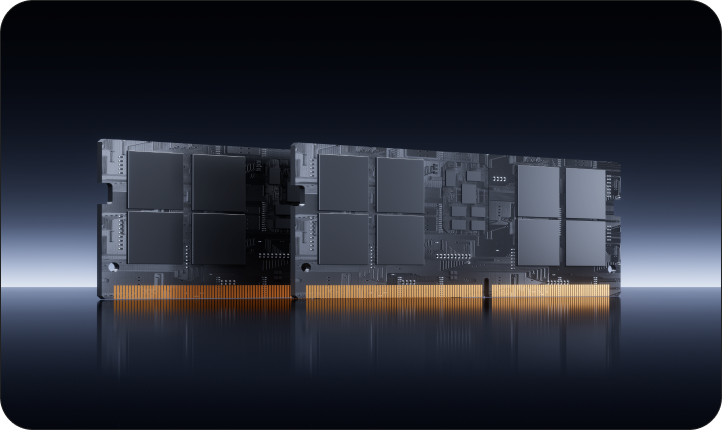

Ultra-Fast Memory Performance
Max Frequency: 5600MHZ
Expandable up to 128GB

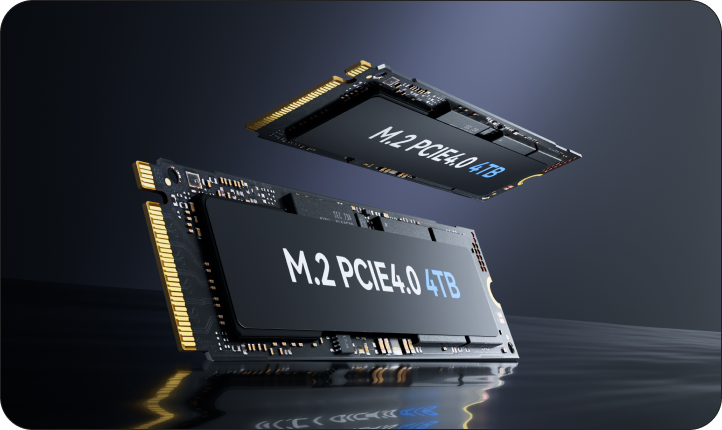

Massive Storage Capacity
PCIe4.0 Generation
Expandable up to 8TB
*Per M.2 slot supports up to 4TB SSD

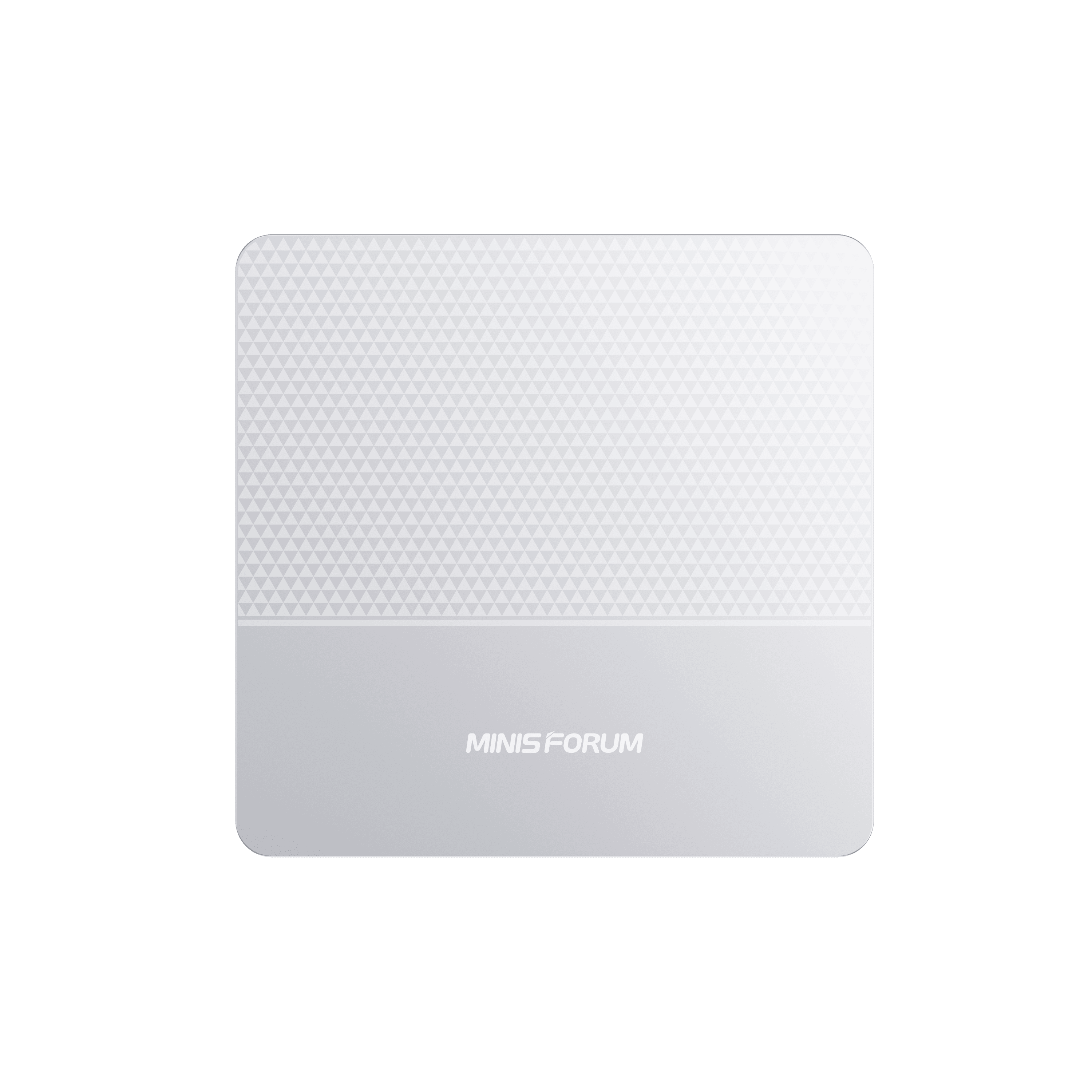

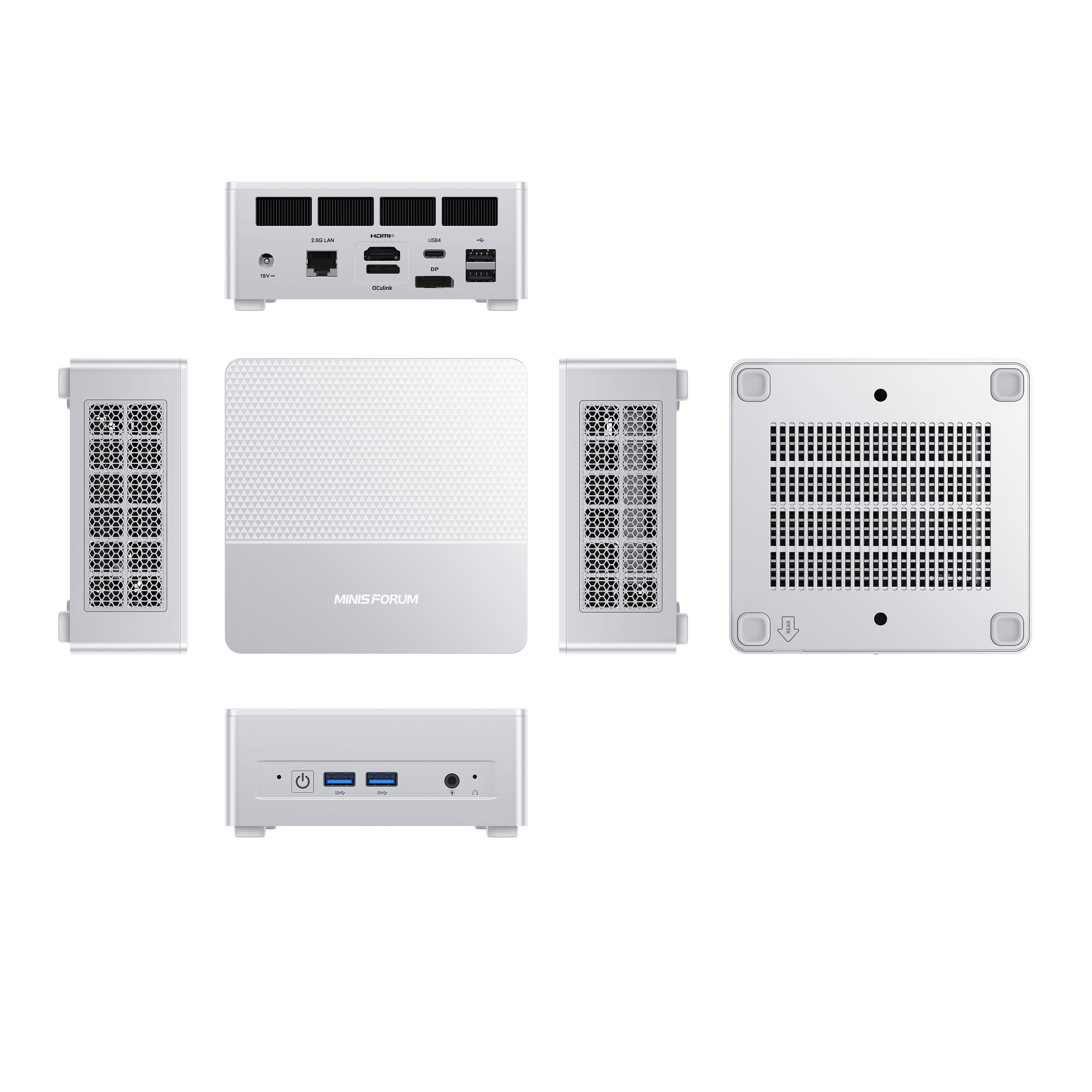

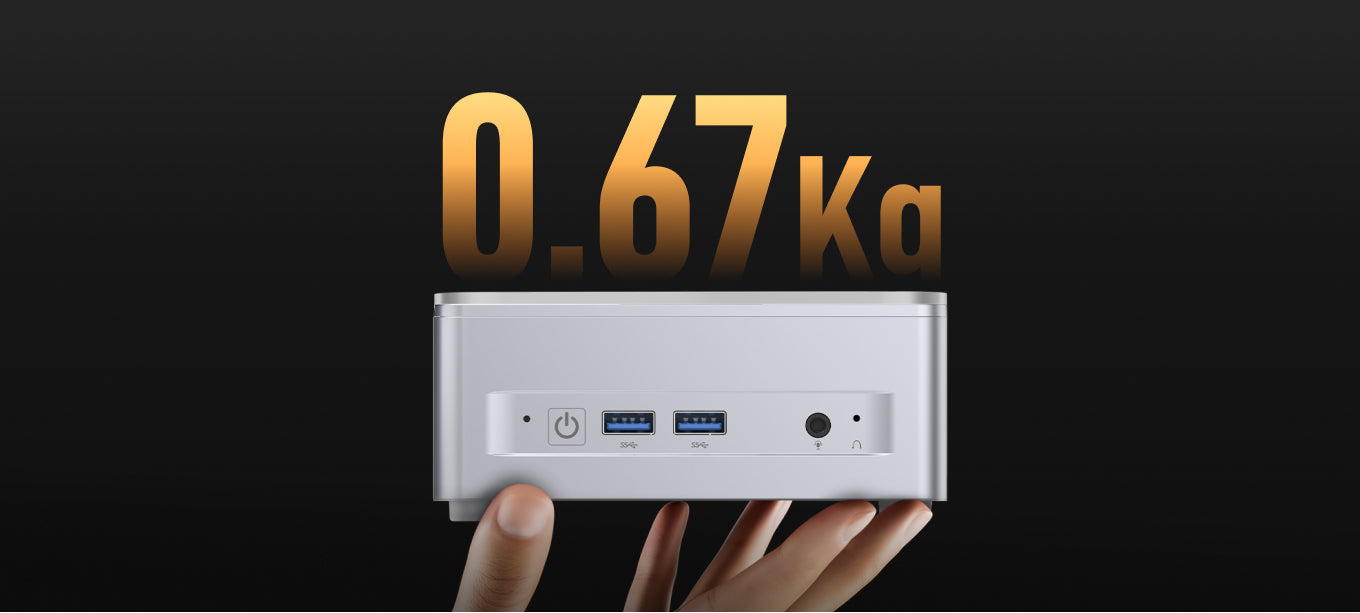

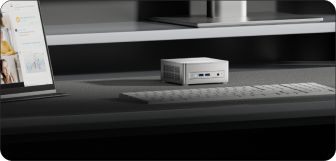

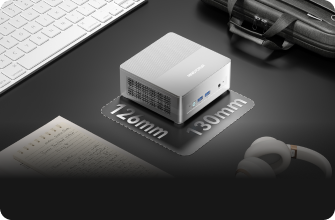

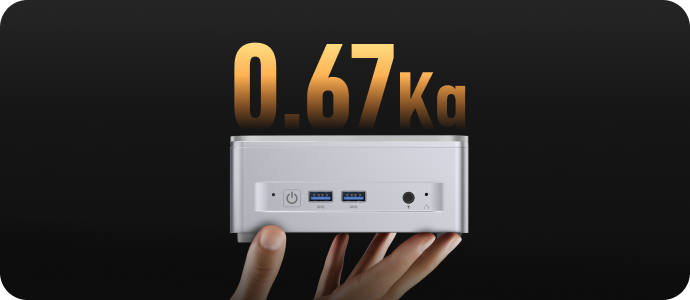

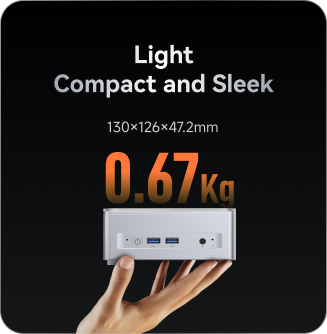

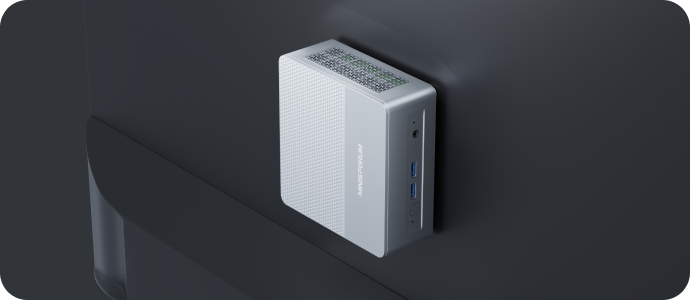

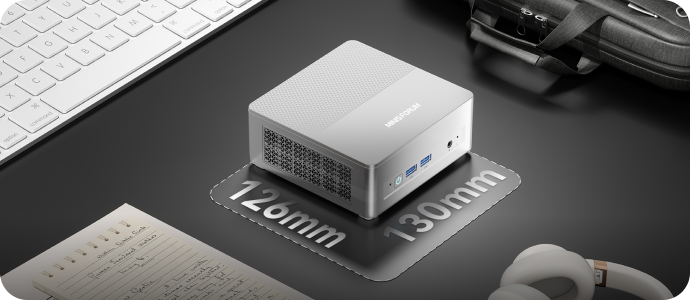

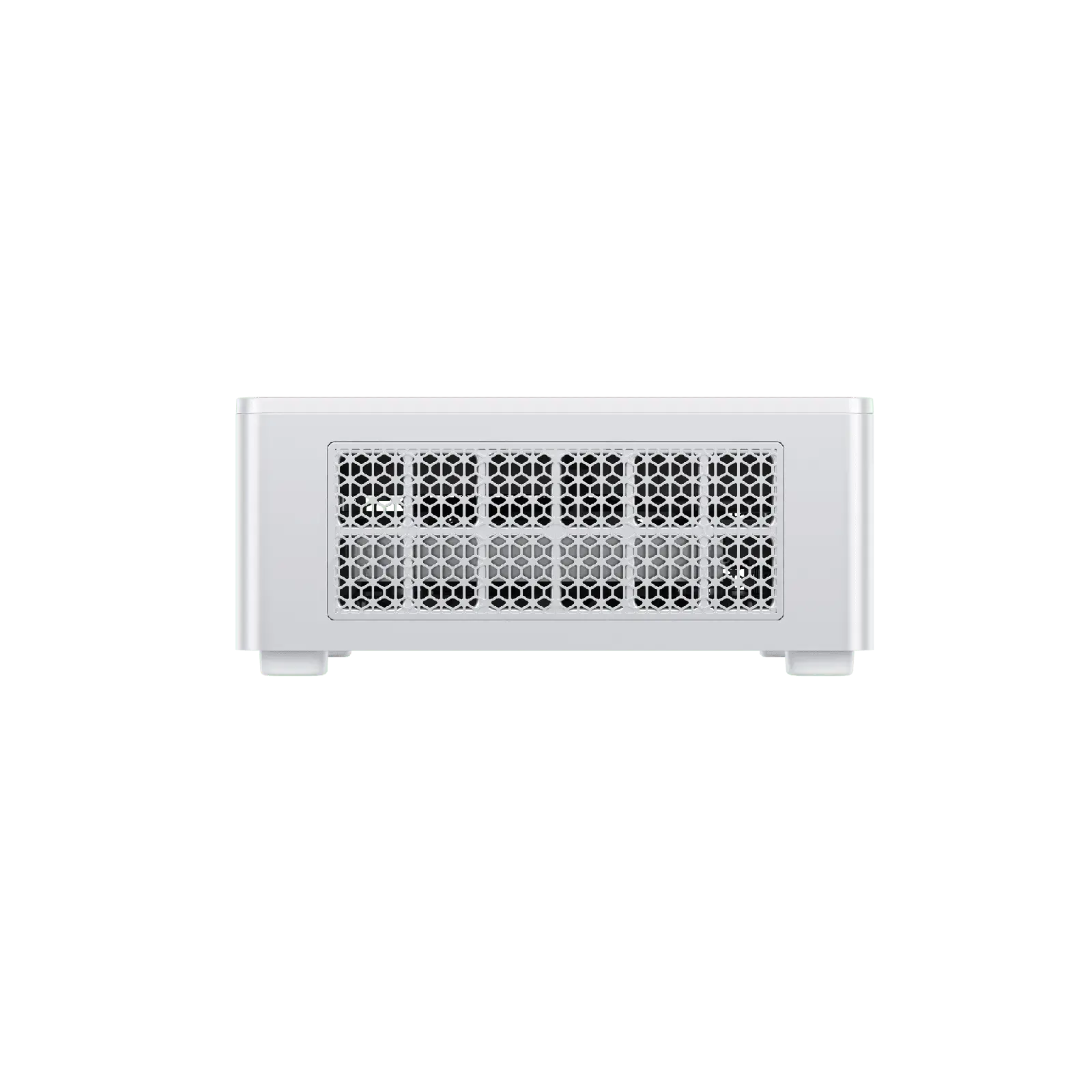

Lightweight and Sleek Design

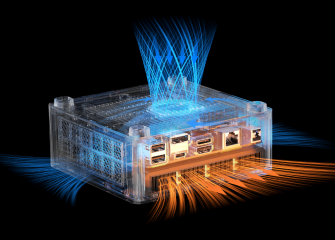

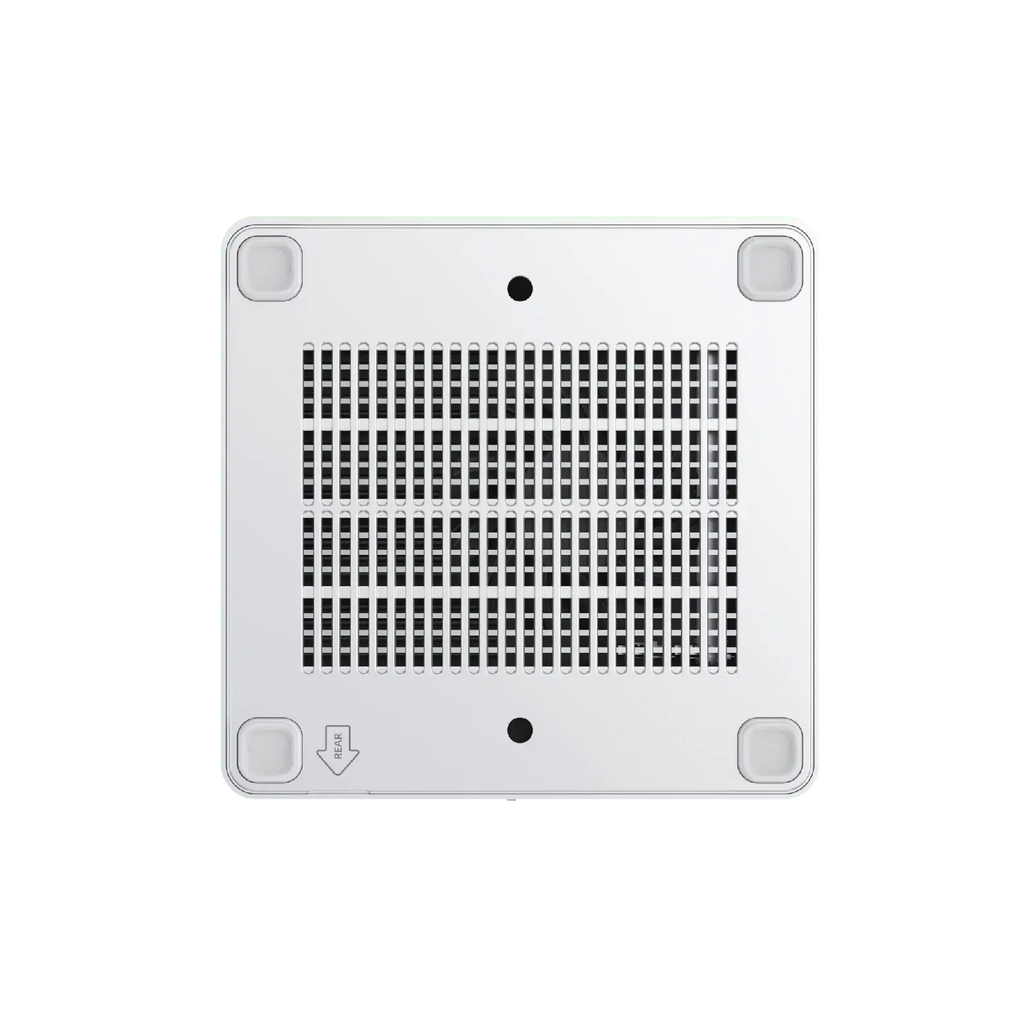

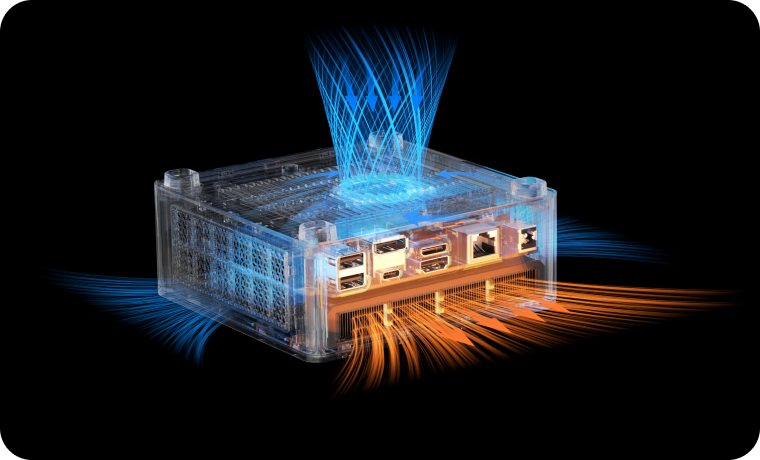

Efficient cooling for Quiet Focus
PCM Cooling for Effortless 65W TDP Performance
Phase-change material ensures stable 65W TDP performance and quiet operation under heavy load

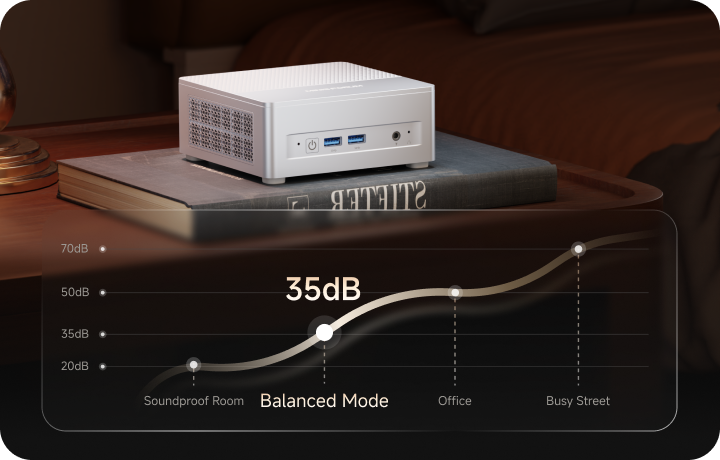

Large-diameter Quiet Fan
Noise levels stay below 35 dB during everyday use, virtually imperceptible for undisturbed focus
*Data measured in Minisforum Lab conditions

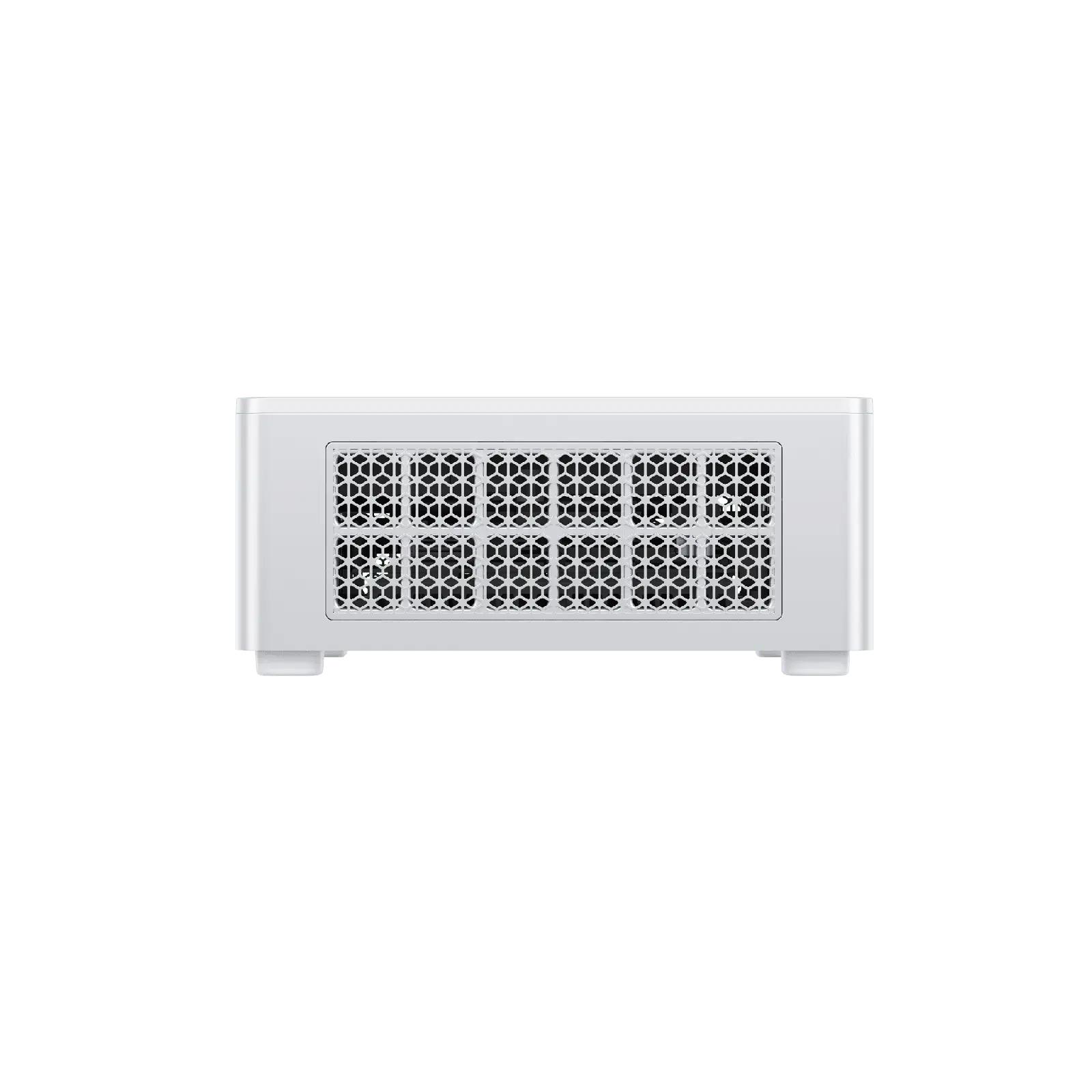

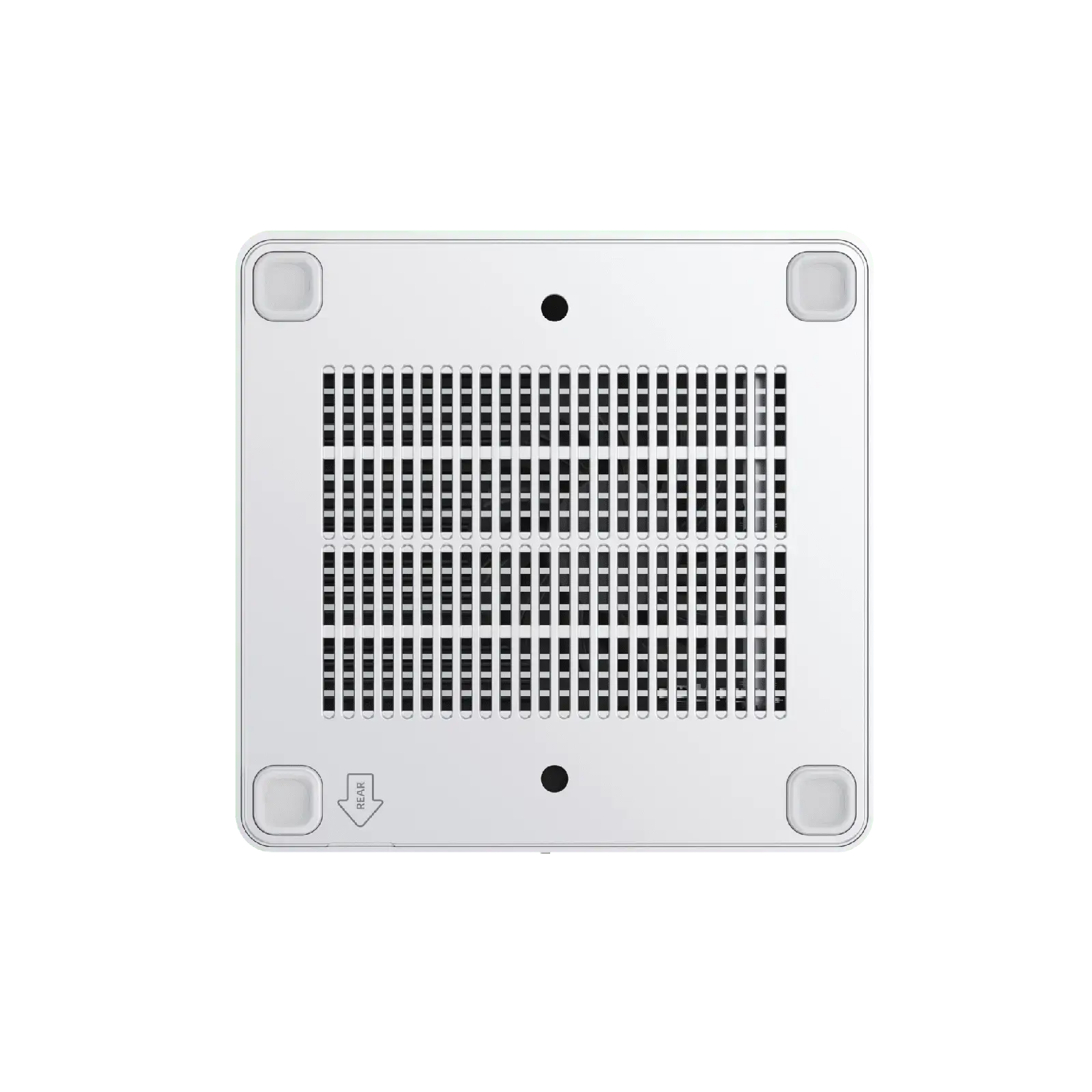

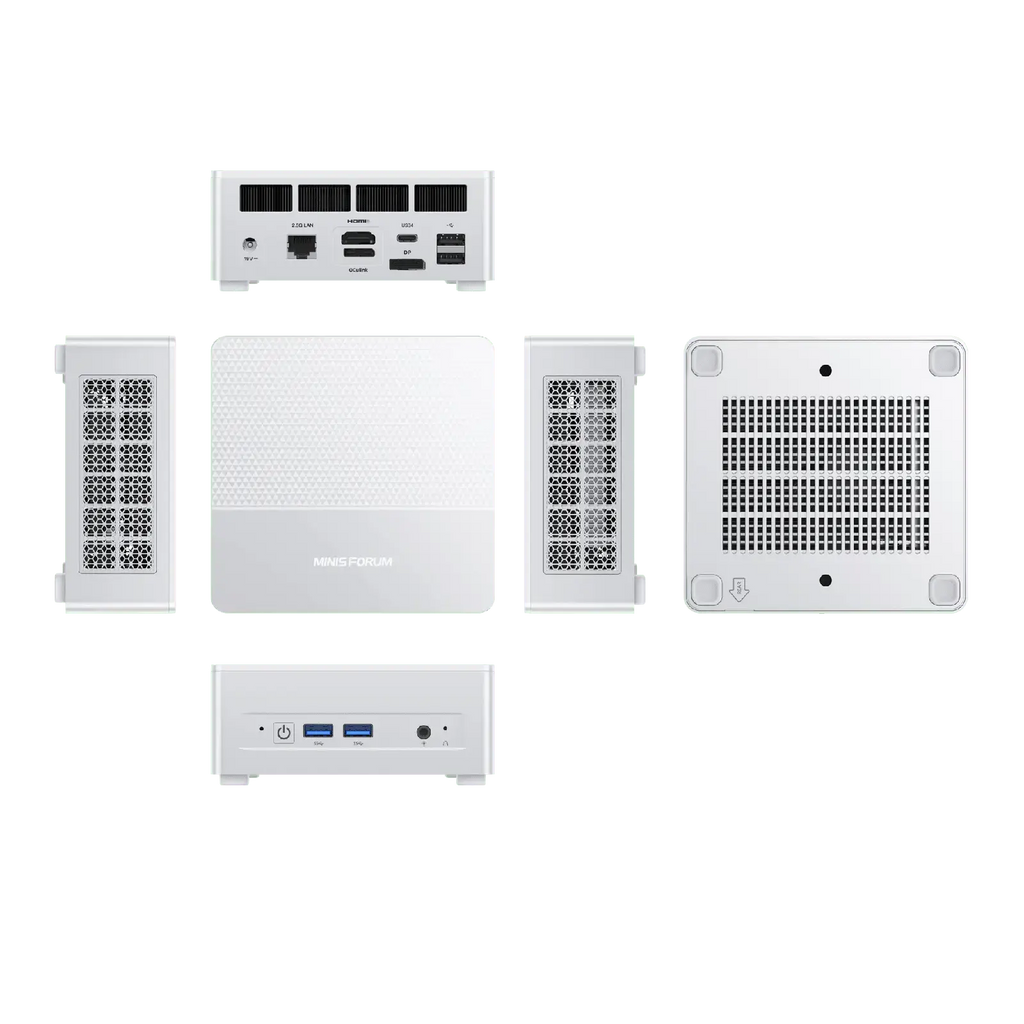

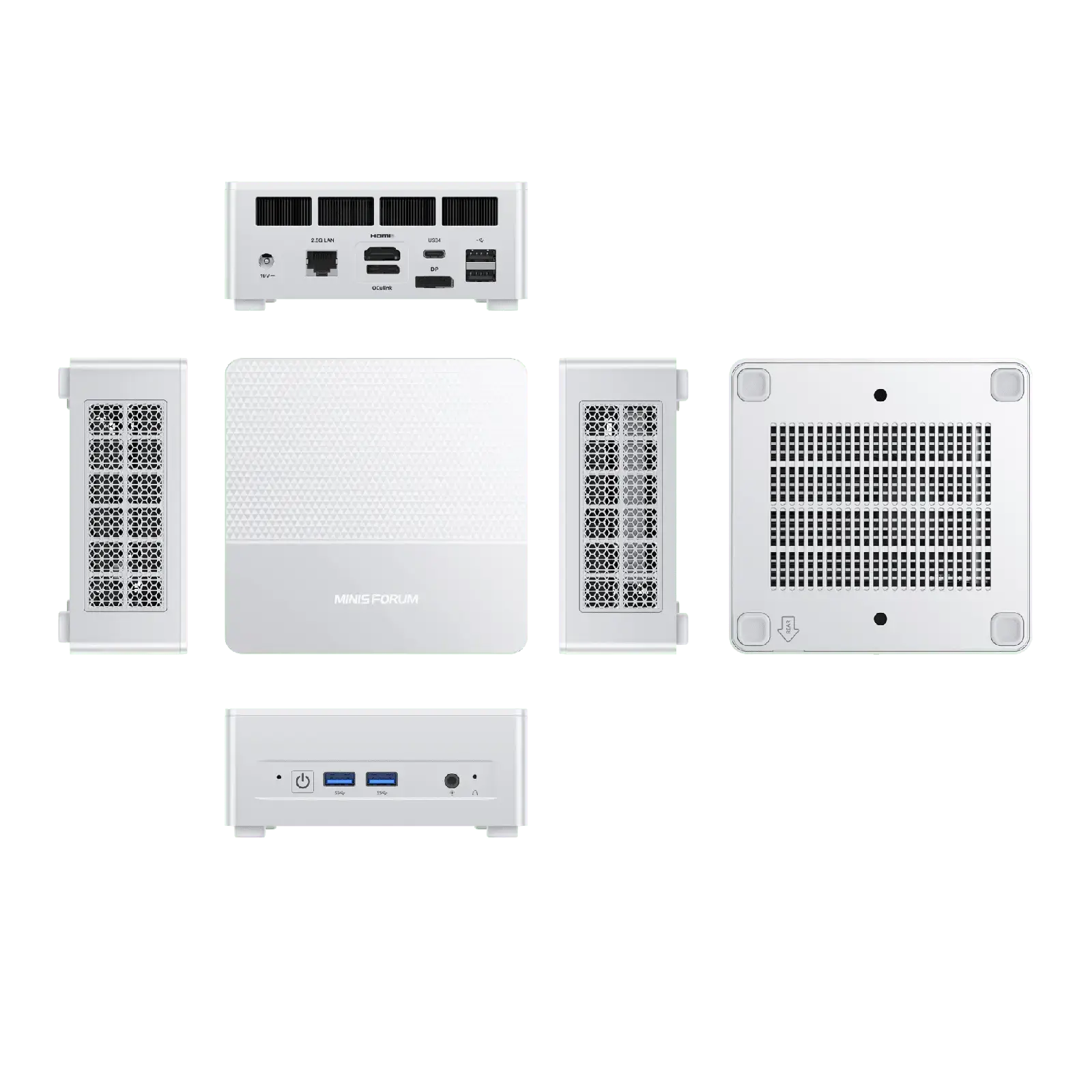

Minisforum X1 Lite Specification

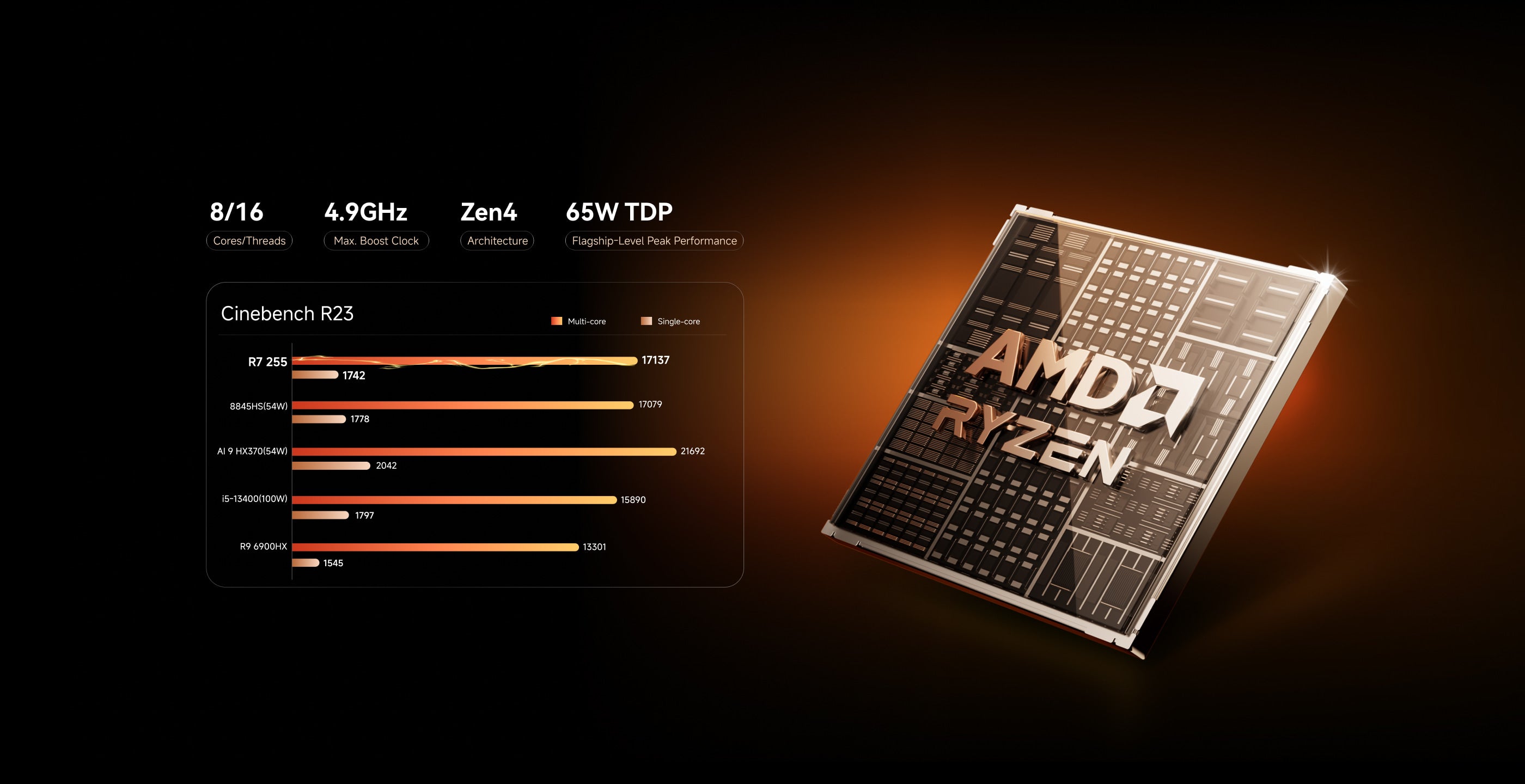

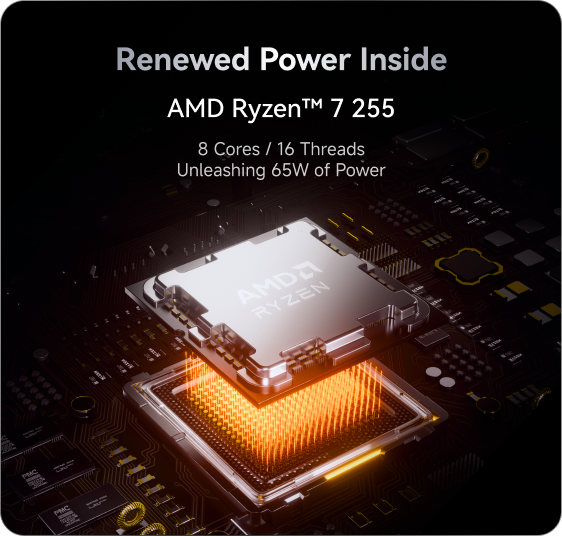

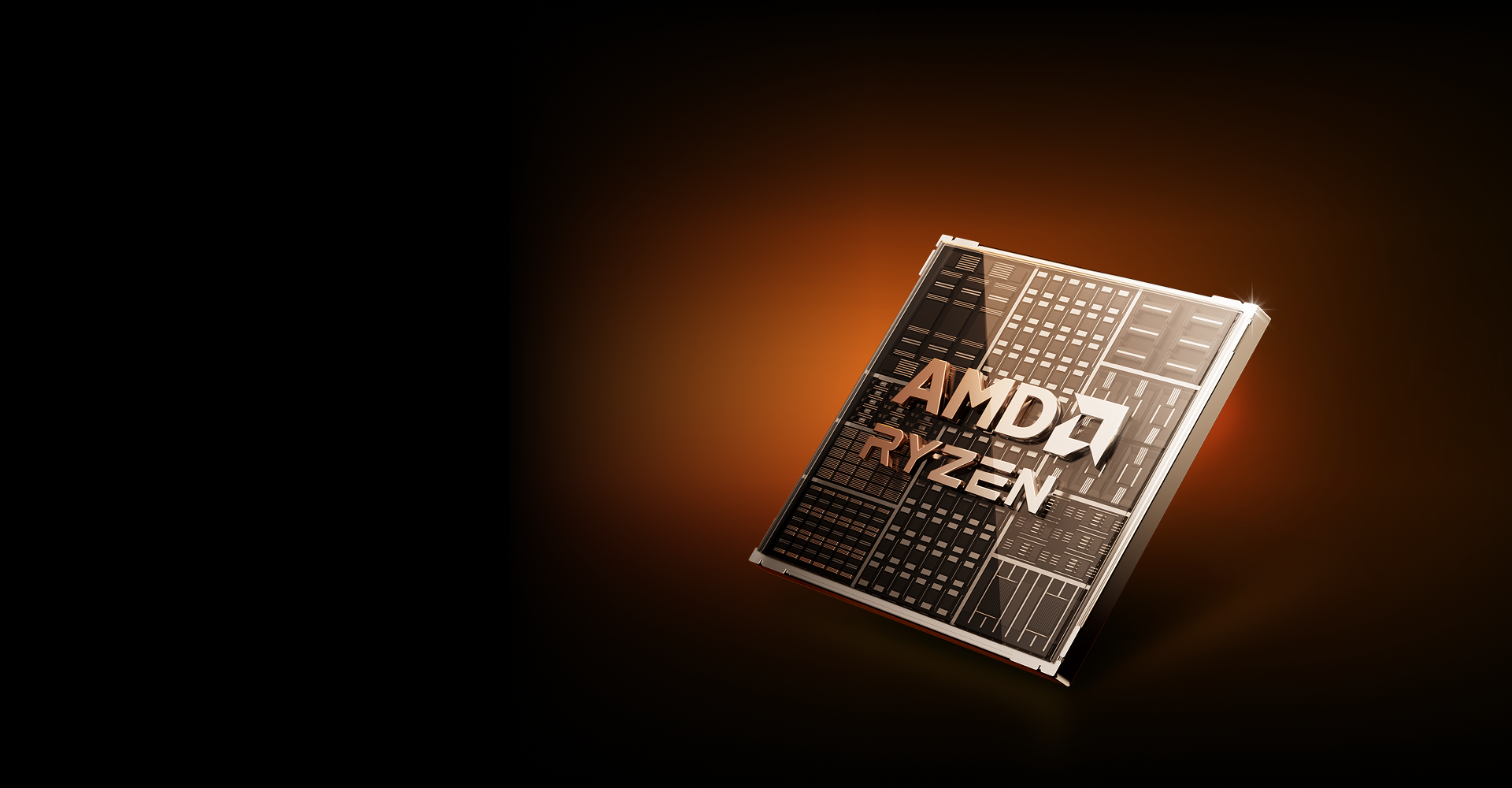

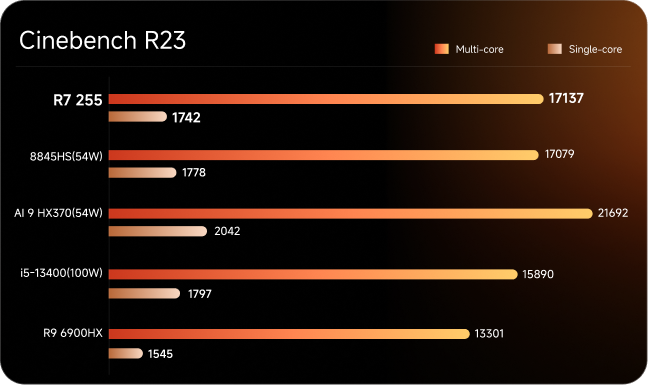

AMD Ryzen™ 7 255
(8 Cores, 16 Threads)

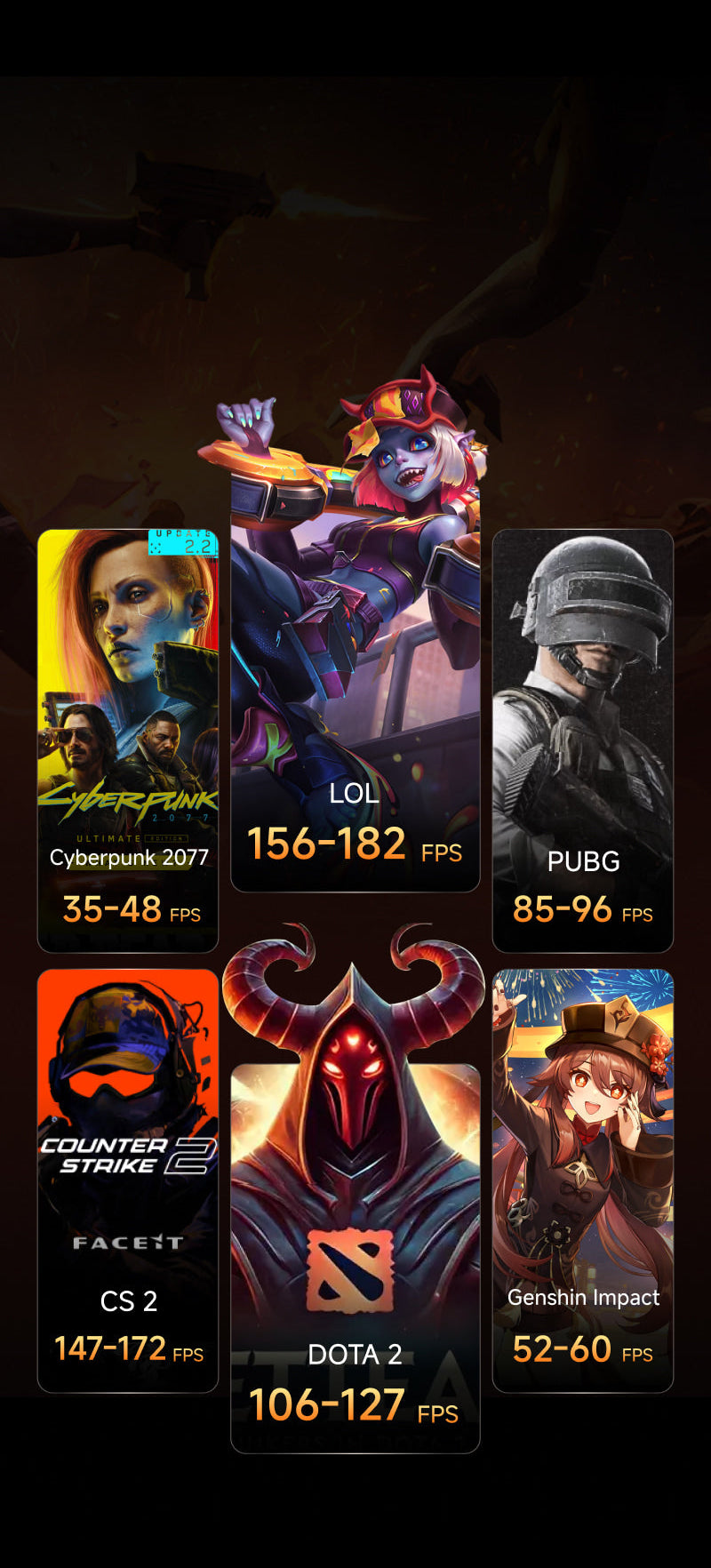

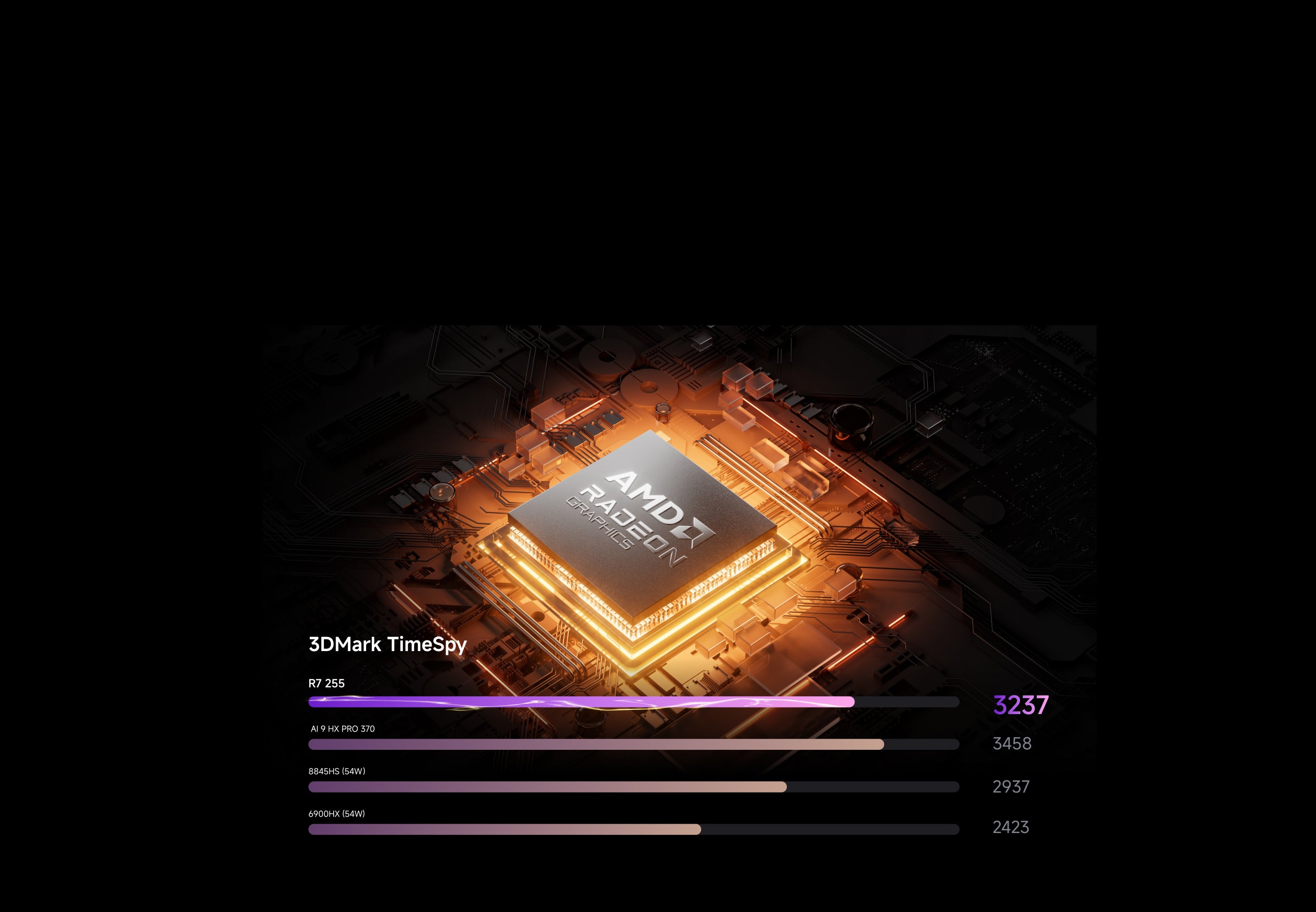

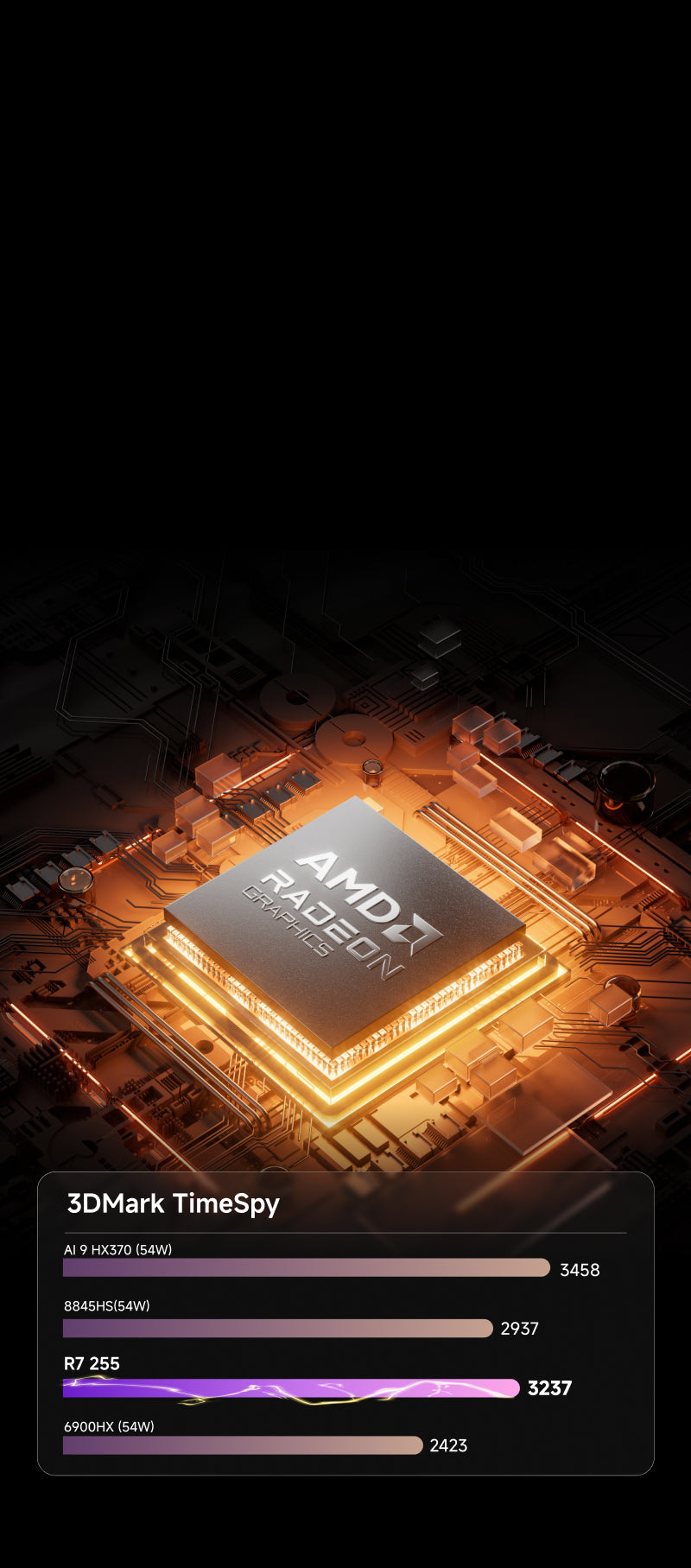

AMD Radeon™ 780M
DDR5-5600MHz SO-DIMM
(Dual Channel, support up to 128GB in total)
2×M.2 2280 NVMe SSD
(PCIe4.0 x4, support up to 4TB/slot)

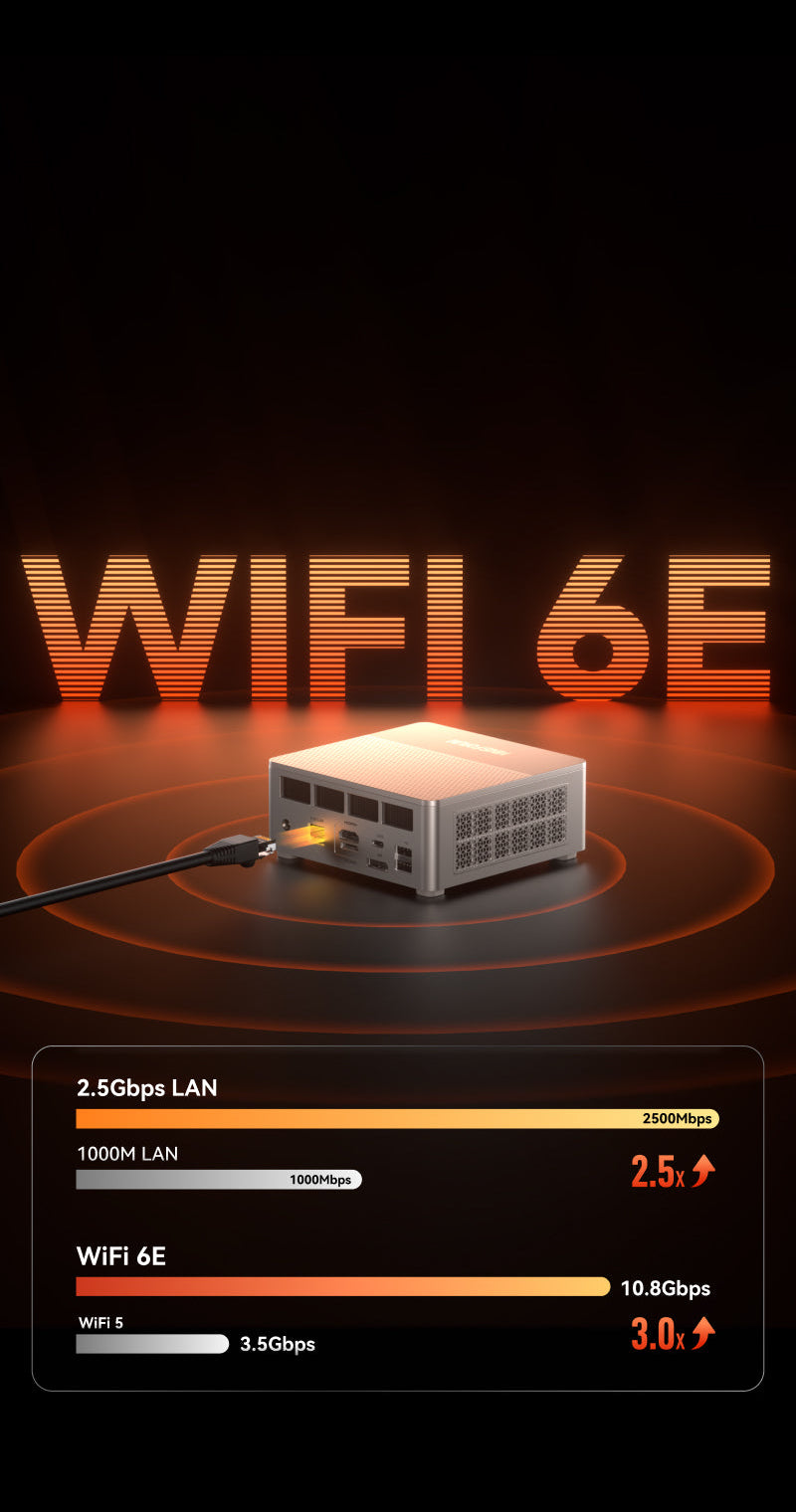

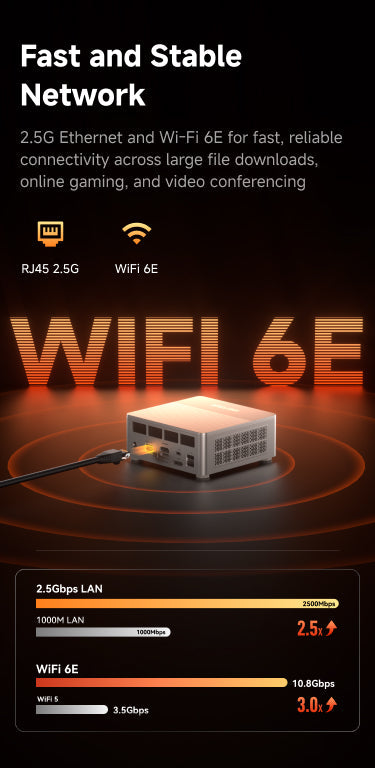

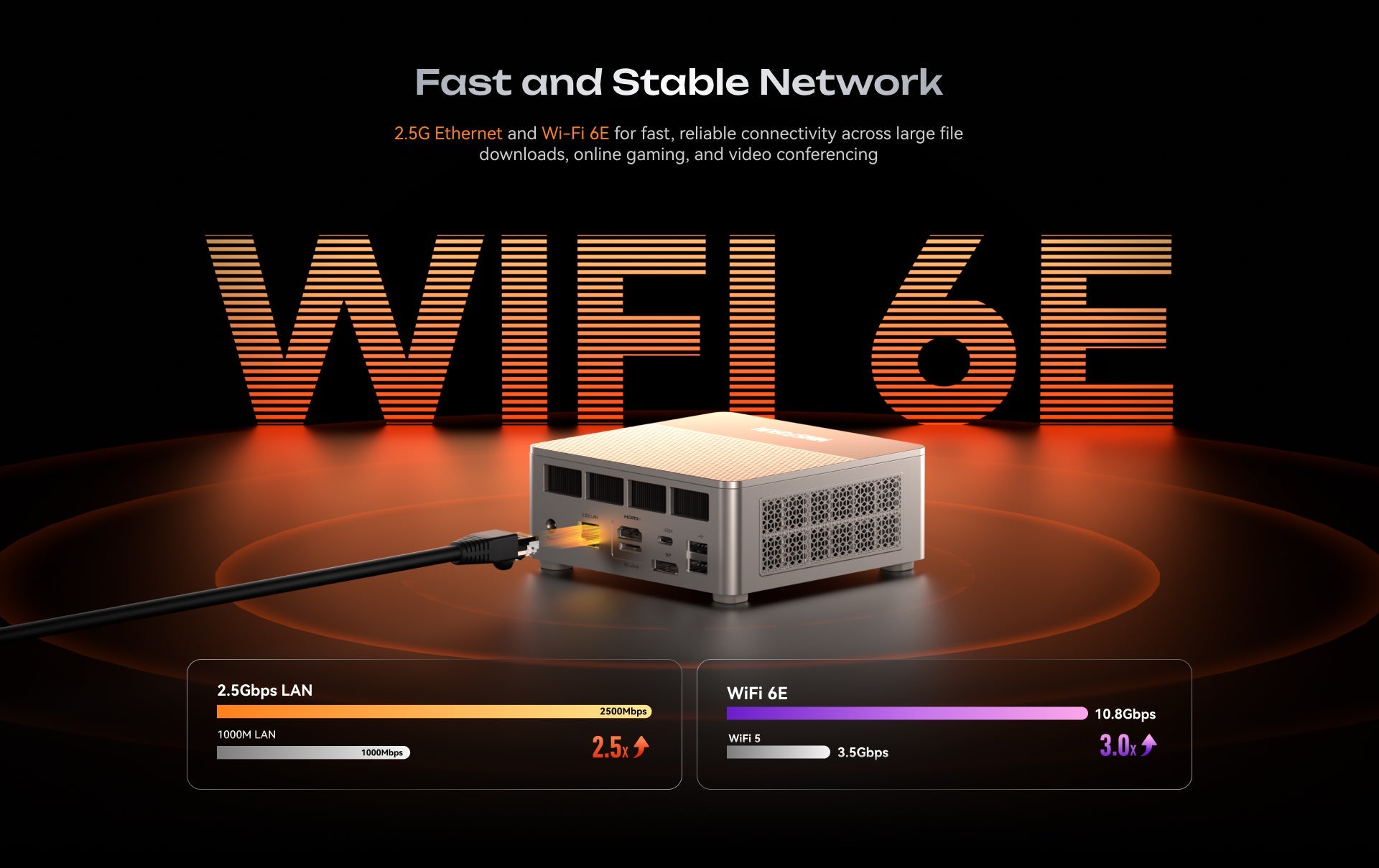

Wi-Fi 6E, Bluetooth® 5.2

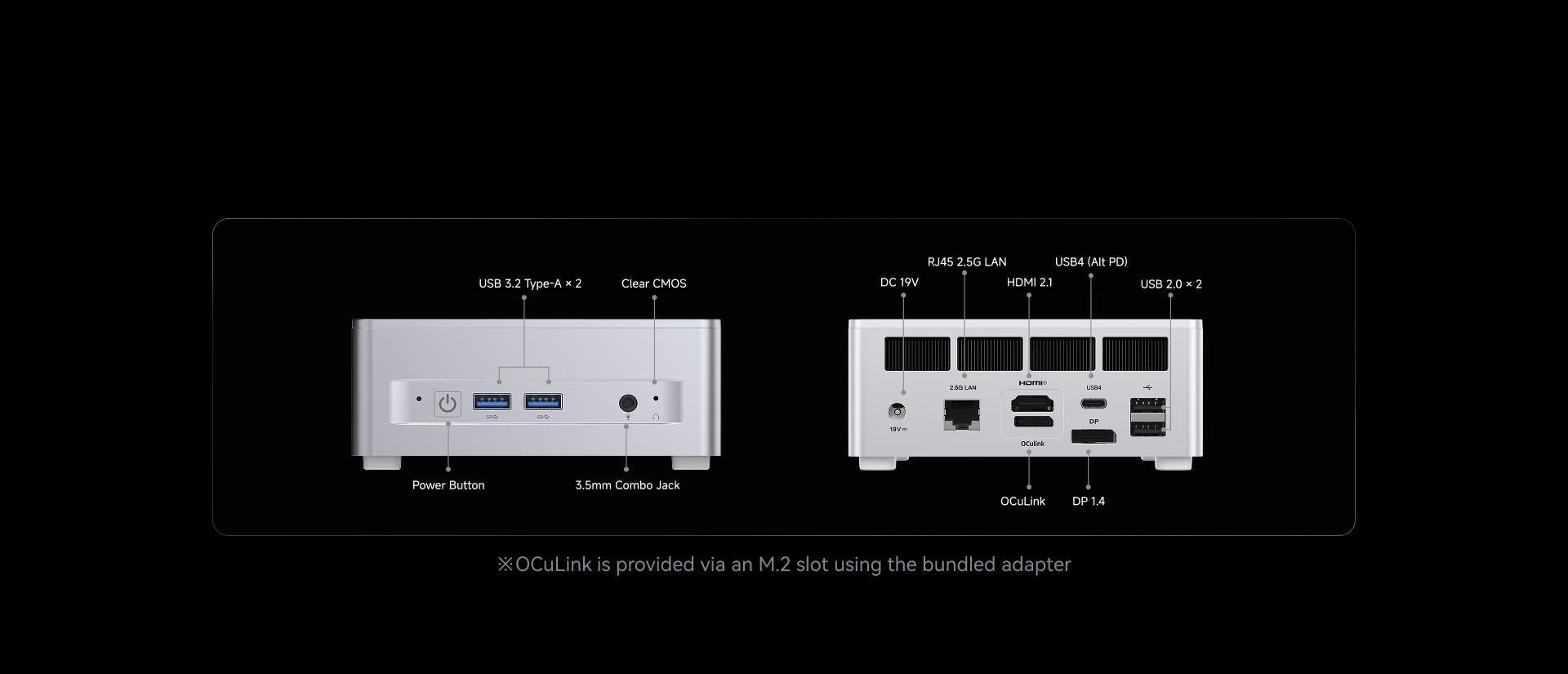

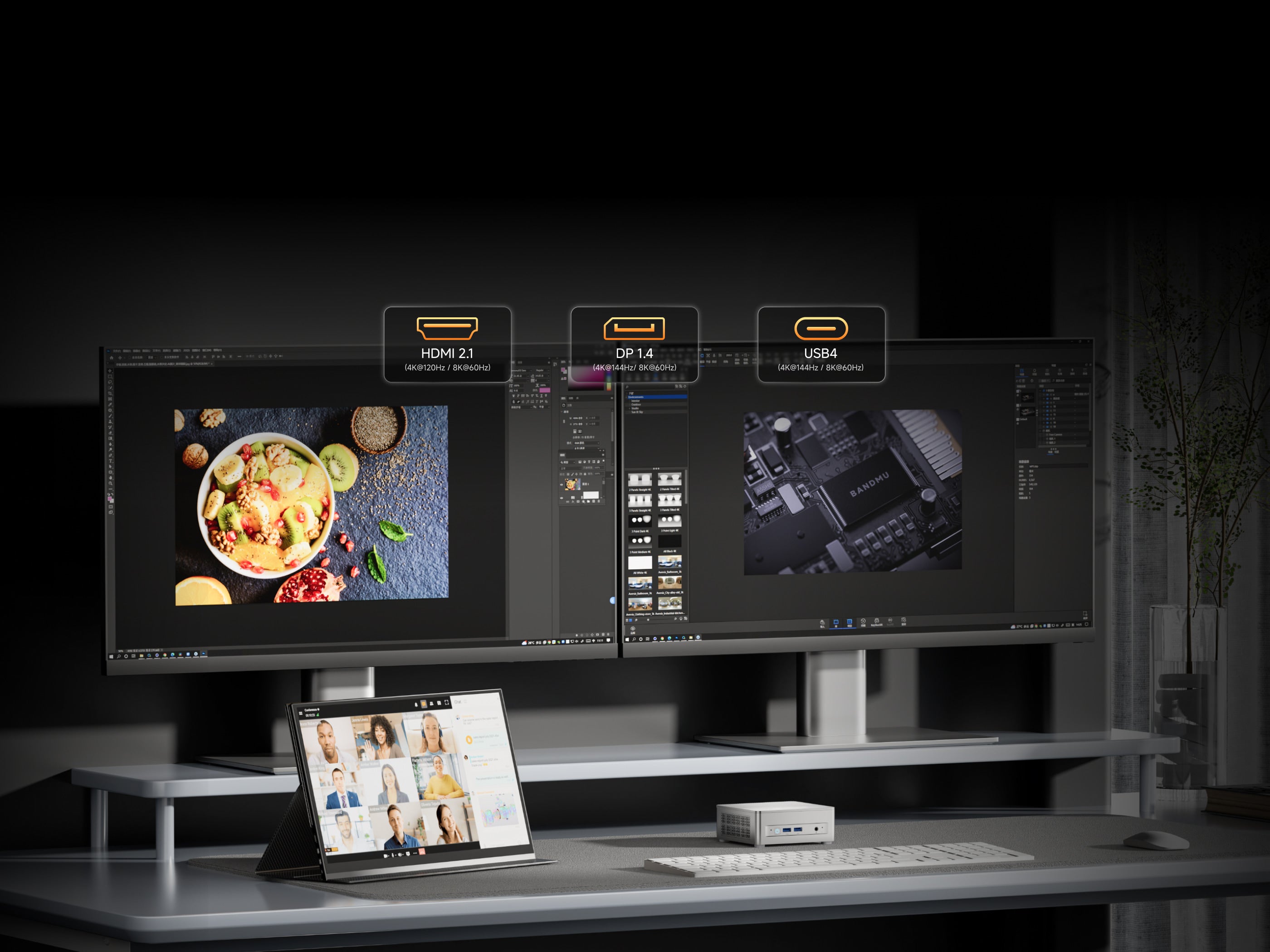

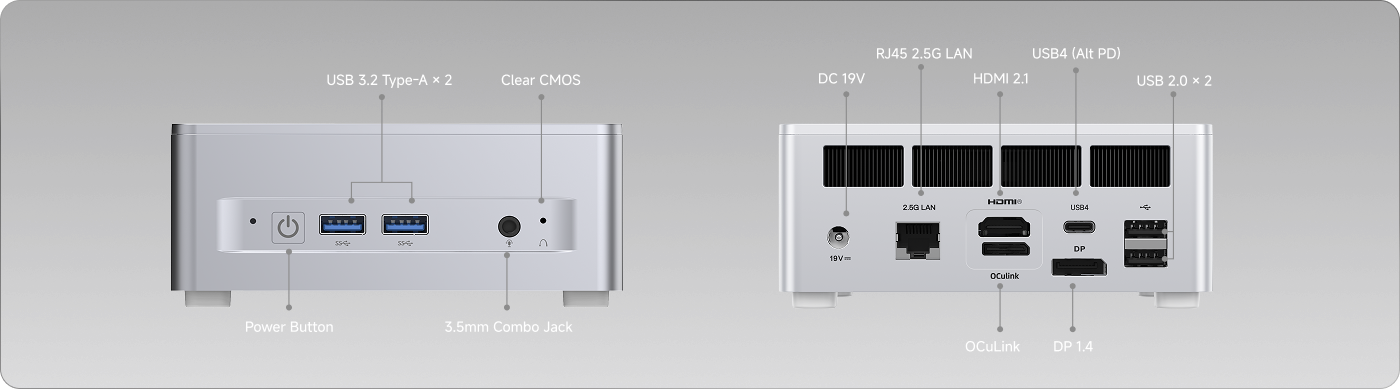

- HDMI 2.1 FRL×1 (Up to 8K@60Hz/4K@120Hz)
- DP 1.4×1 (Up to 8K@60Hz/4K@144Hz)
- USB4×1(Up to 8K@60Hz/4K@144Hz)

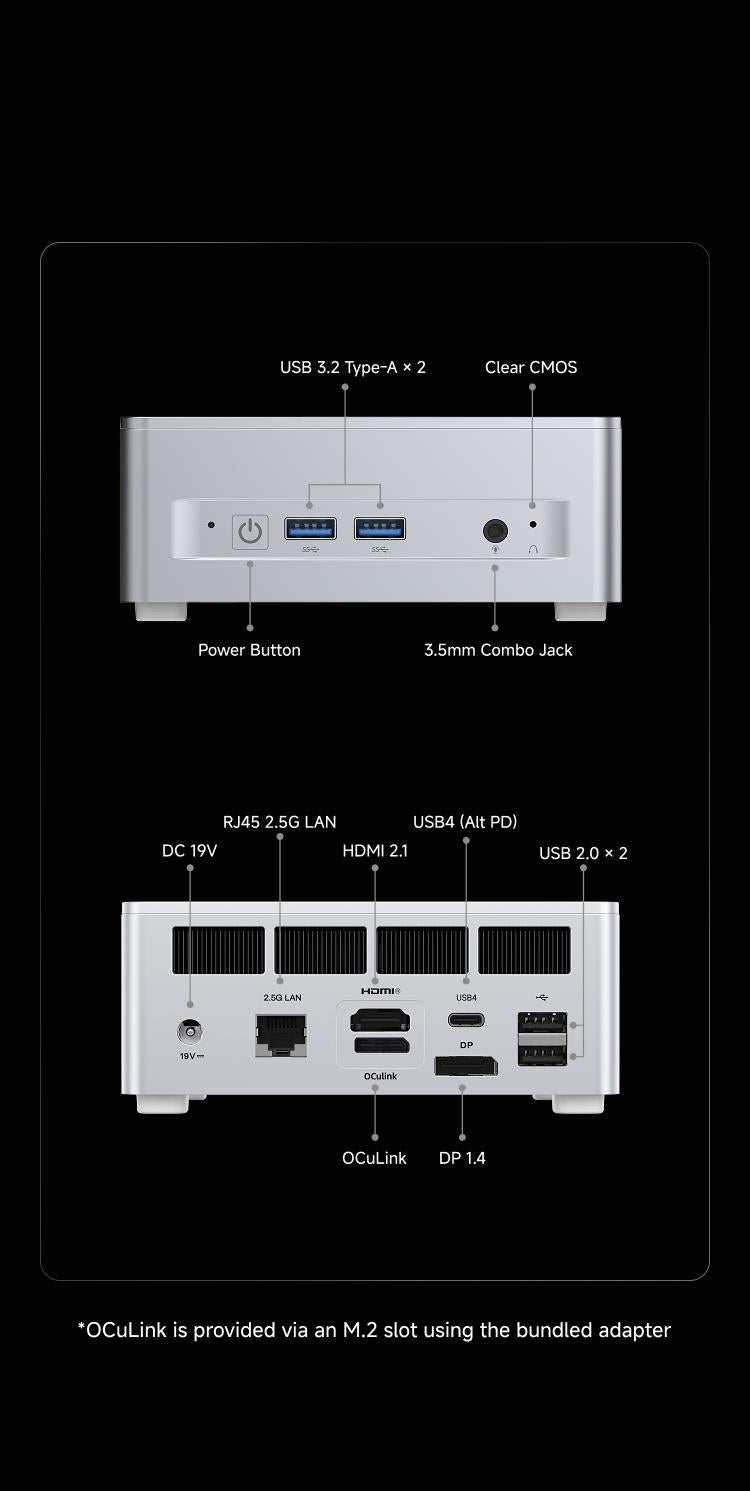

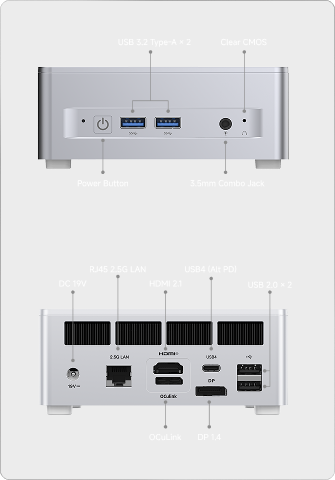

- HDMI×1
- DP×1

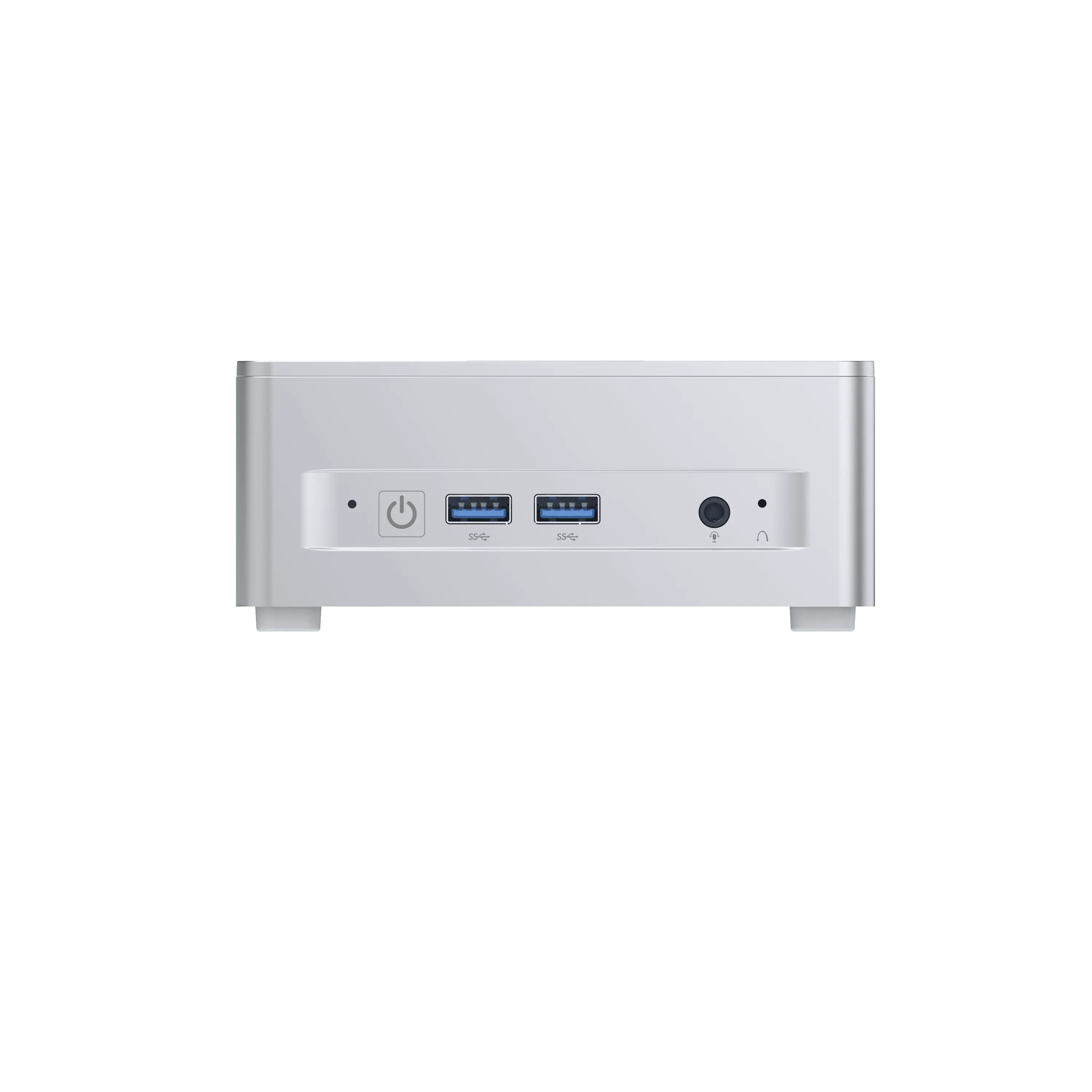

- 3.5mm Combo Jack×1

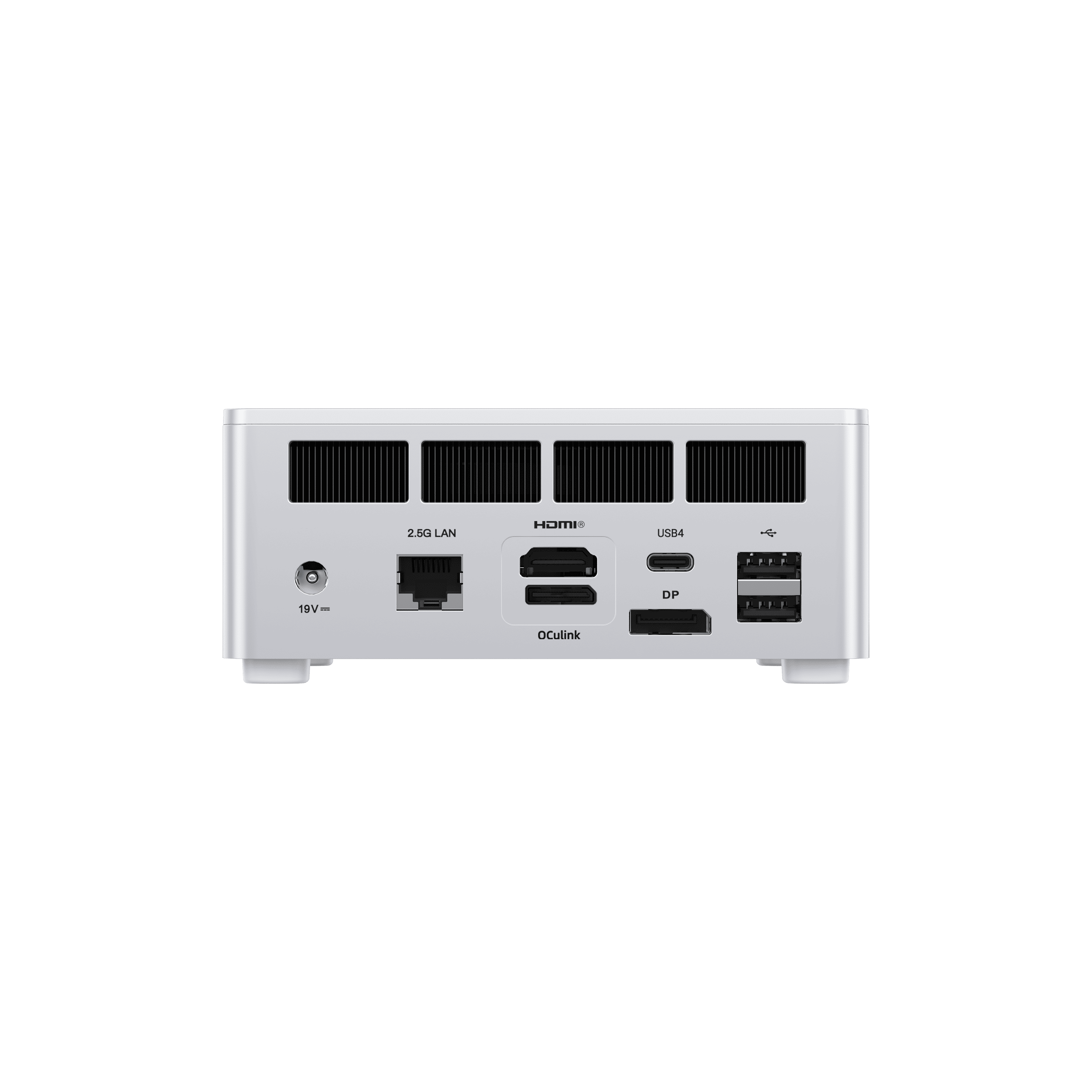

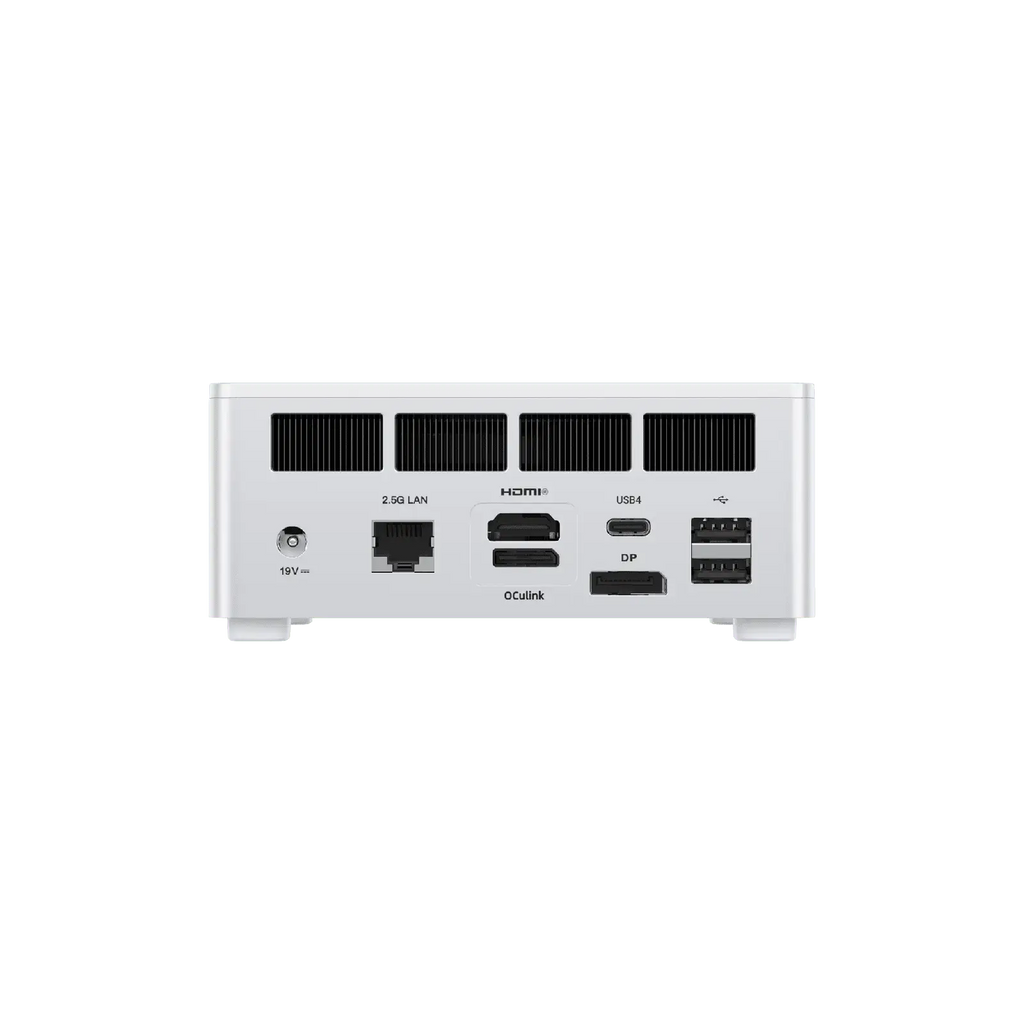

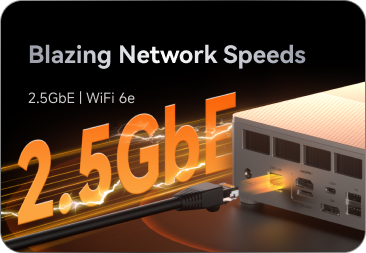

- RJ45 2.5G LAN×1

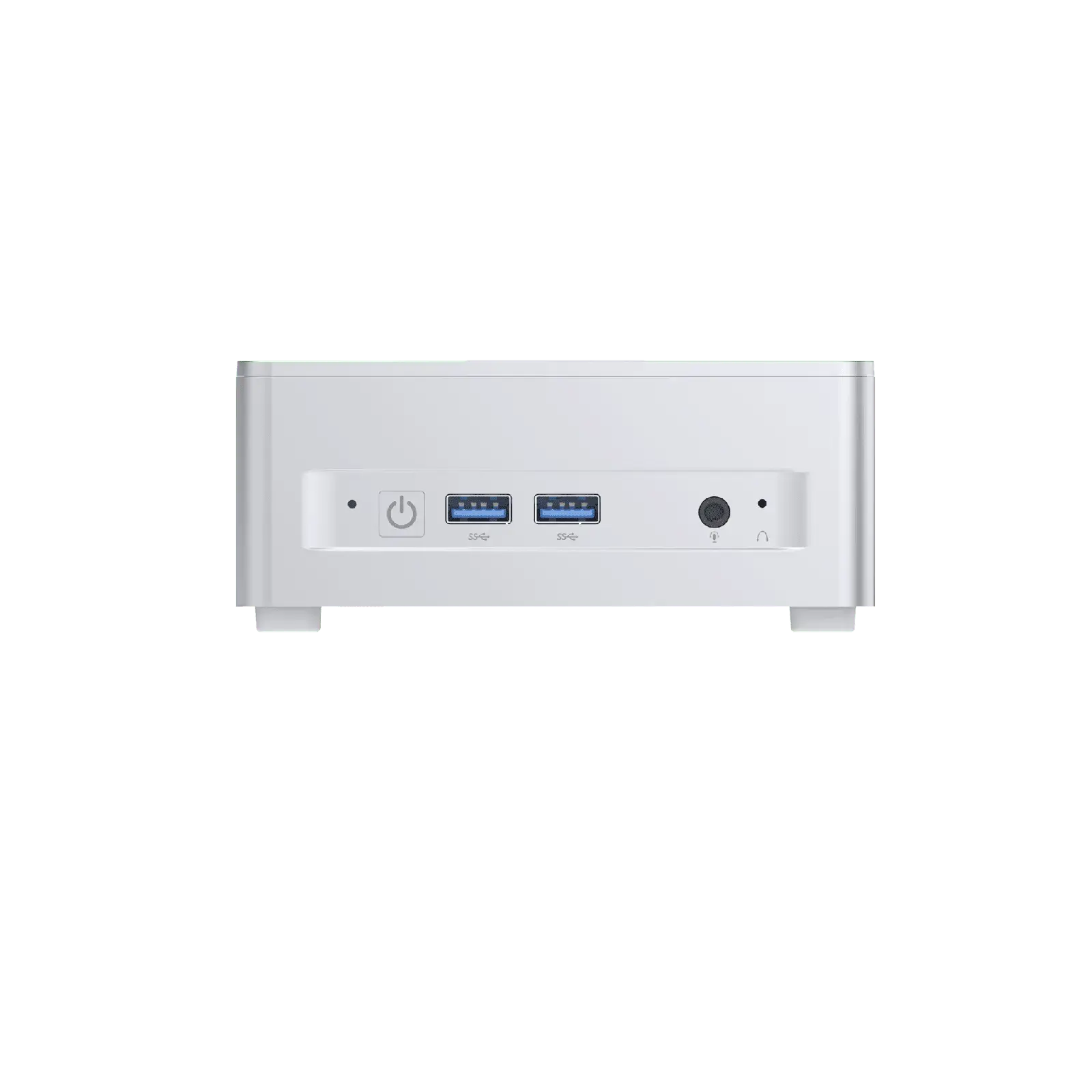

- USB 3.2 Gen2 Type-A×2
- USB 2.0 Type-A×2

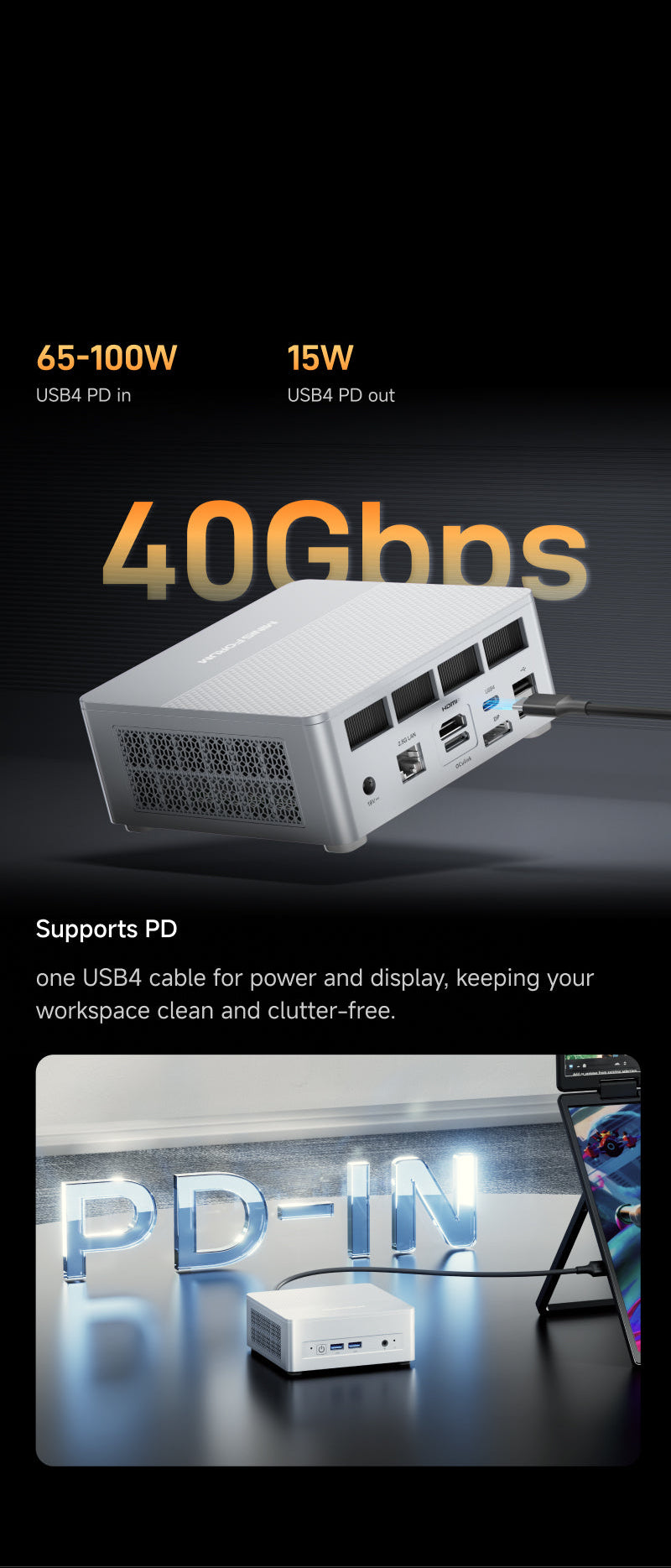

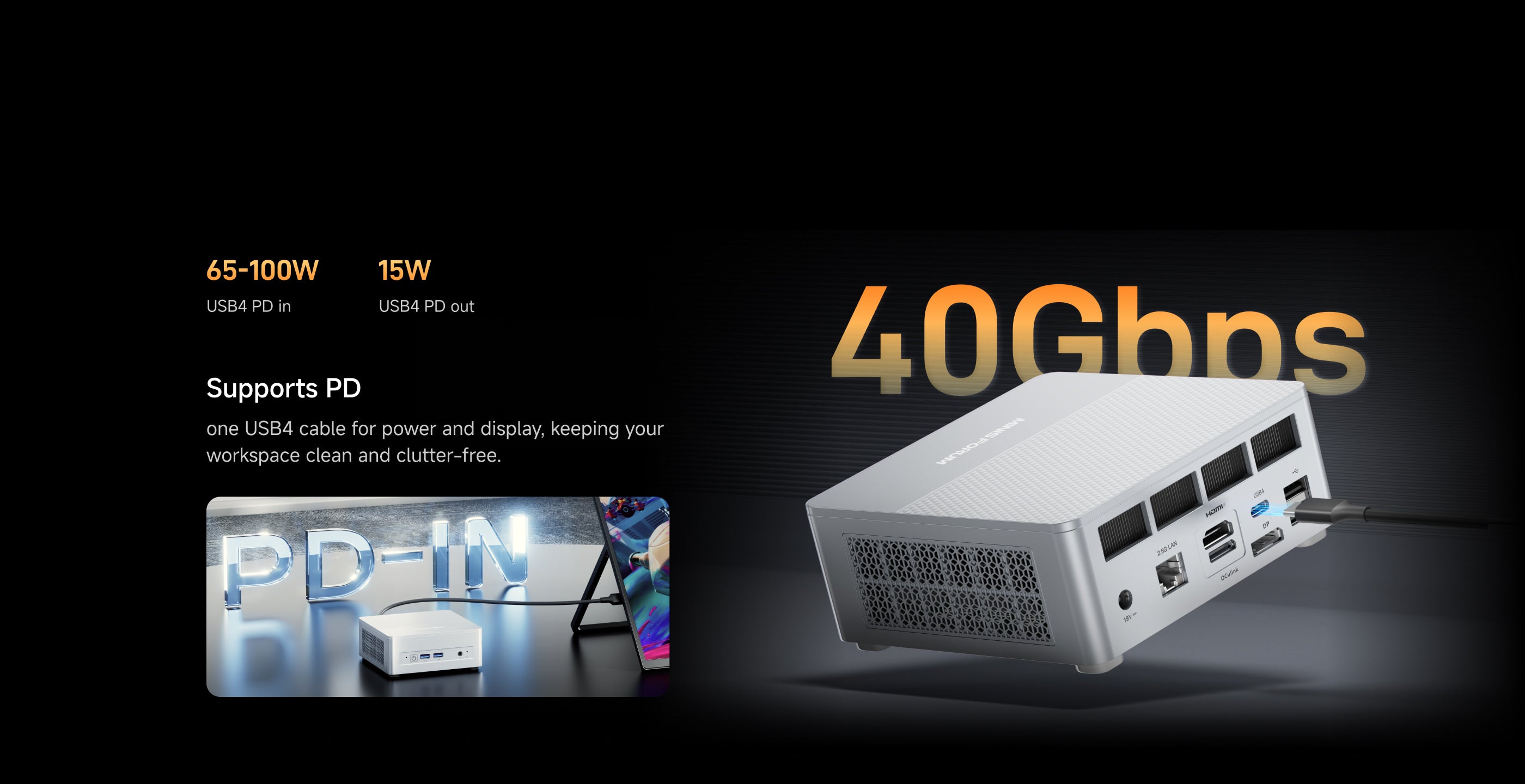

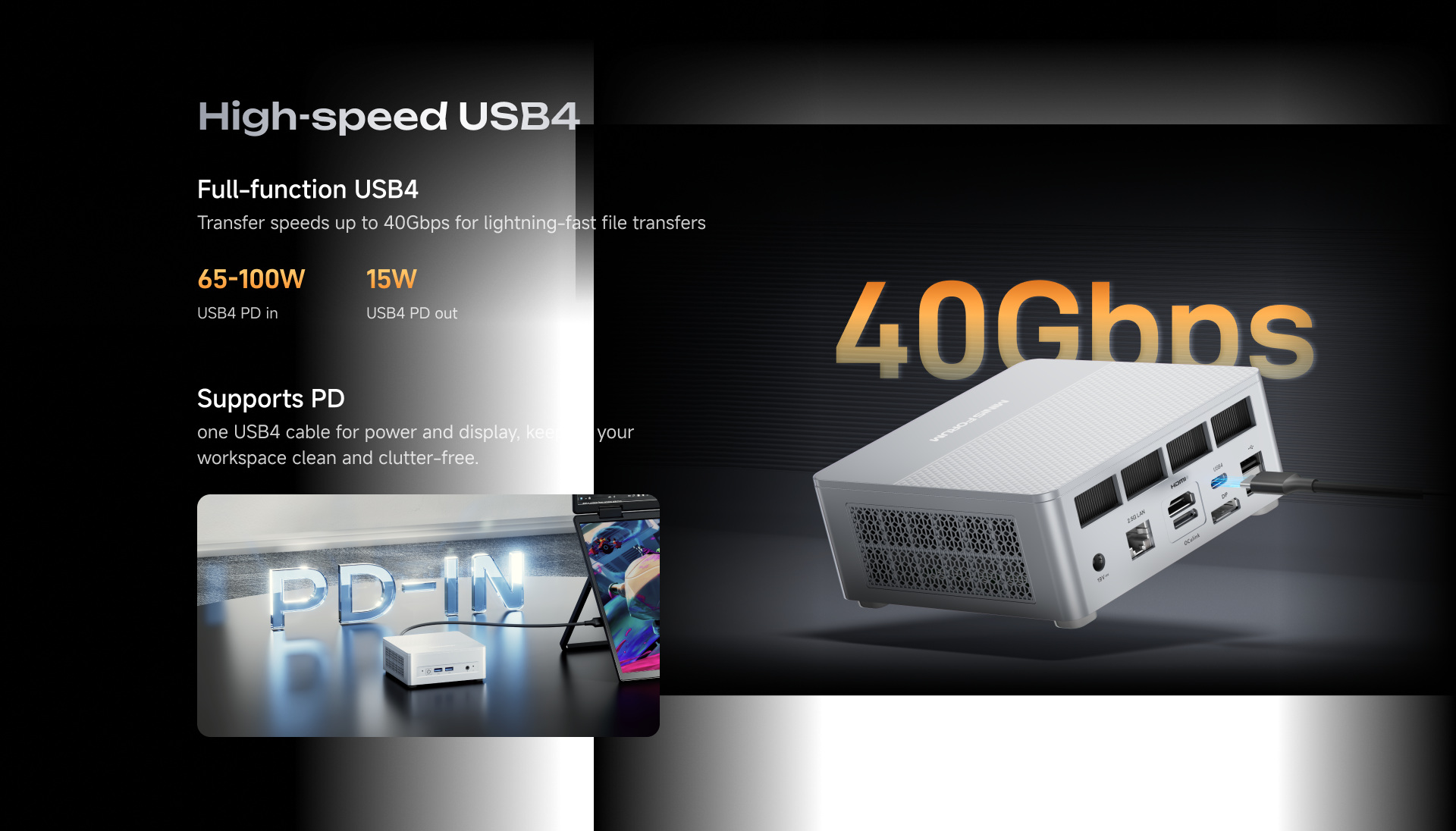

- USB4 Type-C×1 (40Gbps, PD 65-100W input & 15W output)
- HDMI2.1 FRL×1 (Up to 8K@60Hz/4K@120Hz)
- DP1.4×1 (Up to 8K@60Hz/4K@144Hz)

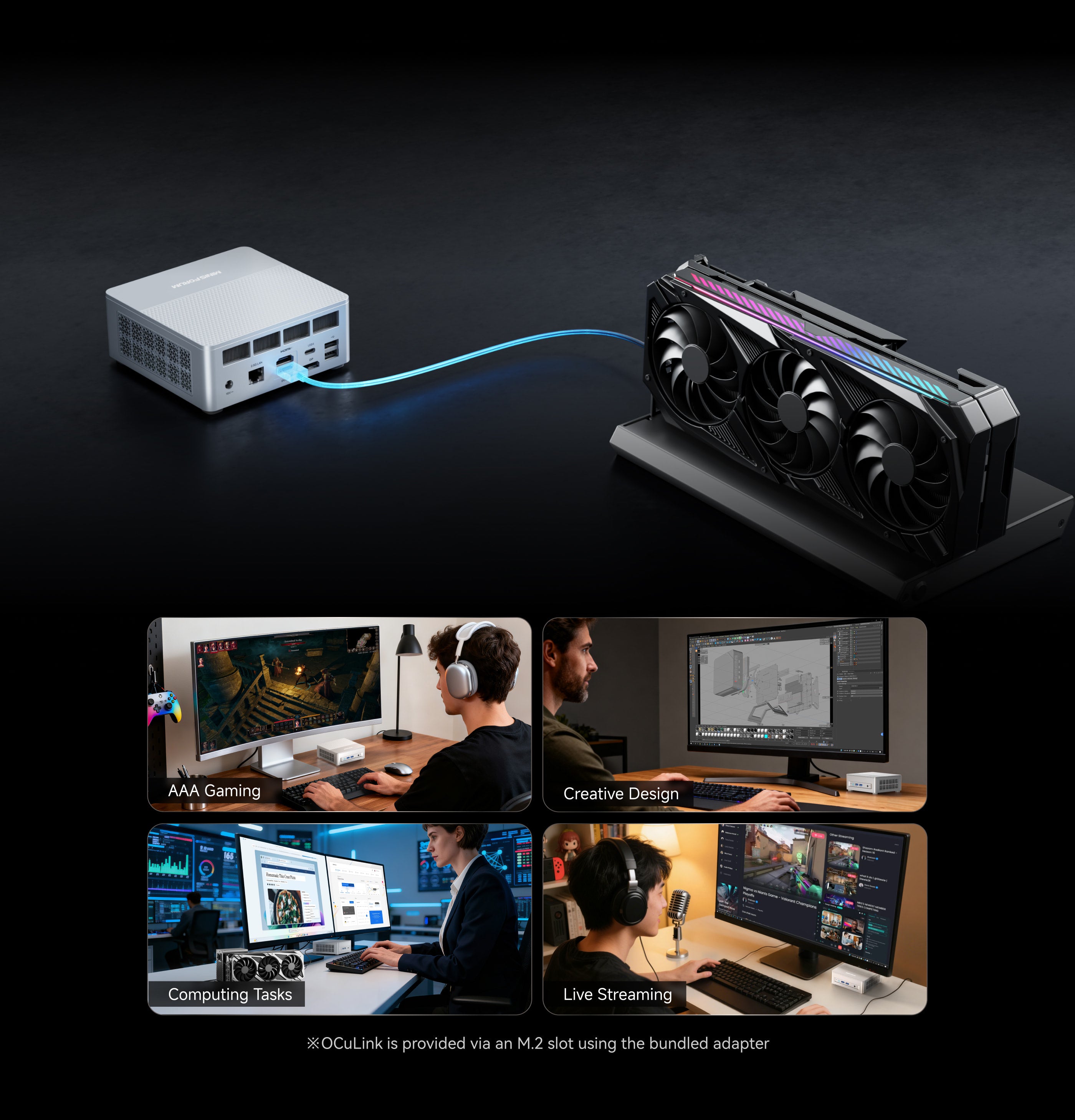

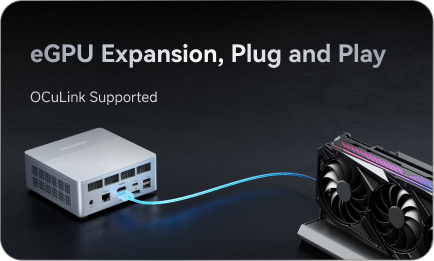

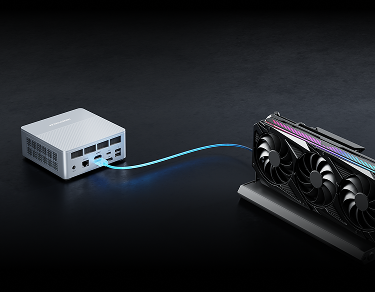

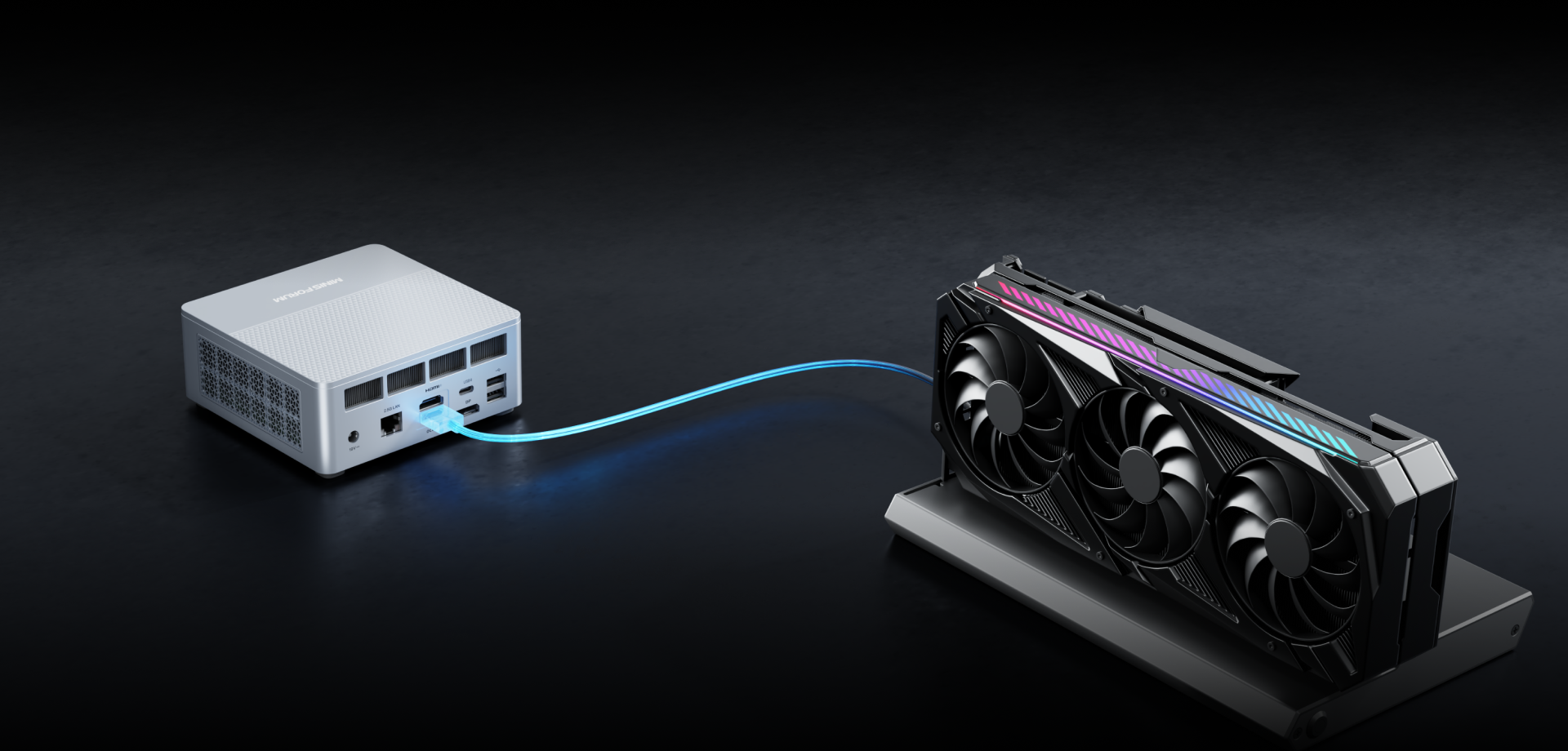

- OCuLink×1 (Via M.2 Adapter)
- 3.5mm Combo Jack×1
- Clear CMOS×1
Power Button×1
Reset Hole×1
DC 19V
Windows 11

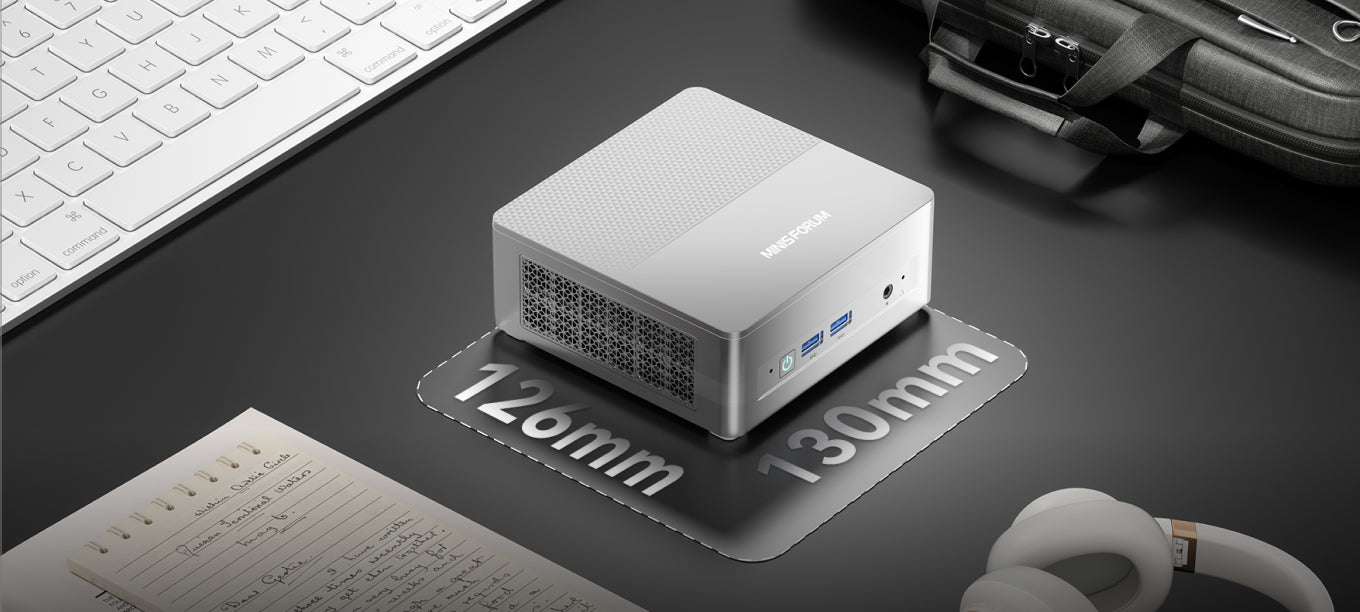

130×126×47.2mm
