MINISFORUM 129i7 / 795S7

AMD Ryzen™ 9 7940HX
The Minisforum 790S7 is powered by an AMD Ryzen 9 7940HX with 16 cores and Hyper-Threading (SMT), which means it can process up to 32 threads simultaneously. Its performance is on a par with the Core 13900HX, which means it can easily play large games, complete graphic design and much more.

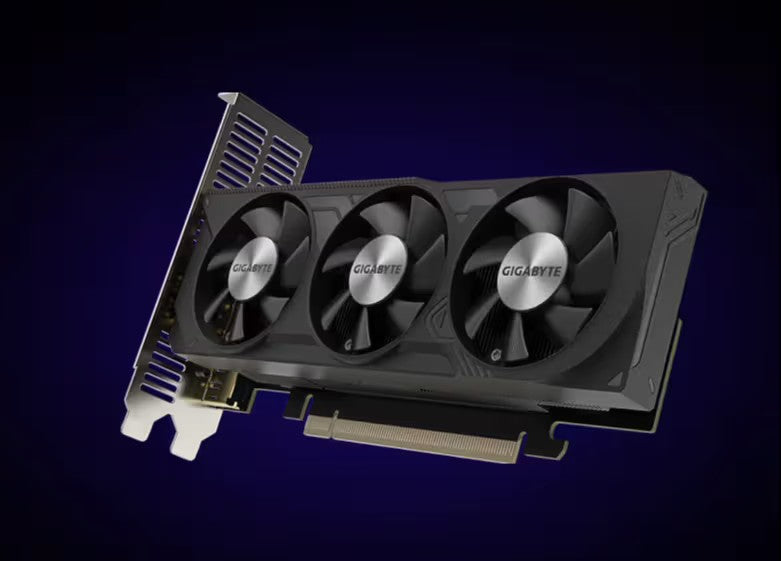

Discrete graphics card
Integrated AMD Radeon 610M graphics. There is also a discrete graphics card RTX 4060. PCIe 5.0×16 is supported.
Higher scalability
The 790S7 is equipped with a dual-channel memory slot for DDR5-5200MHz. It supports two M.2 SSD hard disks with a maximum capacity of 4 TB and a transfer speed of up to 7000 MB/s.

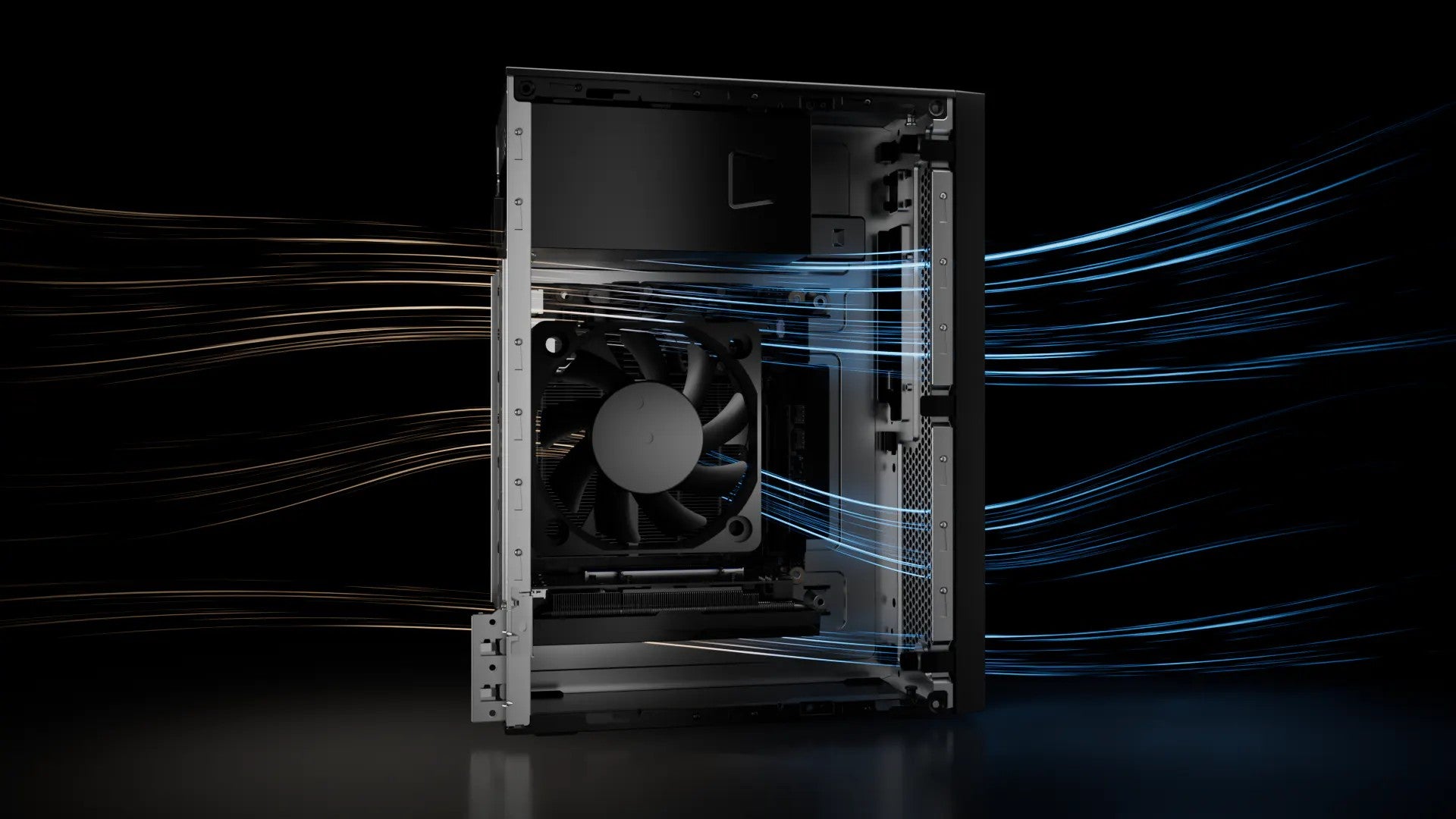

Efficient heat dissipation
It offers users a superior user experience with a smaller size than a traditional ITX motherboard and a powerful power supply with a consumption of 400W. It can effortlessly handle high-intensity office and e-sports gaming scenarios and also features an integrated CPU cooling system as well as an under-base heat dissipation design to continuously dissipate heat.

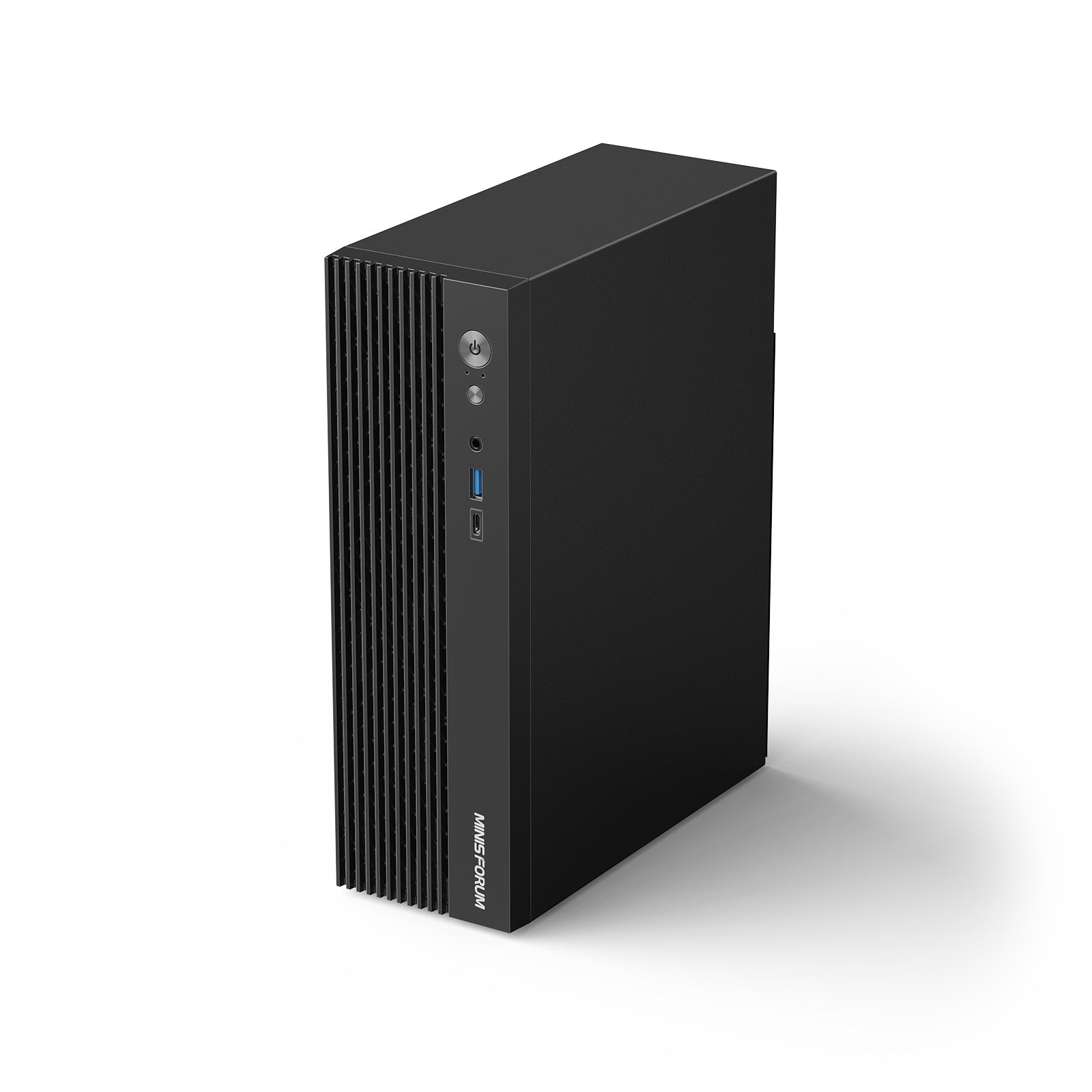

Minimalist - Small desktop computer -
The size of the motherboard is 170 * 170 mm, and the size of the chassis is only 298 * 225 * 95 mm, which is comparable to the size of a "small portable container".
It is also equipped with an L-shaped foot pad, which is small and stable.
Use in which scenarios?
Supports 8K display
HDMI 2.1 ×1 (4K@120hz / 8K@60Hz)
DP 1.4 ×1 (4K@144Hz)
USB 3.2 ×1 (4K@240Hz / 8K@60Hz)
Ports and buttons
Motherboard connector
Specification
790S7/795S7 Mini-ITX
790S7: AMD Ryzen™ 9 7940HX
(16 cores/32 threads)
795S7: AMD Ryzen™ 9 7945HX
(16 cores/32 threads)
Intel® Core™ i9-12900HK
(14 cores/20 threads)
AMD Radeon" 610M
PCle5.0 x16
DDR5 Dual channel (SODlMM Slotsx2 ,up to 5200 MT/s, Max 64GB
M.2 2280 PCle4.0 SSD x2
HDMI2.1 x1(4K@120hz/8K@60Hz)
DP 1.4 x1(4K@144Hz)
USB3.2 x1(4K@240Hz/8K@60Hz)
HDMI x1 ; DP x1 ; Audio Jack x1
Audio Jack x1
l0(Front)
USB2.0 Type-C Port x1
USB A 3.2 Gen1 x1 (5Gbps)
Power button x1
Reset button x1
HDMI 2.1x1
DP 1.4x1
USB3.2 Gen2 Type-C Port x1 (Alt DP)
USB3.2 Gen1 Type-A Port x2
USB2.0 Type-A Port x2
LINE IN x1
LINE OUT x1
MIC IN x1
11.73 x 8.86 x 3.74 inches
400W
Windows 11
