AMD Ryzen™ 9 7945HX3D
The AMD Ryzen™ 9 7945HX3D processor features Zen 4 architecture with 16 cores and 32 threads. It ensures users can effortlessly handle even the most demanding multitasking scenarios and complete compute-intensive tasks in a flash. The advanced architecture delivers a significant performance boost, making it an ideal choice for gamers, content creators, and professionals who require top-notch computing power.
Extreme refresh rates, conquer every battle
Experience a larger L3 cache and boost clock speeds with AMD 3D V-Cache for seamless frame rates in AAA gaming. 144 MB L2+L3 cache | Max. boost clock up to 5.4 GHz
Desktop level Ultimate Performance
Master multithreaded workloads; high core and thread counts ensure smooth, uninterrupted performance. 144MB of high-speed memory minimizes data and instruction latency during gameplay, boosting average FPS and reducing FPS by 1% for a superior gaming experience.
Efficient cooling system

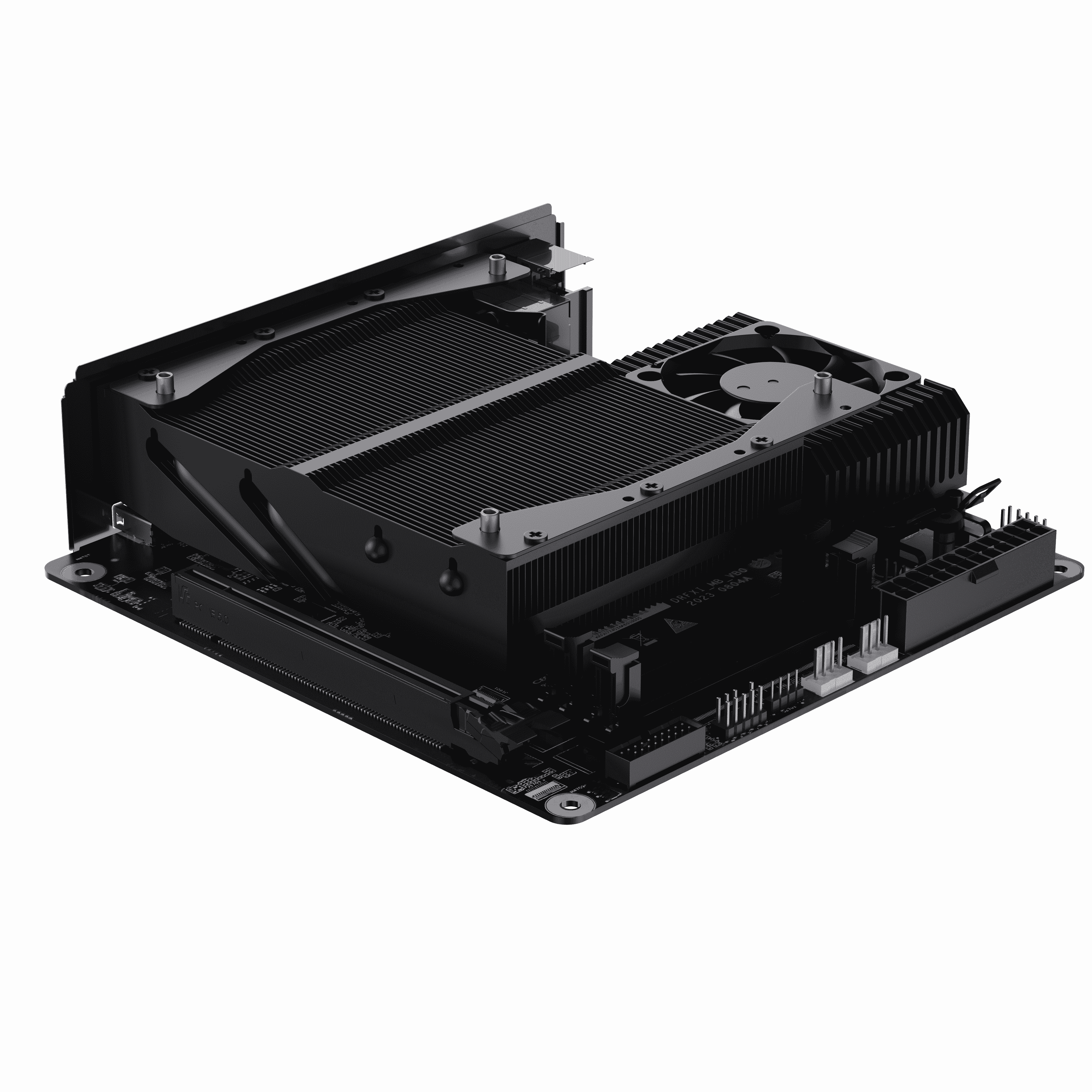

The large heatsink covers 80% of the motherboard's surface area, ensuring stable and reliable performance. It's also compatible with a 12 cm fan to improve heat dissipation.
Active SSD cooler
Always maintains PCIe 5.0 at full speed.
Compare
Differences between the BD79 series motherboards
AMD Ryzen™ 9 7945HX3D, 16 cores/ 32 threads (128M cache, up to 5.4 GHz)
AMD RyzenTM 9 7945HX, 16 Kerne/32 Threads (64MB Cache, bis zu 5,4 GHz)
AMD Radeon™ 610M
AMD RadeonTM 610M Grafik
DDR5 Dual Kanel (SODIMM Slots×2, bis zu 5200MT/s, max. 96GB)
DDR5 Zweikanal (SODIMM-Steckplätze×2, bis zu 5200 MT/s, maximal 96 GB)
2×M.2 2280 NVME SSD Slot (bis zu 4 TB,PCIe5.0 x4)
2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
2×SATA HDD/SSD Slot(SATA3.0)
WiFi 6e+BT5.3
M.2 2230 Key E Slot
1 x 24-Pin Main Power Anschluss
1 x 8-Pin +12V CPU Power Anschluss
1 x 4-Pin CPU Fan header
2 x 4-Pin SYS Fan header
1 x System Panel header
1 x Front Panel Audio header (F_AUDIO)
1 x USB 3.2 Gen1 header
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin SYS Fan header
1 x System Panel header
1 x Front Panel Audio header (F_AUDIO)
1 x USB 3.2 Gen1 header
HDMI 2.1 FRL x 1 (Up to 8K@60Hz/4K@120Hz)
DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
HDMI 2.1 FRL x 1 (Up to 8K@60Hz/4K@120Hz)
DP1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
HDMI х 1, Line Out х 1
HDMI x1; Line Out х 1
Line in х 1, Mic in х 1
Line in х 1; Mic х 1
2,5 Gigabit LAN (RJ45) х 1
USB Type A (USB 2.0) х 2
USB Type A (USB 3.2 Gen1) х 2
USB Type C (USB 3.2 Gen2) х 1
HDMI 2.1 х 1
DP 1,4 х 1
Line in х 1
Line-out х 1
Microphone input х 1
CLR COMS х 1
USB Type A(USB2.0) х 2
USB Type A(USB3.2 Gen1) х 2
HDMI 2.1 х 1
DP1.4 х 1
Line in х 1
Line Out х 1
Mic *1
CLR COMS х 1
ATX Power(>200W)
M-ATX Formfaktor
Windows 11
Windows 11
170x170x1.6mm
240х220х1.6mm
FAQ
If you have any further questions, please contact customer service.
eu@minisforum.com
Q1: Do the CPU and memory support overclocking (PBO, EXPO)?
A: Unfortunately, the BD790i does not support overclocking.
Q2: Can the CPU be replaced?
A: BD790i comes with an integrated AMD Ryzen™ 7 7745HX and is not replaceable.
Q3: Is there a built-in fan and is the fan speed adjustable?
A: The BD790i model does not come with a fan; you'll need to purchase a 12025 fan separately.
The fan speed is currently not adjustable via software, but you can adjust it in the BIOS.
Q4: Is there support for different power supplies?
Q4: Is there support for different power supplies?
Q5: Can I install it in any size case?
A: Yes, it can be used in ITX cases. Note: Without a fan, the thickness of the motherboard + heatsink is 37mm.
