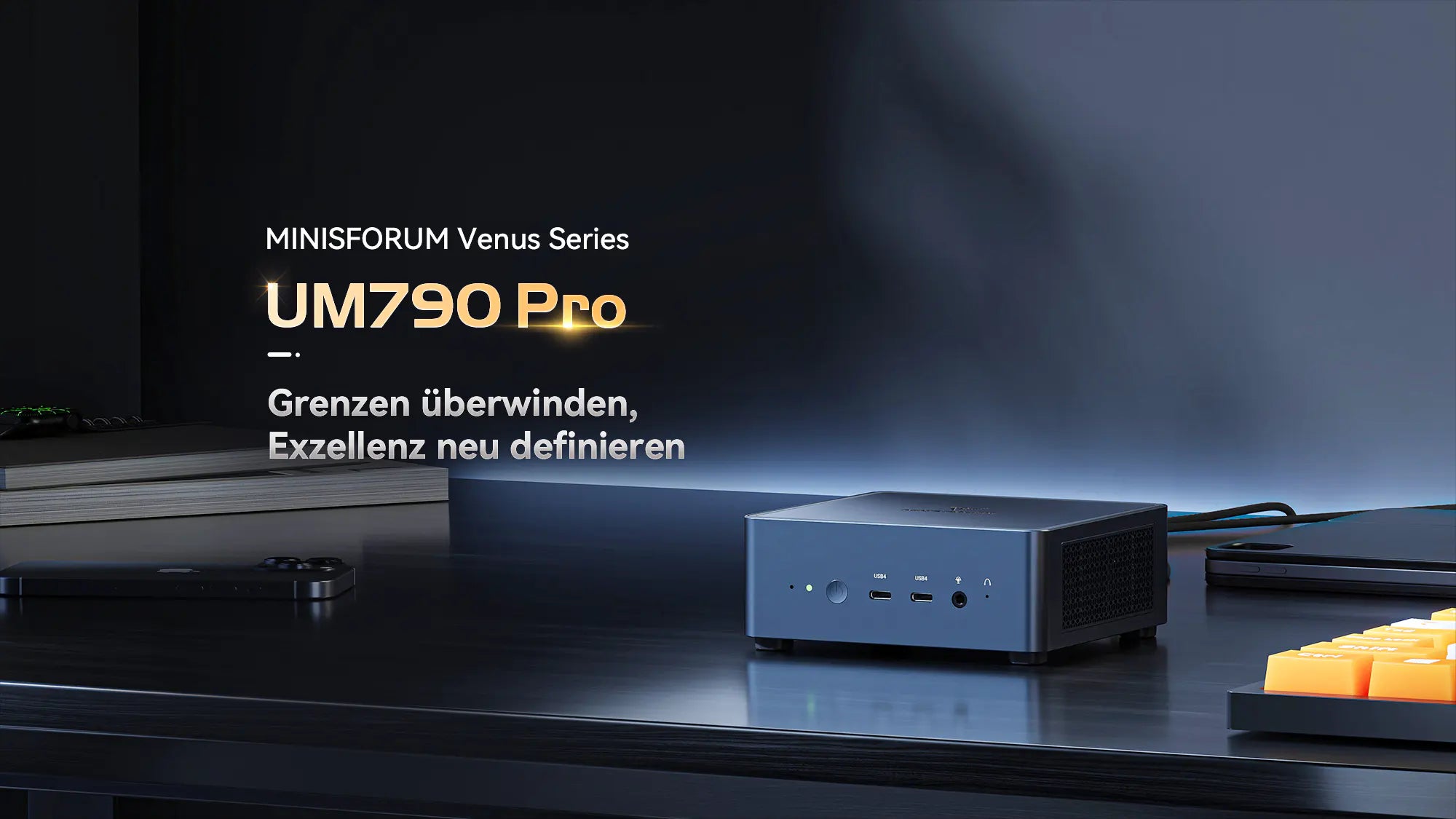

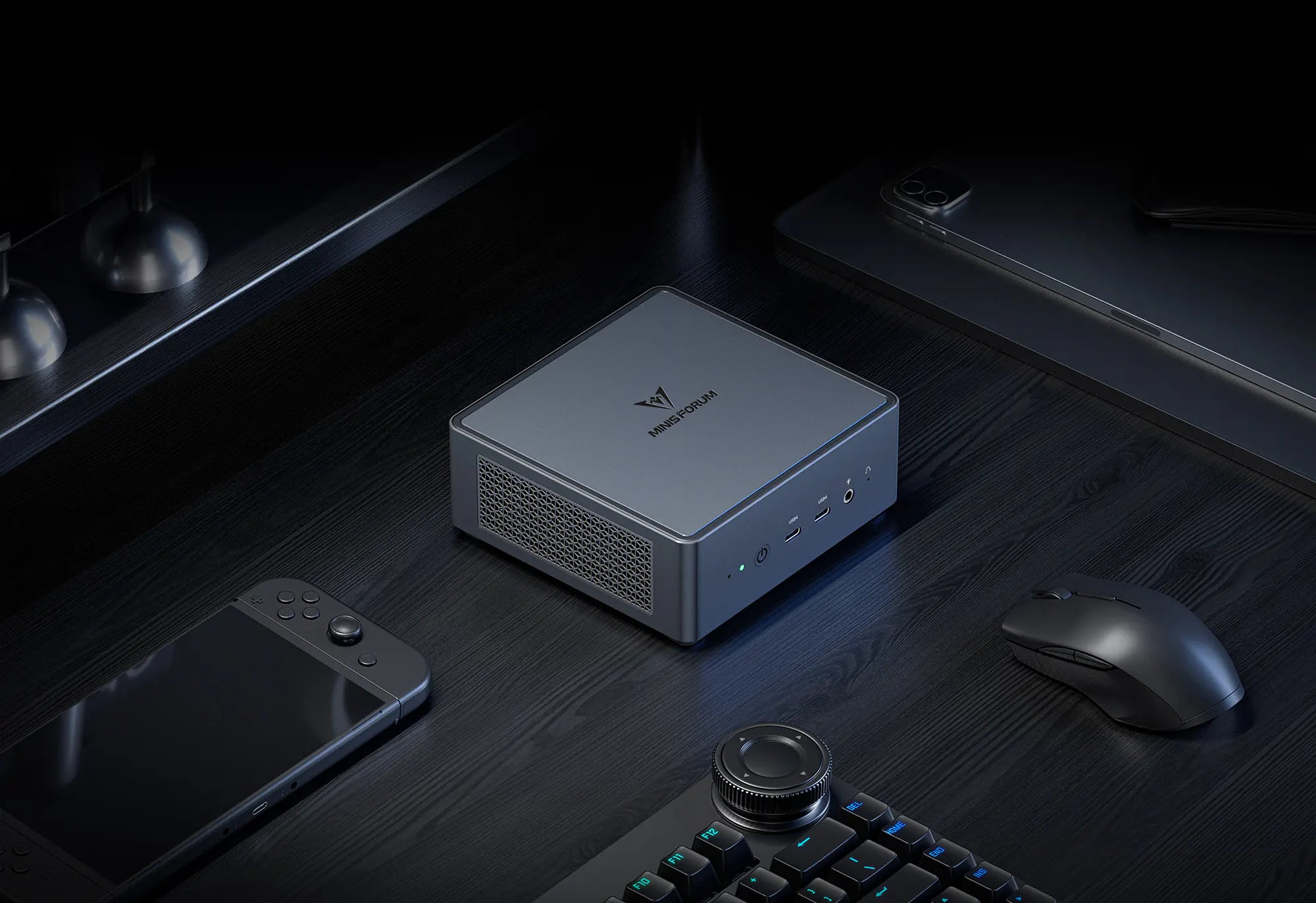

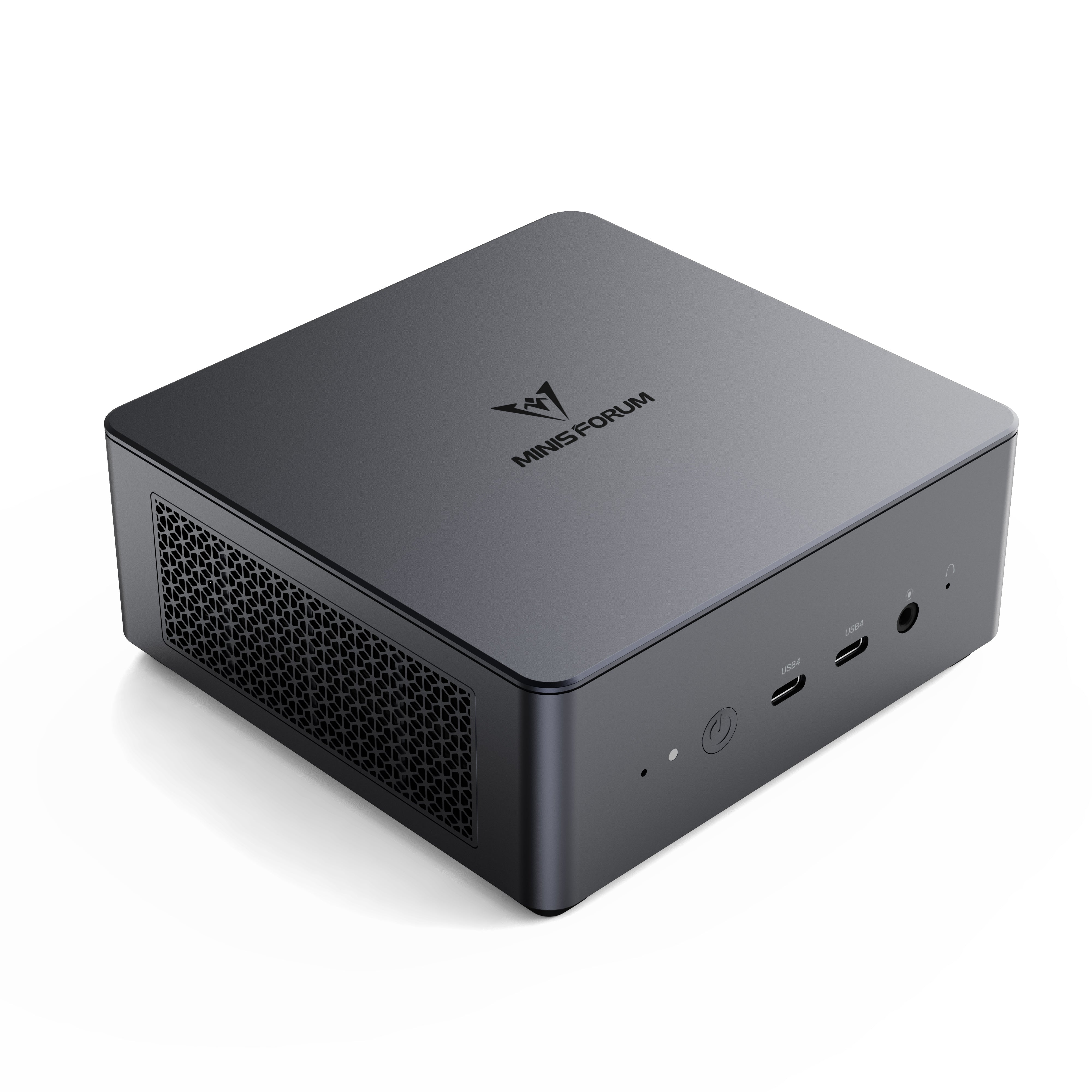

Venus Serie UM790 Pro
Mini-Design

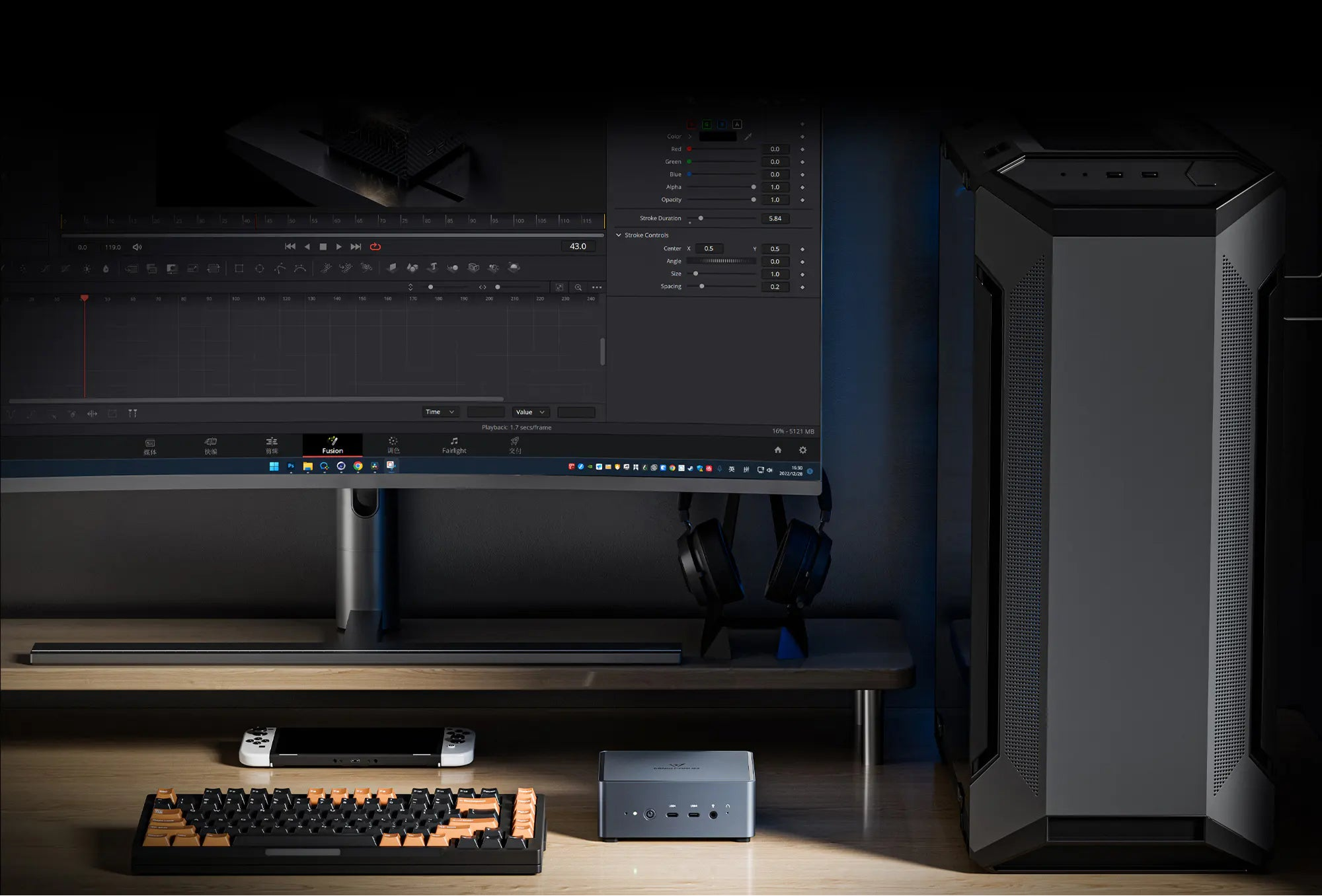

Only 0.8L volume - Requires only 1/40 of the space on the desktop.
With the UM790 Pro mini PC, you're entering a world of efficiency and mobility. Its compact size gives you the performance of a desktop.

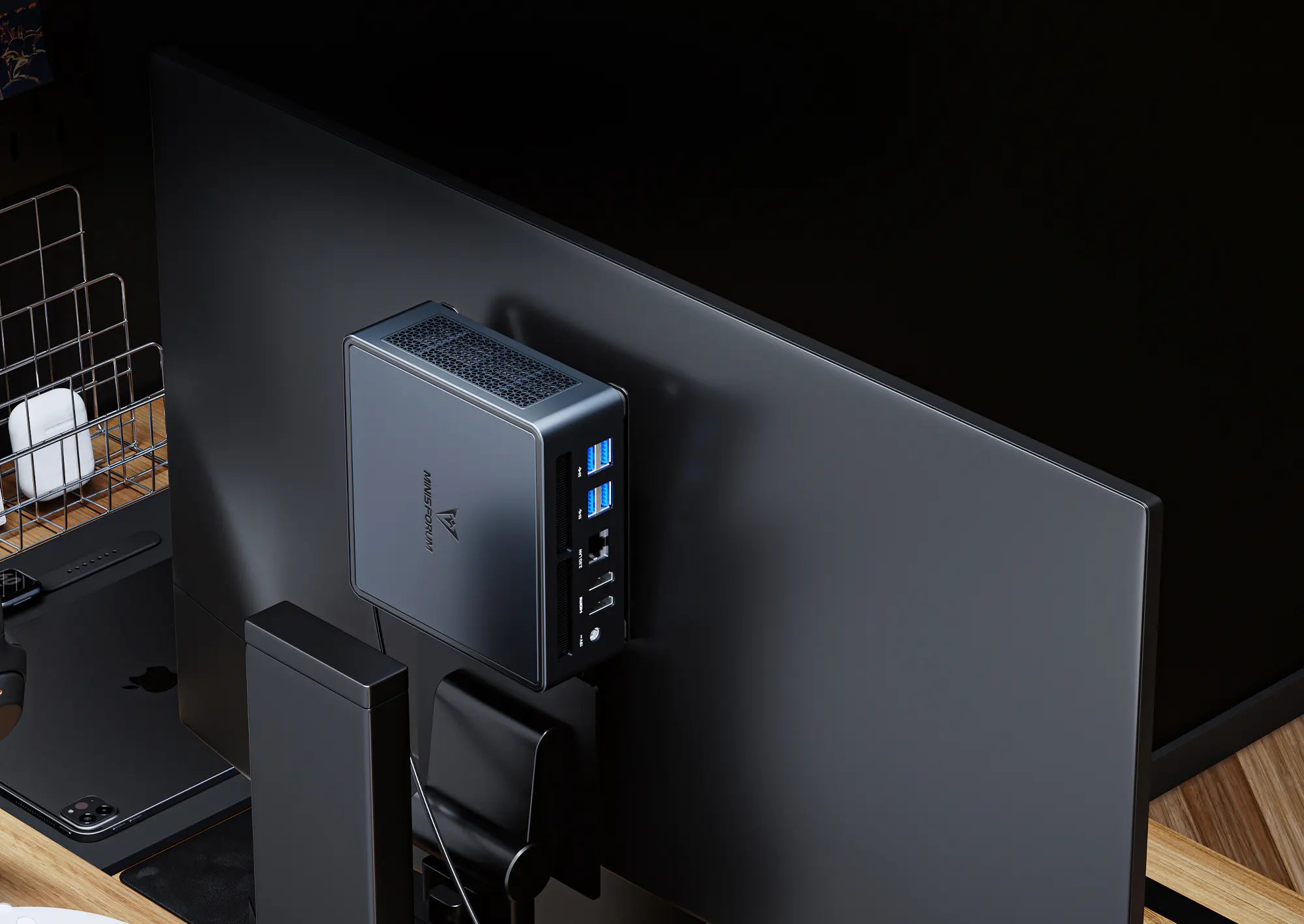

Freestanding wall mount
Supports wall mounting and can be placed behind a monitor/TV to save desk space.

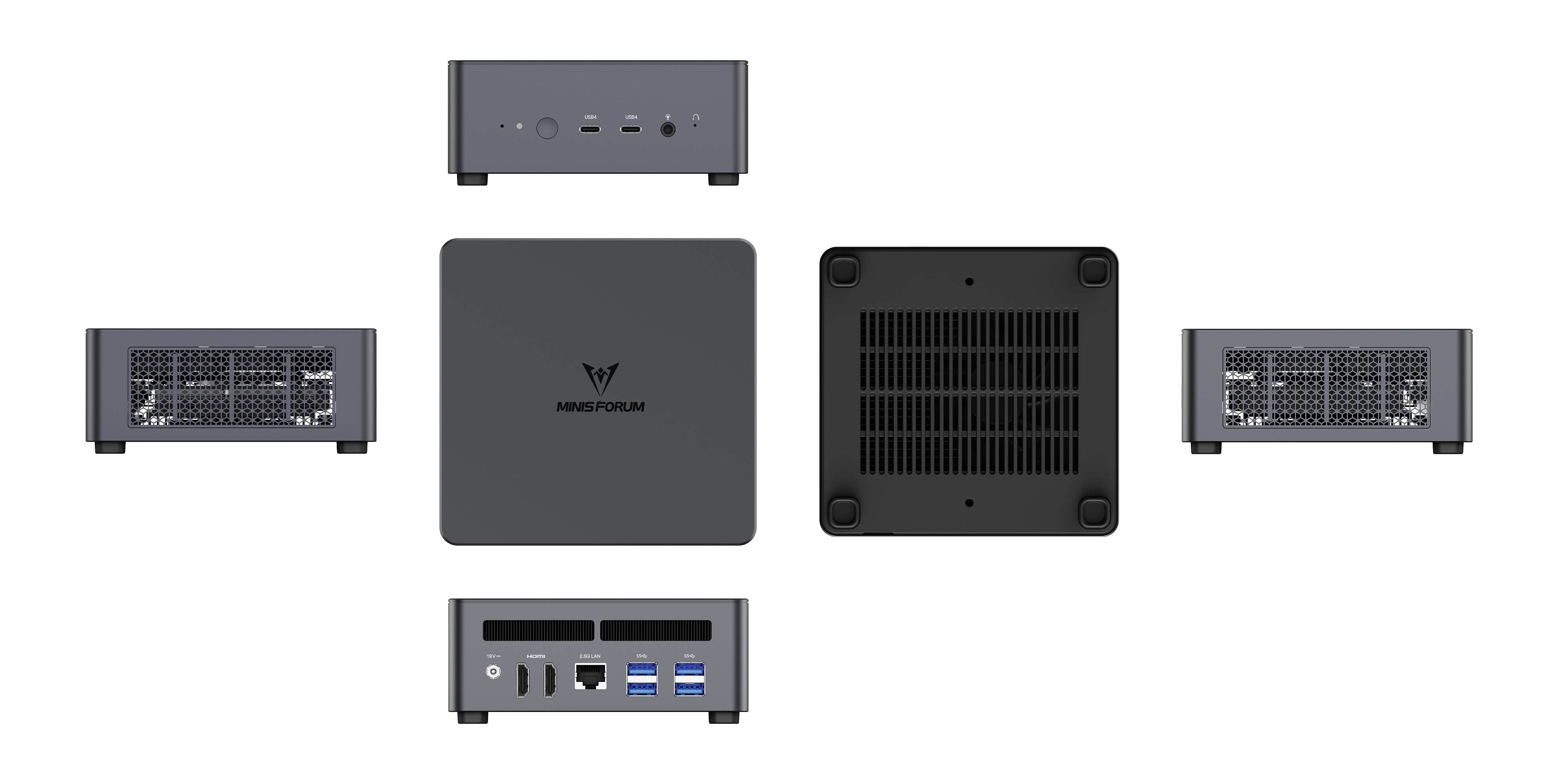

Integrated case
Simple and stylish
The case increases durability and provides better thermal performance.
Freestanding wall mount
Supports wall mounting and can be placed behind a monitor/TV to save desk space.
Integrated case
Simple and stylish
The case increases durability and provides better thermal performance.

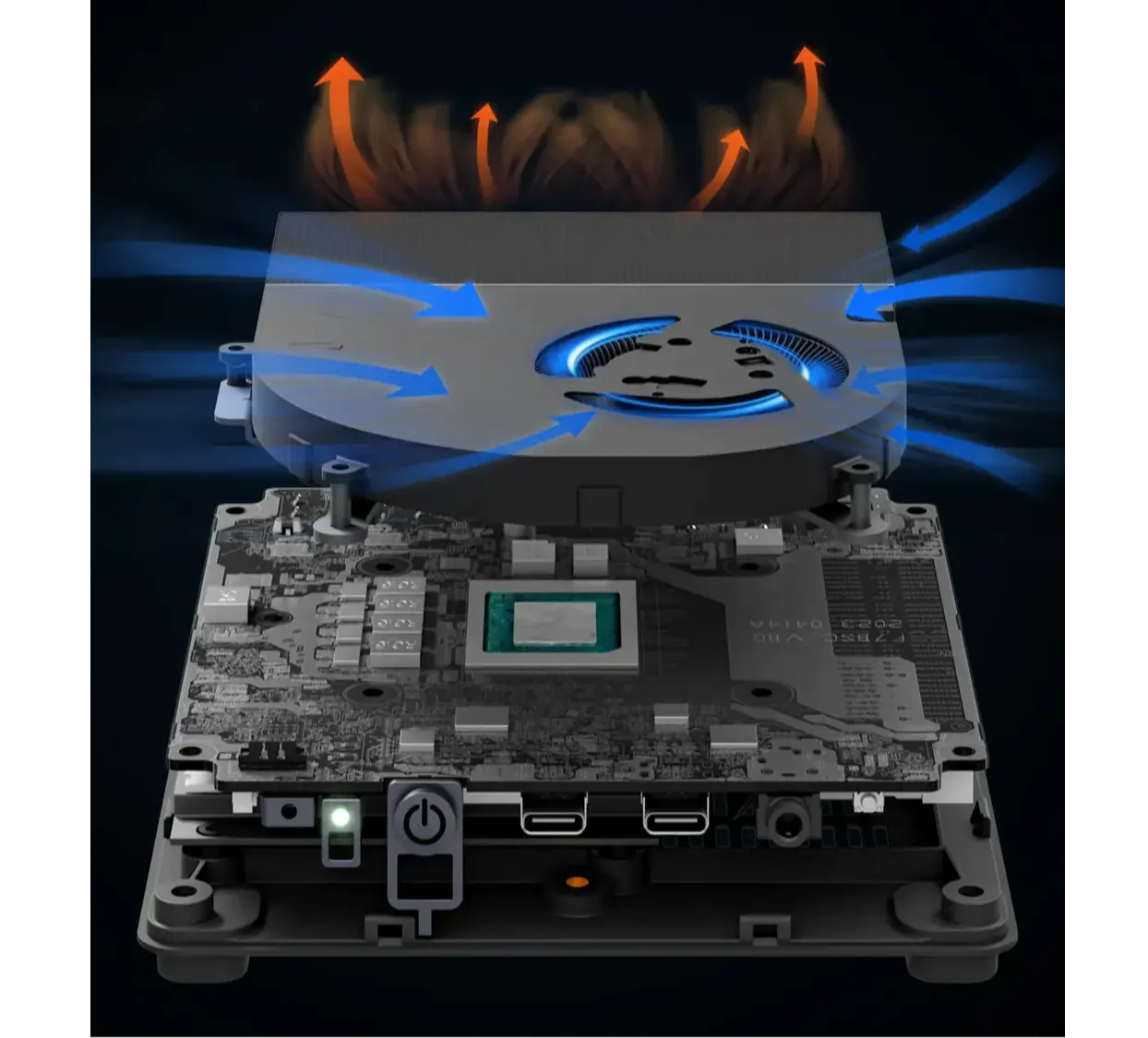

COLD WAVE 2.0
Liquid metal cooling and active memory and hard disk cooling.
Keep the UM790 Pro Mini PC cool and quiet even during demanding tasks. Thanks to the innovative COLD WAVE 2.0 cooling system with liquid metal cooling and active memory and hard disk cooling, your system remains stable and powerful at all times.
Active hard disk cooling
Large heat sinks and slient fans ensure long-lasting cooling and stable operation.
COLD WAVE 2.0
Liquid metal cooling and active memory and hard disk cooling.
Keep the UM790 Pro Mini PC cool and quiet even during demanding tasks. Thanks to the innovative COLD WAVE 2.0 cooling system with liquid metal cooling and active memory and hard disk cooling, your system remains stable and powerful at all times.
Active hard disk cooling
Large heat sinks and slient fans ensure long-lasting cooling and stable operation.

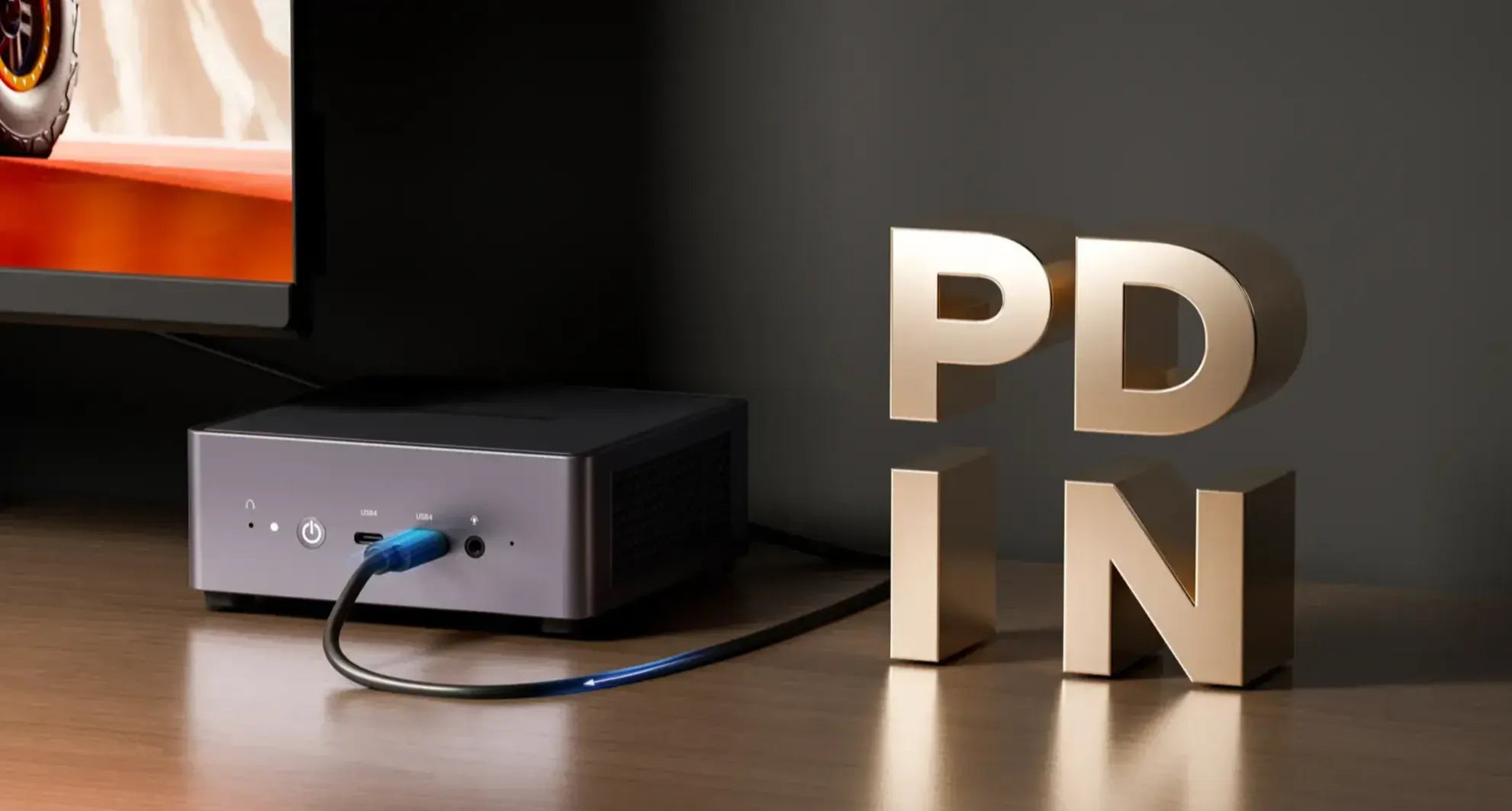

Free up space
One-cable connection 、Supports Power Delivery
BIOS upgrade
Leading, intuitive and user-friendly
Compared to the conventional BIOS, the graphical BIOS offers a more user-friendly configuration interface. It also offers more comprehensive options and more secure configuration management.

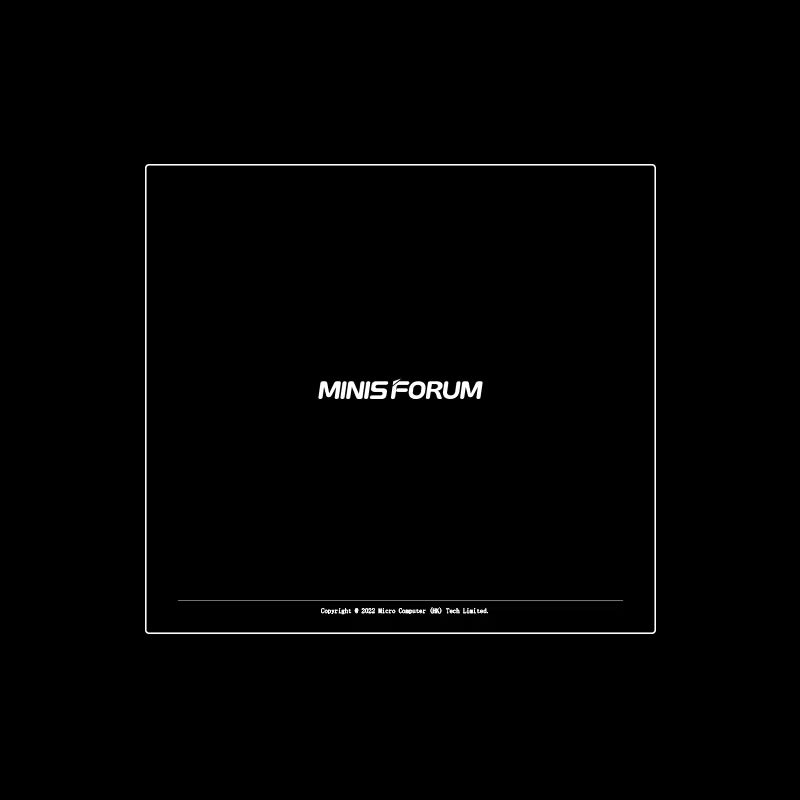

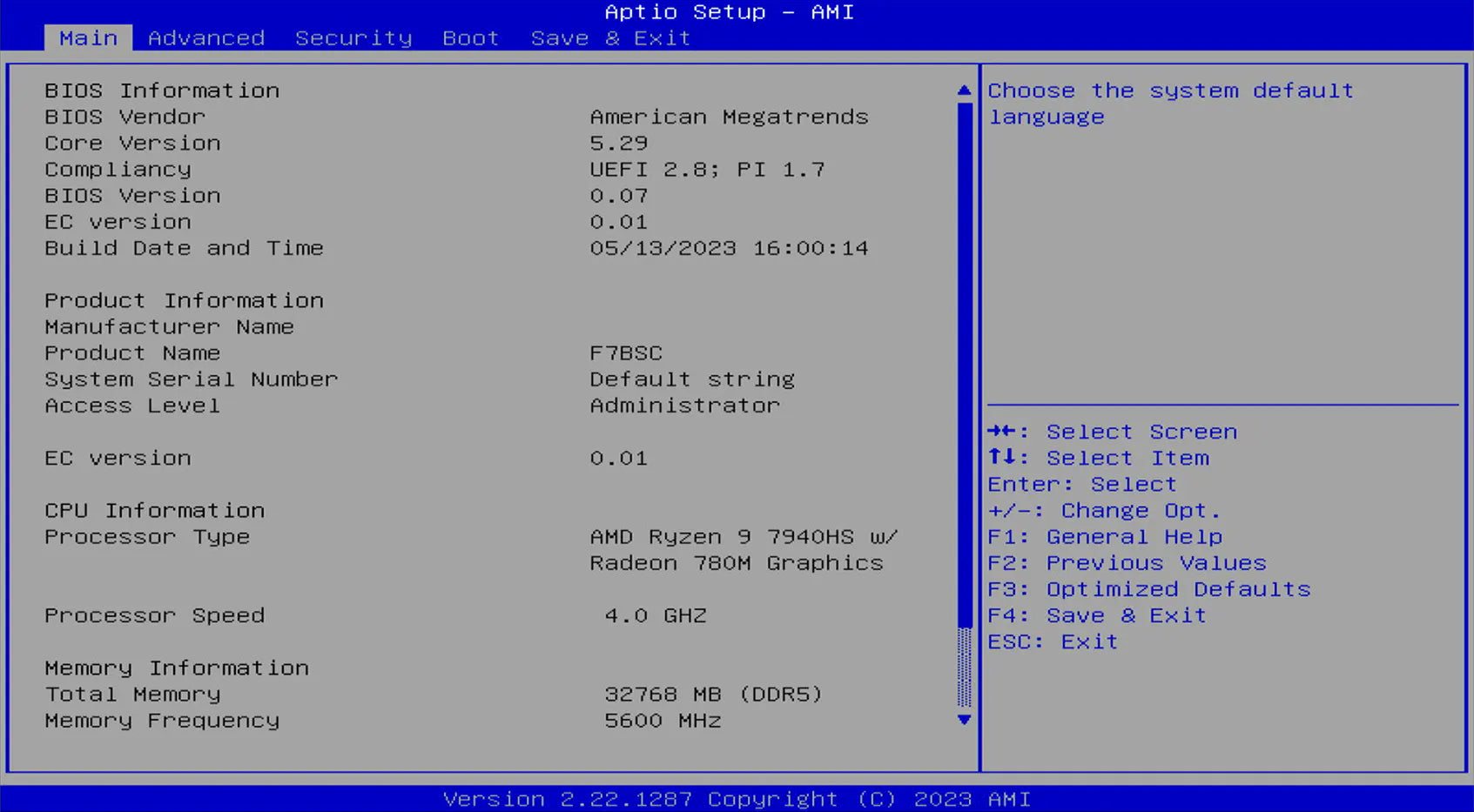

Traditional BIOS

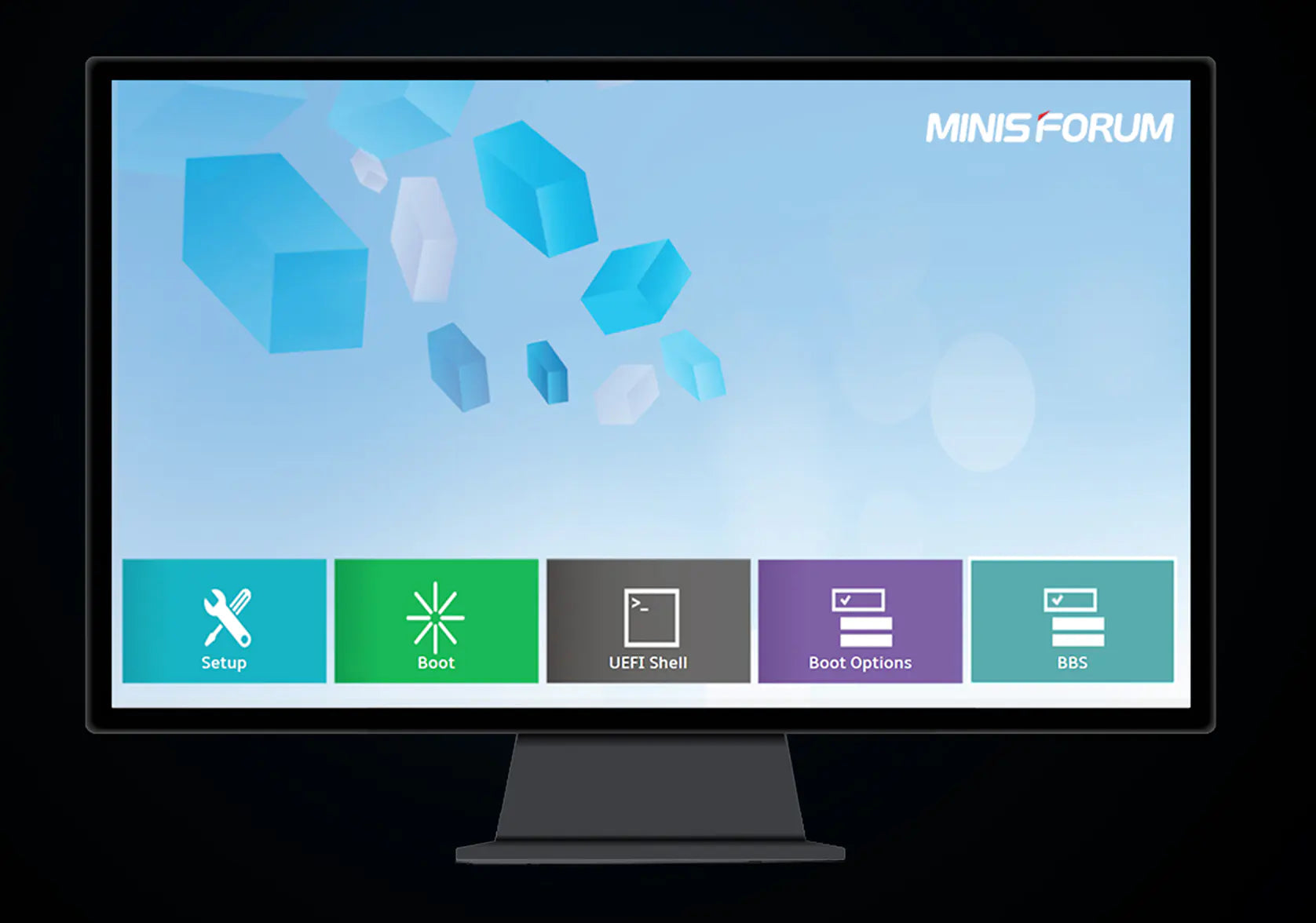

Graphical BIOS

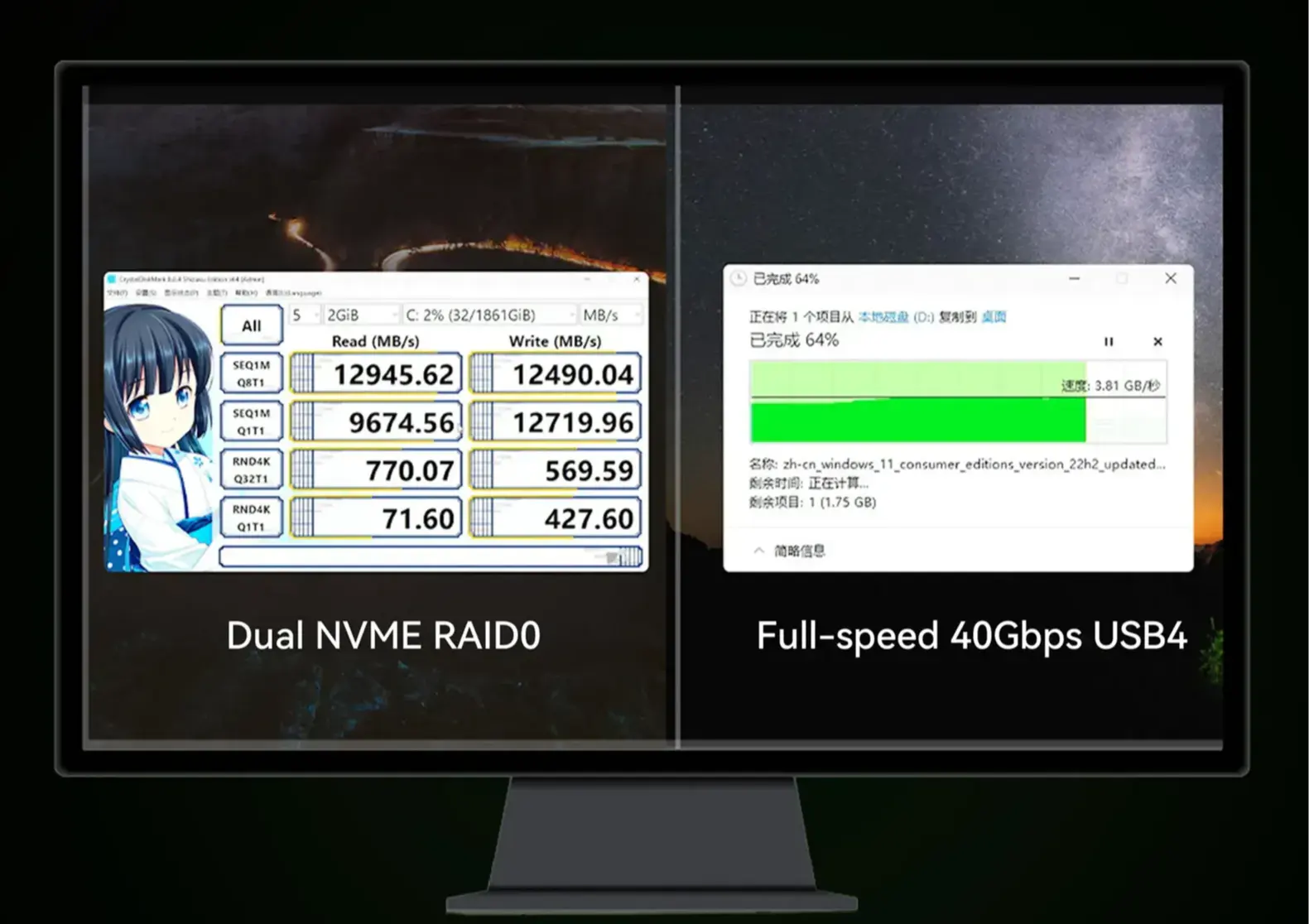

Dual PCIe4.0 & Dual 40Gbps USB4
High speeds

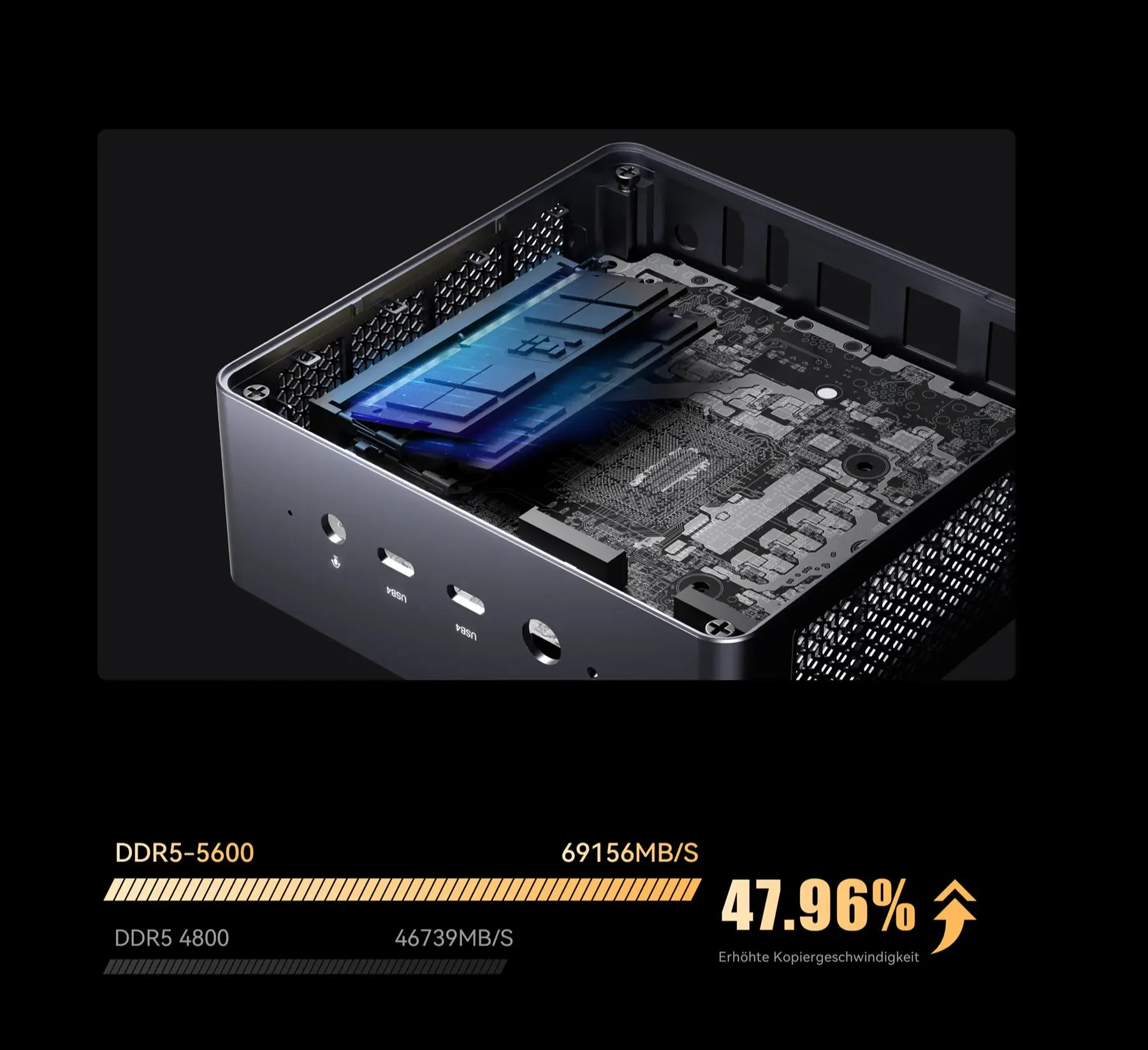

Enjoy faster data transfer rates and impressive memory capacity. With DDR5 5600 SODIMM dual-channel memory and dual M.2 2280 PCIe 4.0 SSD, you can benefit from improved performance and flexibility. The UM790 Pro Mini-PC also supports RAID0 and RAID1 configurations.
High speeds
Enjoy faster data transfer rates and impressive memory capacity. With DDR5 5600 SODIMM dual-channel memory and dual M.2 2280 PCIe 4.0 SSD, you can benefit from improved performance and flexibility. The UM790 Pro Mini-PC also supports RAID0 and RAID1 configurations.

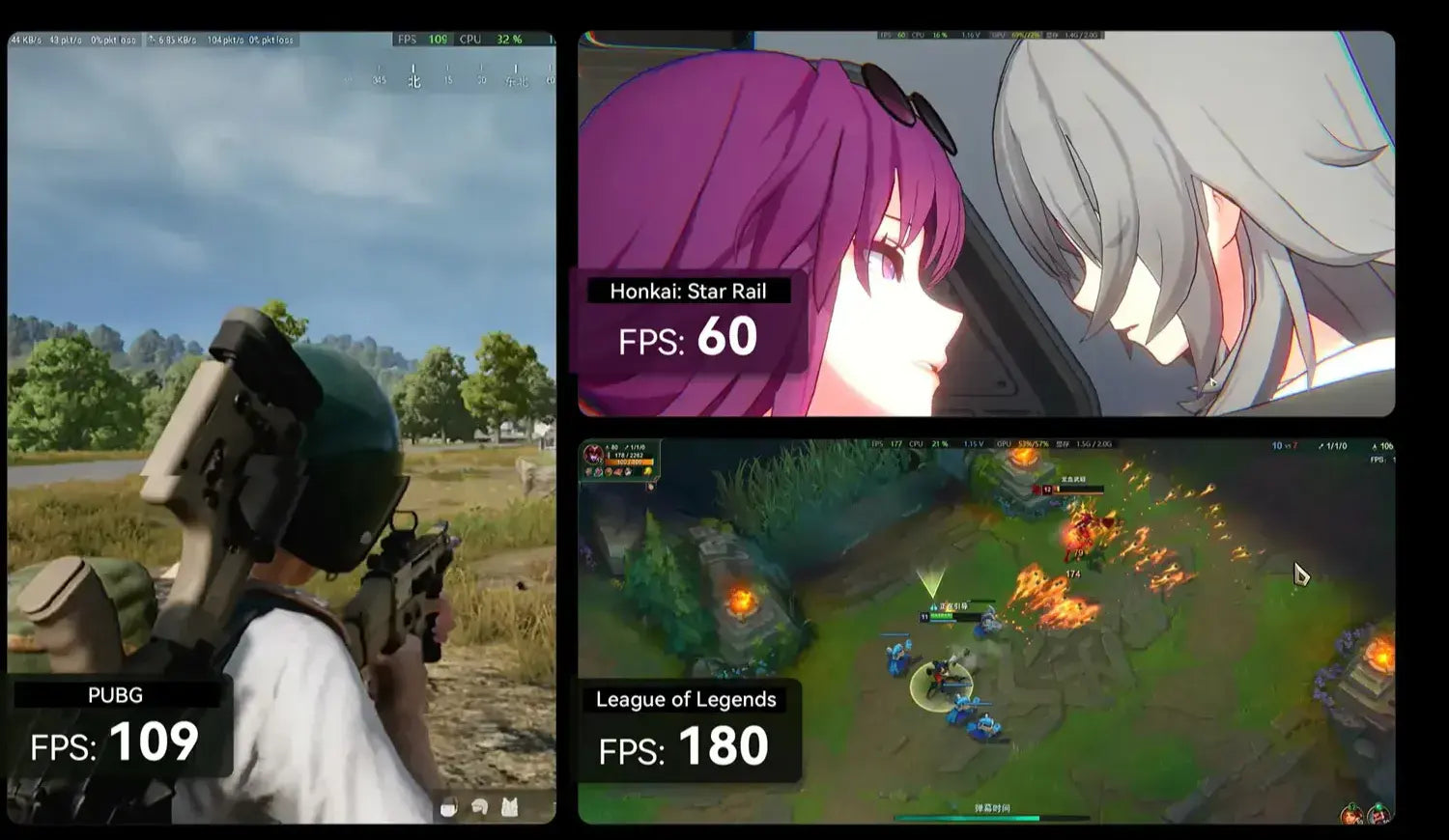

Smooth gaming experience

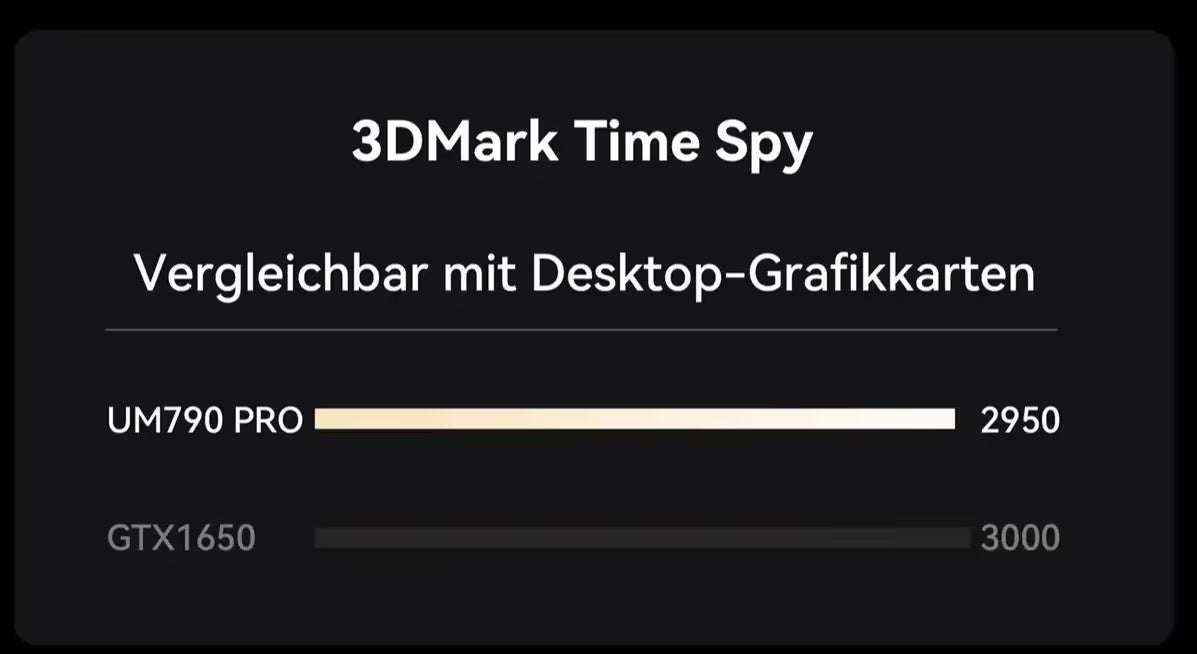

The AMD Radeon™ 780M delivers competitive graphics performance even compared to desktop GPUs.
Entertainment at home

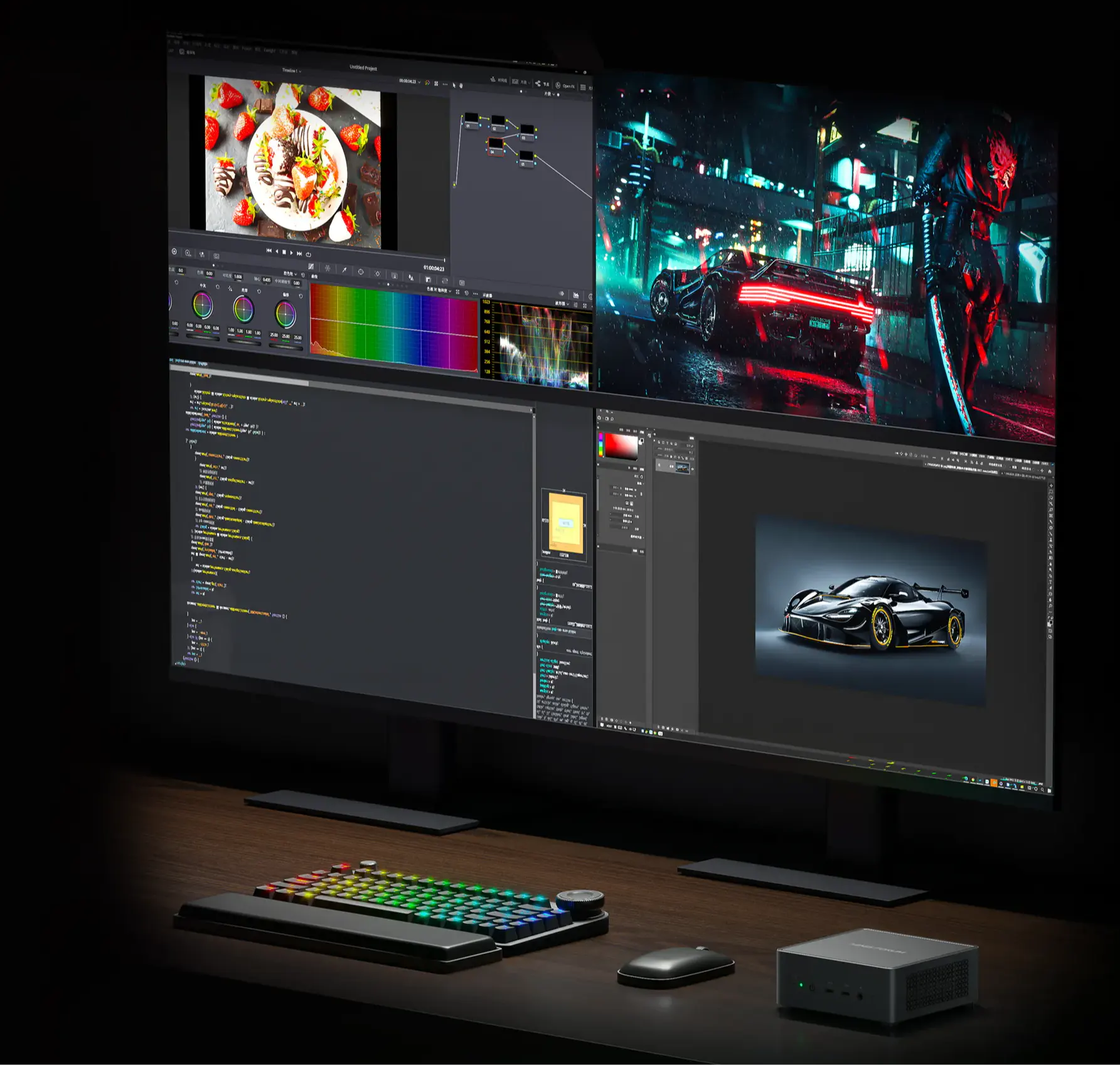

Four independent displays with different content provide a comfortable and relaxing experience.

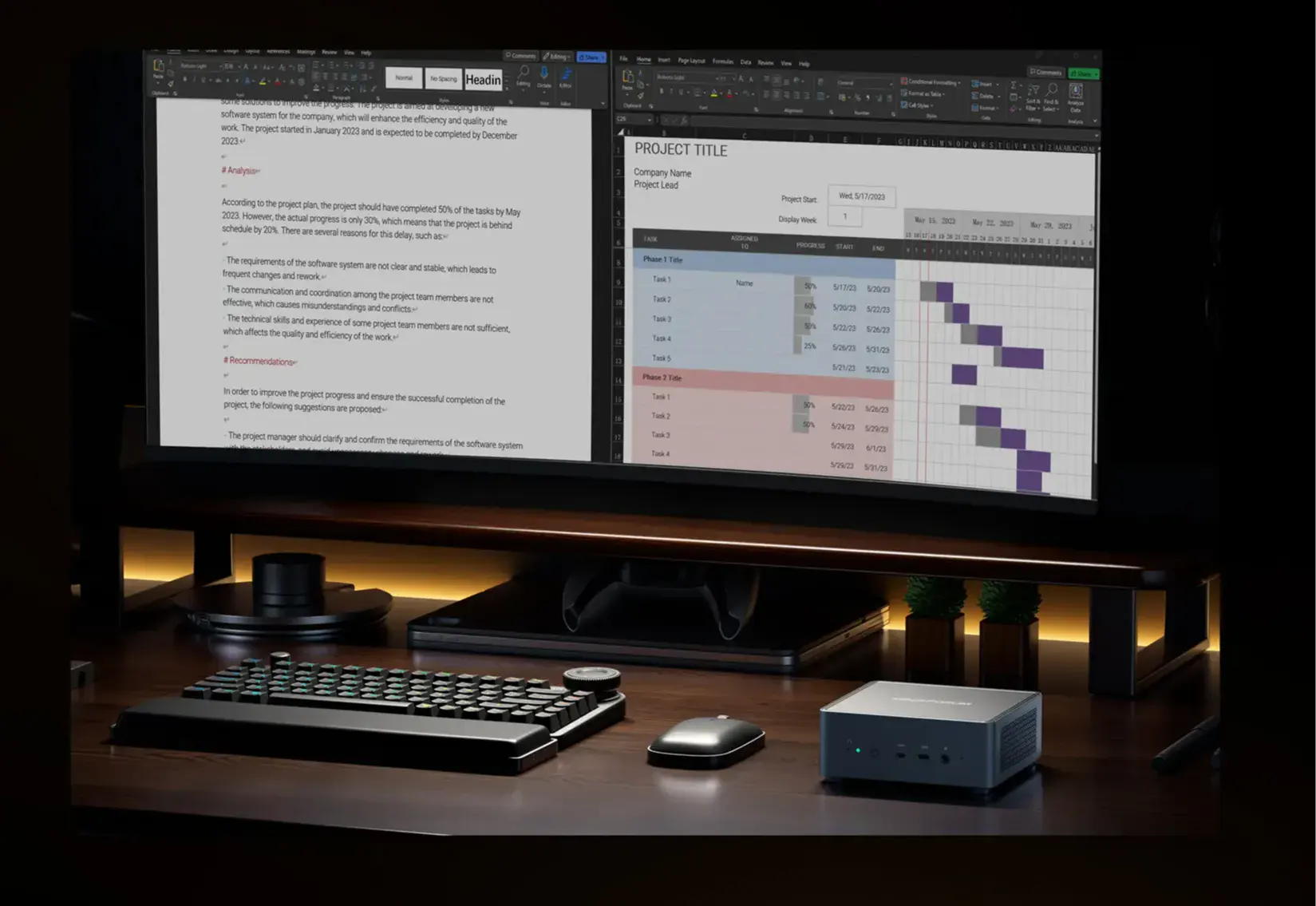

Increased productivity
The AMD Ryzen™ 9 7940HS processor, based on the Zen4 architecture and manufactured with the advanced TSMC 4NM technology, offers you unrivaled computing power.
Meet more requirements
UM790 Pro also supports AV1 and H.265 video codec, which halves the storage requirements for video.
Package contents

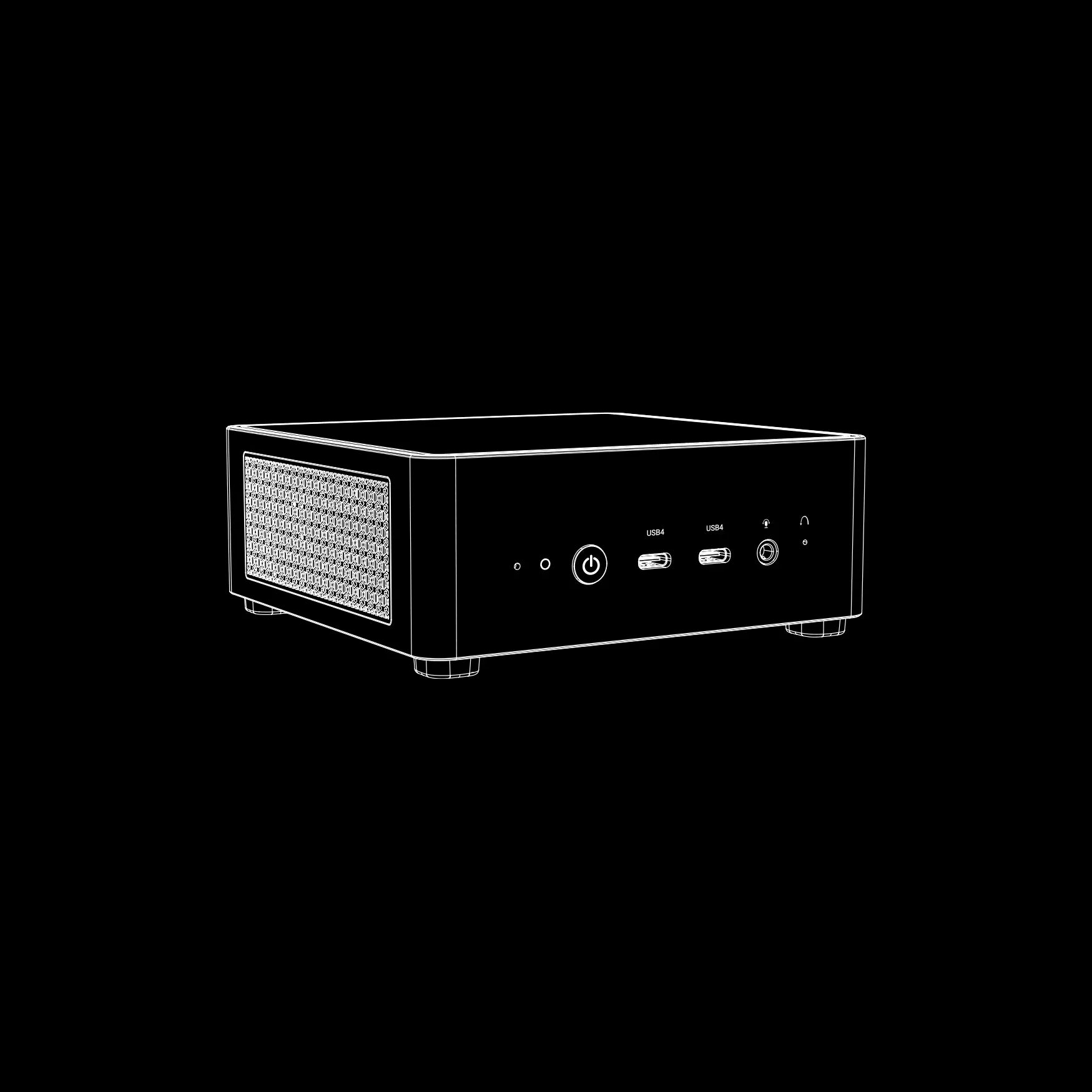

UM790Pro

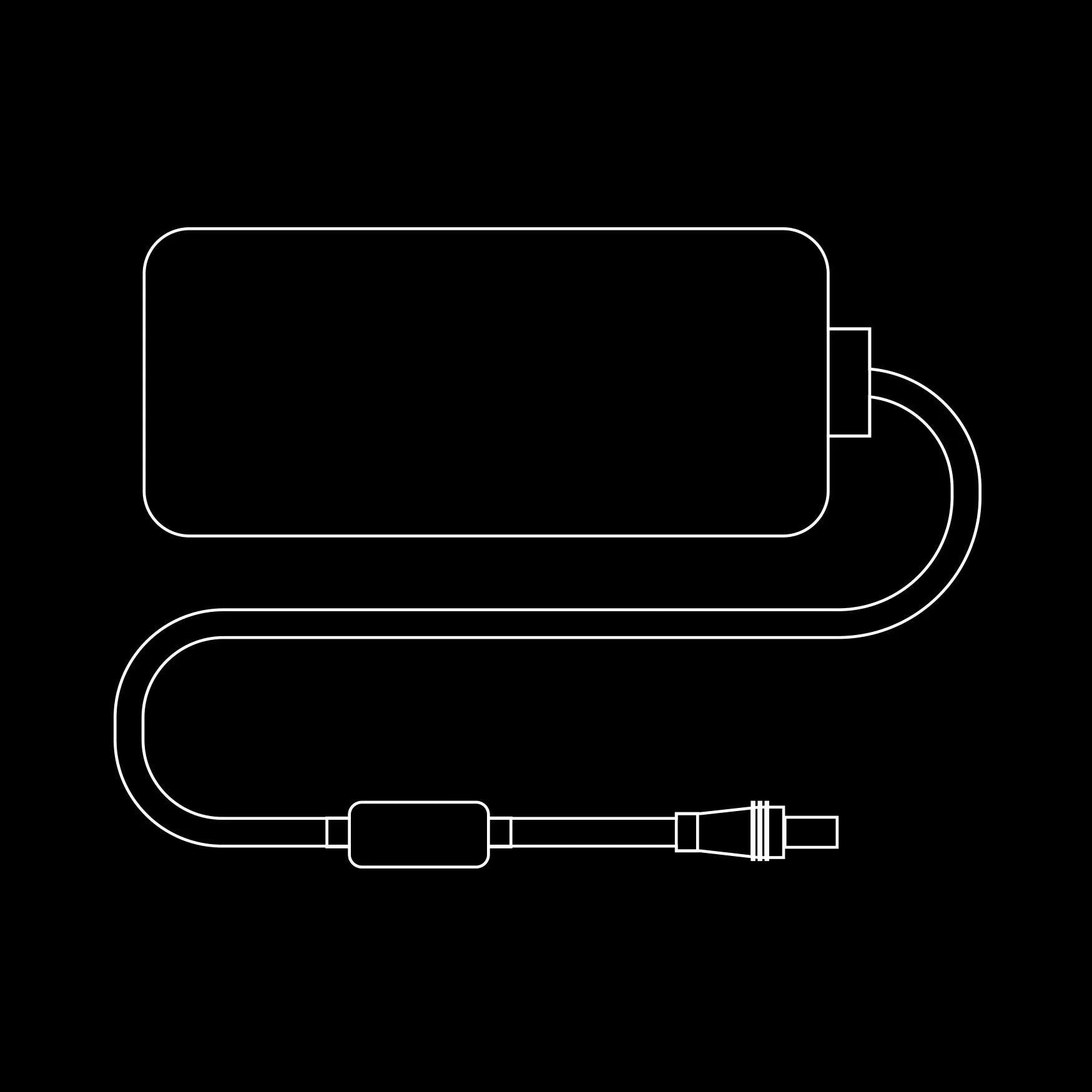

Power adapter
Power cable
HDMI cable

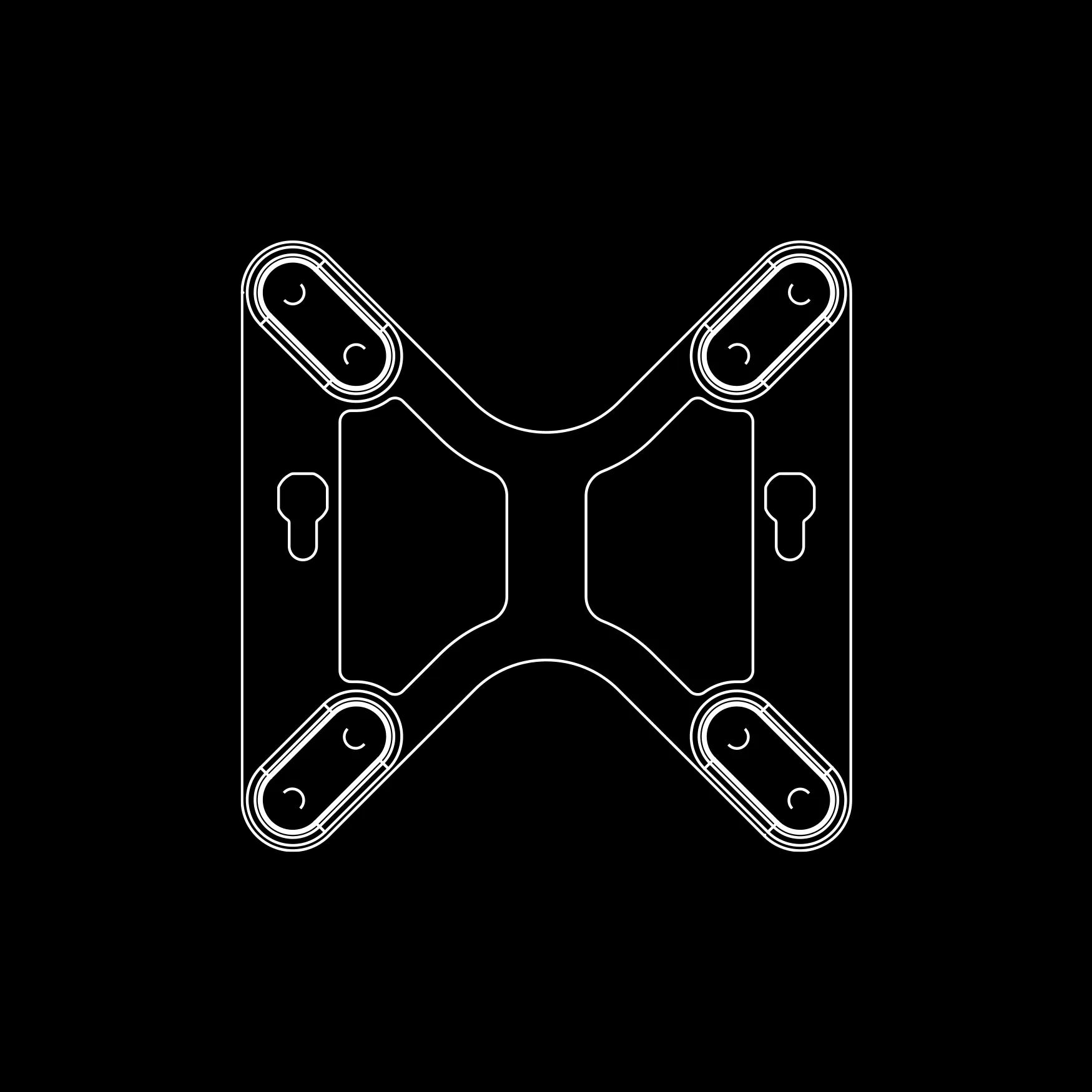

Wall bracket

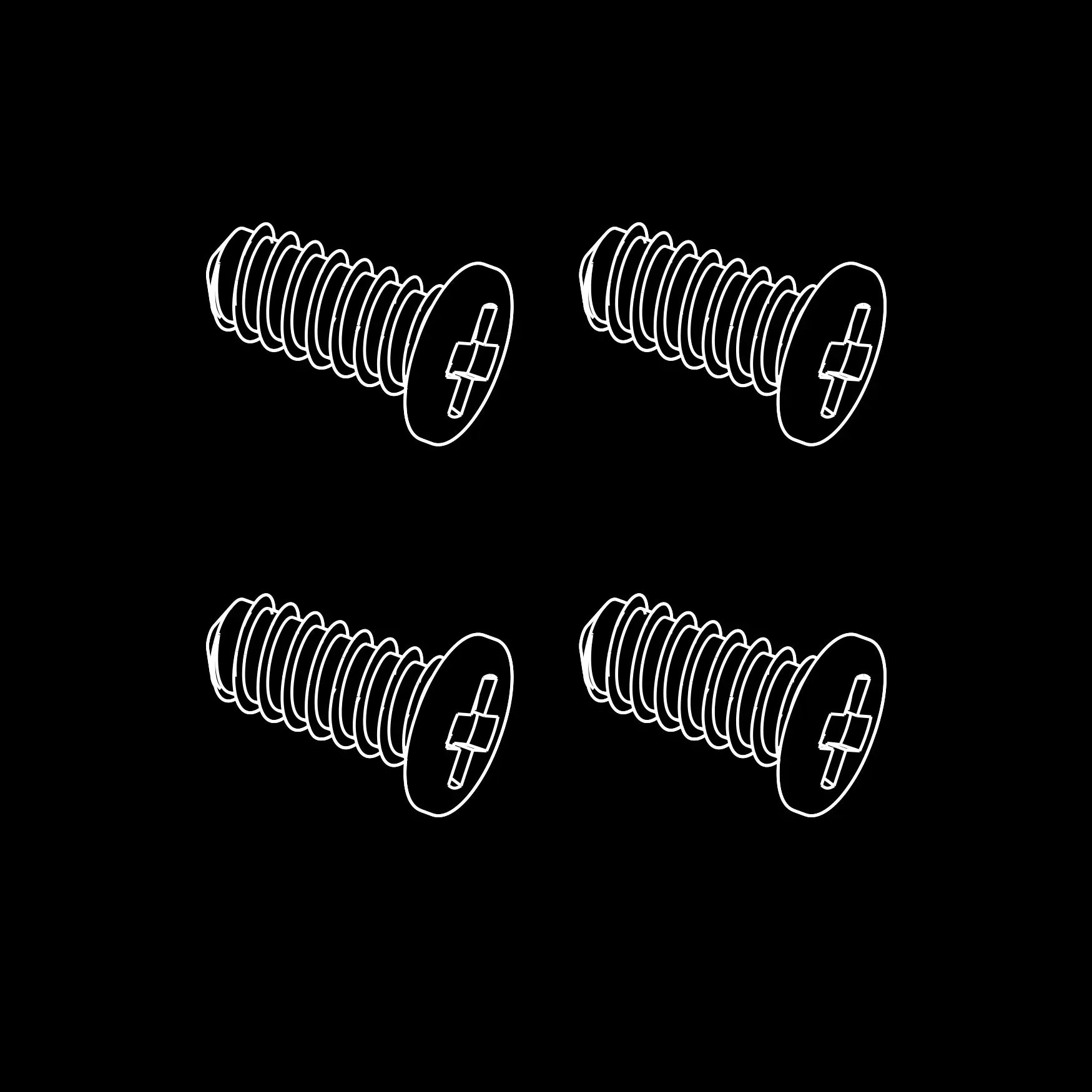

Mounting screw set
Manual
UM790 Pro Specification
AMD Ryzen™ 9 7940HS processor, 8 cores/16 threads(16M cache, up to 5.2 GHz)
AMD Radeon™ 780M
DDR5 dual channel (SODIMM slots×2, up to 5600MHz, maximum 64GB)
M.2 2280 PCIe4.0 SSD ×2
M.2 2230 WIFI support

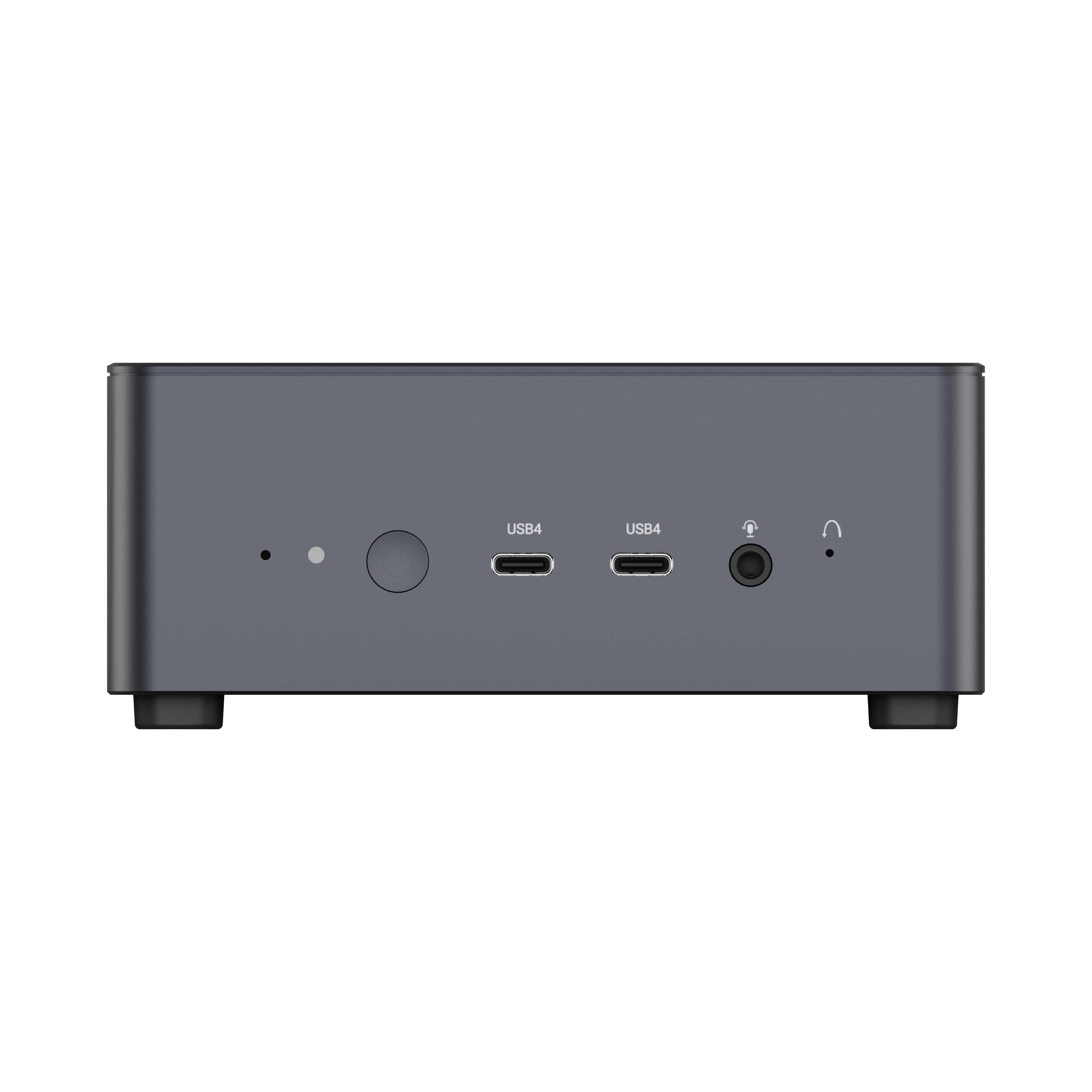

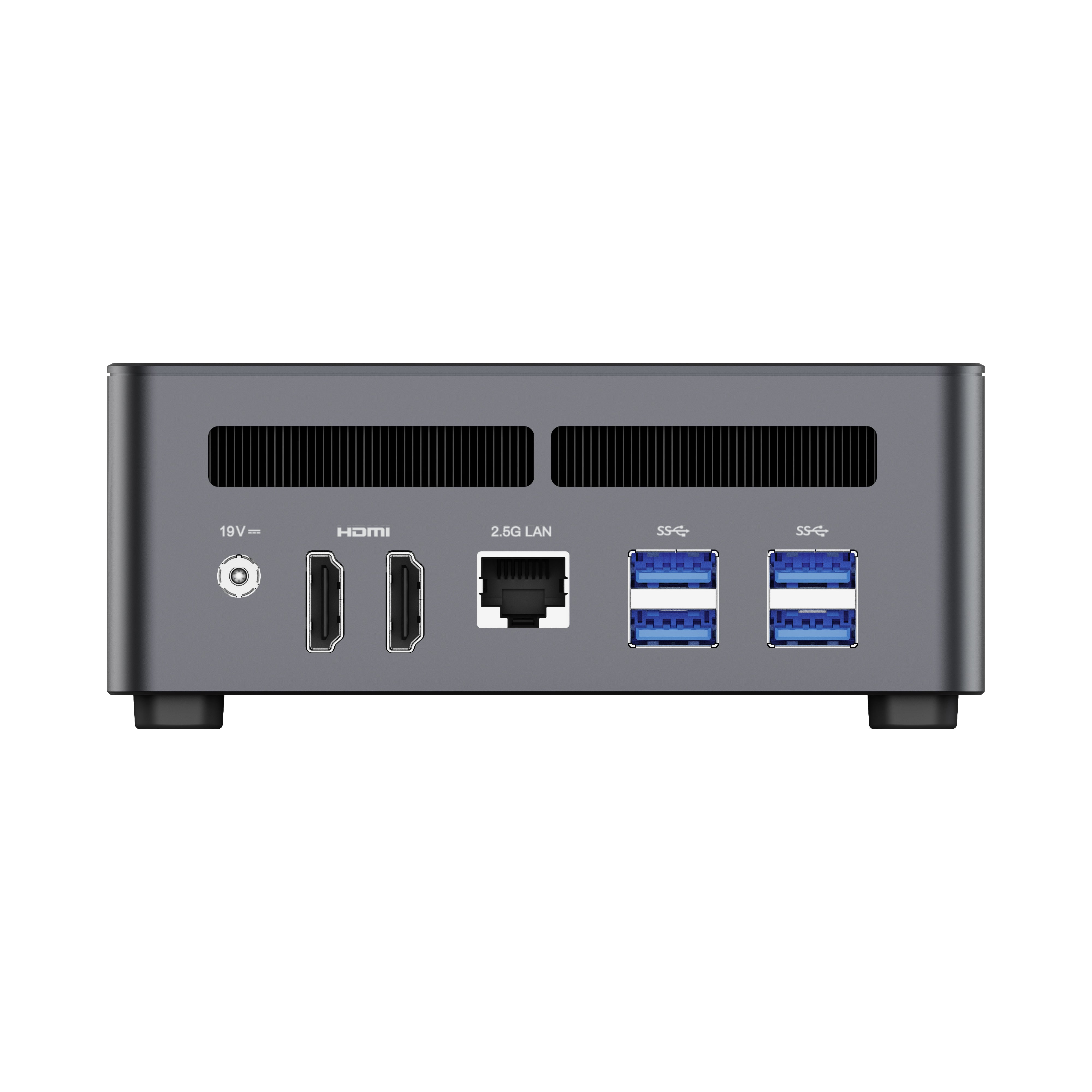

HDMI 2.1 (4K@144Hz) ×2
USB4 (8K@60Hz)×2
HDMI ×2, Audio Jack ×1
RJ45 2.5G Ethernet Port×1
USB3.2 Gen2 Type-A Port ×4
USB4 Port ×2 (Alt PD)
HDMI 2.1 ×2
Audio Jack ×1
DMIC ×1
Clear CMOS ×1
Windows 11
DC 19V (adapter supplied)
130mm*126mm*52.3mm
FAQ
About the product
F1. How do I install Windows OS for the barebones version?
Please click on the link to our support page below to download Windows 11 Note: Minisforum does not provide keys for the Windows operating system.
https://www.minisforum.com/front/support
F2. Brand of SSD and RAM in UM790 Pro
We purchase major hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, hard drives, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met factory standards before being delivered to Minisforum. In addition, there is no difference in the warranty policy of these hardware suppliers.
The hardware brands may vary from batch to batch. However, you can be assured that they all meet Minisforum's standards and are covered by the warranty.
F3. What is the maximum resolution? How many monitors can be connected at the same time?
Up to four monitors can be connected at the same time, with a maximum resolution of 8K@60Hz.
F4. Can I power the UM790 Pro via the USB4 ports?
The UM790 Pro's USB4 ports support power supply and can be used as a power supply port.
F5. Does it support eGPU?
The UM790 Pro supports eGPU. Please contact the manufacturer of the eGPU docking station to learn more about the compatibility of the device.
F6. Is Windows pre-installed on the UM790 Pro?
With the exception of the barebones version, Windows 11 is pre-installed on all versions. The barebones version does not include RAM and SSD; therefore Windows 11 is not pre-installed.
