MINISFORUM UM760/870/880 Plus
Duties Included
30-Days Hassle-Free Local Returns
Expected to ship in mid-February.
Deliverable Areas
Delivery Timeliness
Repair Services
Insurance Services
Benefits enjoyed by Minisforum customers
Deliverable Areas
›
Can be delivered for free to:
- EU countries: Czech Republic, Denmark, Austria, Belgium, Bulgaria, Croatia, Estonia, Finland, France, Germany, Greece, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Hungary.
- Non-EU countries: Switzerland, Albania, Belarus, North Macedonia, Iceland, Bosnia and Herzegovina, Vatican City, Liechtenstein, Monaco, Norway, San Marino.
Delivery Timeliness
›
- DE Warehouse: 3-5 business days
- Hong Kong Warehouse: 5-7 business days
- Refurbished Devices: 3-5 business days
- Pre-sale Products: 3-4 business days after warehouse arrival
Repair Services
›
Provides free repair and after-sales services for products that are within the warranty period. For more details, please contact the customer service team.
Insurance Services
›
Minisforum provides two types of protection for sold products:
- 1. Shipping Protection includes: Loss and damage in transit, Theft/Porch Piracy, Mis-delivery by courier, USD$5 compensation for delay Smooth Claims
- 2. Product Protection Plan:Customers can choose a 1-year, 2-year, or 3-year insurance plan tailored to their needs. This plan covers accidental damage occurring during normal product use and extends the original manufacturer's warranty with identical coverage terms after its expiration. Different durations are subject to varying premium rates.
Payment Methods
Trusted Delivery
Performance Redefined
The AMD Ryzen™ 5 7640HS, with 6 cores and 12 threads, delivers strong gaming and creative performance. It boosts up to 60W TDP and, with Zen 4 architecture, improves IPC for efficient multitasking and better overall system performance.

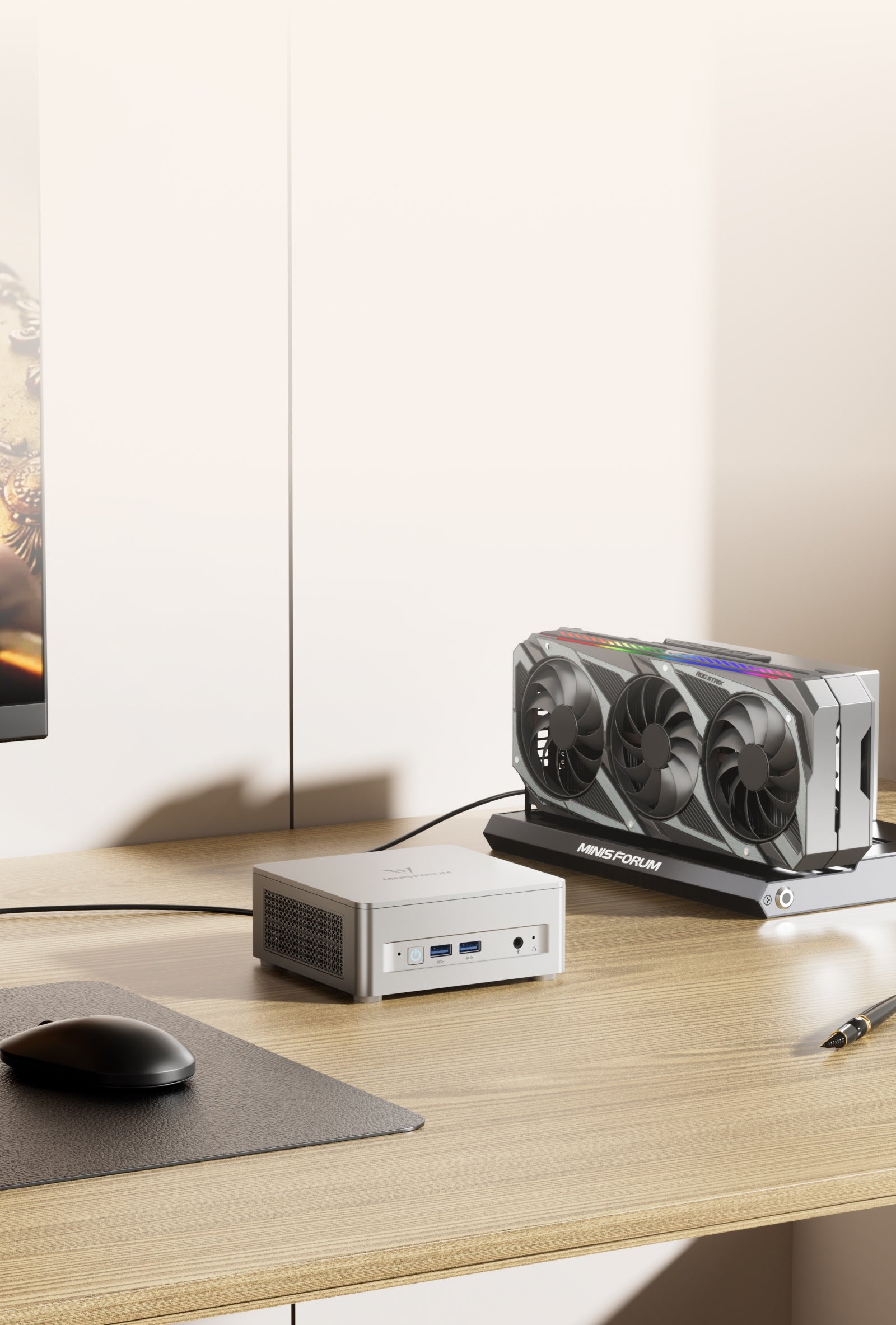

Powerful Integrated & Expandable Graphics

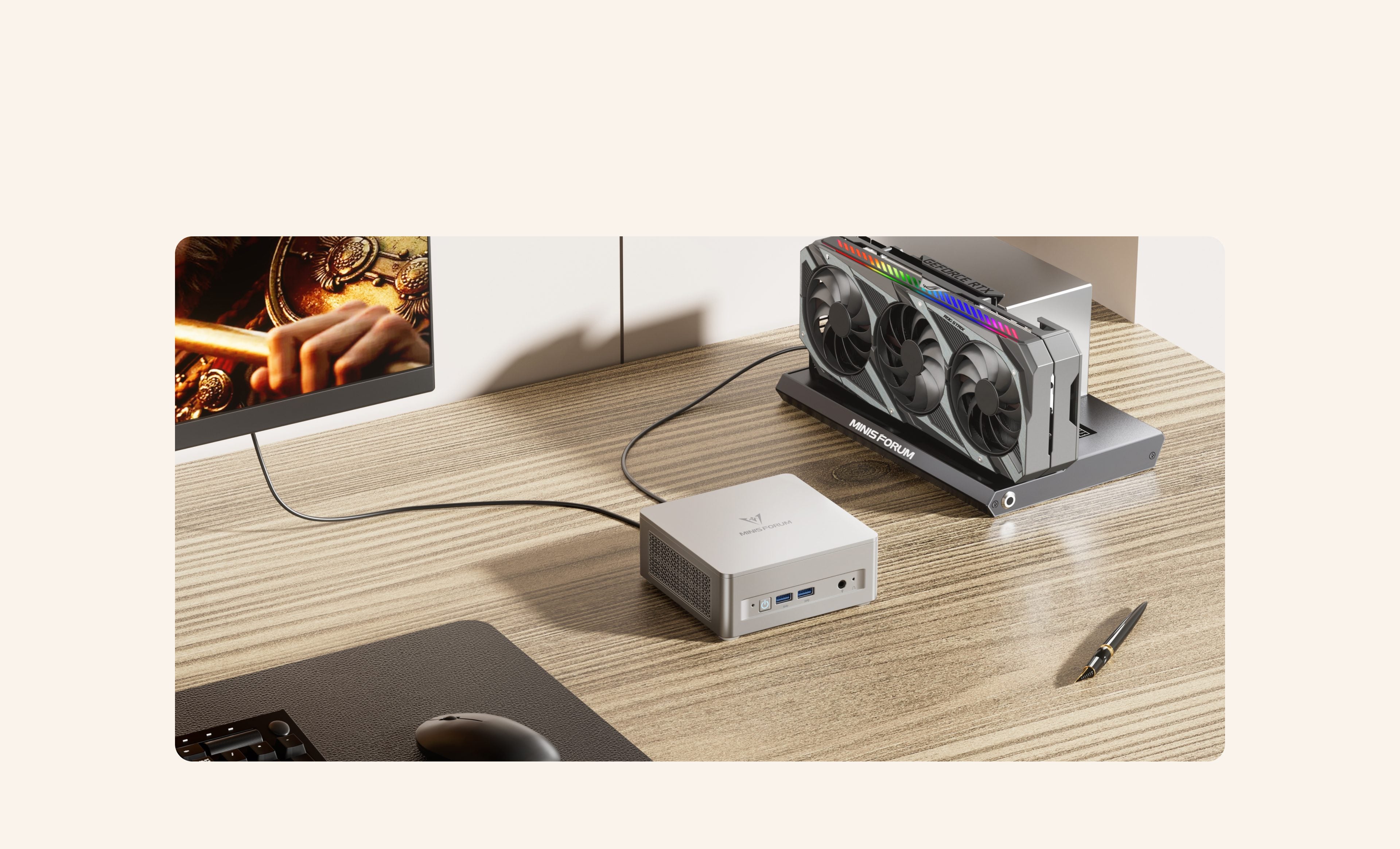

Featuring AMD Radeon™ 760M graphics for smooth daily use, with Oculink support for connecting a discrete GPU to boost performance.

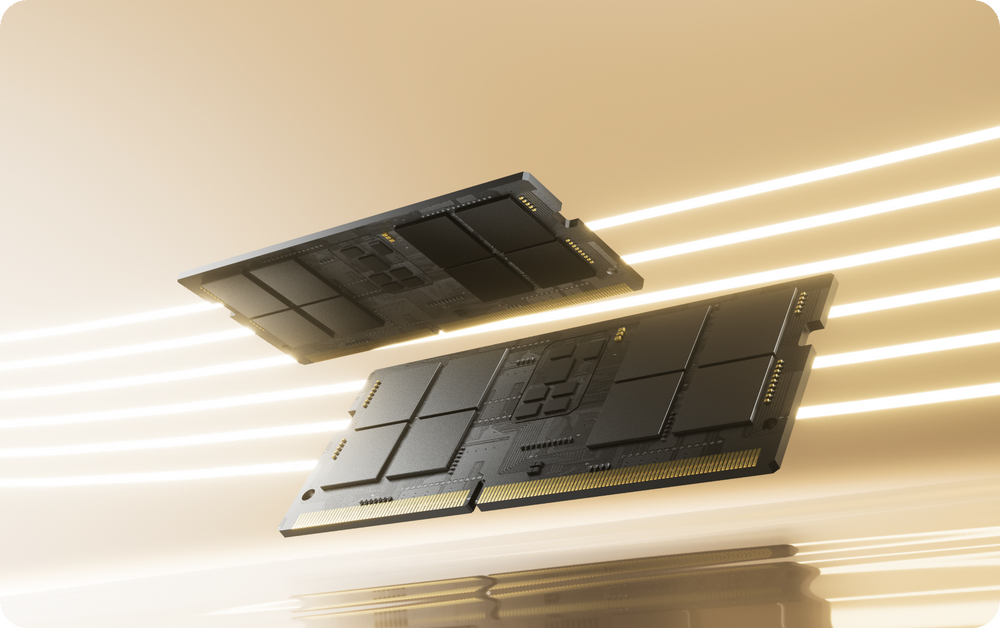

Blazing Fast DDR5 Memory
Boasting up to 96GB of memory, usually reserved for high-end workstations, this ultra-fast 5600 MHz RAM makes multitasking and multimedia rendering effortless. Seamlessly switch between gaming, streaming and web browsing with smooth, high-speed performance.
Up to
5600MHz
Dual DDR5 channels
Up to
96GB
Max Support

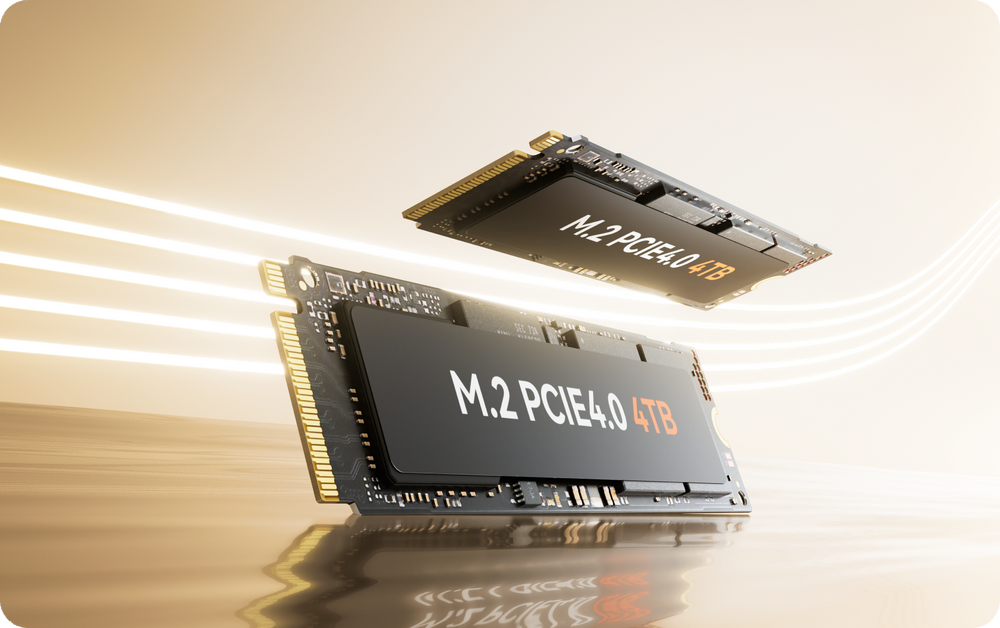

4TB Massive Storage
Experience lightning-fast load times with the nimble NVMe SSD, where games and apps launch quicker than ever. Spend less time waiting and more time gaming. With up to 4TB of PCIe® storage, take your games on the go and upgrade easily as your library grows.
Up to
7000MB/s
Speed
Up to
4TB
Storage

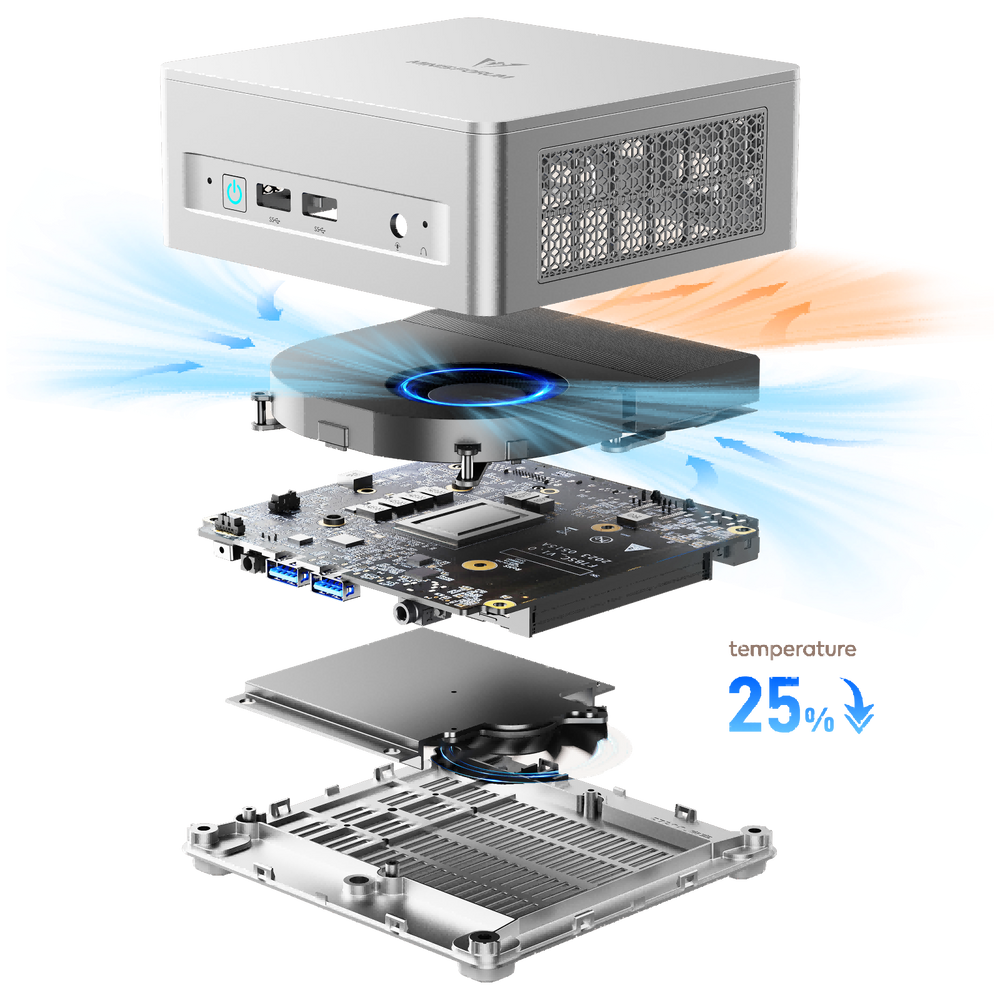

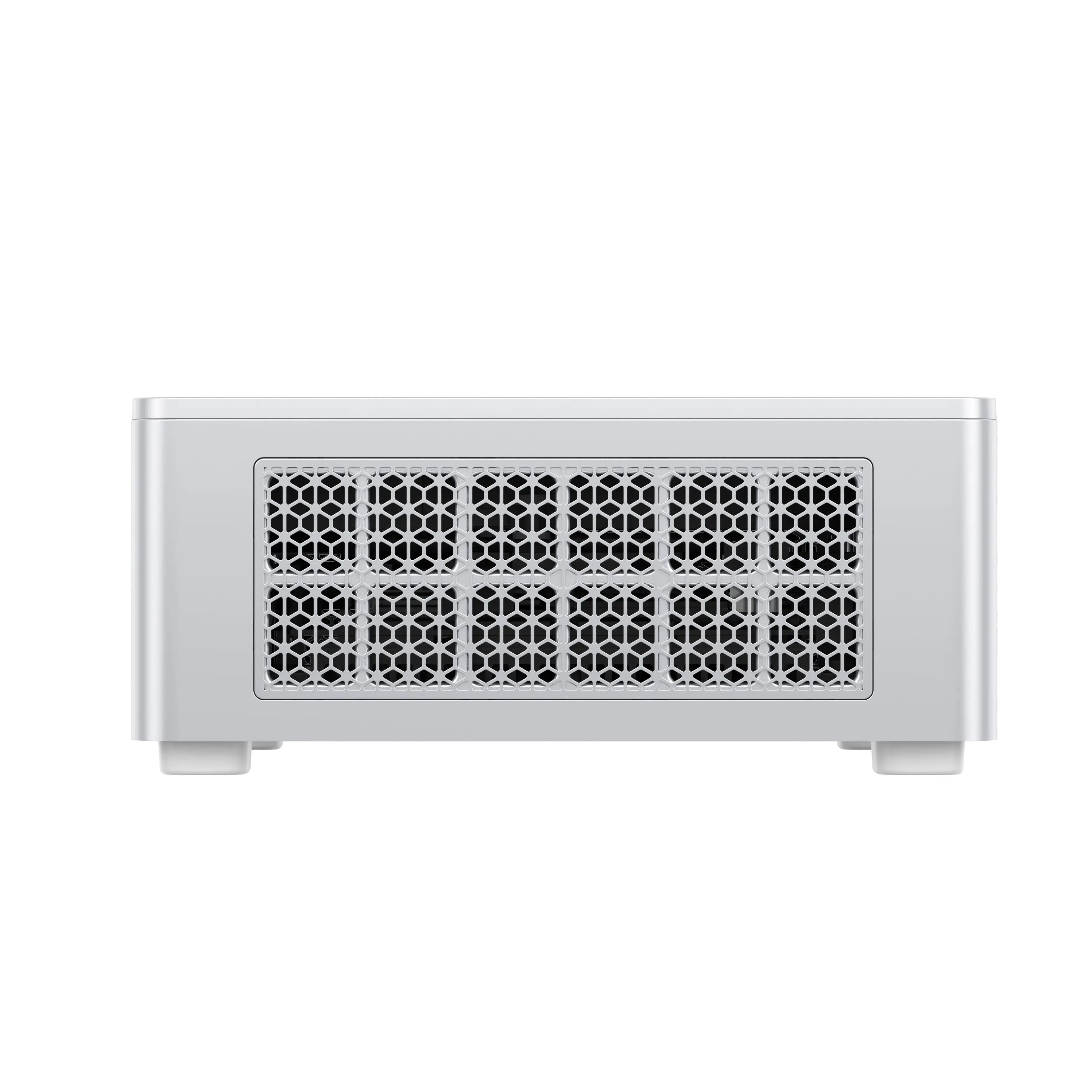

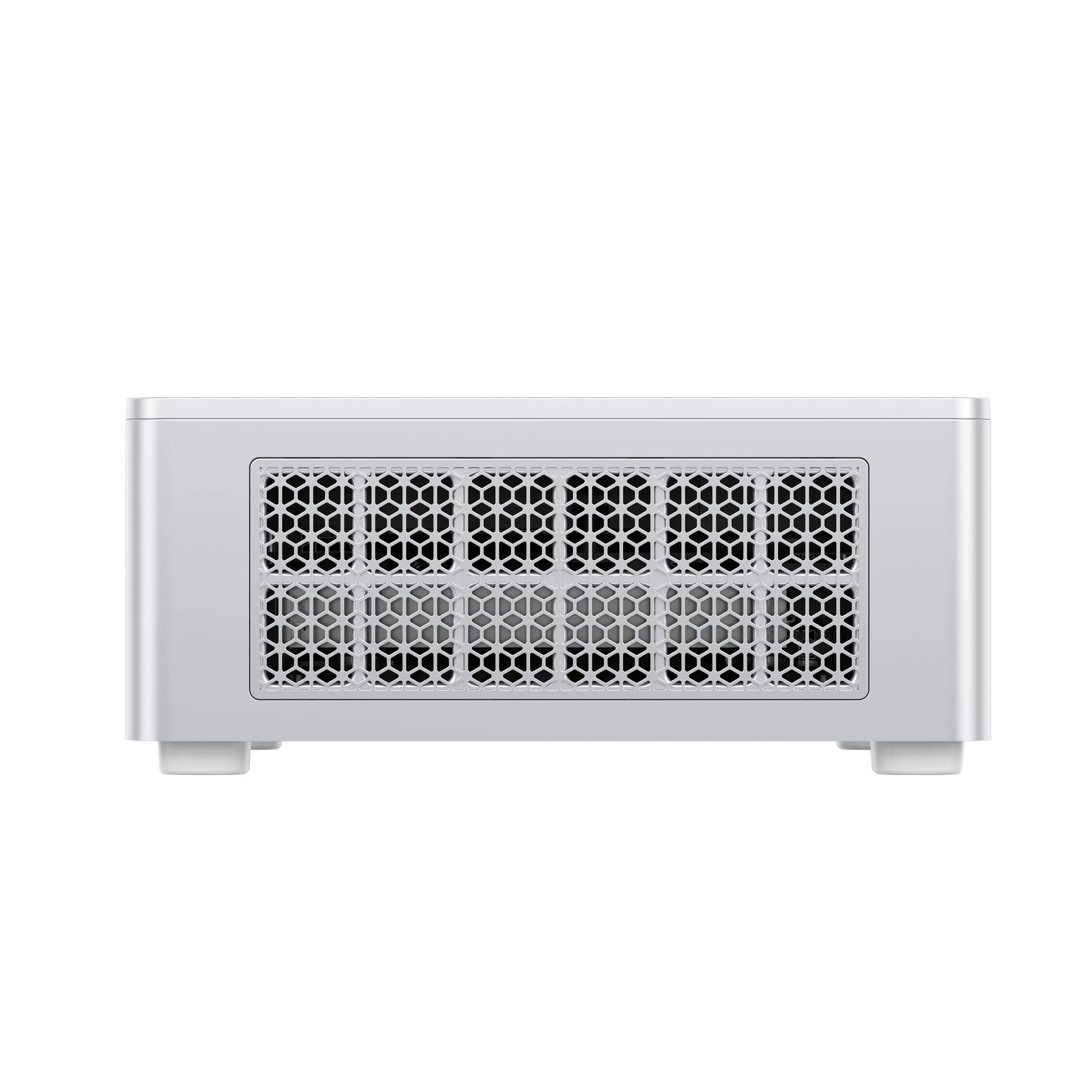

Efficient Cooling System
The compact phase-change cooling system uses advanced thermal materials that quickly shift from solid to liquid for efficient heat dissipation. Paired with a large silent fan and three copper heat pipes, it delivers stable 60W performance, keeping your device cool and quiet whether you're working or gaming. The memory and storage also benefit from active cooling, reducing temperatures by 25% for better heat control and extended lifespan.
Phase-change
Heat Dissipation
<35dB
Noise in Performance Mode

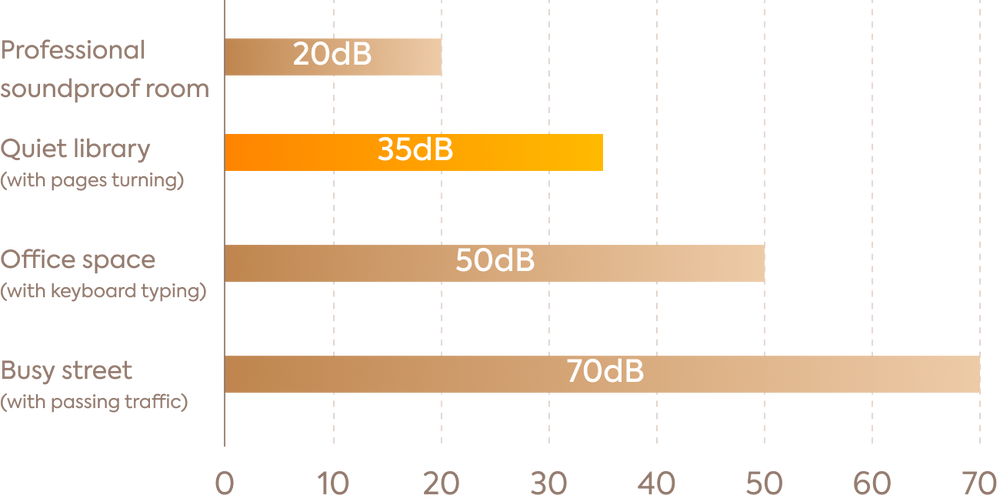

Whisper-Quiet, Powerful Cooling
While delivering powerful cooling, the UM760 Plus prioritizes user experience. Even under heavy cooling, noise levels remain below 35dB, ensuring a quiet environment. Whether you're working or relaxing, you can enjoy a peaceful, comfortable atmosphere without distractions.

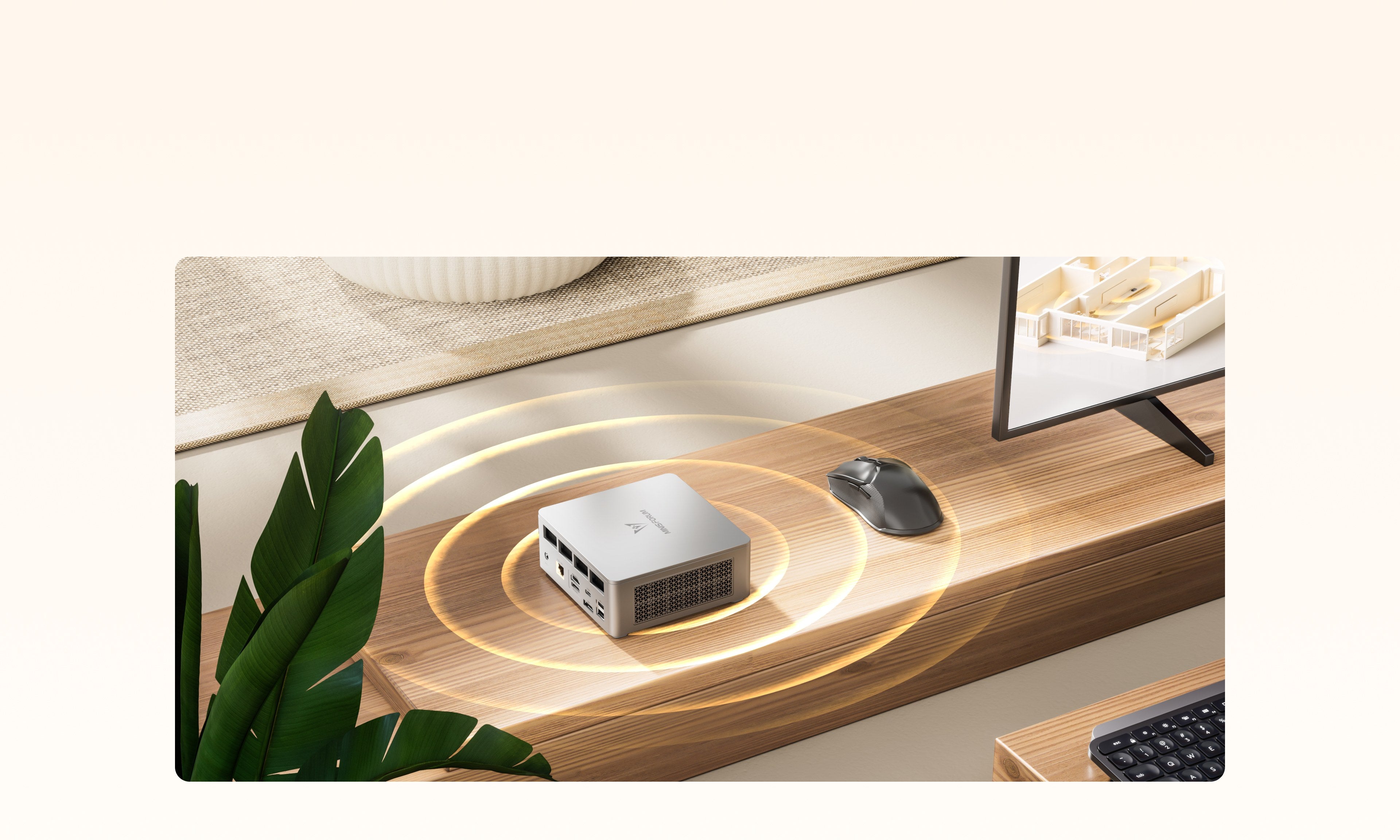

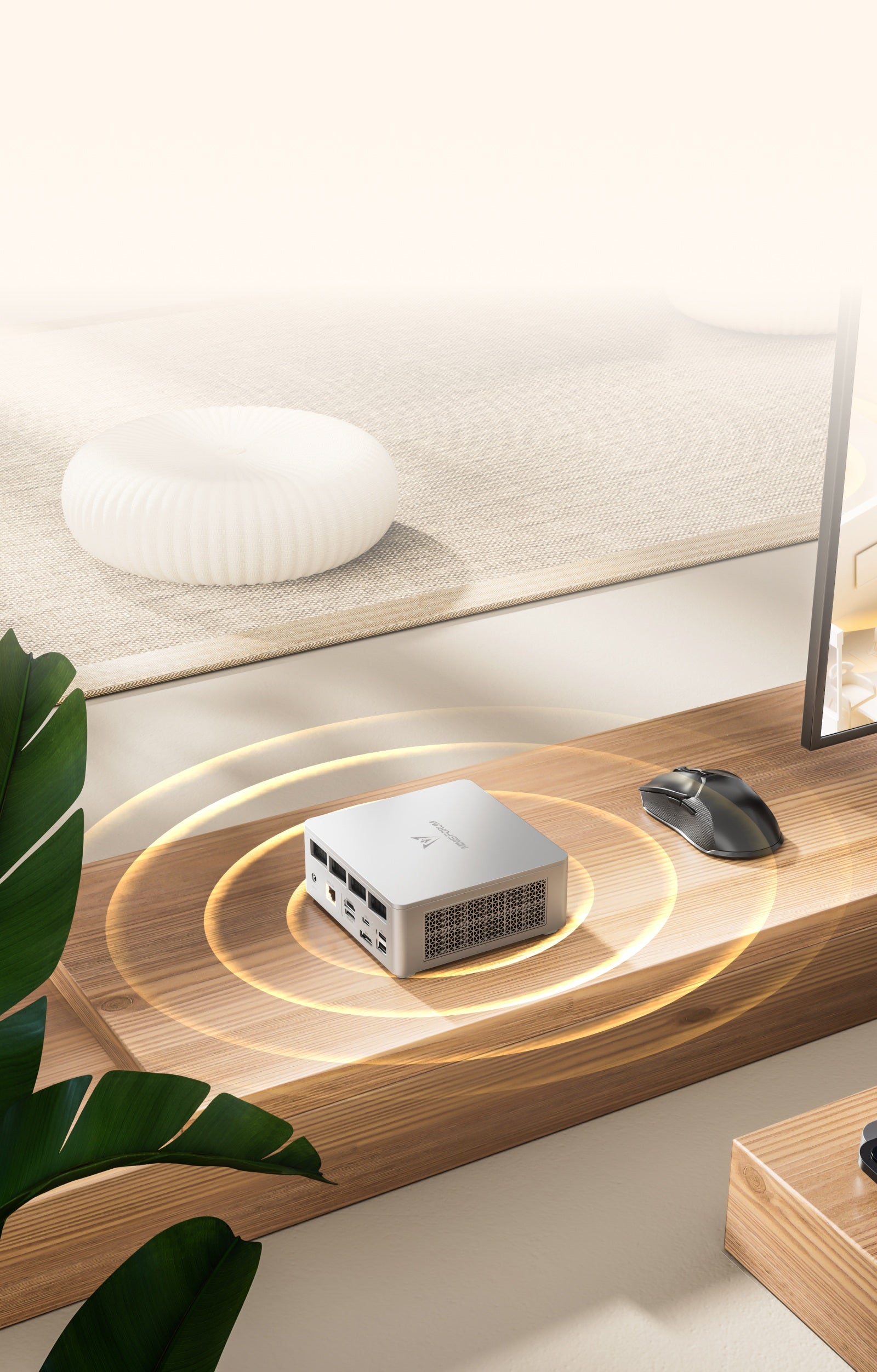

Speedy Network
The UM760 Plus features 5G wired network port with link aggregation, delivering a maximum transmission speed of up to 10Gbps for high-bandwidth and high-speed users. It also supports WiFi 6E, providing broader signal coverage and a more stable wireless connection.

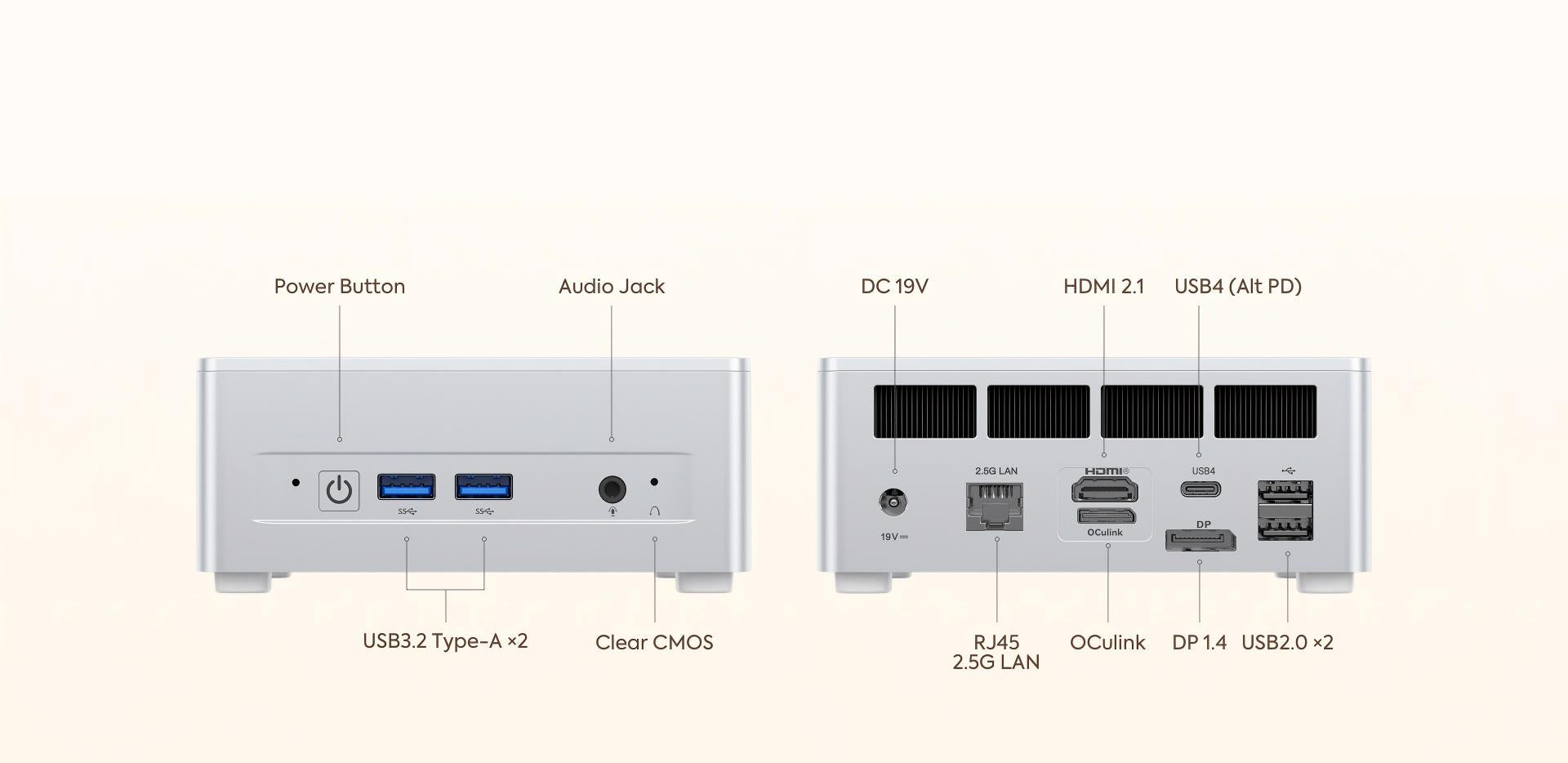

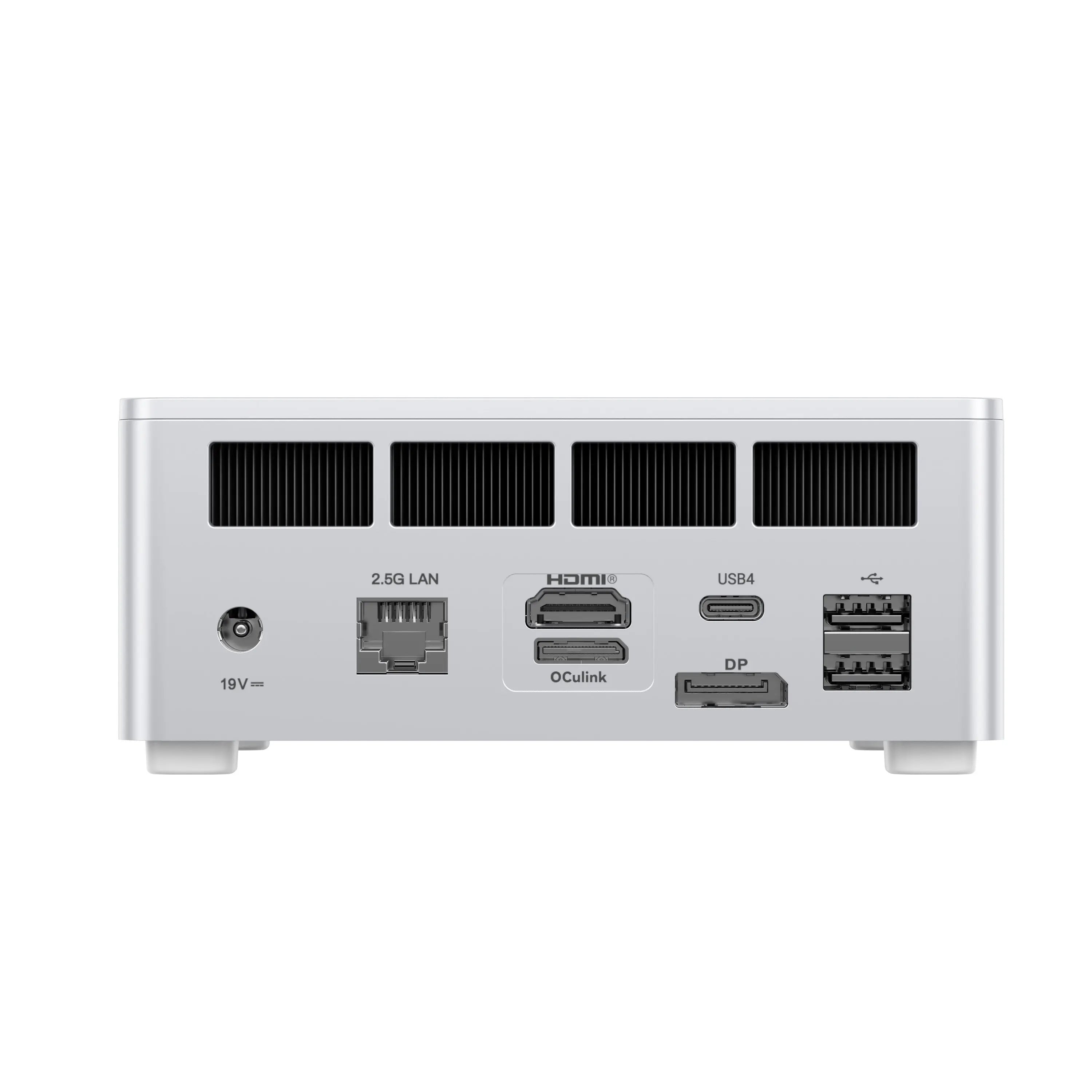

Effortless Connectivity
The UM760 Plus offers all the ports you need for smooth device connectivity. Easily connect your monitor, mouse, keyboard, speakers, headphones, or even an external desktop GPU with no hassle.

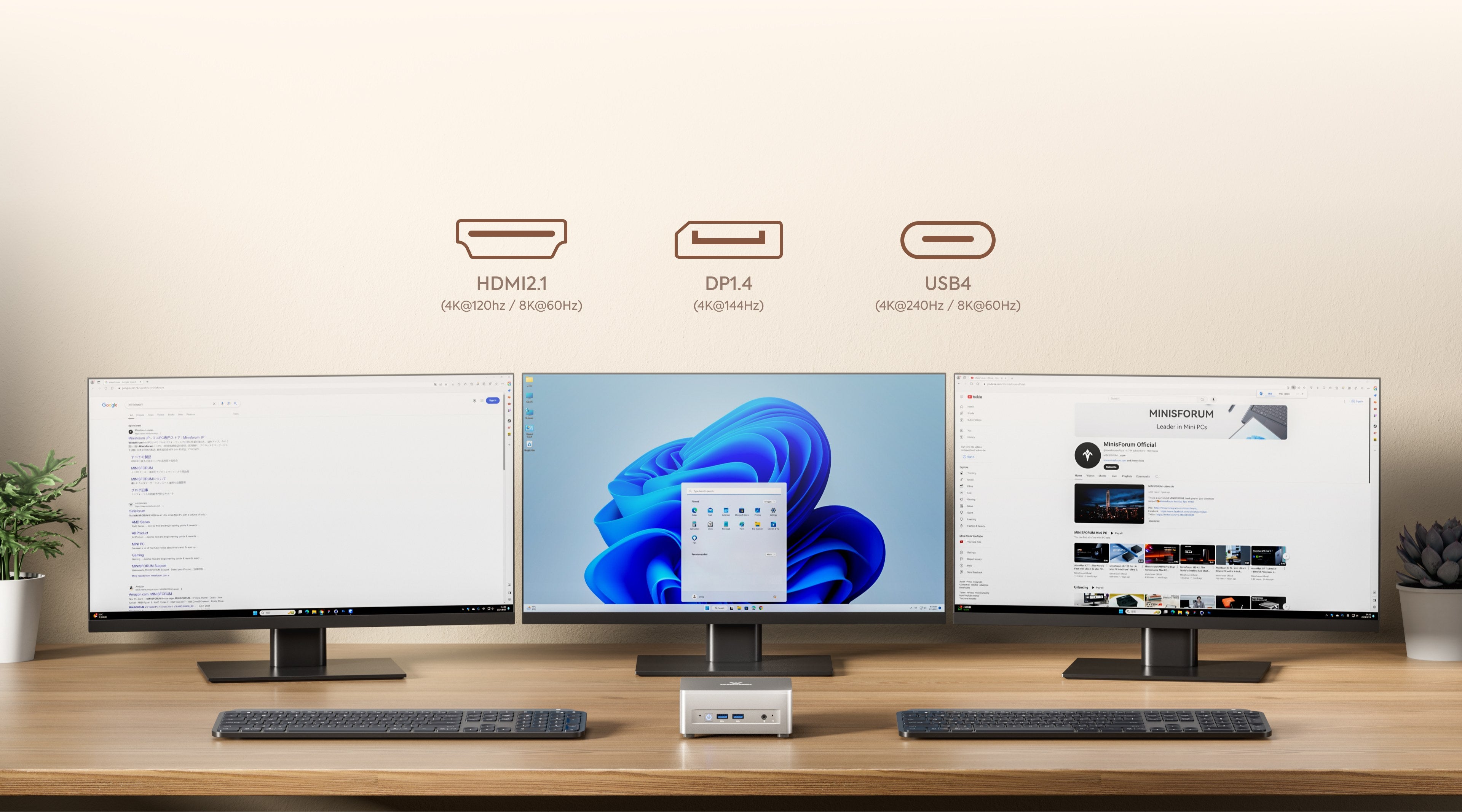

Triple-screen Display
The UM760 Plus empowers seamless multitasking with its high-speed USB4 ports, HDMI 2.1, and DP 1.4 connections. Effortlessly connect up to three 4K displays to supercharge your workflow and boost efficiency.

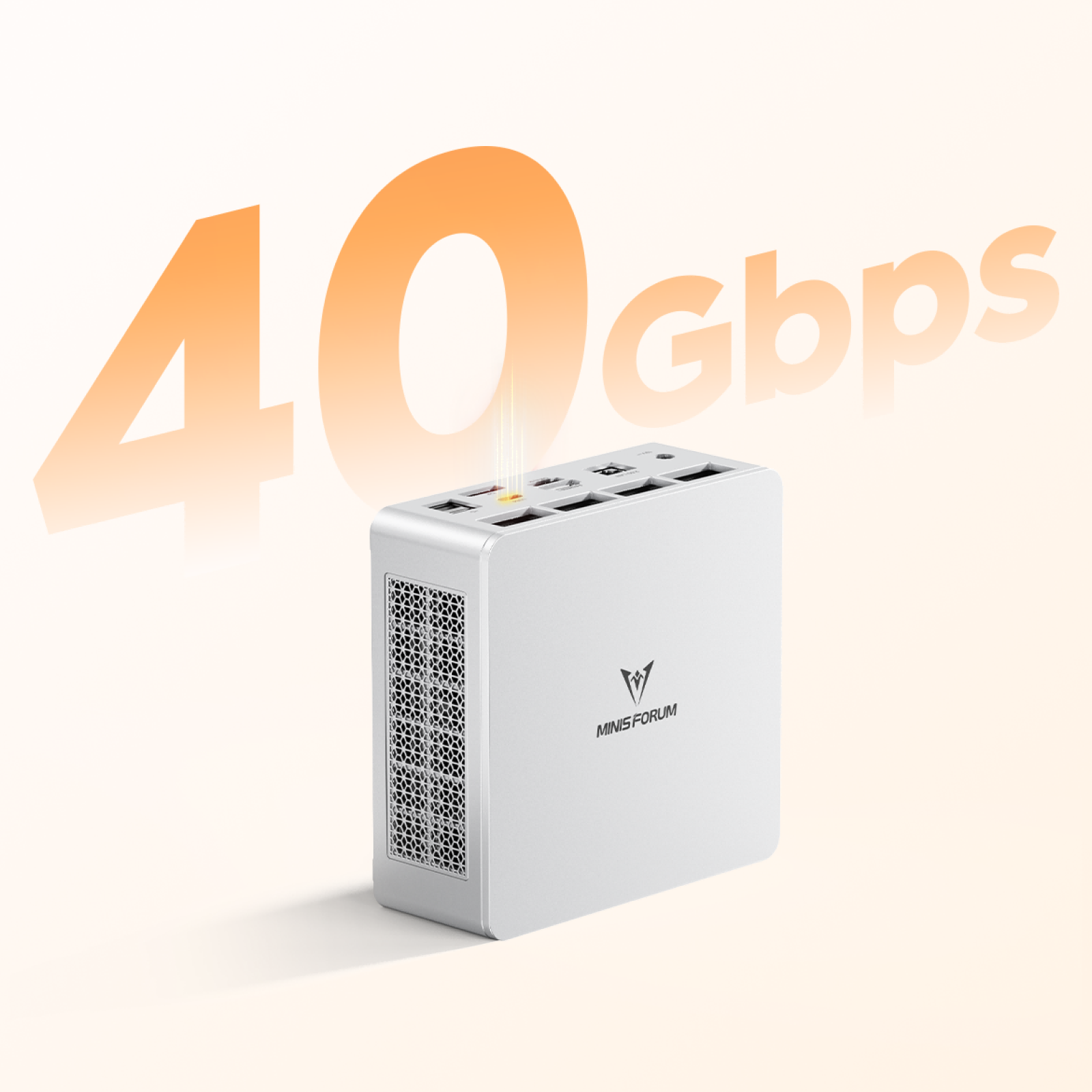

Accelerate Your Workflow With USB4
Supercharge your productivity with the UM760 Plus. Its full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.
Accelerate Your Workflow With USB4
Supercharge your productivity with the UM760 Plus. Its full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.

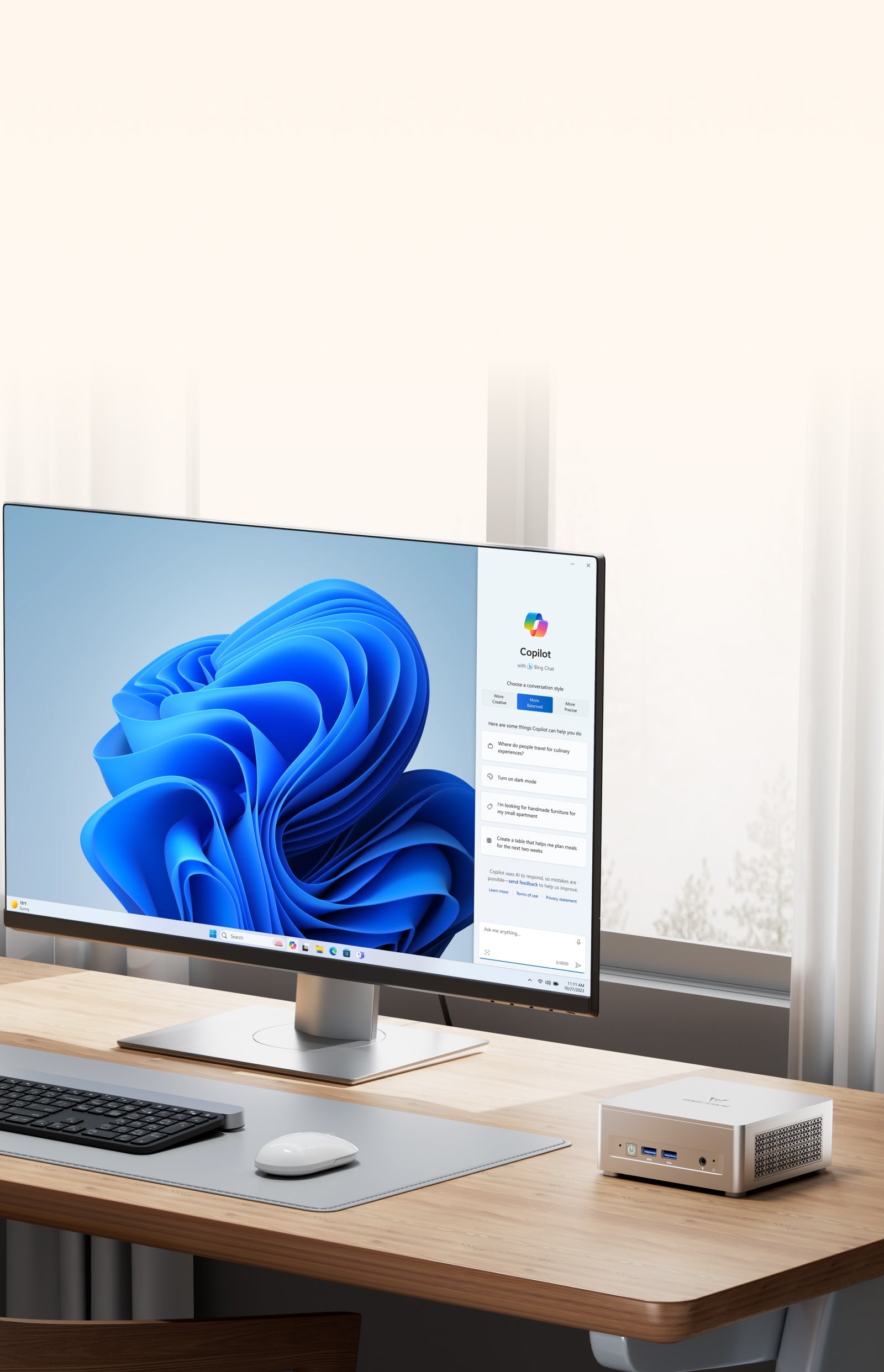

Help is always at hand
The UM760 Plus comes pre-installed with Windows 11 and Copilot, allowing you to start working right out of the box. Enjoy the latest operating system and AI-driven productivity too, without any setup delays.
Compact yet Powerful
The UM760 Plus combines a compact design with powerful performance and reliability, delivering exceptional capabilities in manageability, AI readiness, Wi‑Fi sensing, wireless connectivity, and customization. It is perfectly suited for modern business applications, edge computing, and IoT scenarios.
Package List

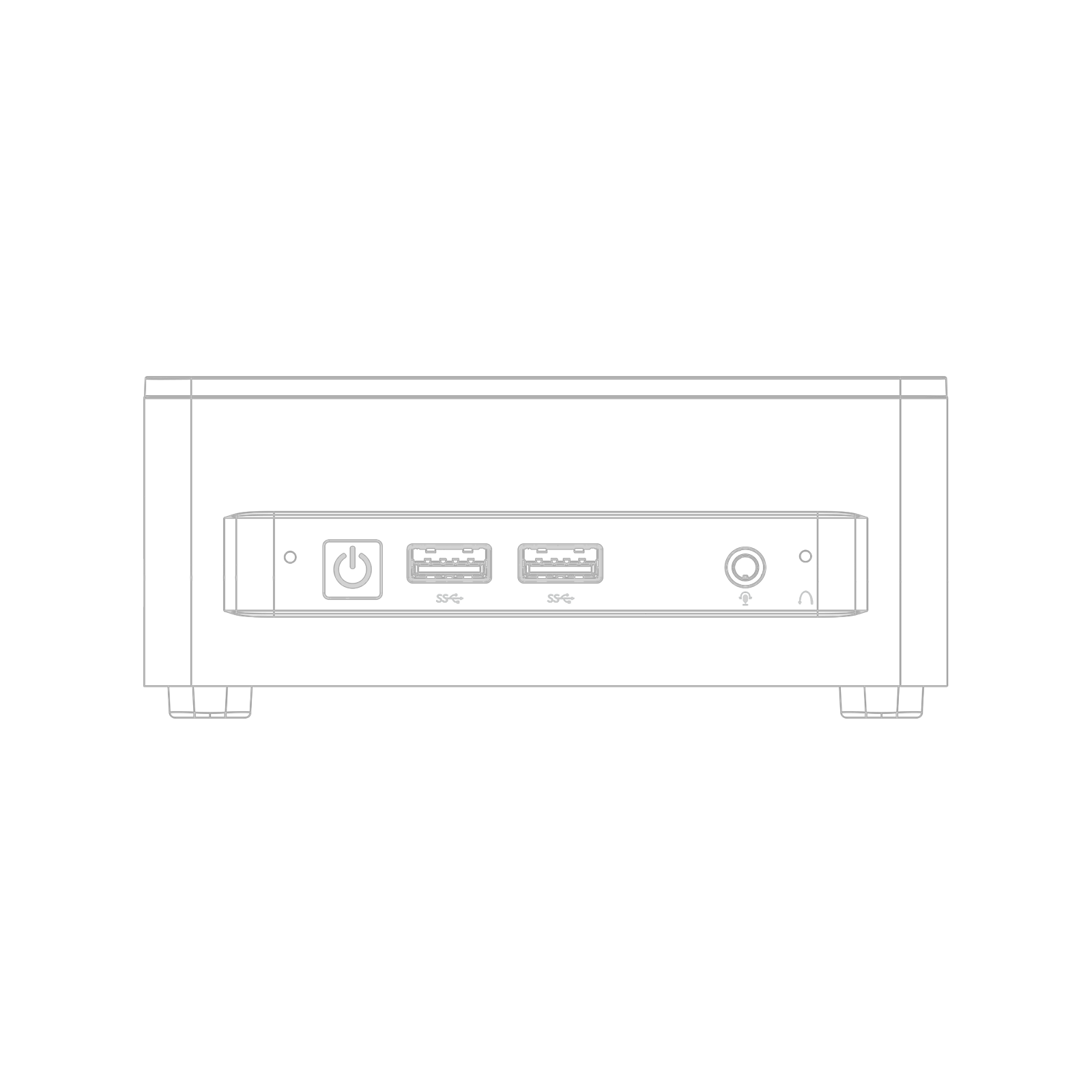

UM760 PLUS

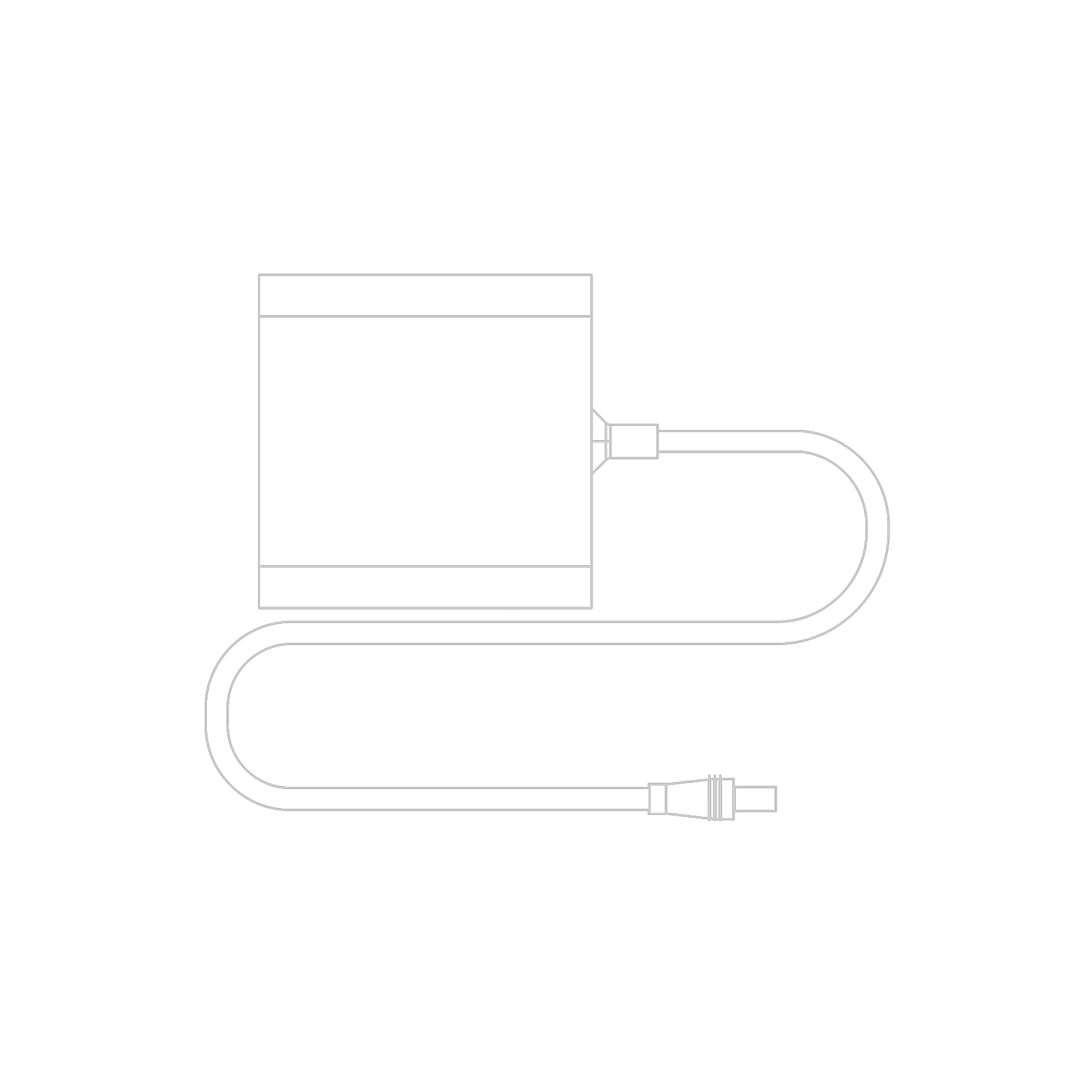

Adapter

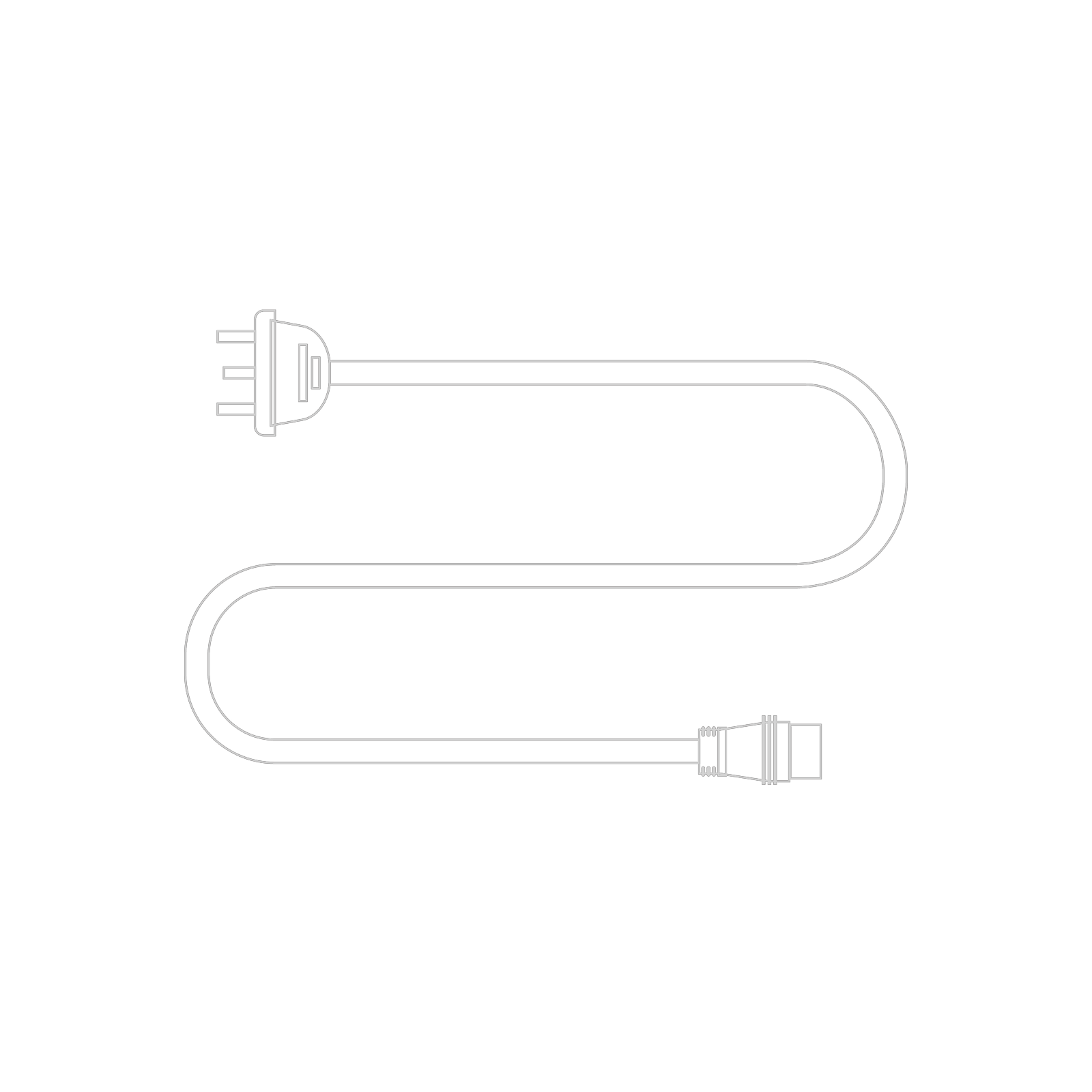

Adapter

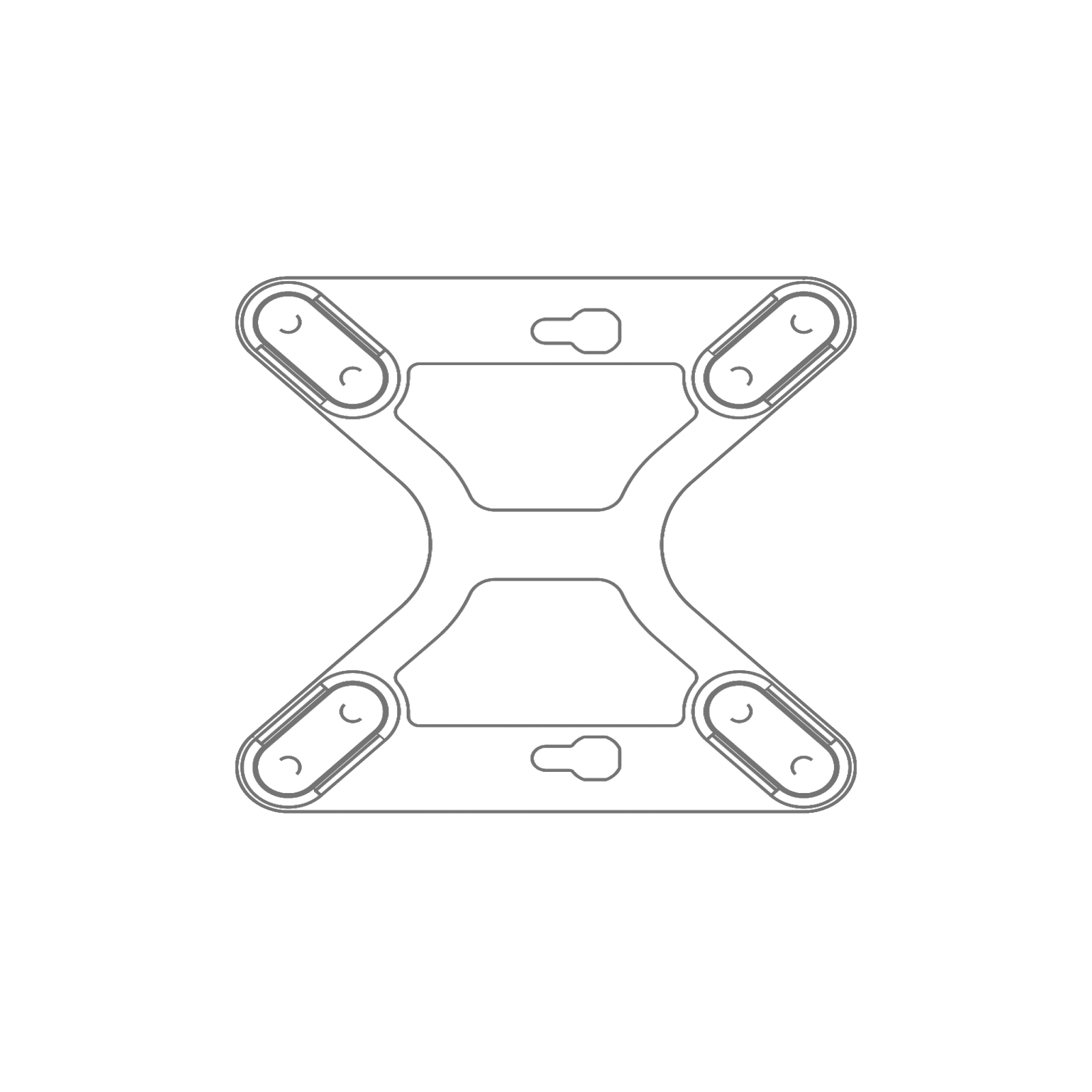

Wall Mounted Installation

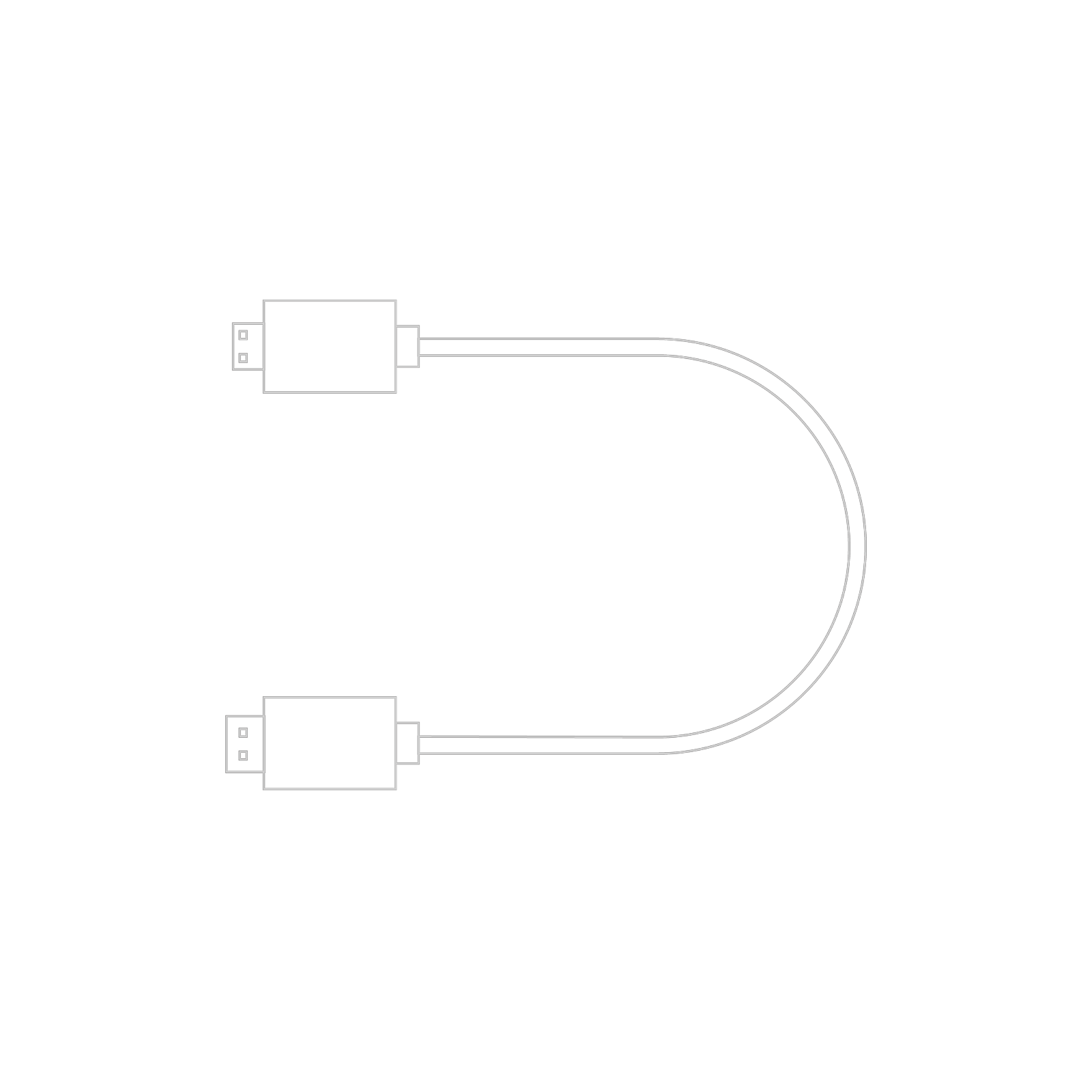

HDMI Cable

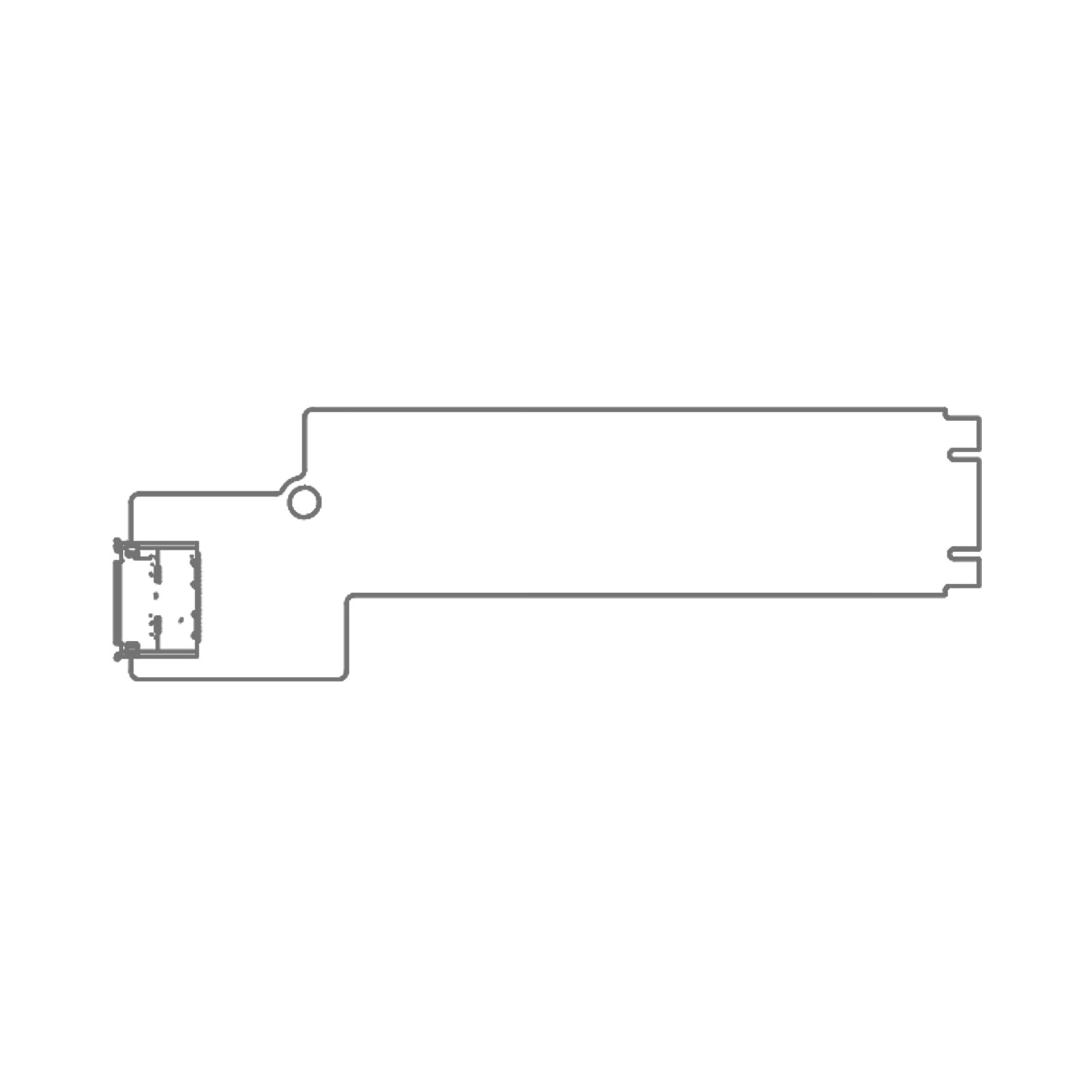

M.2 to Oculink Adapter Plate

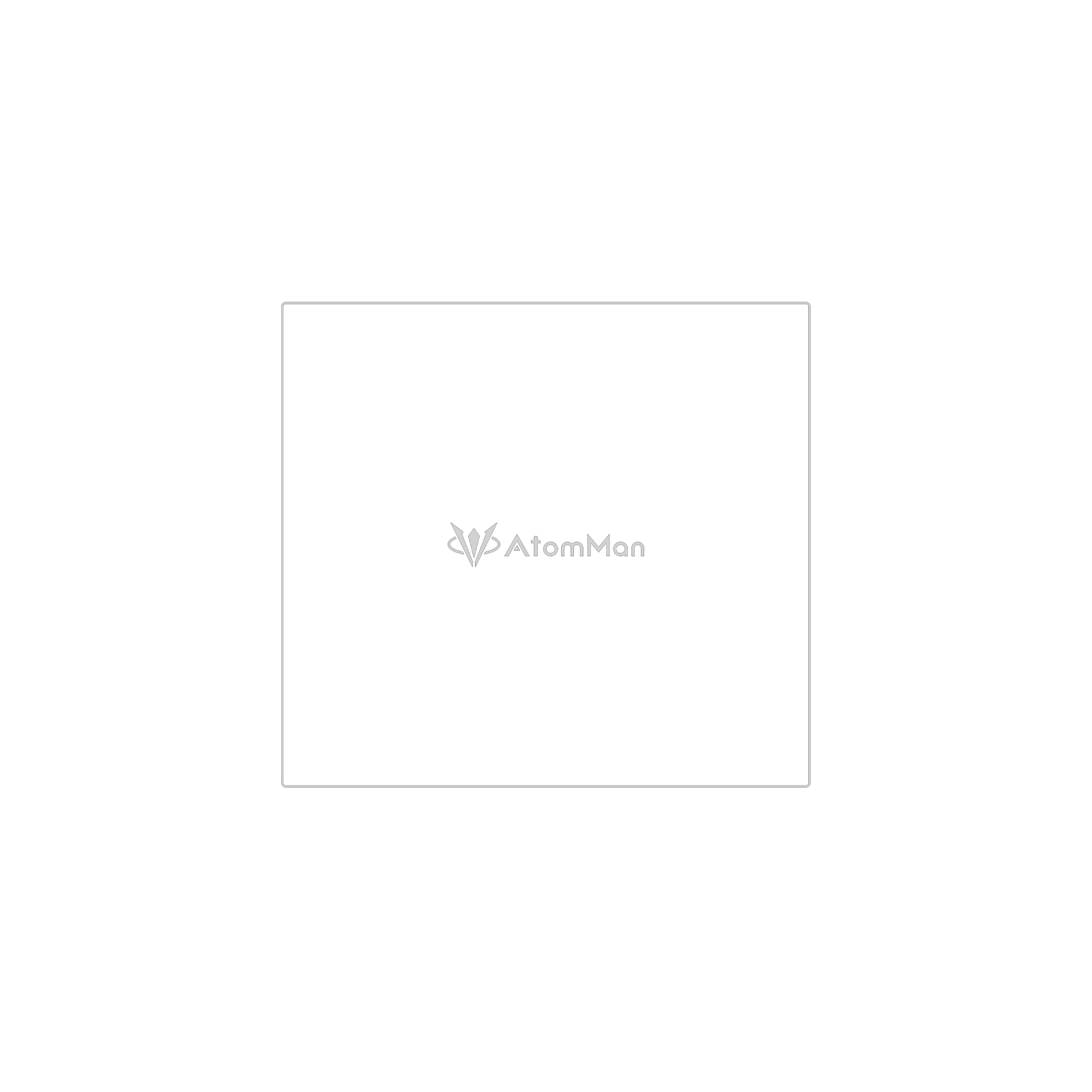

User Manual
Specification
MINISFORUM UM760/870/880 Plus
UM760 Plus
UM870 PLUS
UM880 PLUS
AMD Ryzen™5 7640HS, 6C/12T
AMD Ryzen™7 8745H, 8C/16T
AMD Ryzen™7 8845HS, 8C/16T
AMD Radeon™ 760M
AMD Radeon™ 780M
AMD Radeon™ 780M
DDR5 (SO-DIMM ×2)
DDR5 (SO-DIMM ×2)
DDR5 (SO-DIMM ×2)
2× M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
2× M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
2× M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
Wi-Fi 6E, Bluetooth® 5.2
Wi-Fi 6E, Bluetooth® 5.2
Wi-Fi 6E, Bluetooth® 5.2
HDMI ×1
DP ×1
USB4 ×1
HDMI ×1
DP ×1
USB4 ×1
HDMI ×1
DP ×1
USB4 ×1
HDMI ×1
3.5mm Combo Jack ×1
HDMI ×1
3.5mm Combo Jack ×1
HDMI ×1
3.5mm Combo Jack ×1
3.5mm Combo Jack ×1
3.5mm Combo Jack ×1
3.5mm Combo Jack ×1
- 2.5G(RJ45) ×1
- USB Type A (USB3.2 Gen2) ×2
- USB Type A (USB2.0) ×2
- USB4×1 (Alt PD in 65-100W & PD Out 15W, In Rear)
- OCuLink ×1 (via M.2 to OCuLink adapter board)
- HDMI 2.1 FRL ×1
- 3.5mm Audio Jack ×1
- 2.5G (RJ45) ×1
- USB Type A (USB3.2 Gen2) ×2
- USB Type A (USB2.0) ×2
- USB4 ×1 (Alt Alt PD in 65-100W & PD Out 15W, In Rear)
- OCuLink ×1 (via M.2 to OCuLink adapter board)
- HDMI 2.1 ×1
- 3.5mm Audio Jack ×1
- 2.5G(RJ45) ×1
- USB Type A(USB3.2 Gen2) ×2
- USB Type A(USB2.0) ×2
- USB4 ×1(Alt PD in 65-100W & PD Out 15W, In Rear)
- OCuLink ×1 (via M.2 to OCuLink adapter board)
- HDMI 2.1 ×1
- 3.5mm Audio Jack ×1
Power Button ×1
Reset Hole ×1
Power Button ×1
Reset Hole ×1
Power Button ×1
Reset Hole ×1
19V/6.32A 120W
19V/6.32A 120W
19V/6.32A 120W
Windows 11 Pro
Windows 11 Pro
Windows 11 Pro
130×126.5×50.4mm (LWH)
130×126.5×50.4mm (LWH)
130×126.5×50.4mm (LWH)
0.67 kg
0.67 kg
0.67 kg
