895D7 Mini ITX
Note: Expected to ship from Hong Kong at the end of August！
- AMD Ryzen™ 9 8945HX, 16C/32T
- GPU: NVIDIA GeForce RTX 5060 / AMD Radeon RX 9060 XT
- DDR5 Dual SO-DIMM (Up to 96GB)
- 2 × M.2 2280 NVMe SSD Slot (up to 4TB) (PCIe 4.0 x4)
PERFORMANCE DENSITY
More power per liter. Less tower on your desk.
895D7 compresses serious desktop performance into a compact 312 × 292 × 93mm chassis, 3.79kg barebone weight with RTX 5060, giving gamers, creators, and power users a cleaner way to build a high-performance setup.
DESKTOP-STYLE HEADROOM
A smarter way to build compact performance.
Ryzen 9 8945HX MODT platform, a high-performance HX-class processor inside a desktop-style chassis. That means more room for cooling, power, and discrete graphics than a typical laptop, while avoiding the bulk and complexity of a full tower build.
PCIE EXPANSION FOR MORE POSSIBILITIES
Slot in more performance, networking, or storage.
895D7 keeps a strong open-platform character with a native PCIe 5.0 x16 internal slot. Gives more freedom to explore GPU, networking, storage, and future expansion ideas within a compact system.
MORE ROOM TO GROW
Want a compact PC that doesn't lock you into a fixed configuration? 895D7 is built to scale. Upgrade memory, expand storage, and keep your system ready for larger games, creator projects, and heavier workloads.
Dual DDR5
SO-DIMM Slots
Up to 96GB
DDR5 Memory
5200 MT/s
Max Speed Support
2 x M.2 2280
NVMe SSD Slots
PCIe 4.0 x4
Storage Interface
Up to 8TB
Total SSD Storage
TOTAL FLEXIBILITY
895D7 gives you the connectivity expected from a modern desktop setup: wired networking, wireless connectivity, multiple display outputs, front-access USB, rear I/O, and internal expansion for more advanced configurations.
STABLE THERMALS UNDER REAL LOAD
Uses multi-side airflow, dedicated fan headers, and targeted cooling design to support sustained CPU, GPU, system, and SSD loads inside a compact chassis.
In Balance Mode, its measured acoustics reach 26.4dB at idle and 44.ldB under load
RTX 5060 Configuration:
Under Full CPU+GPU Load
81.4°C
CPU temperature
82.3°C
GPU temperature
RX 9060 XT Configuration:
Under Full CPU+GPU Load
83°C
CPU temperature
83°C
GPU temperature
PACKING LIST
895D7
Power Cord
Wi-Fi Antenna
Graphics Card Air-Sealing Foam
Mounting Screw Set
User Manual
Product specification
895D7-9060XT
895D7-IGPU
AMD Ryzen™ 9 8945HX,16C/32T
Max Turbo Frequency 5.4 GHz
AMD Radeon RX 9060 XT
GPU Memory Config: 16GB
AMD Radeon™ 610M
N/A
DDR5 Up to 5200 MT/s (dual-channel)
Optional SKU DDR Capacity: 0 / 16 / 32 / 48 / 64 / 96 GB
Max Memory Capacity 96GB
2 × M.2 2280 NVMe SSD Slot
(up to 4TB) (PCIe 4.0 x4)
Optional SKU SSD Capacity: 0/512 GB/1 TB
Phase Change Material (PCM)
CPU Fan Type: Blower Fan
CPU Fan Speed: 4-pin/3500 RPM/12 V
Wi-Fi 7 & Bluetooth® 5.4
M.2 2230 E-Key Wi-Fi / Bluetooth Combo Module (PCIe Only)
2.5GbE LAN (RJ45)
1 × RJ45 (Module: Realtek RTL8125)
• 2 × HDMI 2.1 (up to 8K@60Hz / 4K@144Hz)
• 2 × DP 1.4 (up to 8K@60Hz / 4K@144Hz)
• 1 × DP 2.1 (up to 8K@60Hz / 4K@240Hz)
• 1 × USB Type-C (up to 4K@144Hz)
• 1 × HDMI 2.1 (up to 8K@60Hz / 4K@144Hz)
• 1 × DP 1.4 (up to 8K@60Hz / 4K@144Hz)
• 1 × USB Type-C (up to 4K@144Hz)
• 2 × HDMI 2.1
• 2 × DP 1.4
• 1 × DP 2.1
• 1 × Audio Out Port
• 1 × Line Out Port
• 1 × HDMI 2.1
• 1 × DP 1.4
• 1 × Audio Out Port
• 1 × Line Out Port
• 1 × Line In Port
• 2 × Mic In Port

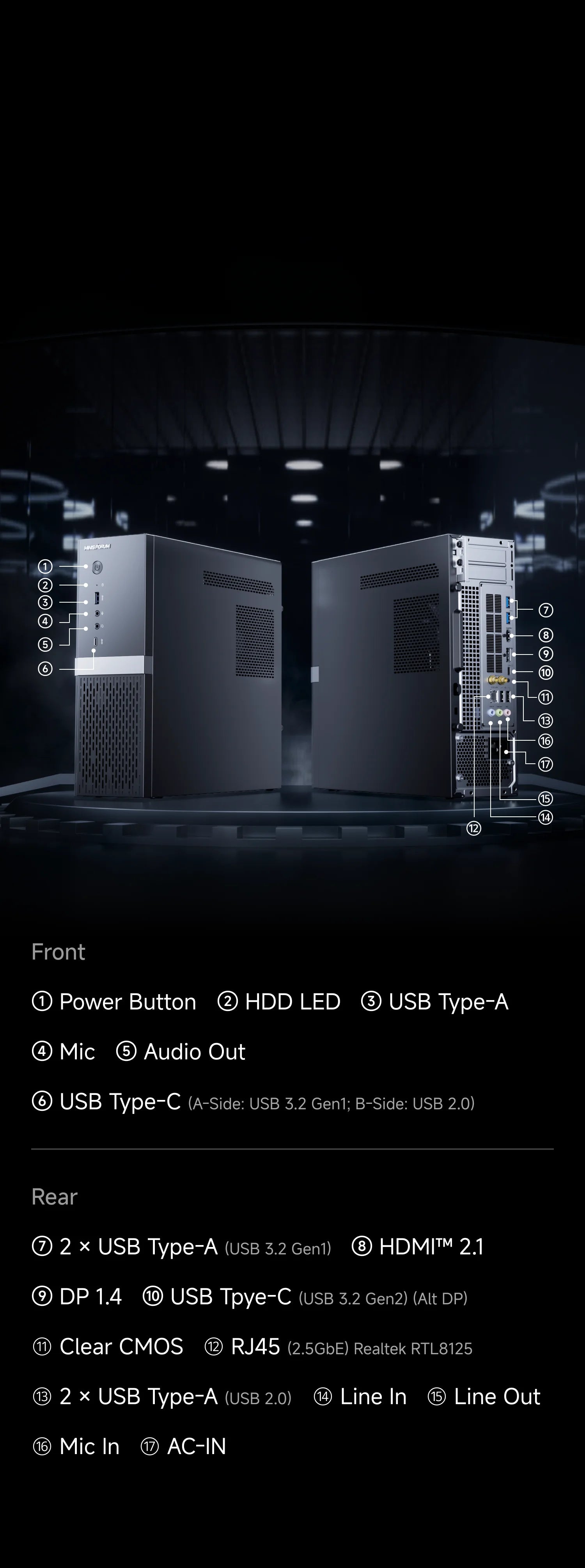

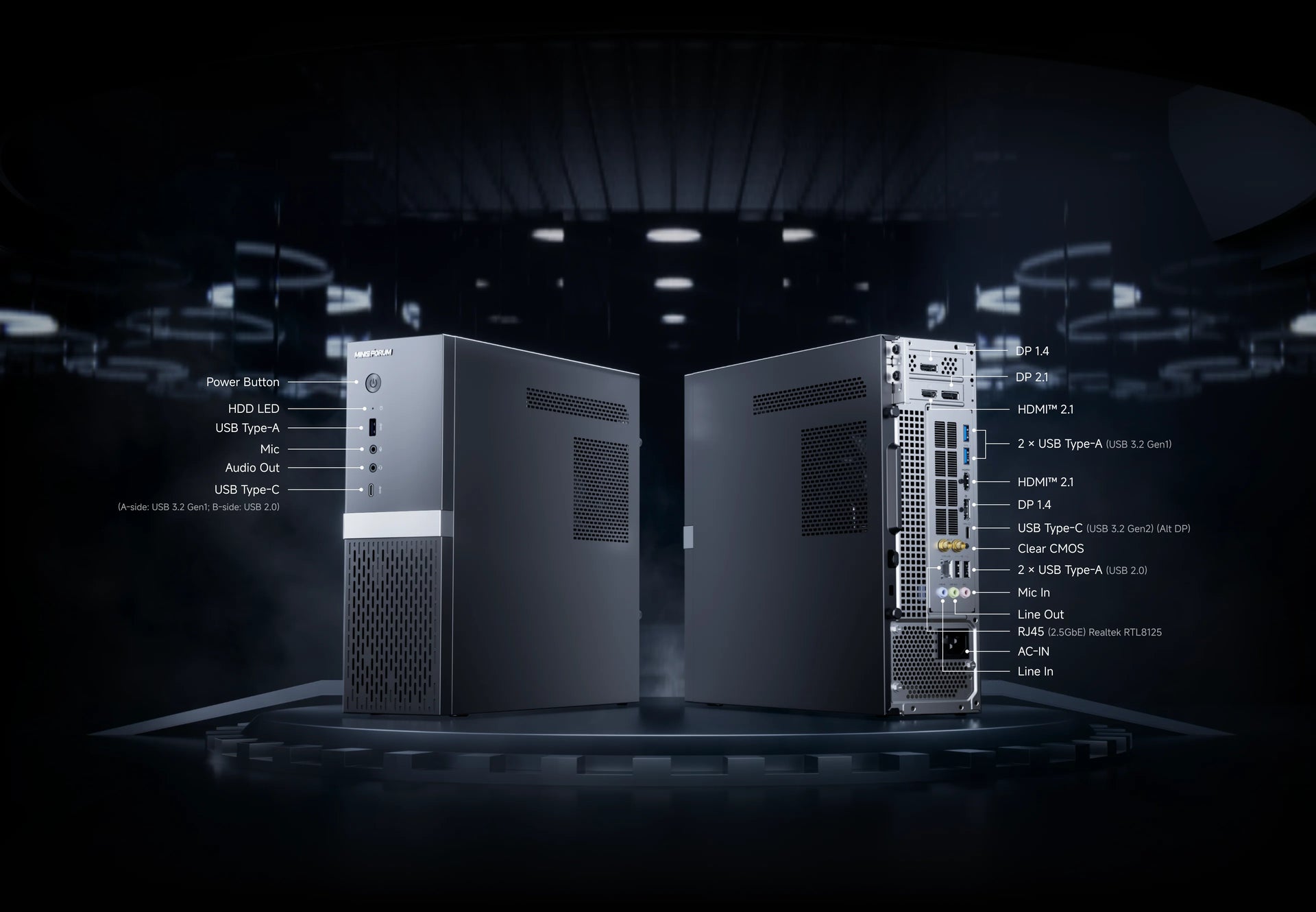

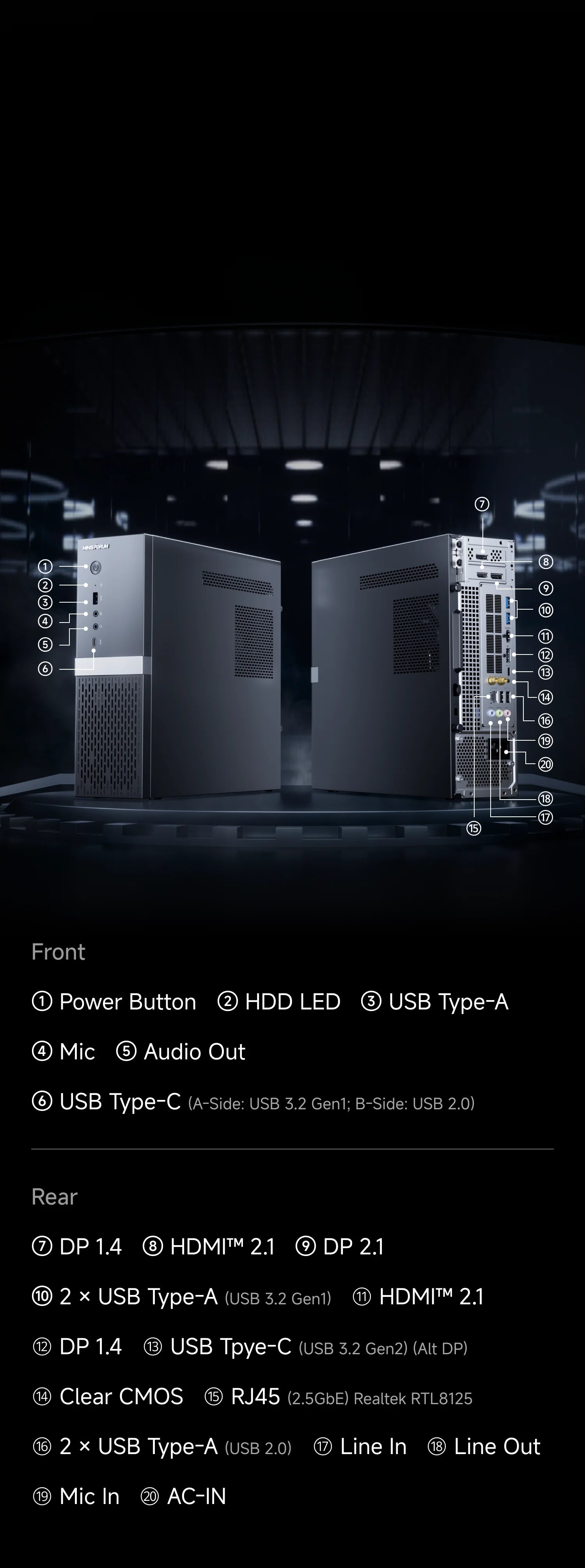

Front:
• 1 × Audio Out
• 1 × Power Button
• 1 × Mic In
• 1 × USB Type-A (USB 3.2 Gen1)
• 1 × USB Type-C (A-side: USB 3.2 Gen1; B-side: USB 2.0)
Rear:
• 2 × DP 1.4
• 1 × DP 2.1
• 2 × HDMI 2.1
• 1 × RJ45 (2.5GbE) Realtek RTL8125
• 2 × USB Type-A (USB 3.2 Gen1)
• 2 × USB Type-A (USB 2.0)
• 1 × USB Type-C (USB 3.2 Gen2) (Alt DP)
• 1 × Line In
• 1 × Line Out
• 1 × Mic In
Internal:
• 1 × PCIe 5.0 x16 Slot(Pre-installed RX 9060 XT)
• 2 × System Fan Header (12 V)

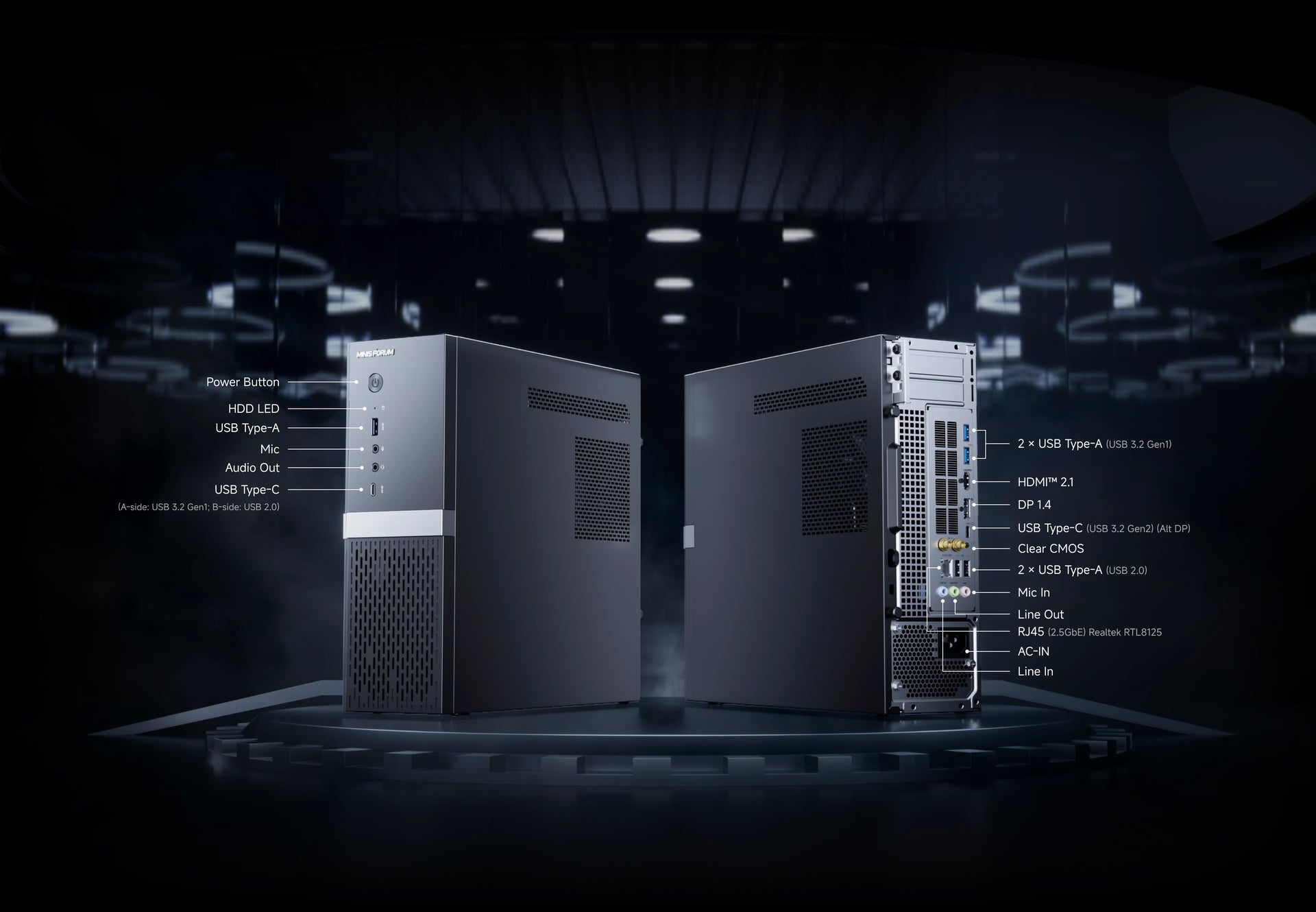

Front:
• 1 × Audio Out
• 1 × Power Button
• 1 × Mic In
• 1 × USB Type-A (USB 3.2 Gen1)
• 1 × USB Type-C (A-side: USB 3.2 Gen1; B-side: USB 2.0)
Rear:
• 1 × DP 1.4
• 1 × HDMI 2.1
• 1 × RJ45 (2.5GbE) Realtek RTL8125
• 2 × USB Type-A (USB 3.2 Gen1)
• 2 × USB Type-A (USB 2.0)
• 1 × USB Type-C (USB 3.2 Gen2) (Alt DP)
• 1 × Line In
• 1 × Line Out
• 1 × Mic In
Internal:
• 1 × PCIe 5.0 x16 Slot
• 2 × System Fan Header (12 V)
• 1 × 8-pin（150W）
- 1 × Power Button
- 1 × Clear CMOS (Pinhole)
AC-IN, 100–240 V, Max 400 W
Windows 11
312 × 93 × 292 mm
8.47 L
3.87 KG
3.44 KG
