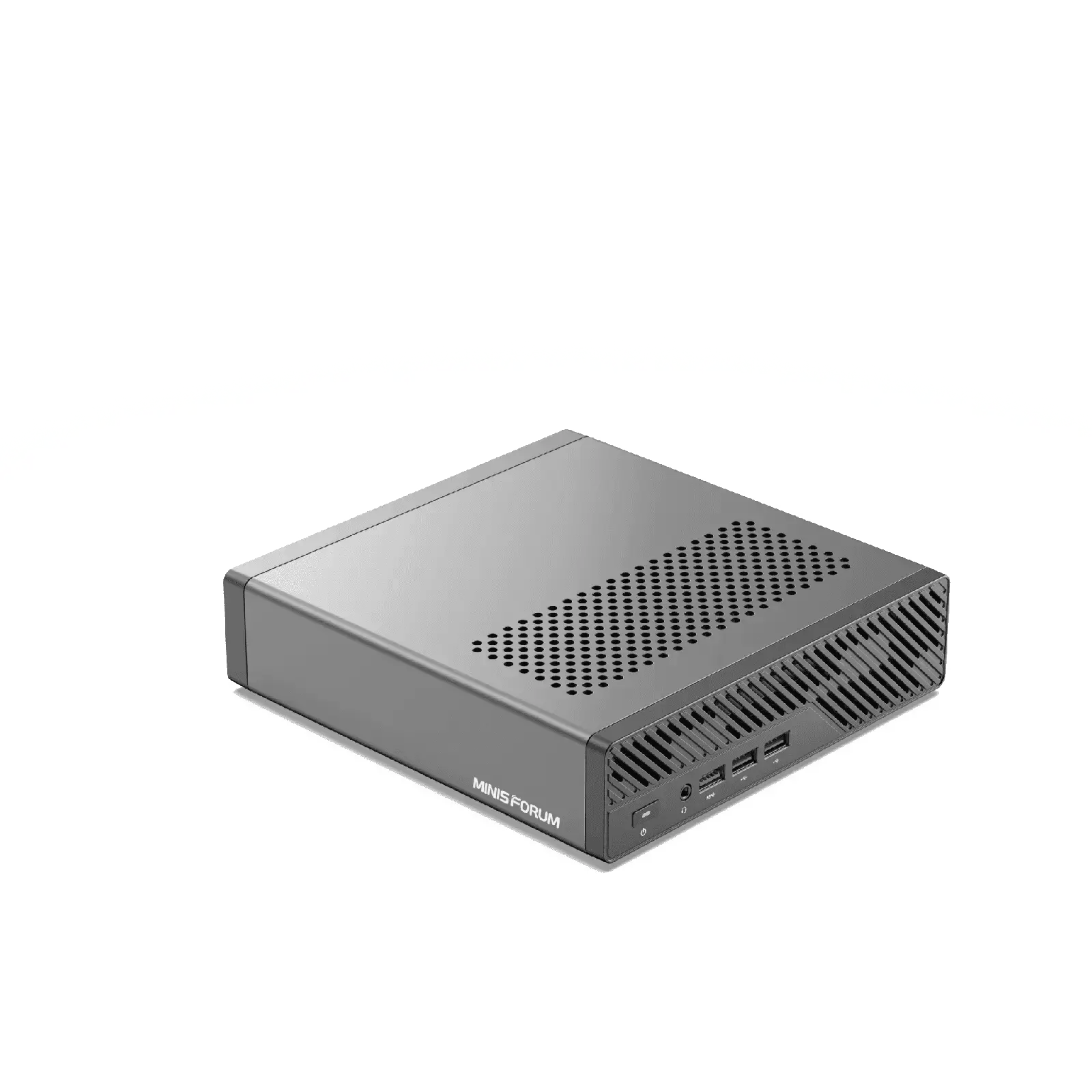

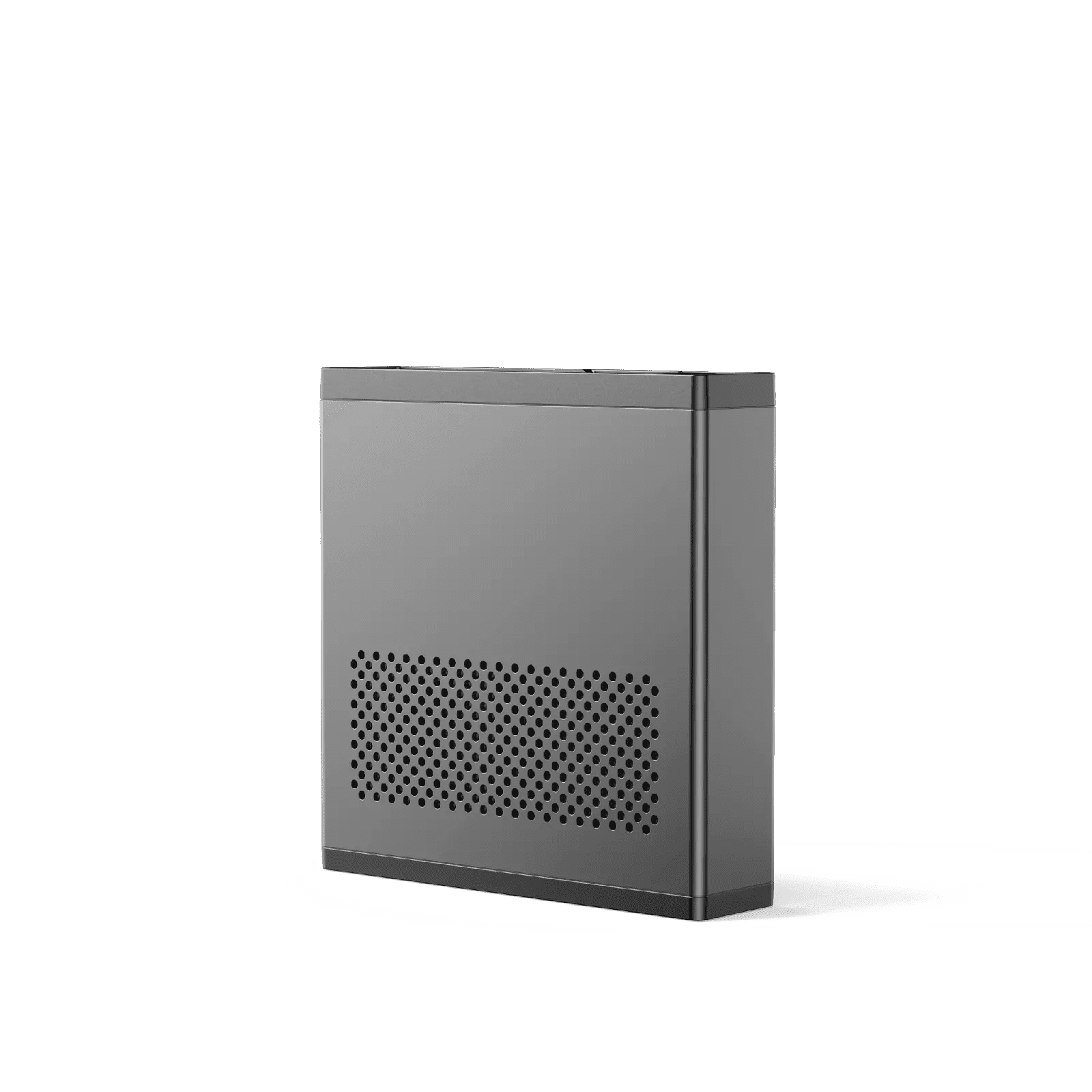

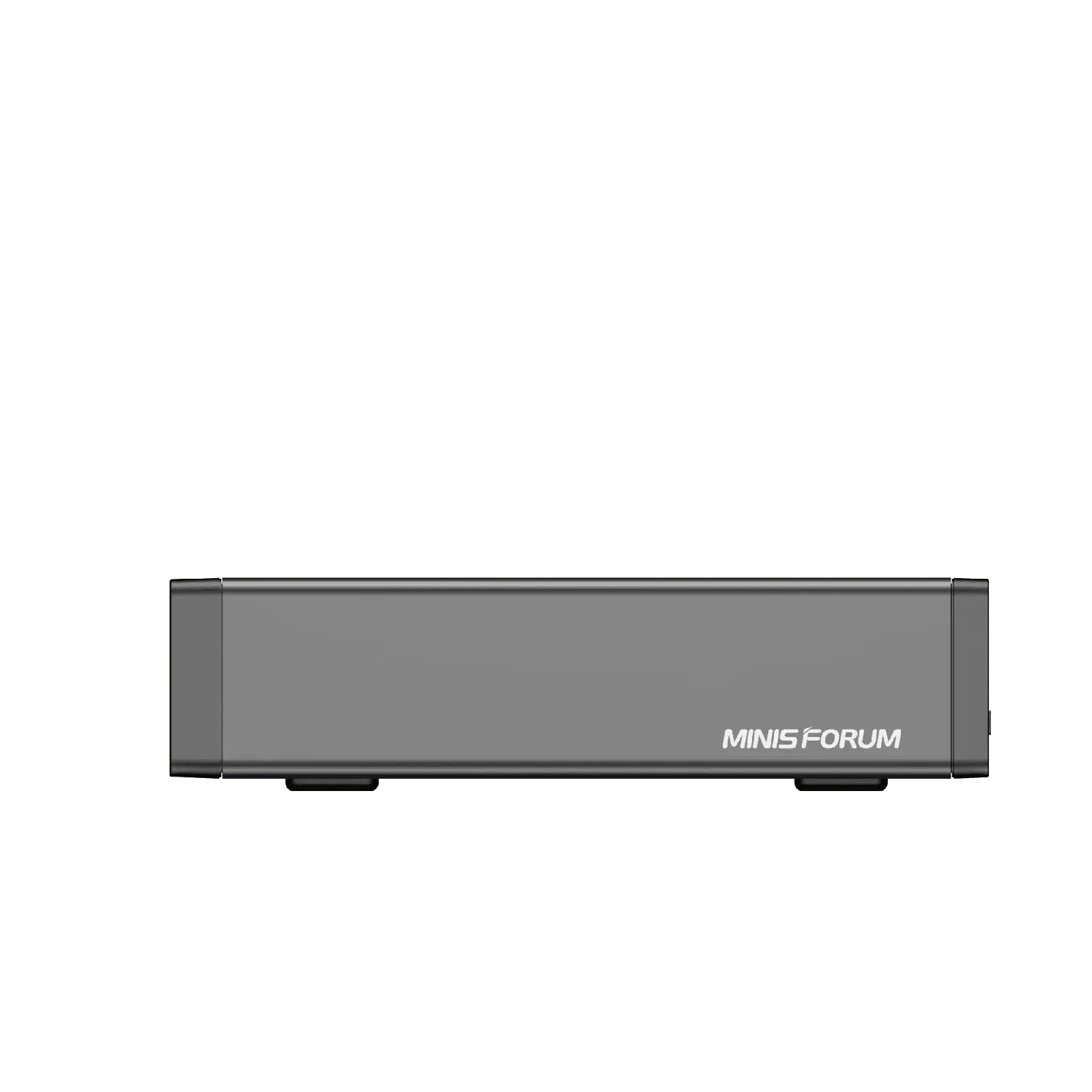

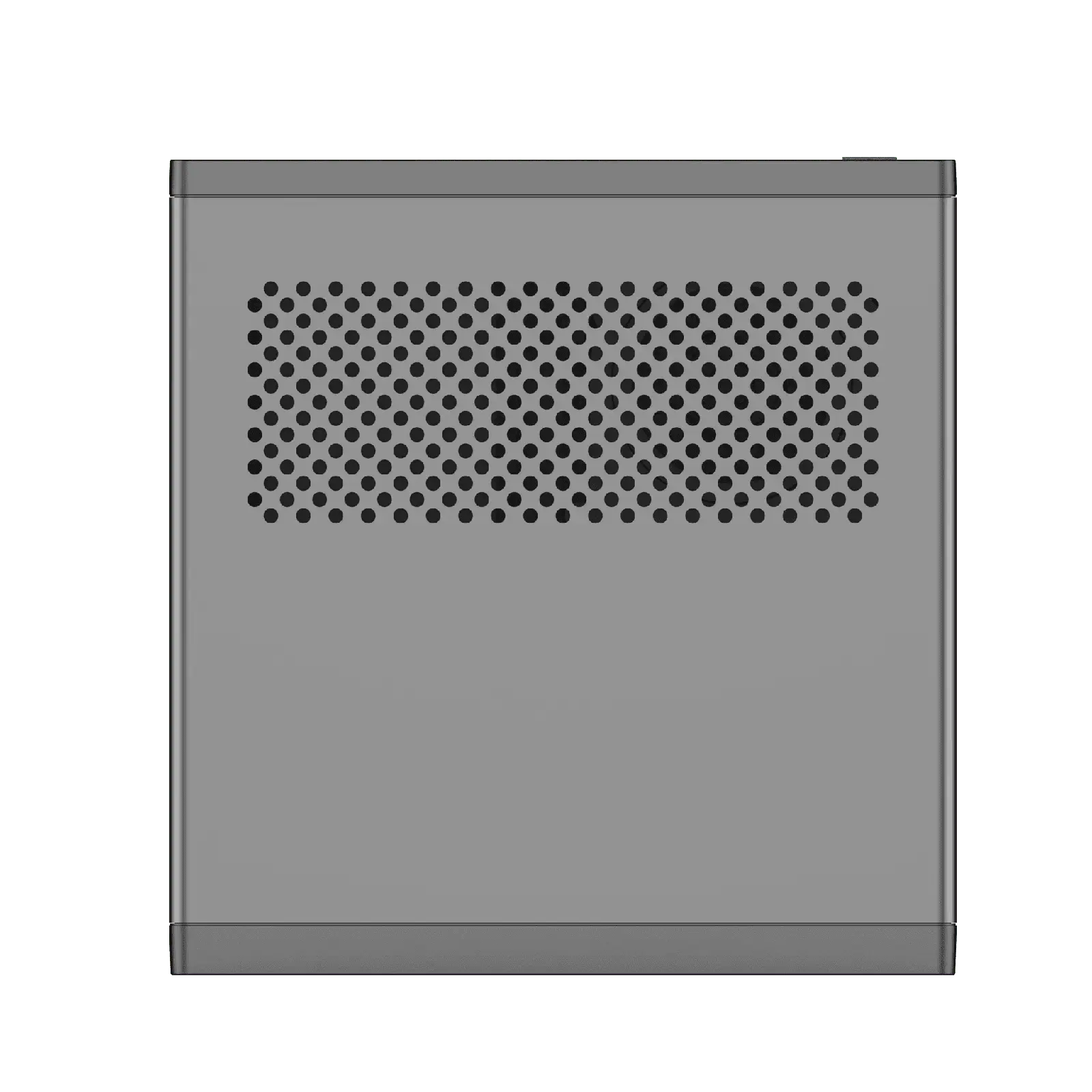

MS-01 Workstation

€519,00 €649,00

High-performance Intel 13th generation i9 CPU
Up to 24TB of SSD storage
10Gbps SFP X2 + 2.5Gbps RJ45 X2
PCIe 4.0 x16 slot

Brand Shop Exclusive Benefits ›

Online Instant Service
3-Year Extended Warranty
Gift Redemption with Points

Deliverable Areas ›

Can be delivered for free to:

EU countries: Czech Republic, Denmark, Austria, Belgium, Bulgaria, Croatia, Estonia, Finland, France, Germany, Greece, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Hungary.
Non-EU countries: Switzerland, Albania, Belarus, North Macedonia, Iceland, Bosnia and Herzegovina, Vatican City, Liechtenstein, Monaco, Norway, San Marino.

Delivery Timeliness ›

DE Warehouse: 5-7 business days
Hong Kong Warehouse: 7-10 business days
Refurbished Devices: 5-7 business days
Pre-sale Products: 5-7 business days after warehouse arrival

Repair Services ›

Provides free repair and after-sales services for products that are within the warranty period. For more details, please contact the customer service team.

Insurance Services ›

Minisforum provides two types of protection for sold products:

1. Shipping Protection includes: Loss and damage in transit, Theft/Porch Piracy, Mis-delivery by courier, USD$5 compensation for delay Smooth Claims
2. Product Protection Plan:Customers can choose a 1-year, 2-year, or 3-year insurance plan tailored to their needs. This plan covers accidental damage occurring during normal product use and extends the original manufacturer's warranty with identical coverage terms after its expiration. Different durations are subject to varying premium rates.

Payment Methods

Trusted Delivery

Free Shipping

Free RMA Return

0% APR Plan

Up To 3 Years Extended Warranty

30-Day Money-Back Guarantee

€519,00 €649,00 Sparen Sie €130,00

Jetzt kaufen

Purchase

Overview

Specs

FAQ

Reviews

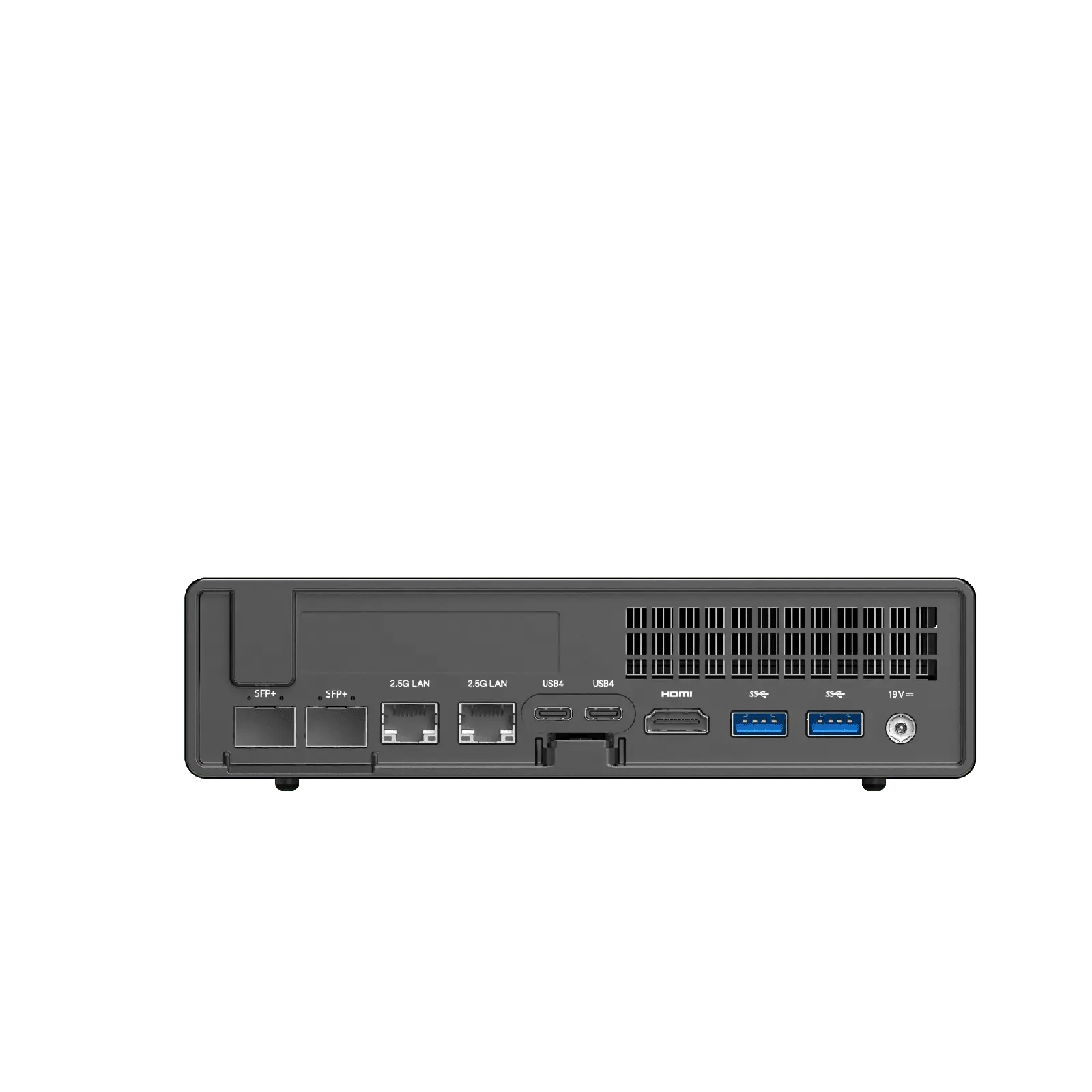

High-speed Network Ports

The MS-01 is capable of building a high-speed network experience with two 10Gbps SFP+ LAN ports, two 2.5Gbps RJ45 LAN ports, and two USB4 ports, providing a total maximum Ethernet throughput of 65Gbps. Enjoy an unprecedented high-speed networking experience.

Intel 13th Generation
Core i9 Processor

The MS-01 is equipped with the high-end Intel 13th Generation Core i9-13900H and Core i9-12900H processors. It provides 14 cores (6P+8E) and 20 threads, along with a 24MB L3 cache. The maximum clock speeds reach 5.4GHz and 5.0GHz, respectively.

Featuring integrated Intel Iris Xe Graphics with maximum frequencies of 1.5GHz and 1.45GHz, it delivers exceptional performance for a smooth and responsive experience.

M.2 NVMe SSD slot

It is possible to expand with up to three M.2 NVMe SSDs, with each slot supporting a maximum capacity of 4TB. The leftmost slot is PCIe 4.0 compatible, with a maximum transfer speed of 7000MB/s. It supports both RAID0 for increased capacity and RAID1 for enhanced data safety.

7000MB/s

Data Transfer Speeds up to

12TB

Storage Capacity up to

U.2 NVMe SSD support

It also supports enterprise-class storage, allowing for expansion up to a total maximum of 24TB with a configuration of one U.2 NVMe SSD and two 22110 M.2 NVMe SSDs. This meets the demands of professionals who require high-capacity storage.

High expandability

PCIe 4.0 x16 slot

The MS-01 is equipped with a PCIe 4.0 x16 slot, allowing for the installation of high-performance external GPUs, network cards, storage controllers, and other external devices. The PCIe 4.0 x16 slot enables faster data transfer, delivering optimal performance in various applications that require high computational power and bandwidth, such as gaming, video editing, and 3D rendering.It supports PCIe 4.0 x8 (128GT/s) and is compatible with up to RTX A2000 Mobile.

Disassembly diagram

Compatible with
Intel vPRO

Intel vPRO technology provides hardware-level protection and reduces security risks between virtual machines. vPRO supports hardware acceleration, such as device virtualization for GPUs and sound cards, allowing for more efficient processing of graphics and audio tasks.

10Gbps SFP+

network ports× 2

The MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ modules offer high stability, and the optical fiber transmission ensures network security by preventing eavesdropping and interception.

With a transmission speed of 10Gbps, it is ten times faster than traditional 1000Mbps Ethernet, meeting the demands of high-performance networking devices.

2.5Gbps RJ45

network ports X 2

In addition to the two SFP+ network ports, the MS-01 also features two standard 2.5Gbps RJ45 network ports, providing double the transmission speed compared to a single 2.5Gbps port, enabling enhanced network performance.

The RJ45 network ports offer high compatibility with a wide range of network devices, catering to the needs of general use

USB Port X 2

The MS-01 is equipped with two USB4 ports, which incorporate dual-channel transmission technology, enabling data transfer speeds of up to 40Gbps. This doubles the data transfer speed compared to USB 3.2 at 20Gbps.

Additionally, it is capable of building a 20Gbps Ethernet network using USB4 Thunderbolt Bridge technology.

Excellent cooling system.

The small smart fan on top of the SSDIt achieves efficient heat dissipation, reducing the operating temperature of the computer and improving the product's lifespan.

The CPU has two U-shaped heat pipes.
It utilizes a high-speed cooling fan, ensuring stable performance even under high load conditions.

Supports 8K
and triple display

With triple display support, you can simultaneously display more work content, making it easier to switch between multiple windows and improving work efficiency. It allows for multitasking and enhances multitasking capabilities by handling multiple tasks simultaneously.

Package Contents

MS-01 Specifiction

Model

MiniWorkStation MS-01

CPU

S1390: Intel® Core™ i9-13900H(With vPro® Enterprise Support)

S1290: Intel® Core™ i9-12900H(With vPro® Enterprise Support)

S1260: Intel® Core™ i5-12600H(With vPro® Enterprise Support)

Graphics

S1390/S1290/S1260: Intel® Iris® Xe Graphics eligible

Memory

DDR5-5200MHz Dual Channel (SODIMM slots x2, up to a total maximum of 64GB)

SSD

M.2 2280 NVME SSD slot (Up to 4TB) (PCIe 4.0 x4) x1

M.2 2280 NVME SSD slot (Up to 4TB) (PCIe 3.0 x4) x1

M.2 2280 NVME SSD slot (Up to 4TB) (PCIe 3.0 x2) x1

FAQ & Support

Q1: How long does it take to process and ship my order?

A: Shipping times depend on whether your order is a pre-order or in-stock. Pre-orders will be processed and shipped based on the actual date the goods arrive at our warehouse.

For in-stock orders, they are typically processed within 2–3 business days. We primarily ship via DHL, and a tracking number will be emailed to you once your package has left our warehouse.
Q2: Do I need to pay customs duties or taxes?

A: If your shipping address is within the EU: No additional customs fees are required. Minisforum will handle all customs formalities in advance.

If your shipping address is outside the EU: We recommend paying the €30 "Duty-Free Shipping" fee. By doing so, Minisforum will cover any customs duties or taxes incurred during transit.

Q1: Can I return the product if I simply change my mind?

A: Yes, returns due to personal preference are accepted within 30 days, provided the device is unopened and in pristine condition. Please note that return shipping costs for non-defective items are the buyer's responsibility.
Q2: What is your return policy for this product?

A: You may request a refund within 30 days of product delivery (the delivery date is determined by the tracking number record). Requests made after 30 days are eligible for repair or replacement services only.

Q1: What are the differences between the three CPU options (i5-12600H, i9-12900H, and i9-13900H)?

A: The main differences are core count, cache, and clock speed. The i5-12600H has 12 cores/16 threads with 18MB cache (up to 4.50GHz). Both i9 models have 14 cores/20 threads with 24MB cache — the i9-12900H boosts up to 5.00GHz, while the i9-13900H boosts up to 5.40GHz. The i9-13900H also supports faster DDR5 memory (5200MHz vs 4800MHz on the other two).
Q2: Can I upgrade the memory and storage myself?

A: Yes. It features two SODIMM slots supporting up to 96GB of DDR5 memory. For storage, you can install up to 3x M.2 2280 NVMe SSDs, or optionally 2x M.2 22110 NVMe SSDs + 1x U.2 NVMe SSD for enterprise-grade capacity. The SSD slots also support RAID 0 and RAID 1 configurations.
Q3: What are the networking capabilities of the MS-01?

A: MS-01 Standard Edition is equipped with dual 10GbE SFP+ and dual 2.5GbE RJ45 ports. It also features dual USB4 ports that can bridge Thunderbolt Ethernet (20Gbps per port), with built-in Wi-Fi 6E; vPro is supported only on specific CPU SKUs.
Q4: What is the PCIe expansion slot used for?

A: It has a PCIe x16 slot (PCIe 4.0 x8) that can accommodate a standard PCIe card — such as a high-performance network card, additional storage controller, or even a GPU for light graphics acceleration. This adds flexibility for professional and enterprise use cases.
Q5: Does the MS-01 support Intel vPro and remote management?

A: Yes. The i9 models (12900H and 13900H) support Intel vPro with Intel AMT, which enables BIOS-level remote KVM management without installing additional software. This significantly improves IT productivity and security for enterprise deployment.
Q6: What operating systems are compatible with the MS-01?

A: It supports both Windows 11 and Linux. The i9 models also come with Intel vPro for enhanced enterprise security and manageability. For the barebone version, you will need to install your own operating system.

Q1: What kind of warranty is included with this product?

A: All MINISFORUM new products come with a 24-month (2-year) standard warranty covering manufacturing defects. (Refurbished items carry a 1-year warranty).
Q2: How do I get technical support if I encounter an issue?

A: We provide technical support. You can reach our dedicated support team via the "Contact Us" page or by emailing our official support address. We typically respond within 24-48 business hours.
Q3: Is the product covered by international warranty?

A: Our warranty applies to products purchased through our official website or authorized resellers. For third-party purchases, please refer to the seller's policy.
