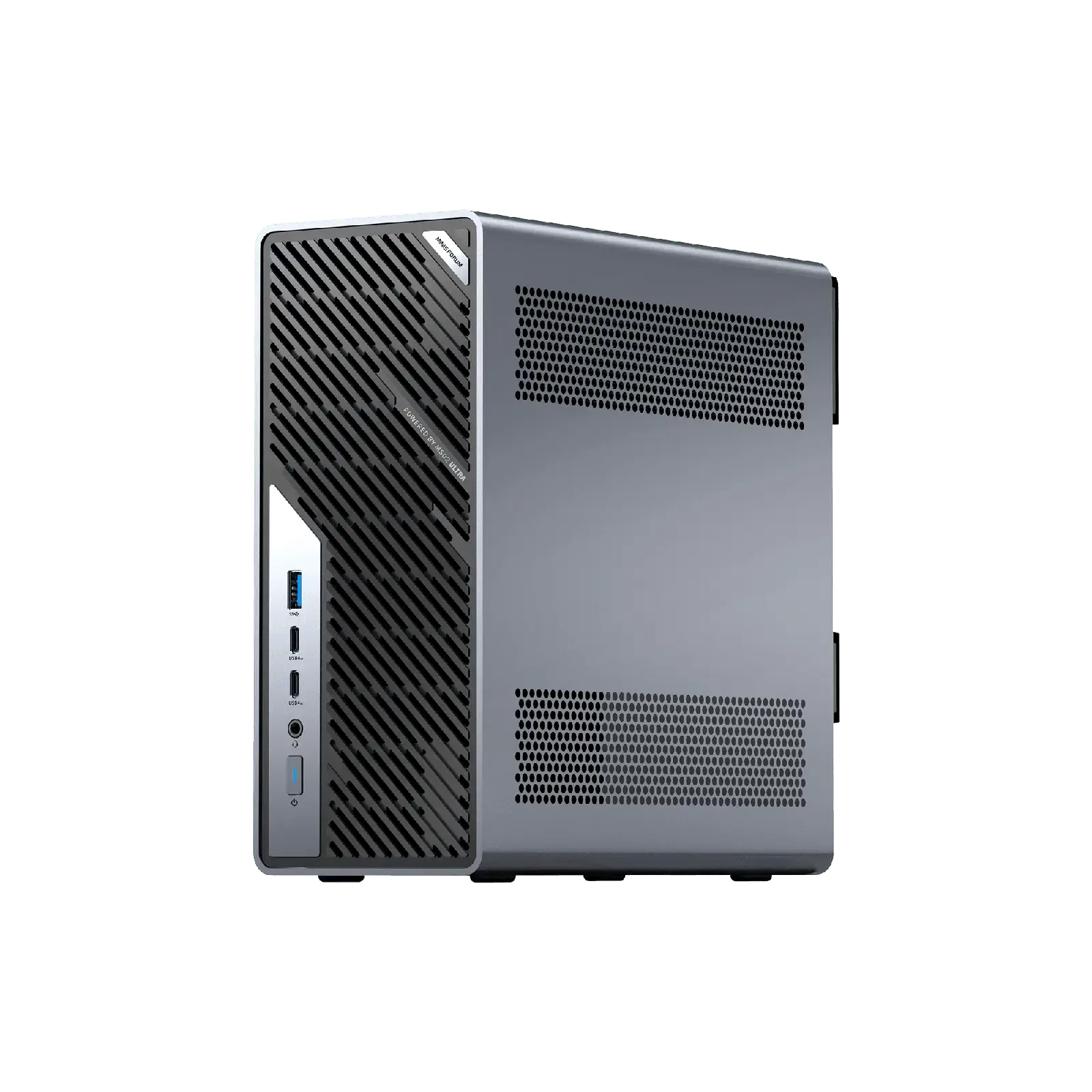

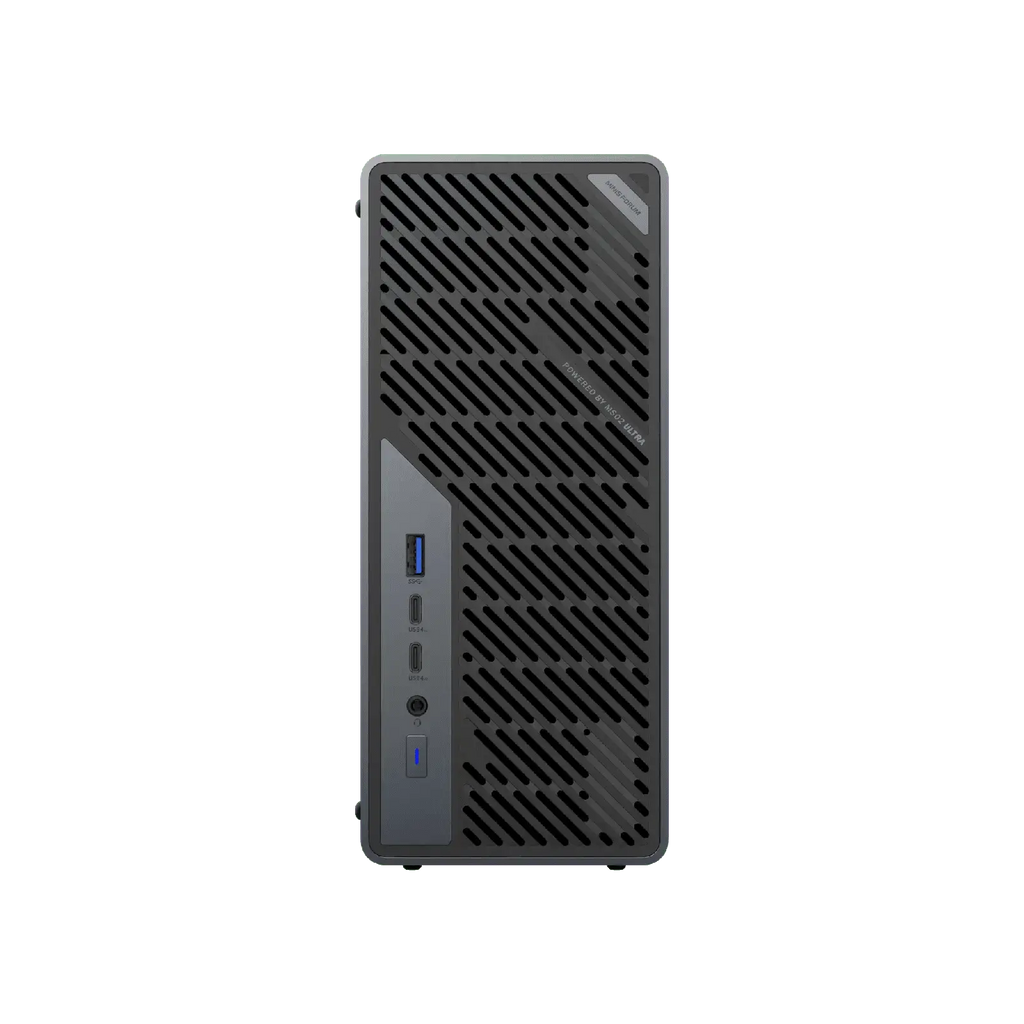

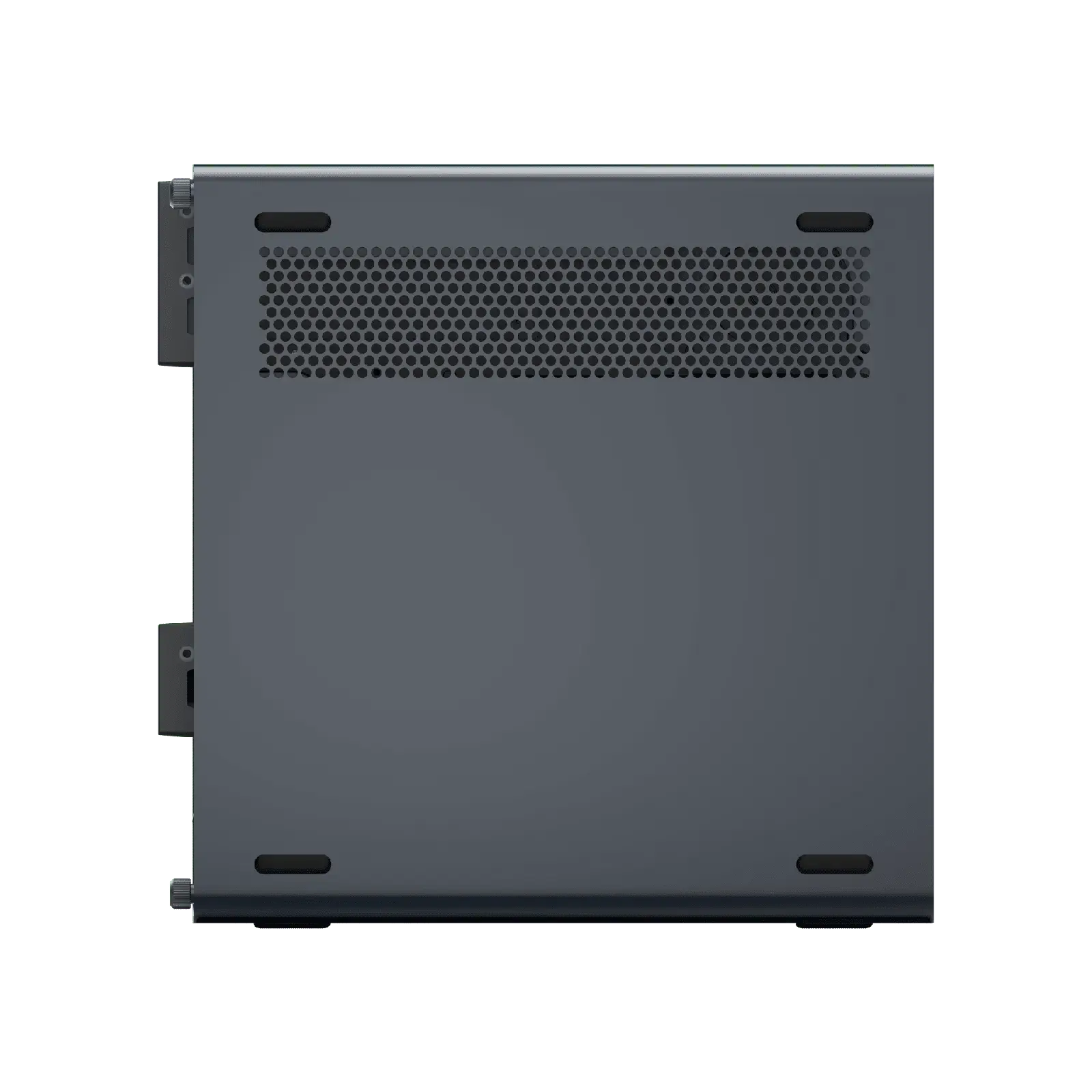

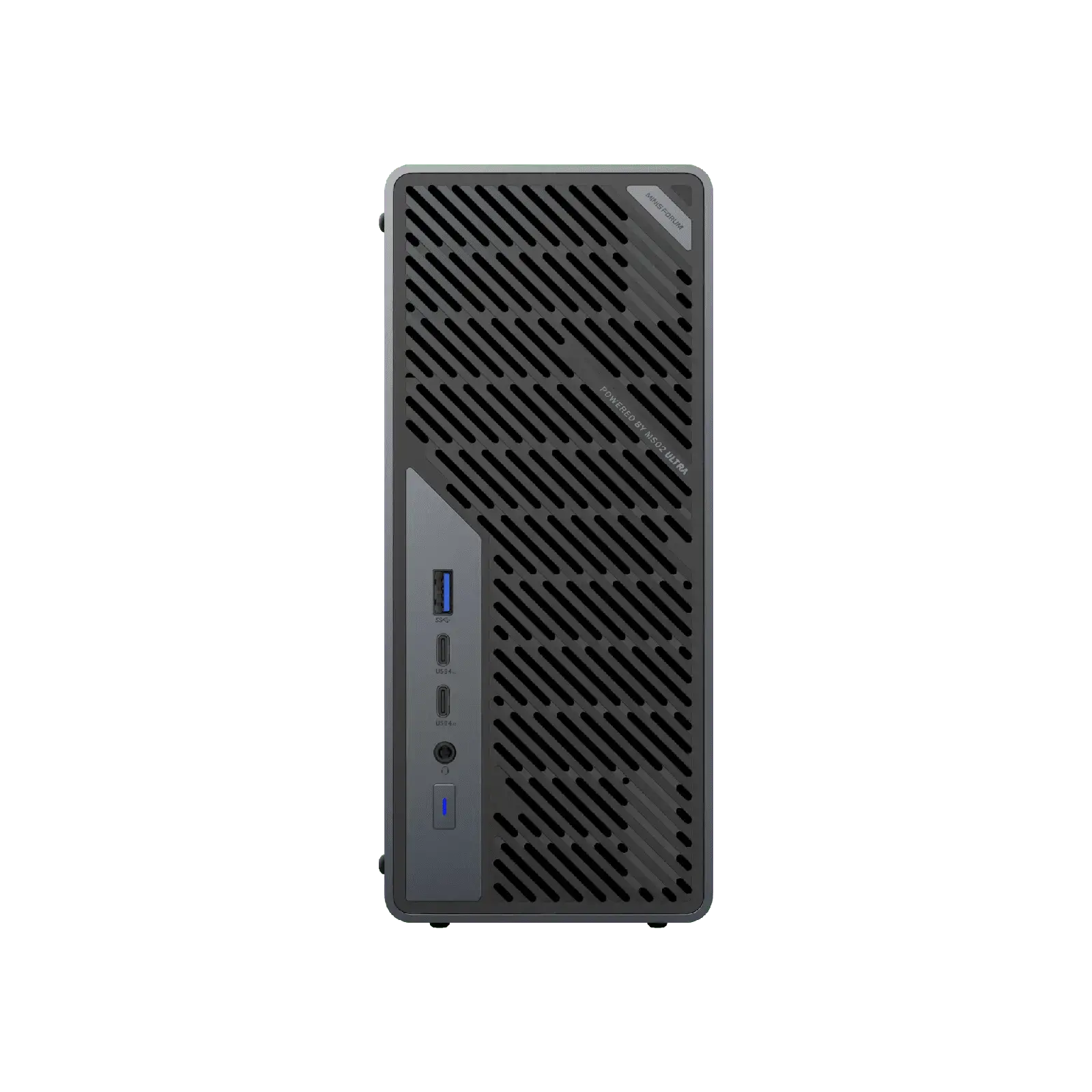

MS-02 Ultra

€639,00 €799,00

  • Optional Intel® Core™ Ultra 9 285HX | 275HX | Ultra 5 235HX
  • 4 × DDR5 SODIMM Slots
  • PCIe 5.0 x 16 Expansion Slot
  • 2 × USB4 V2 (80 Gbps)
  • 2 × 25GbE SFP+ (285HX only)
  • 1 × 10GbE | 2.5GbE RJ45 | WiFi 7 & BT 5.4
CPU:

Intel® Core™ Ultra 5 235HX

Typ:

Barebone (Ohne Betriebssystem-Lizenz)

×
Brand Shop Exclusive Benefits ›
  • Online Instant Service
  • 3-Year Extended Warranty
  • Gift Redemption with Points
Deliverable Areas ›

Can be delivered for free to:

  • EU countries: Czech Republic, Denmark, Austria, Belgium, Bulgaria, Croatia, Estonia, Finland, France, Germany, Greece, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Hungary.
  • Non-EU countries: Switzerland, Albania, Belarus, North Macedonia, Iceland, Bosnia and Herzegovina, Vatican City, Liechtenstein, Monaco, Norway, San Marino.
Delivery Timeliness ›
  • DE Warehouse: 5-7 business days
  • Hong Kong Warehouse: 7-10 business days
  • Refurbished Devices: 5-7 business days
  • Pre-sale Products: 5-7 business days after warehouse arrival
Repair Services ›

Provides free repair and after-sales services for products that are within the warranty period. For more details, please contact the customer service team.

Insurance Services ›

Minisforum provides two types of protection for sold products:

  • 1. Shipping Protection includes: Loss and damage in transit, Theft/Porch Piracy, Mis-delivery by courier, USD$5 compensation for delay Smooth Claims
  • 2. Product Protection Plan:Customers can choose a 1-year, 2-year, or 3-year insurance plan tailored to their needs. This plan covers accidental damage occurring during normal product use and extends the original manufacturer's warranty with identical coverage terms after its expiration. Different durations are subject to varying premium rates.

Payment Methods

Visa Mastercard American Express PayPalDiscoverJCBDiners ClubUnion PayGoogle Pay Apple Pay Visa ElectronCartes BancairesKlarnaiDEAL WeroTrustly EPS BancontactSkrill Digital WalletBancomat Billink

Trusted Delivery

Free Shipping

Free Shipping

Free RMA Return

Free RMA Return

0% APR Plan

0% APR Plan

Up To 3 Years Extended Warranty

Up To 3 Years Extended Warranty

30-Day Money-Back Guarantee

30-Day Money-Back Guarantee

Compare Specs

€639,00 €799,00 Save €160,00
Buy Now
Purchase
Overview
Specs
Reviews

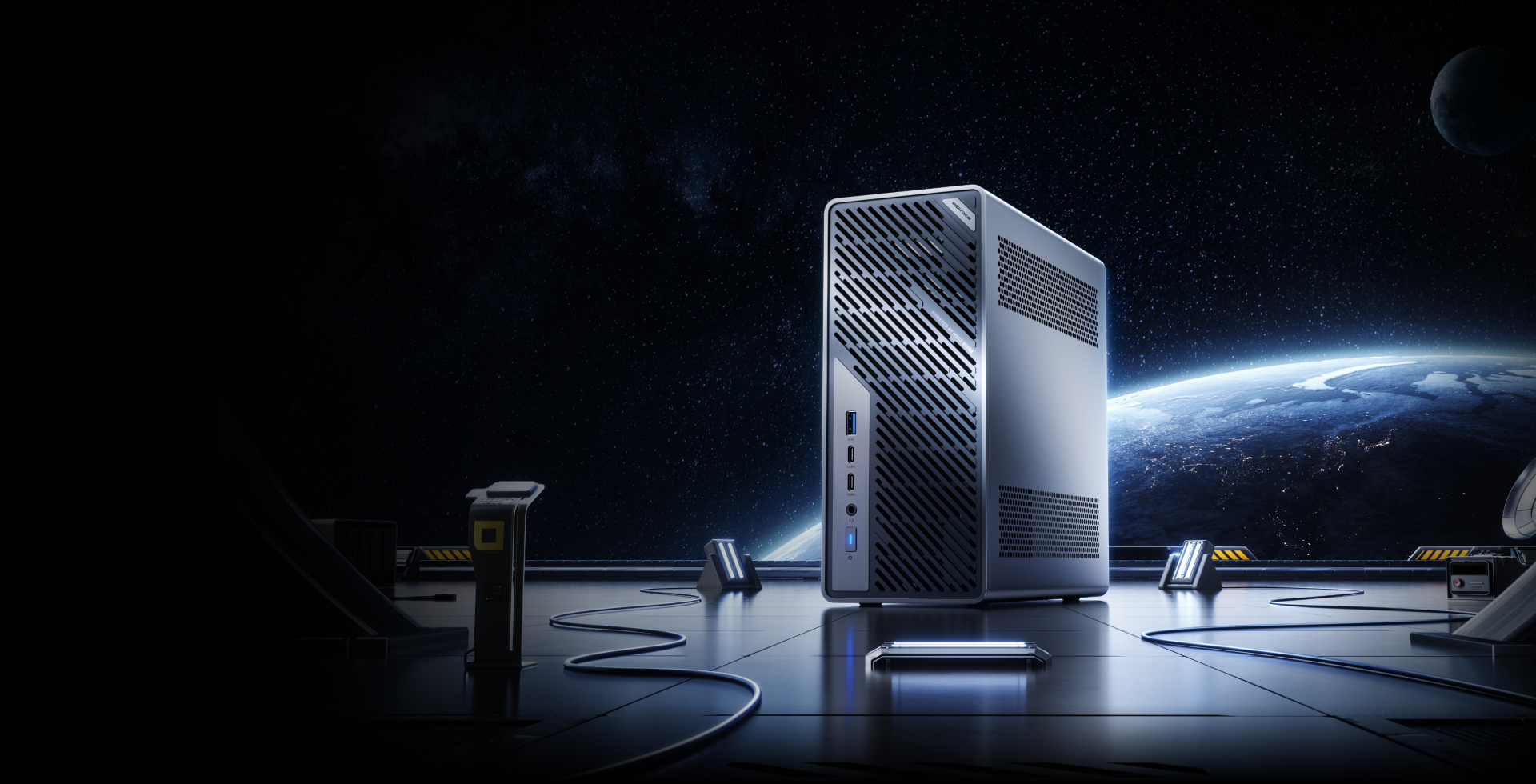

Mini Workstation MS-02 Ultra

Upgrade Everything
Compromise Nothing

Engineering the Future
Redefining Mini Workstations
Engineering the Future Redefining Mini Workstations
All-Core Synergy
Up to Intel® Core™ Ultra 9 285HX with CPU, GPU, and NPU synergy for all-scenario performance.
Ultimate Expandability PCIe 5.0
Up to 3 PCIe slots, 4× M.2 PCIe 4.0, and USB4 v2 (80Gbps) for unlimited modularity.
* M.2 slot count: 285HX: 4 slots; 275HX/235HX: 2 slots.
Enterprise-Grade Reliability
ECC memory & Intel vPro® enable 24/7/365 continuous operation and remote control.
*ECC & vPro® available on 285HX only.
Ultra-Fast 25 GbE Networking
Dual 25 GbE with 10 GbE & 2.5 GbE LAN for lightning-speed data transfer.
*Dual 25GbE ports: 285HX only.
High-Speed DDR5 Memory
4× DDR5 SODIMM slots, up to 256 GB memory,high-speed and responsive for smooth multitasking.
Data Protection Guaranteed
Supports multi-drive expansion and RAID 0/1/5/10, providing both high-speed performance and data protection.
Server-Grade Thermal Design
6 heat pipes + dual-fan cooler handle up to 140W Turbo and sustain 100W TDP, with low noise at 36 dB.
Compact yet Accessible
4.8 L slide-out chassis with built-in 350 W power supply —small outside, limitless inside.
Dual-Slot GPU Support
Supports PCIe ×16 dual-slot desktop GPUs, enabling powerful graphics rendering, AI acceleration, and multi-display output.
The All-Purpose Platform

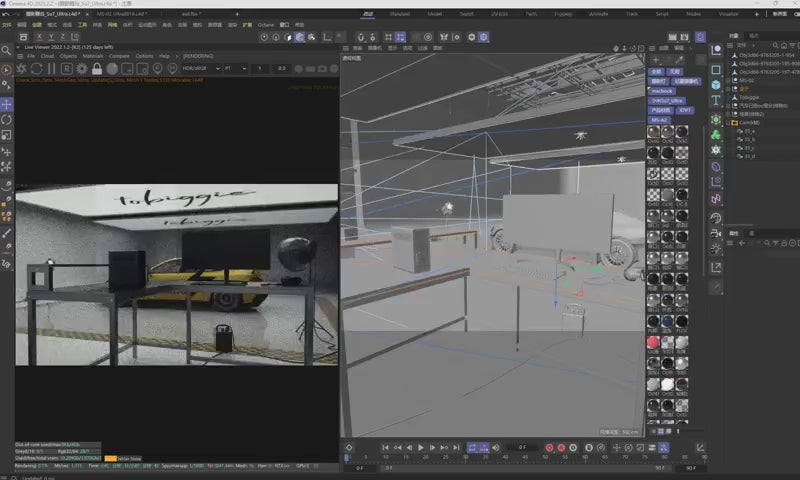

Professional Creators

Lightning-Fast Transfers for Creative Workflows
Dual 25 GbE & USB4 v2 (80 Gbps) deliver instant data sync and smooth multi-task editing.
Up to 4x8K display outputs for editing, color grading, and 3D modeling workflows.

*Dual 25GbE ports: 285HX only.

Al Developers & Engineers

Up to Intel® Core™ Ultra 9 285HX with 13 TOPS NPU and 24-core CPU, delivering solid compute for AI inference and engineering workloads. PCIe ×16 expansion allows external GPUs to unlock advanced model training and data processing potential.

Enterprise IT & SMBs

Efficient IT Management Made Simple

Intel vPro®, ECC memory and slide-out maintenance reduce downtime and service costs.

*ECC & vPro® available on 285HX only.

Tech Enthusiasts & Power Users

Freedom to expand and customize your performance.

Three PCIe slots allow flexible installation of GPUs, NICs, or capture cards for limitless customization.

Multi-Engine Computing Core

Powered by Intel® Core™ Ultra 9 285HX with a 24-core CPU (8P + 16E) and a 13 TOPS NPU, the system delivers both speed and efficiency for AI and media workloads, while PCIe GPU expansion unlocks advanced computing performance.

* Other CPU options:
– Ultra 5 235HX: 14 cores / 14 threads, up to 5.1 GHz
– Ultra 9 275HX: 24 cores / 24 threads, up to 5.4 GHz

Intel® Core™ Ultra 9 285HX
24-core CPU
16 E-cores + 8 P-cores
13 TOPS
NPU

Zero Error, Zero Downtime

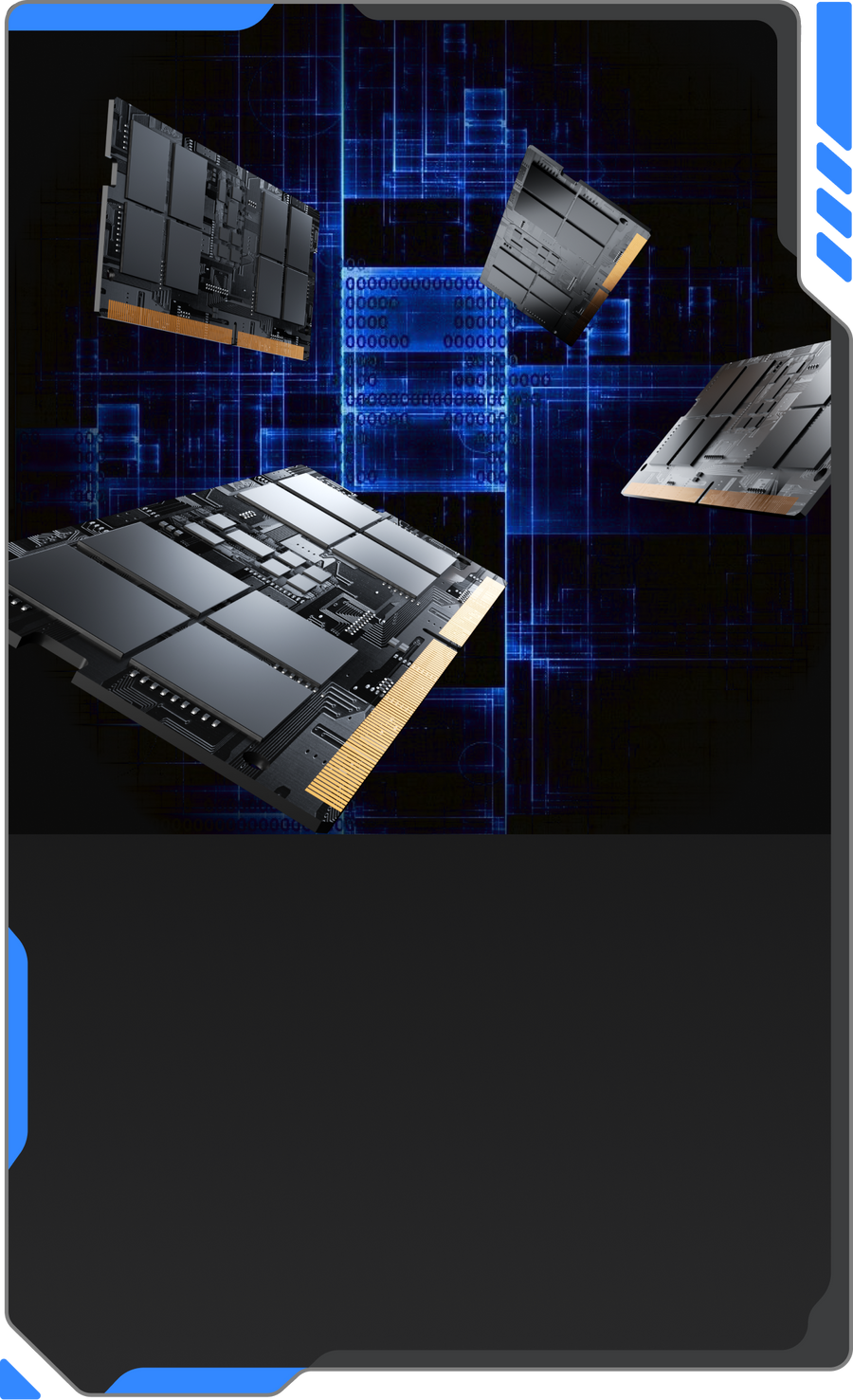

Up to 256 GB DDR5 Memory

Handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability

*ECC available on 285HX only.

Scalable RAID Storage Architecture

Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.

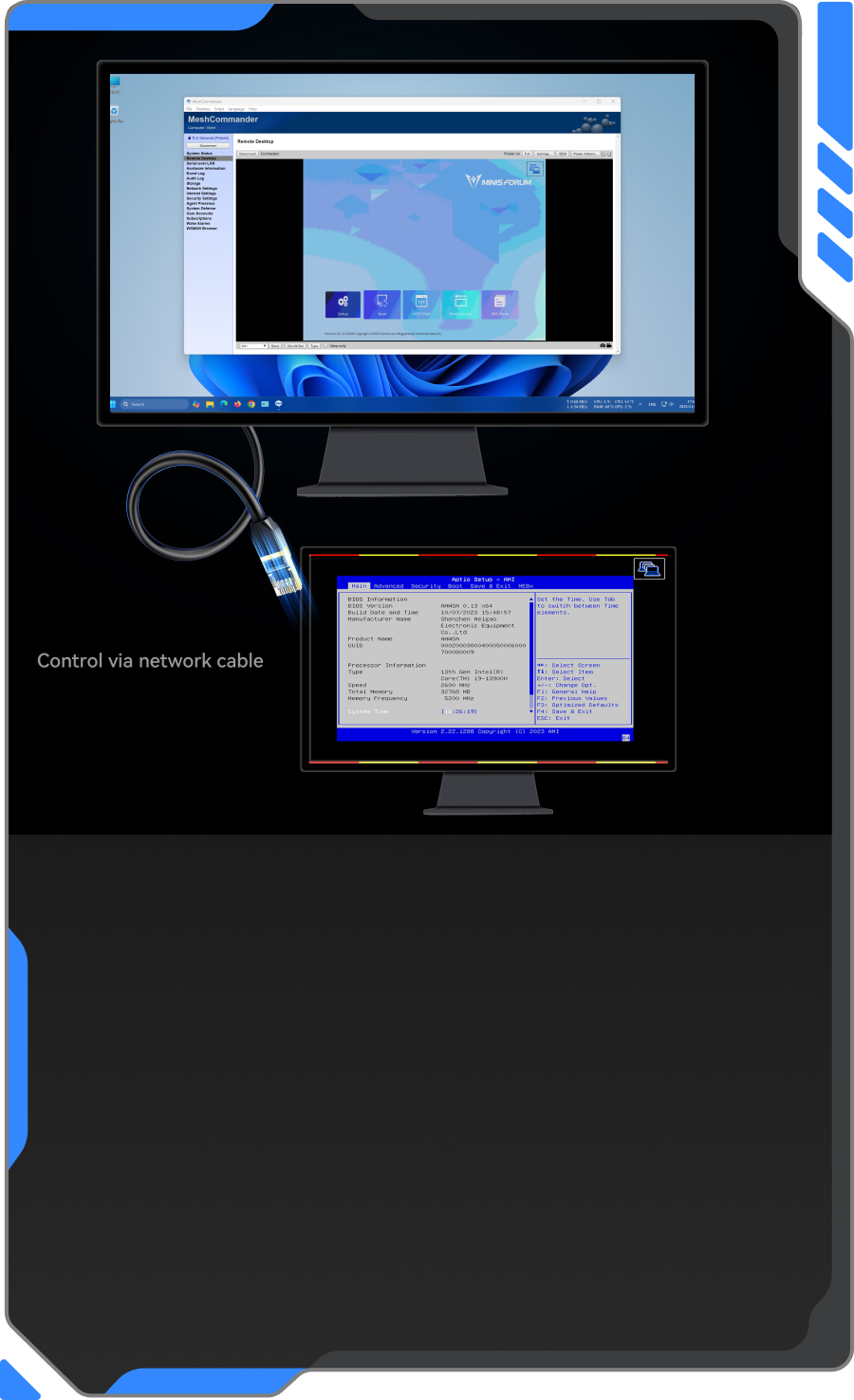

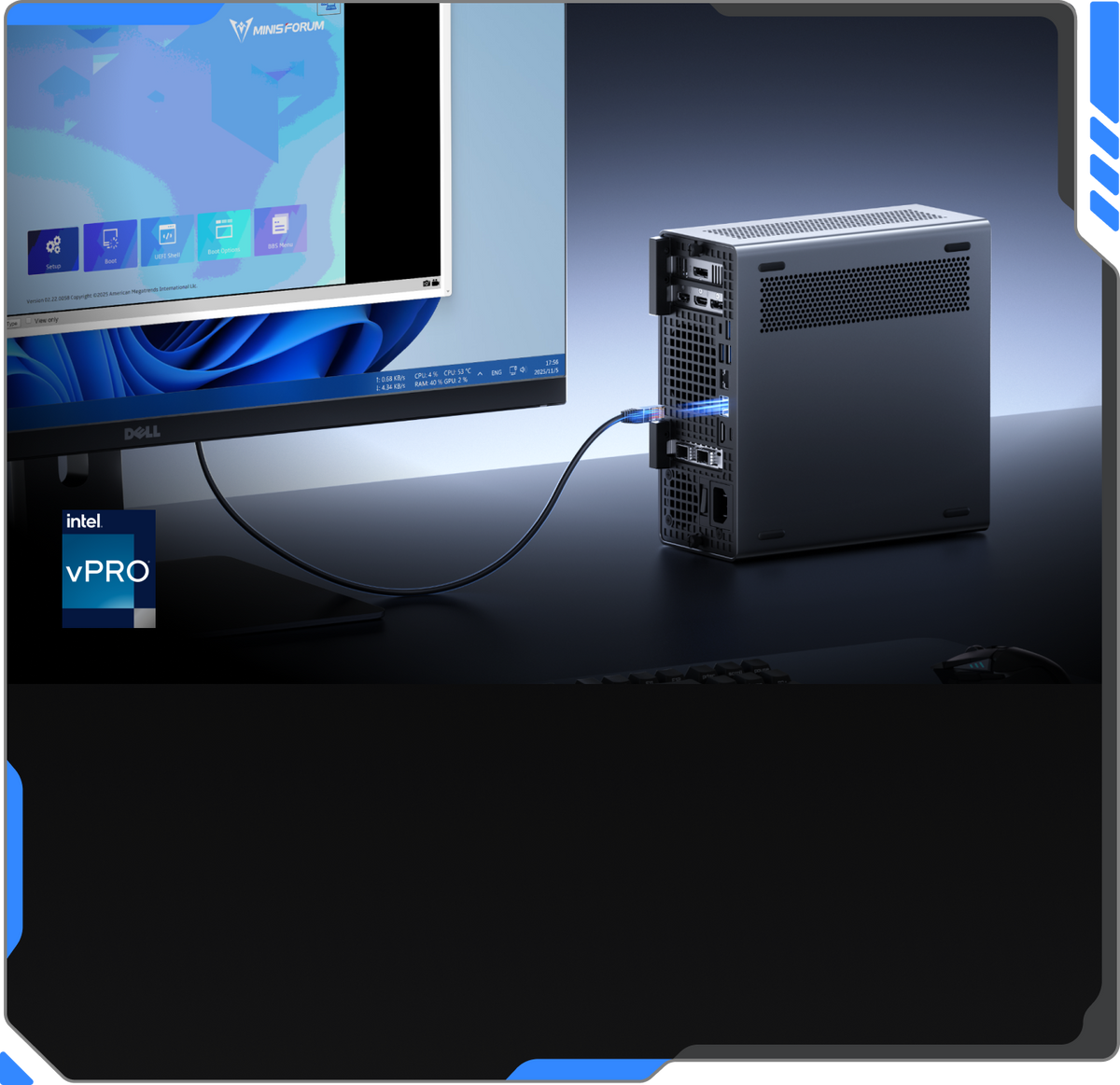

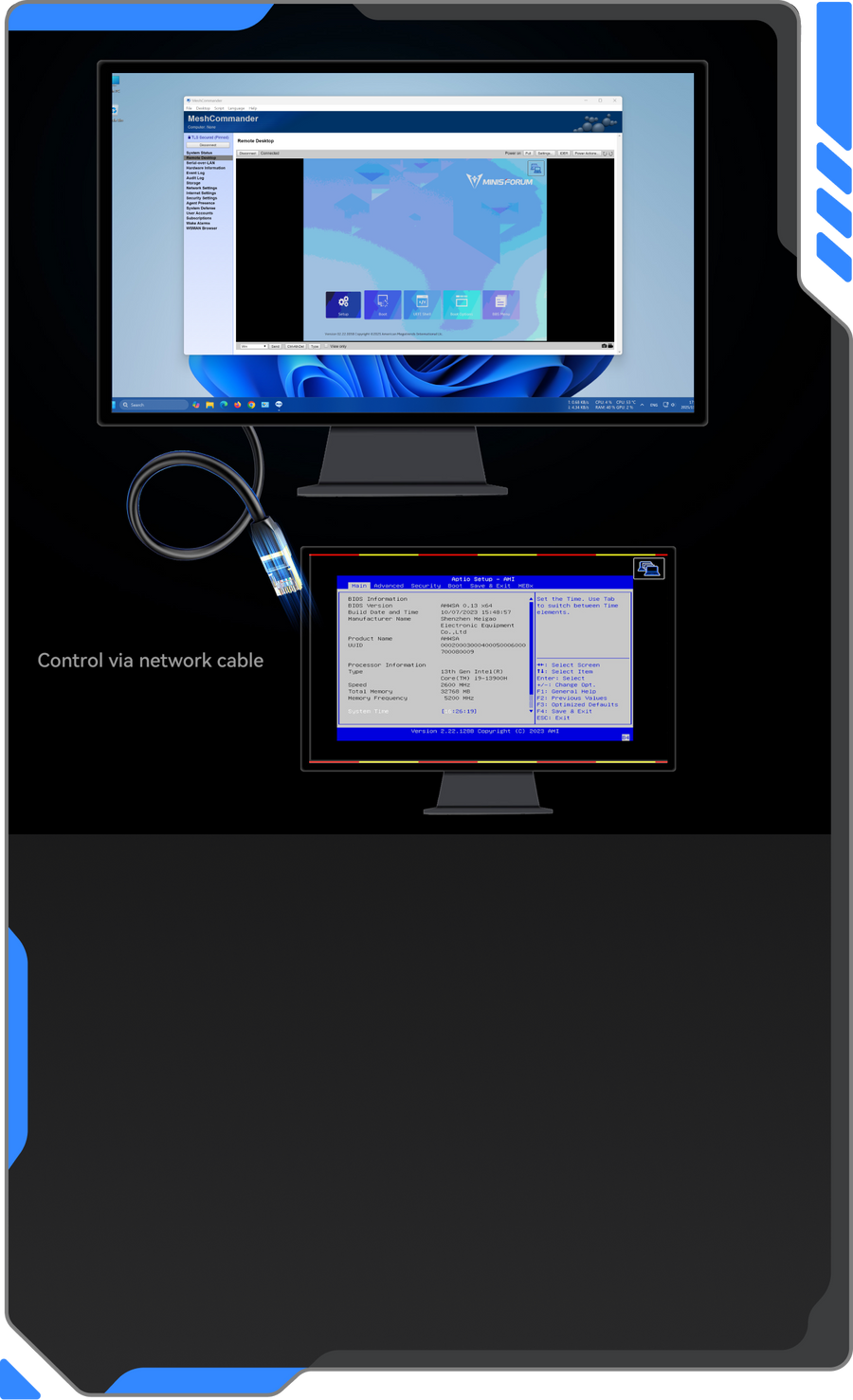

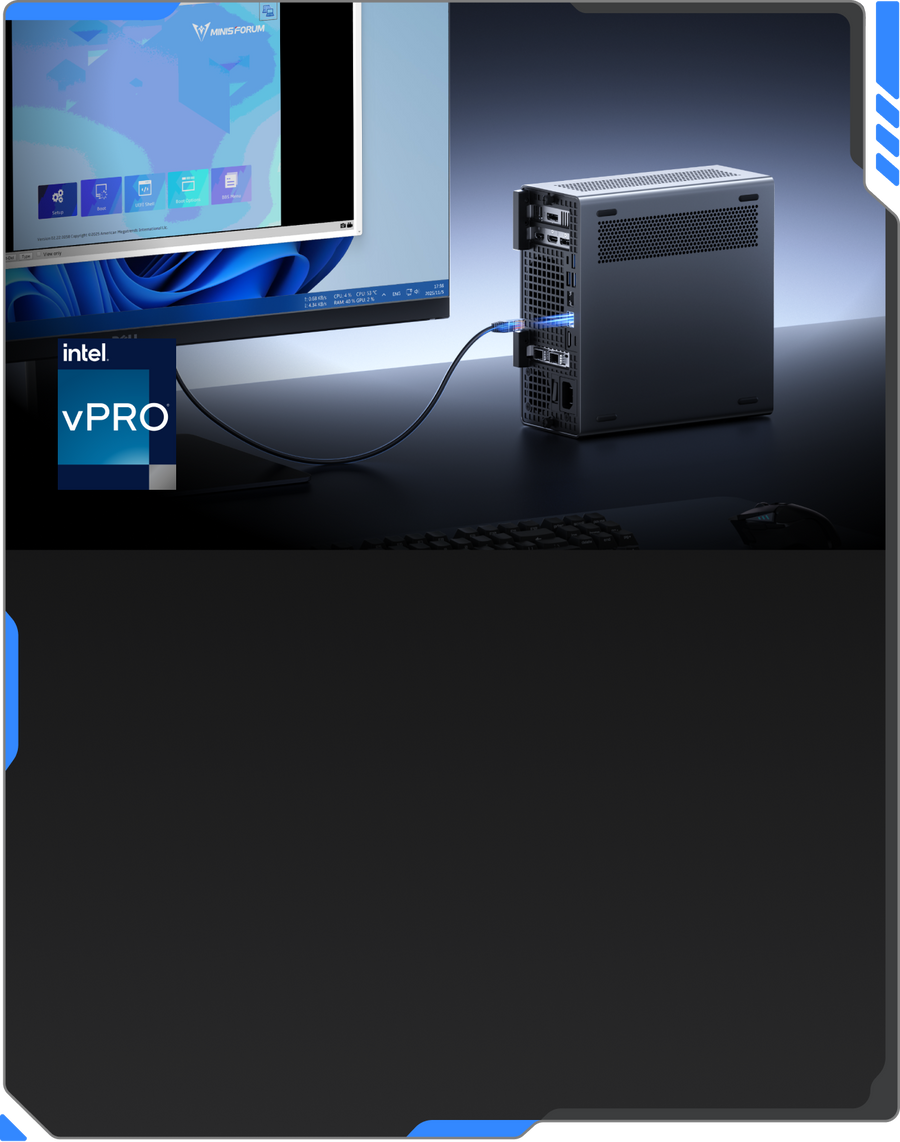

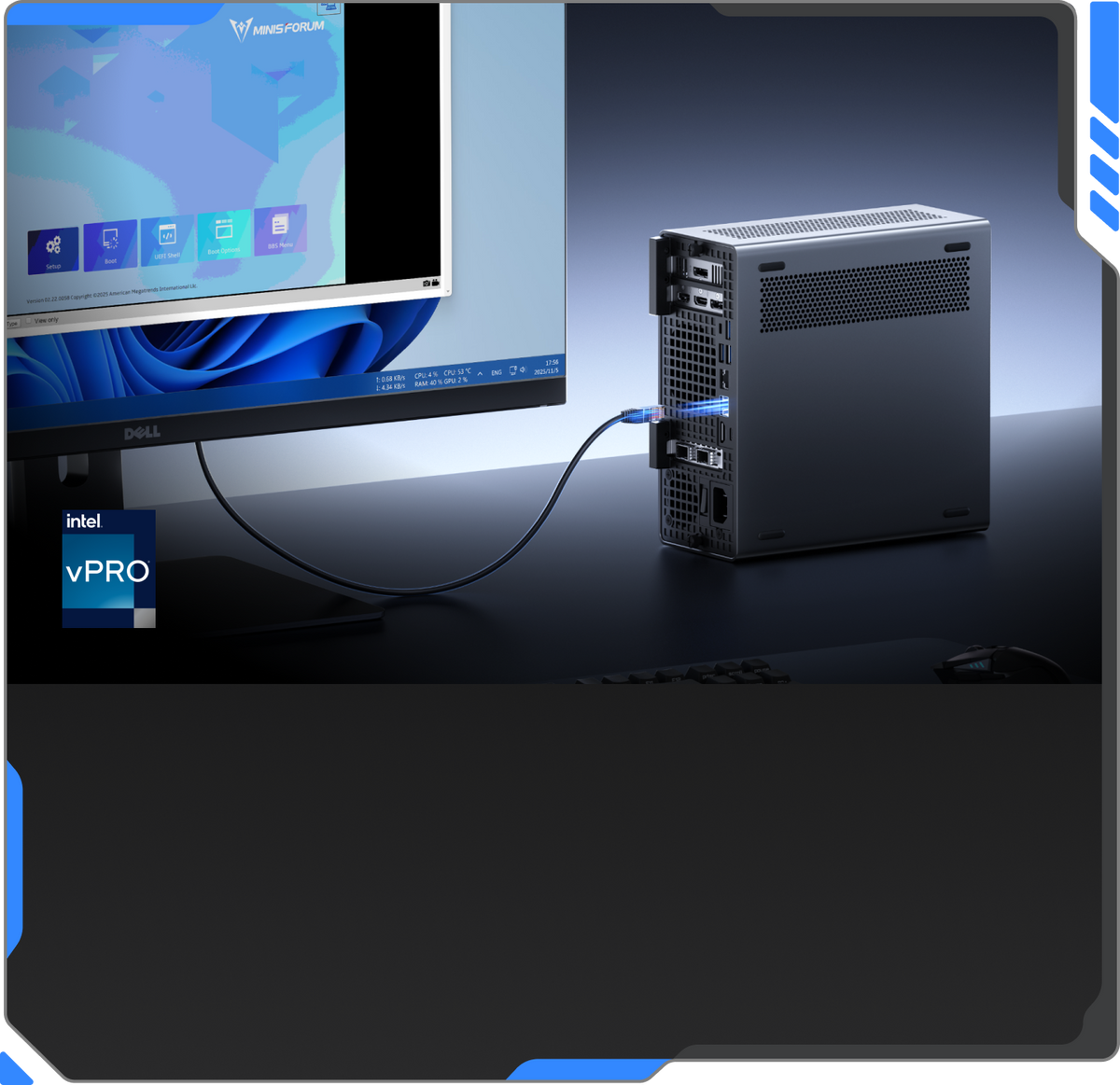

Intel® vPro® Remote Management

Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.

*vPro® available on 285HX only

Up to 256 GB DDR5 Memory

Handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability

*ECC available on 285HX only.

Scalable RAID Storage Architecture

Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.

Intel® vPro® Remote Management

Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.

*vPro® available on 285HX only

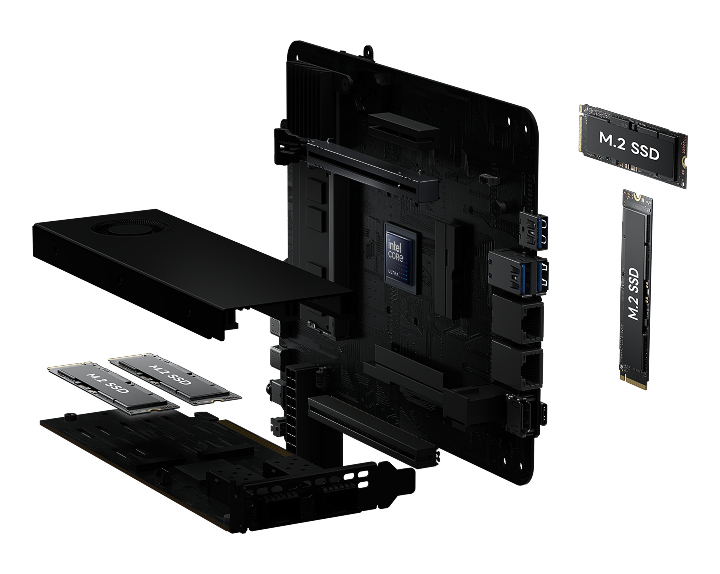

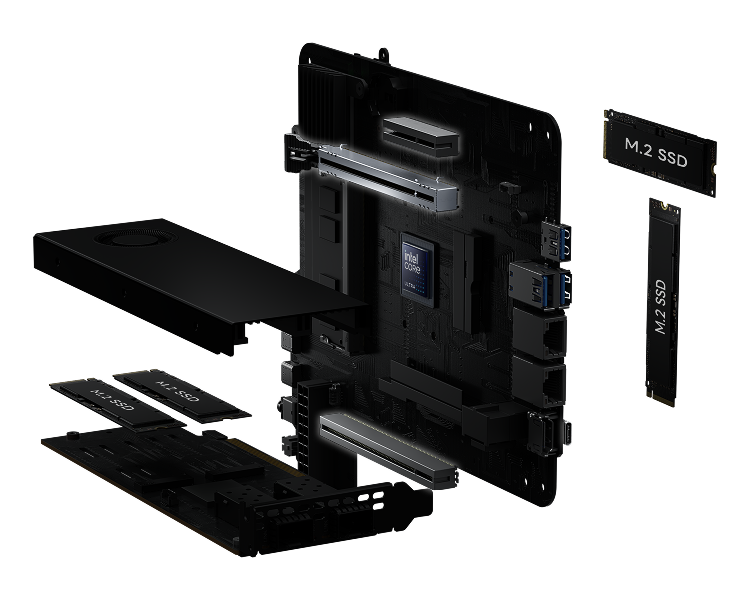

Mini yet Limitless Expansion

Mini yet Limitless Expansion

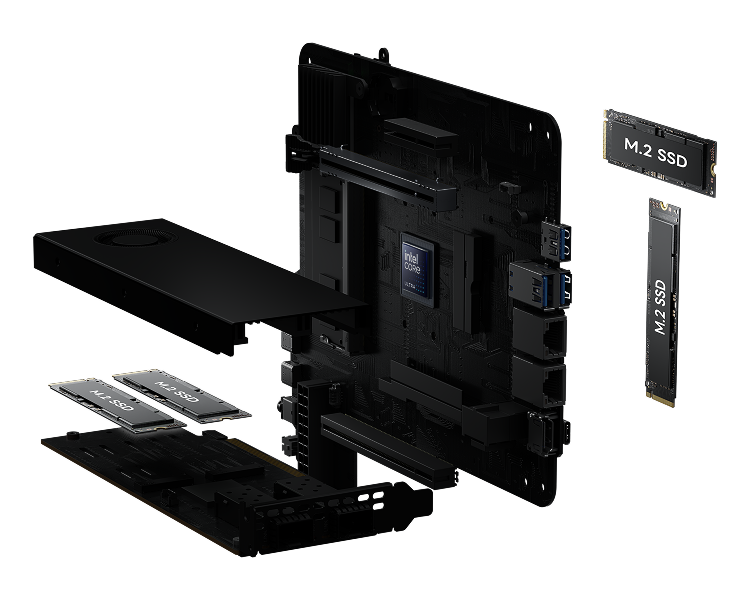

M.2 Storage Slots

4x M.2 2280 slots supporting both PCIe 4.0 x4 NVMe, expandable up to 24 TB total capacity with RAID 0/1/5/10, enabling independent drives for projects, media, and cache with ultra-fast performance.

* M.2 slot count: 285HX: 4 slots; 285HX-NS/275HX/235HX: 2 slots.

PCIE & USB4.0v2

Up to 3 PCIe slots including a ×16 dual-slot GPU, with the primary slot supporting PCIe 5.0 for high-bandwidth creative and computing workloads.

USB4 v2 (80Gbps) further enhances high-speed connectivity for external storage, displays, and acceleration modules.

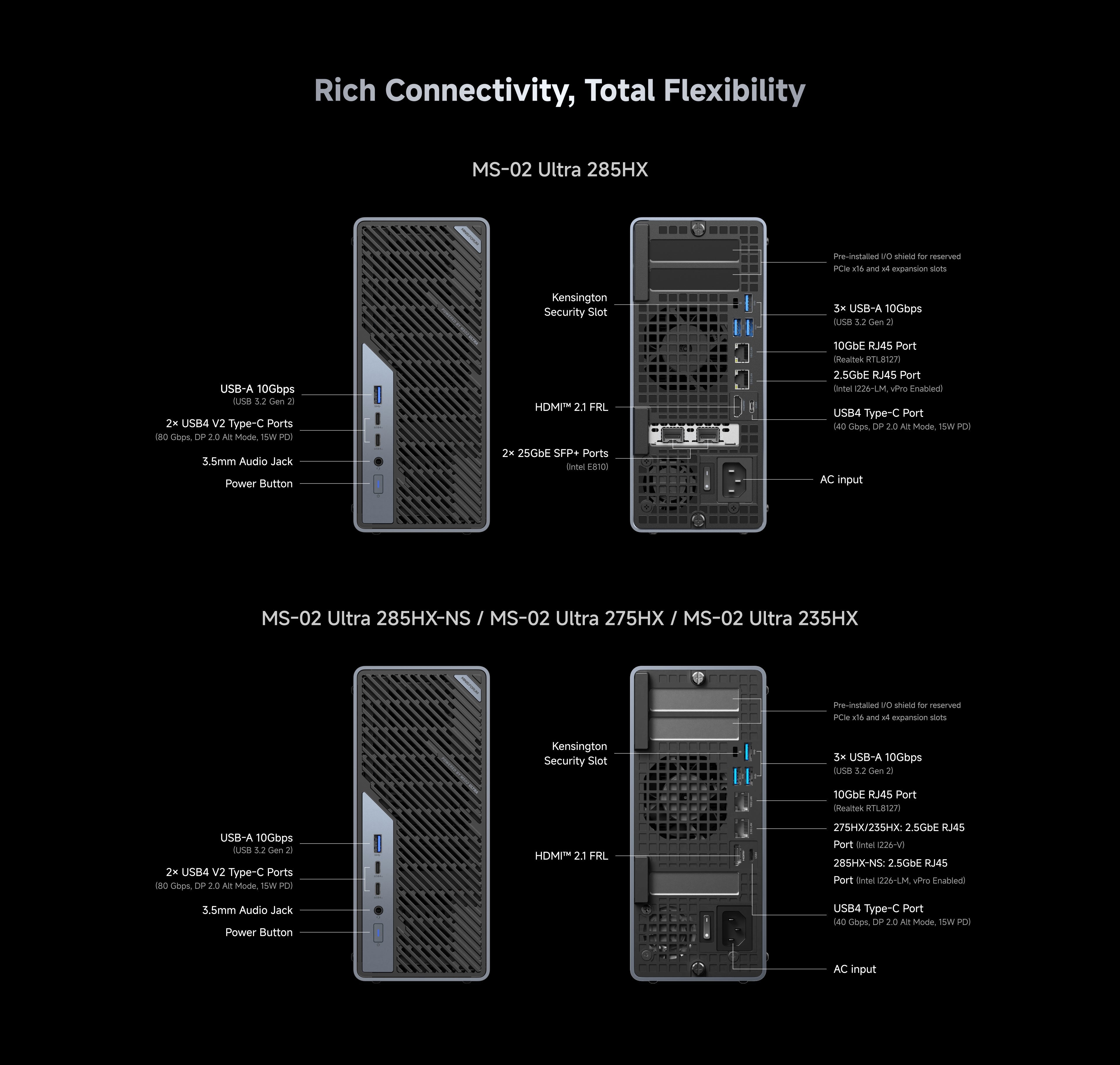

Ultra-Fast Networking
Smart Bandwidth Switching
Adaptive bandwidth switching ensures peak performance accoss enterprise or local networks.
Revolutionizing team collaboration with ultra-low latency for 4K/8K media and Al data workflows.

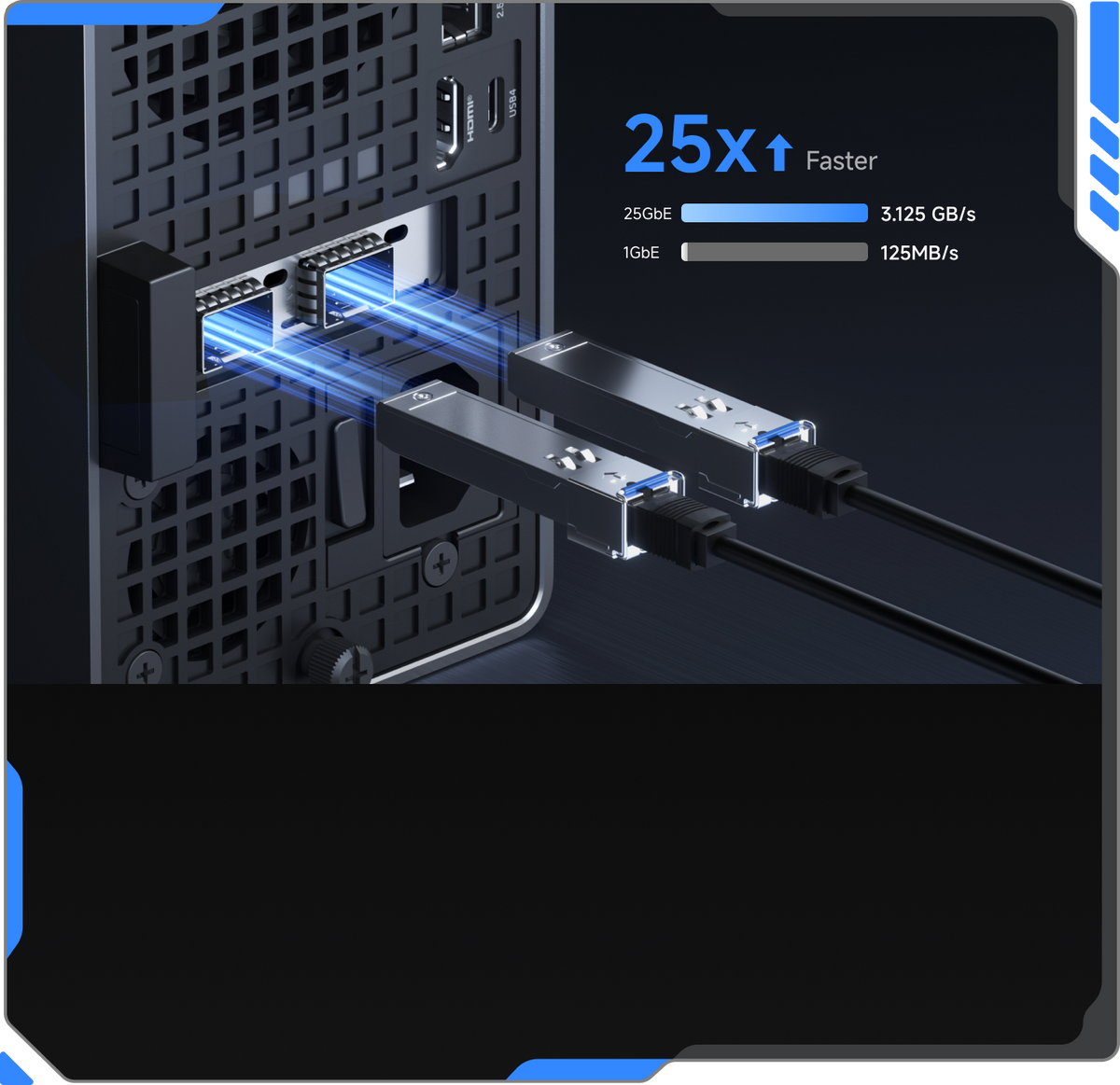

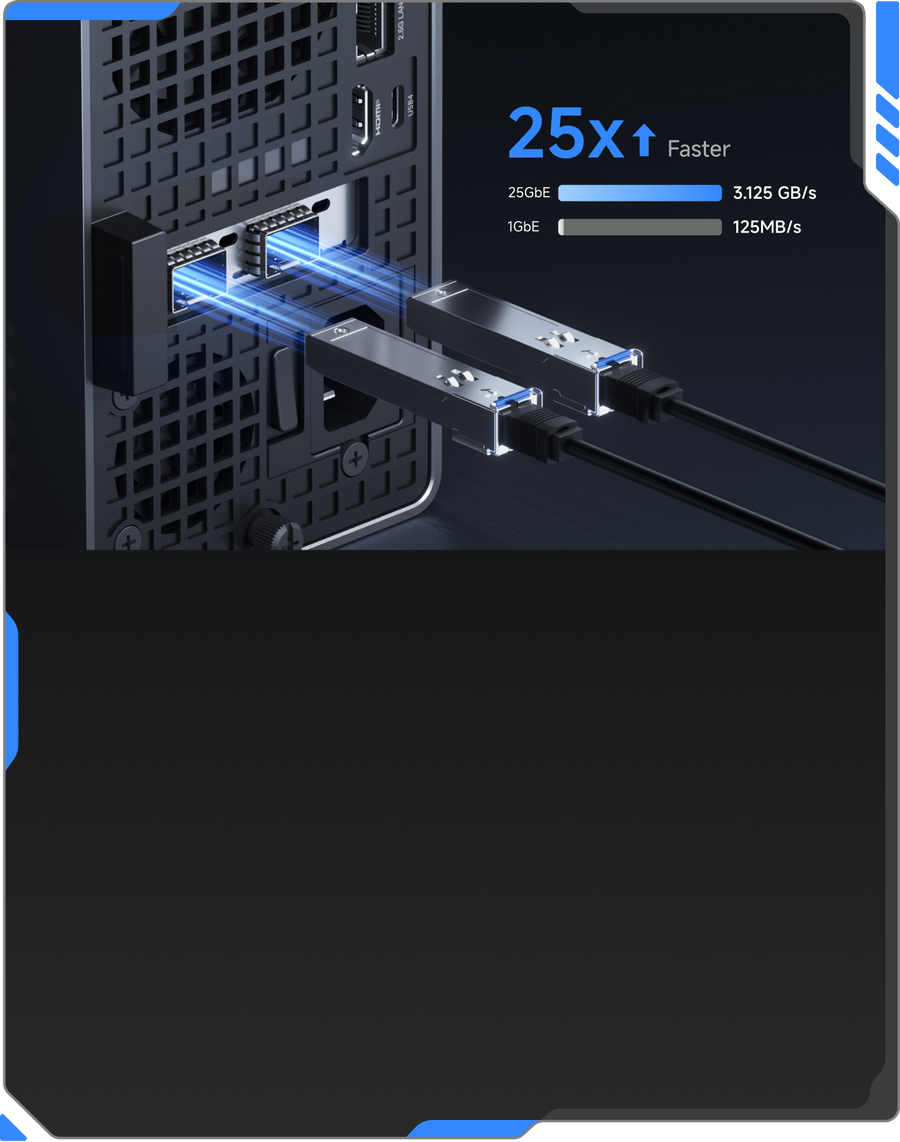

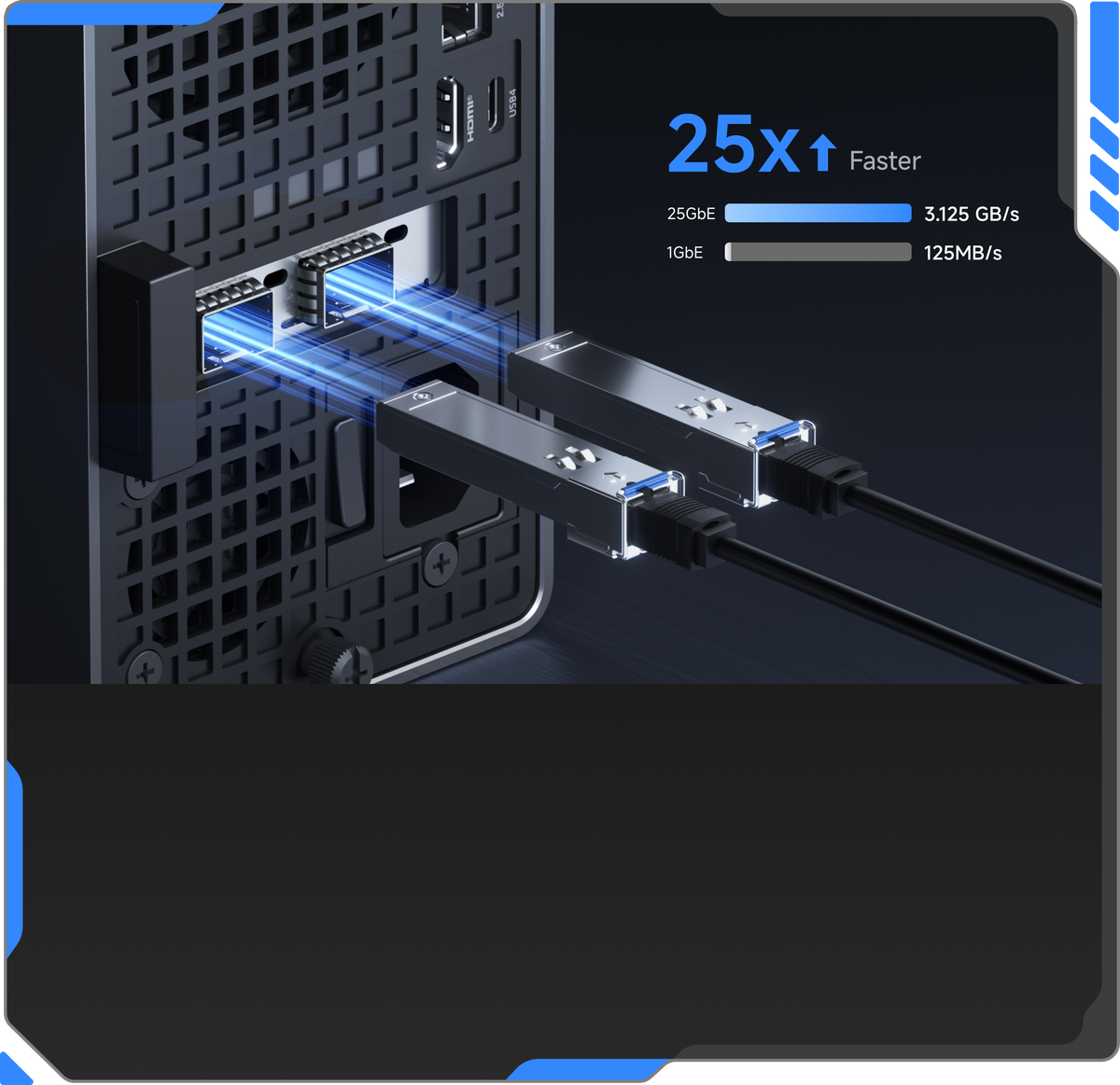

Dual 25GbE Ports
Deliver a theoretical peak bandwidth of ~3.125 GB/s, compared to 1 GbE at ~125 MB/s, enabling large-scale data transfer and parallel computing with ease.
*Dual 25GbE ports: MS-02 Ultra 285HX only.
Multi-Tier LAN Architecture
10 GbE + 2.5 GbE RJ45 Ports with vPro support for enterprise deployments.

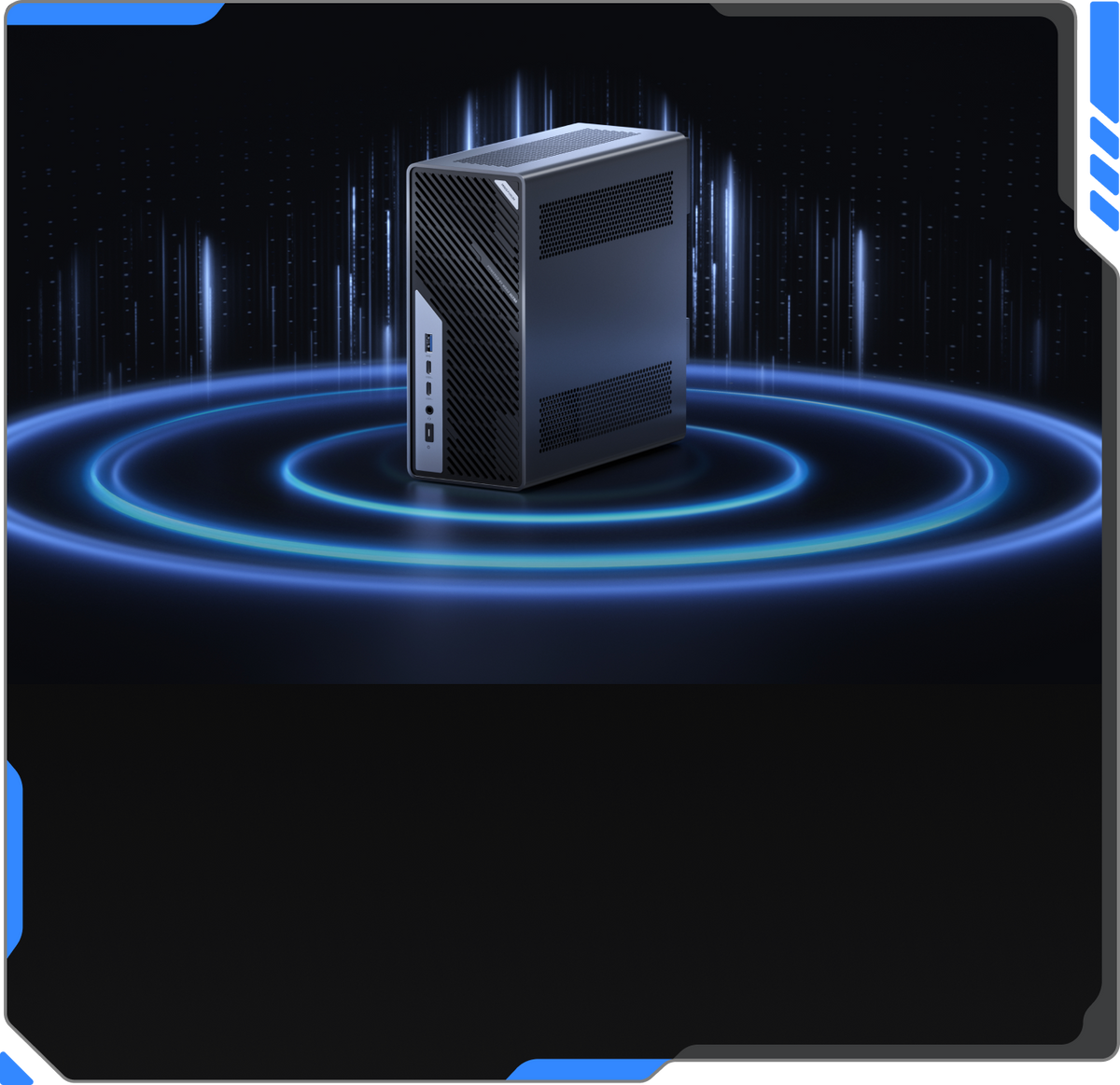

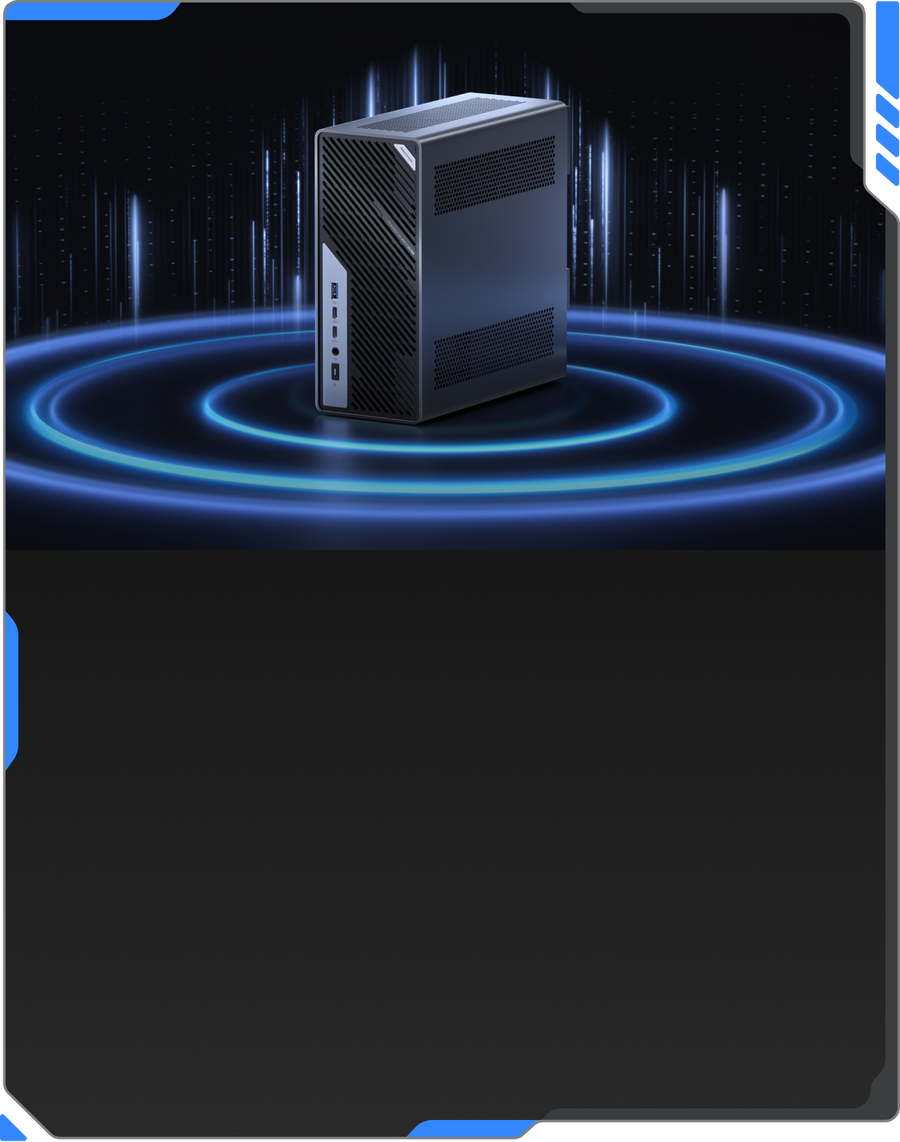

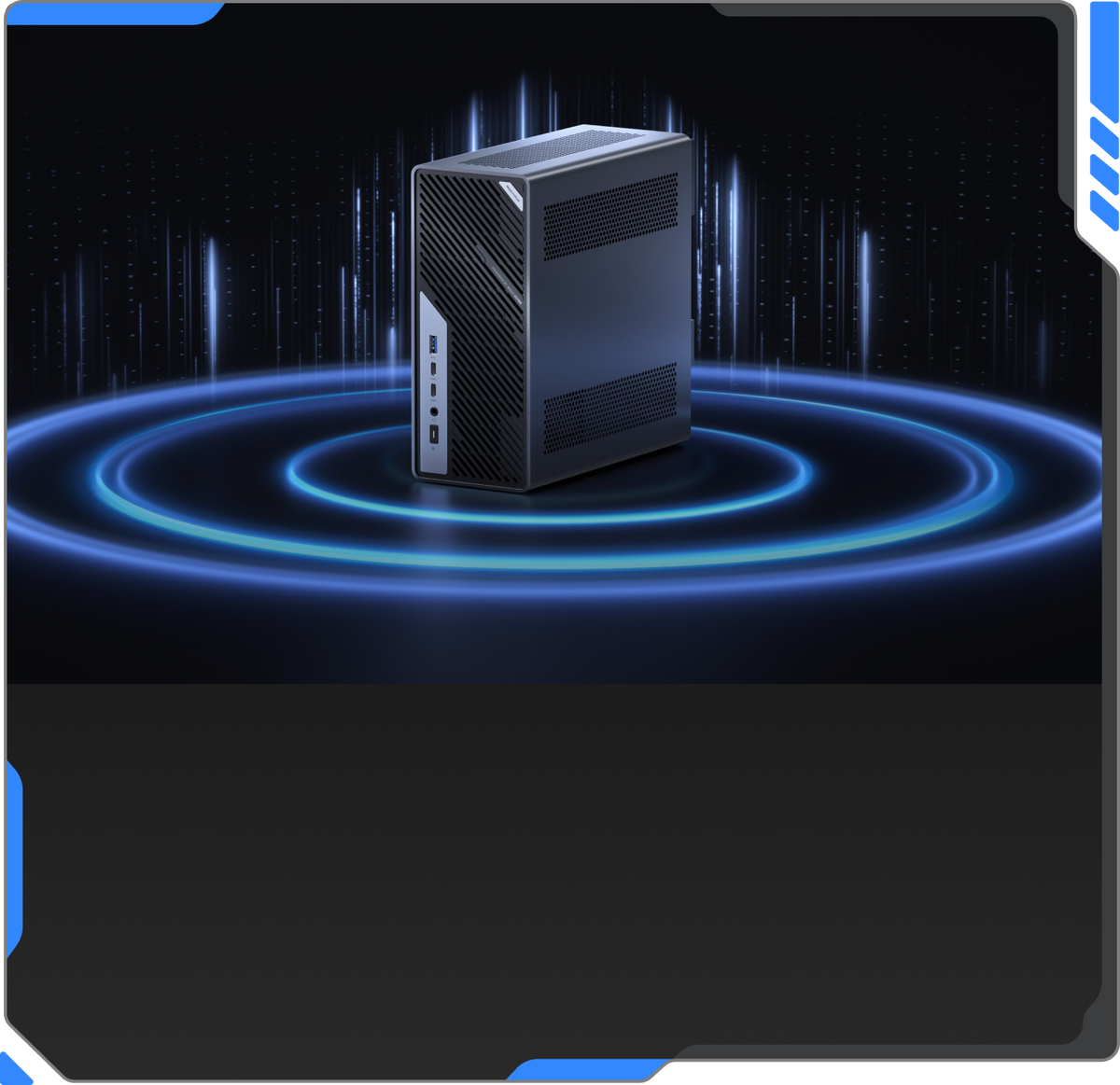

Wi-Fi 7 Connectivity
Wi-Fi 7 (6 GHz Band) delivers nex-tgeneration wireless speed and stability.

Efficient Cooling Performance Unleashed

Efficient Cooling Performance Unleashed

Server-Grade Airflow Design

Dedicated CPU/GPU airflow channels with a server-grade exhaust layoutensure precise thermal control and sustained system stability.

Built-in 350 W Power Supply

Integrated 350 W power design delivers reliable and efficient power for sustained performance-easy to deploy and maintain.

Efficient & Quiet Cooling

6 heat pipes and dual fans dissipate up to 140W Turbo heat and sustain a 100W TDP load, delivering stable and quiet operation at just 36 dB.

Masterpiece of Integration

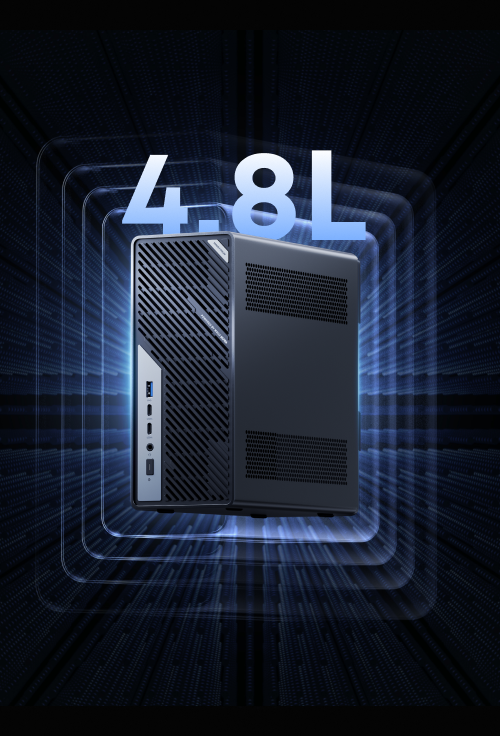

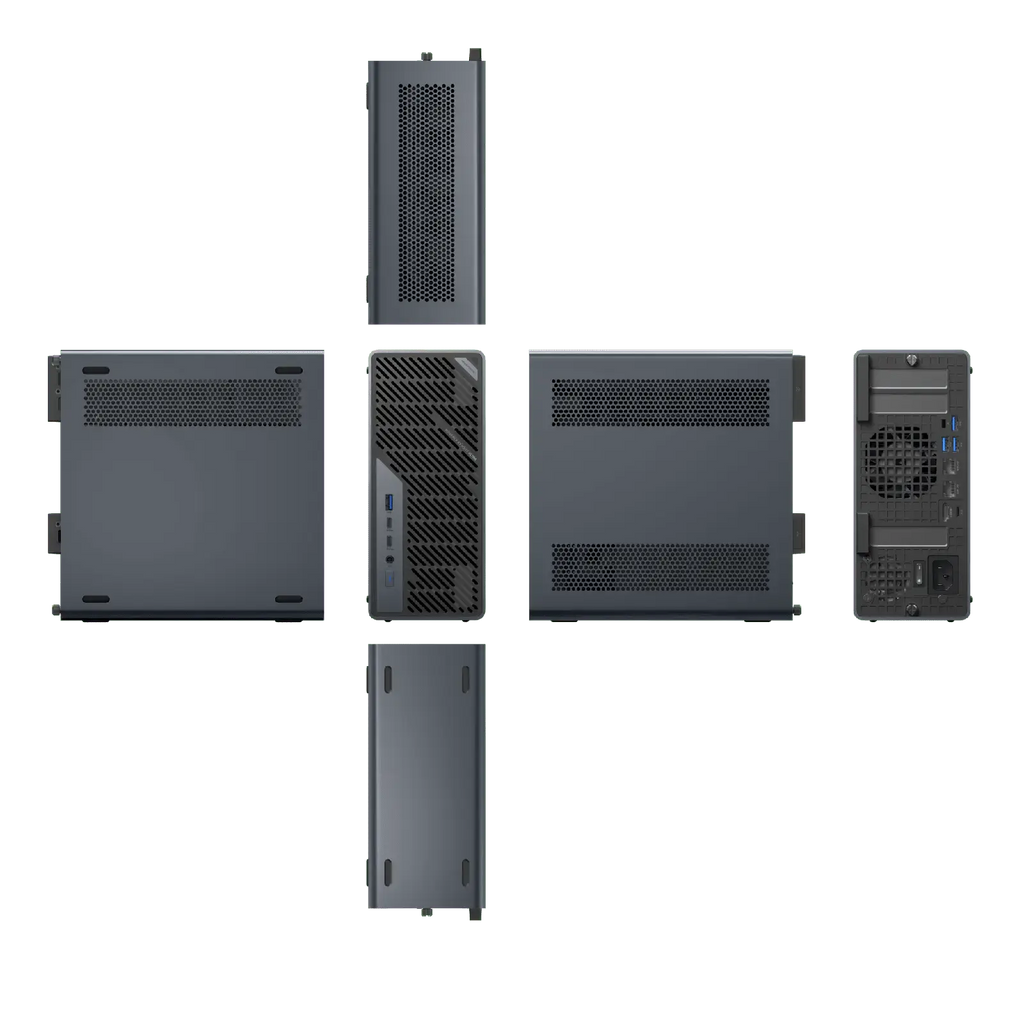

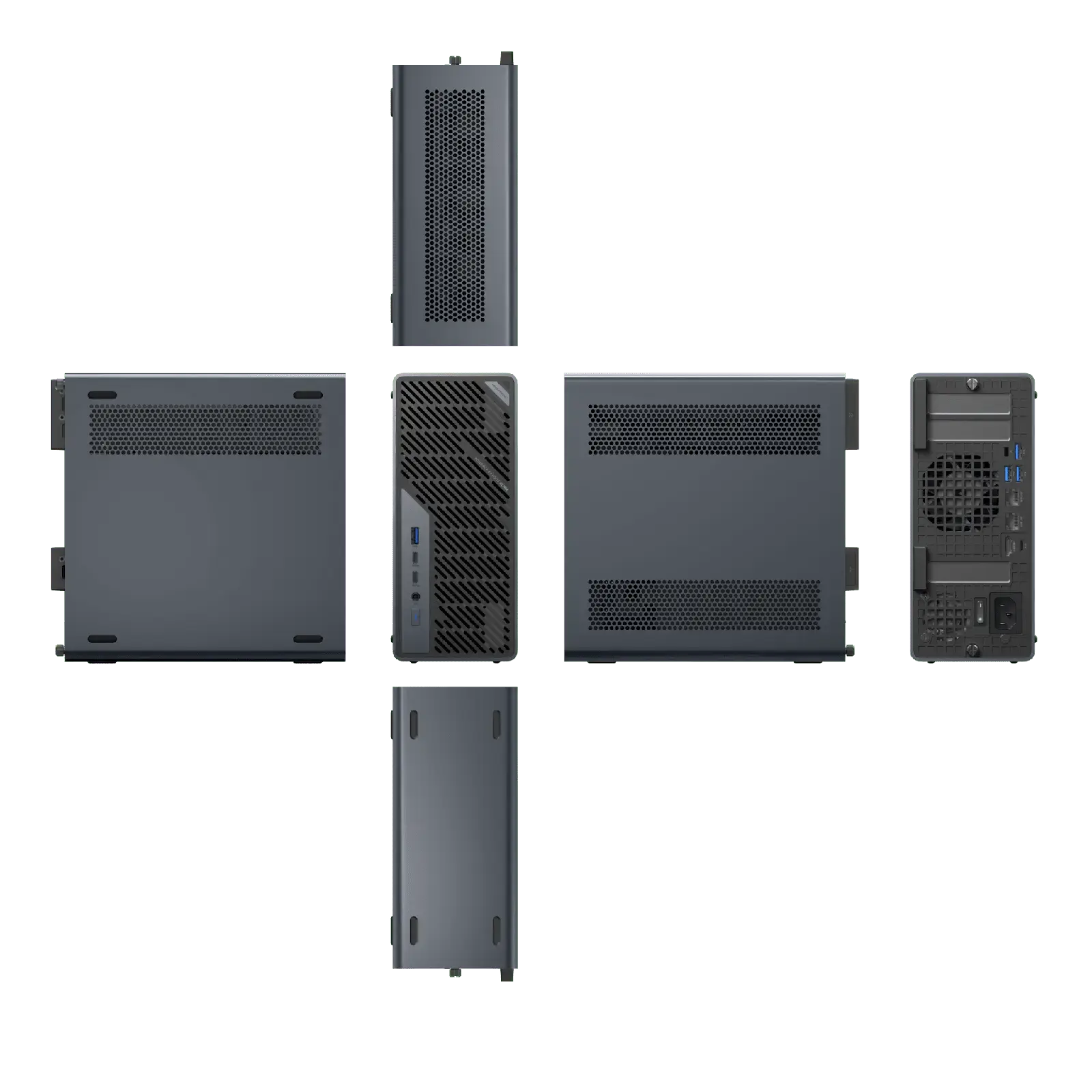

Compact Form Factor

Only 4.8 L chassis, blending seamlessly into any workspace.
Compact Form Factor Compact Form Factor

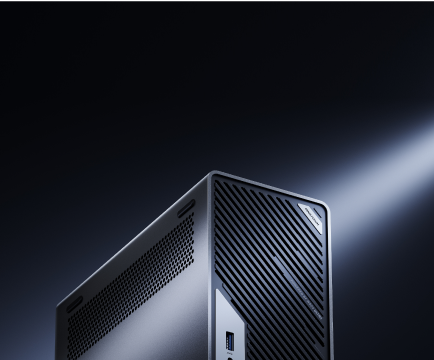

Precision-Crafted Aluminum Design

Precision-milled aluminum chassis unites performance with timeless industrial elegance.
Precision-Crafted Aluminum Design Precision-Crafted Aluminum Design

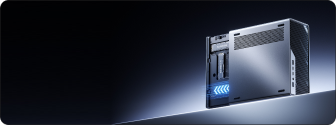

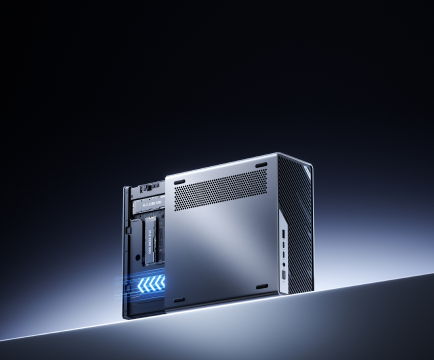

Slide-Out Structure Design

Quick-access slide-out chassis with a two-screw release for straightforward upgrades and maintenance
Slide-Out Structure Design Slide-Out Structure Design

All-in-One Fusion

Integrating workstation-class performance, server-grade reliability, and creative flexibility in one compact desktop. As the flagship of our workstation series, it embodies the pinnacle of desktop compute evolution.
All-in-One Fusion All-in-One Fusion

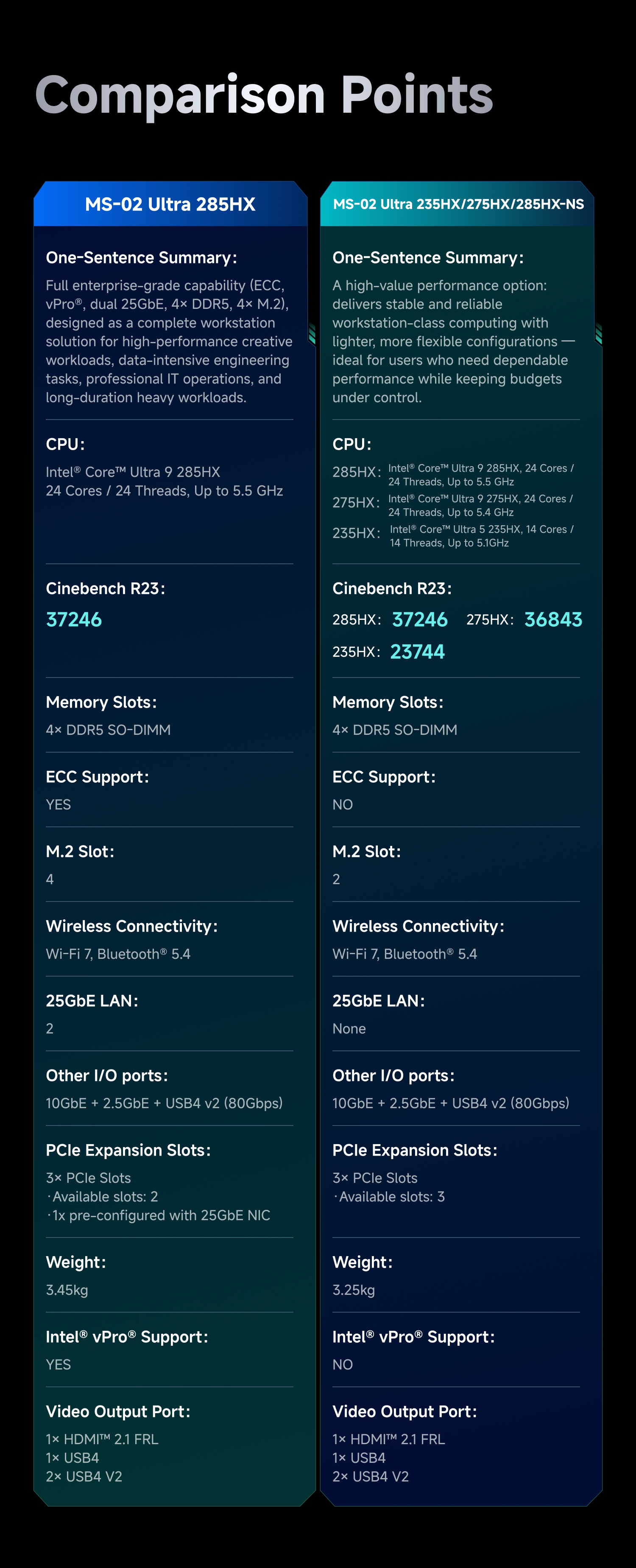

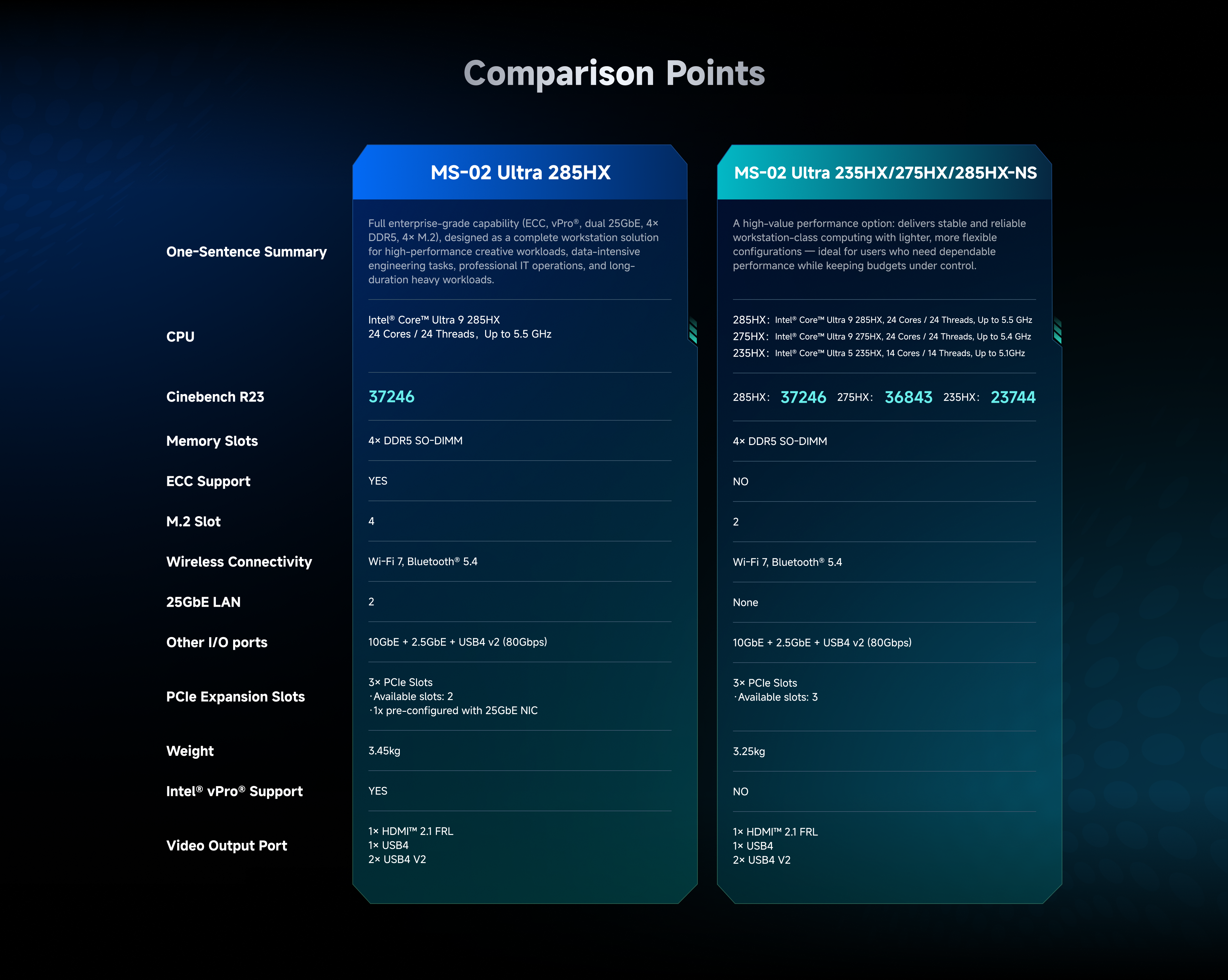

MS-02 Ultra Specification

Model

MS-02U-285HX

MS-02U-275HX / 235HX

MS-02U-285HX-NS

CPU
  • Intel® Core™ Ultra 9 285HX (24C/24T)
  • Max Turbo Frequency: 5.5 GHz
  • Intel® Core™ Ultra 9 275HX (24C/24T)
  • Intel® Core™Ultra 5 235HX (14C/14T)
  • Intel® Core™ Ultra 9 285HX (24C/24T)
  • Max Turbo Frequency: 5.5 GHz
TDP
  • 100W PL1 / 140W PL2 (Balance)
  • 90W PL1 / 110W PL2 (With dGPU)
  • 100W PL1 / 140W PL2 (275HX)
  • 80W PL1 / 100W PL2 (235HX)
  • 100W PL1 / 140W PL2 (Balance)
  • 90W PL1 / 110W PL2 (With dGPU)
GPU

Intel® Graphics (Internal)

Intel® Graphics (Internal)

Intel® Graphics (Internal)

AI Engine Performance

Intel®AI Boost, up to 13 TOPS(NPU TOPS)

Intel® AI Boost, up to 13 TOPS(NPU TOPS)

Intel®AI Boost, up to 13 TOPS(NPU TOPS)

RAM

4 × DDR5 SO-DIMM slots (ECC supported; XMP overclocking not supported)

4 × DDR5 SO-DIMM slots (non-ECC; XMP overclocking not supported)

4 × DDR5 SO-DIMM slots (ECC supported; XMP overclocking not supported)
