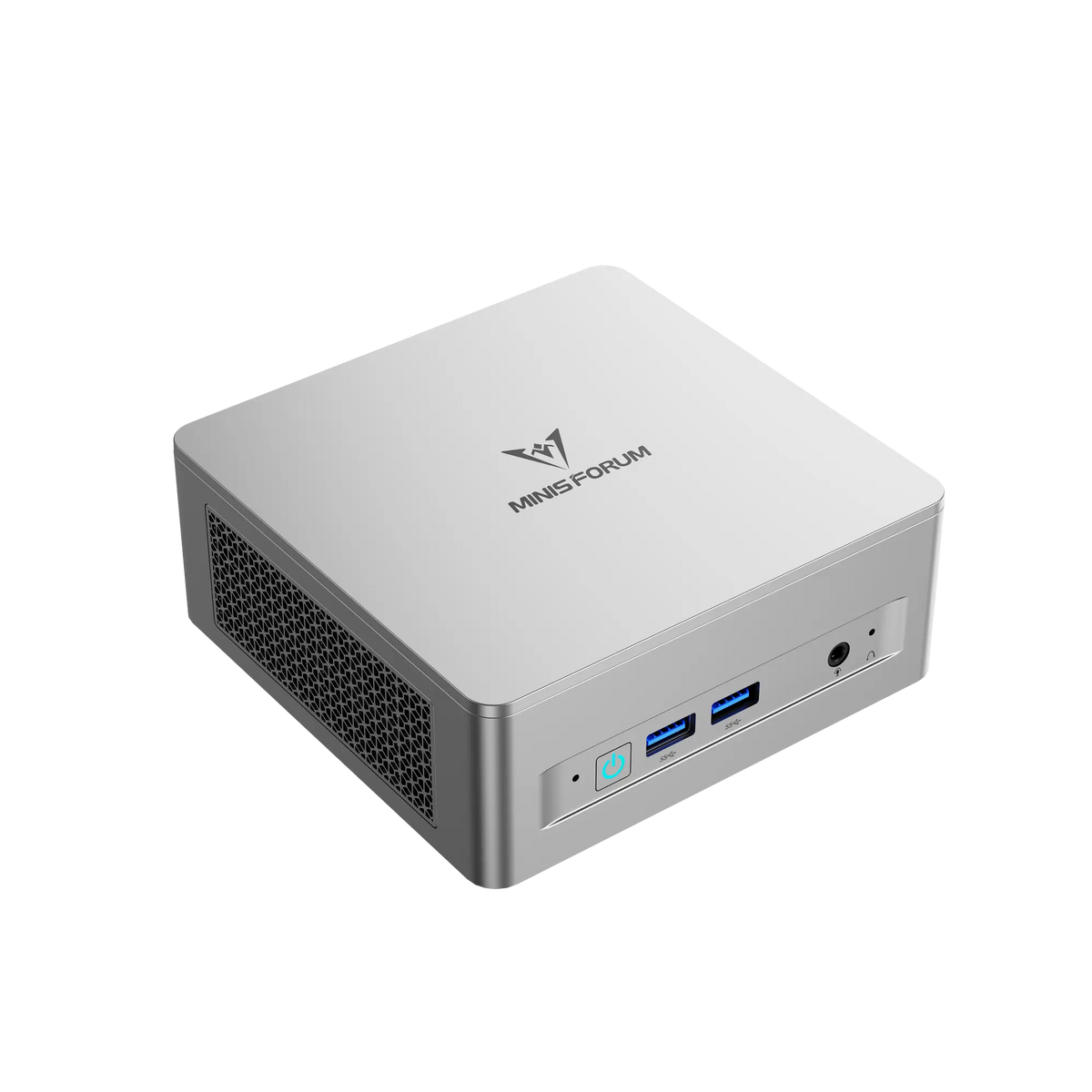

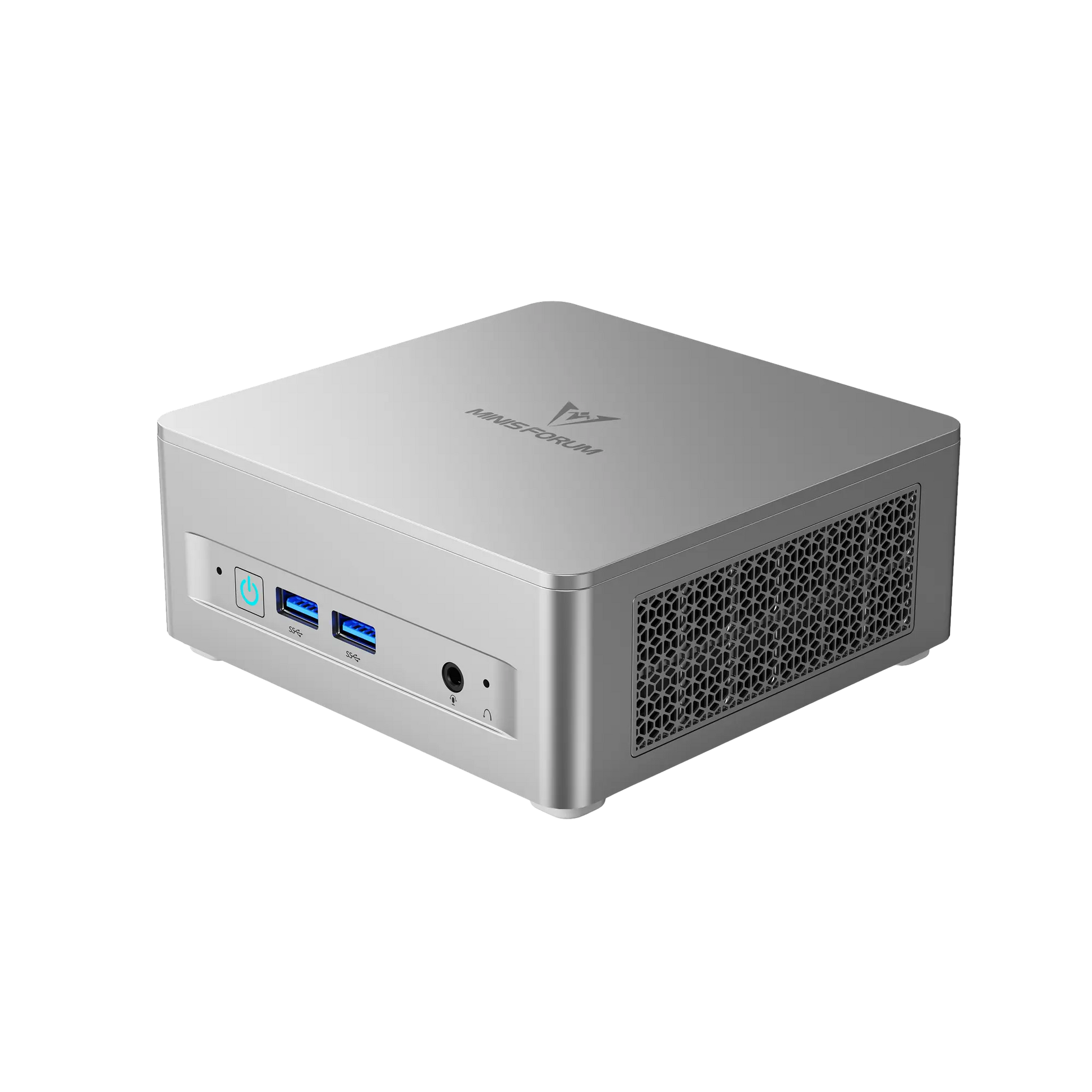

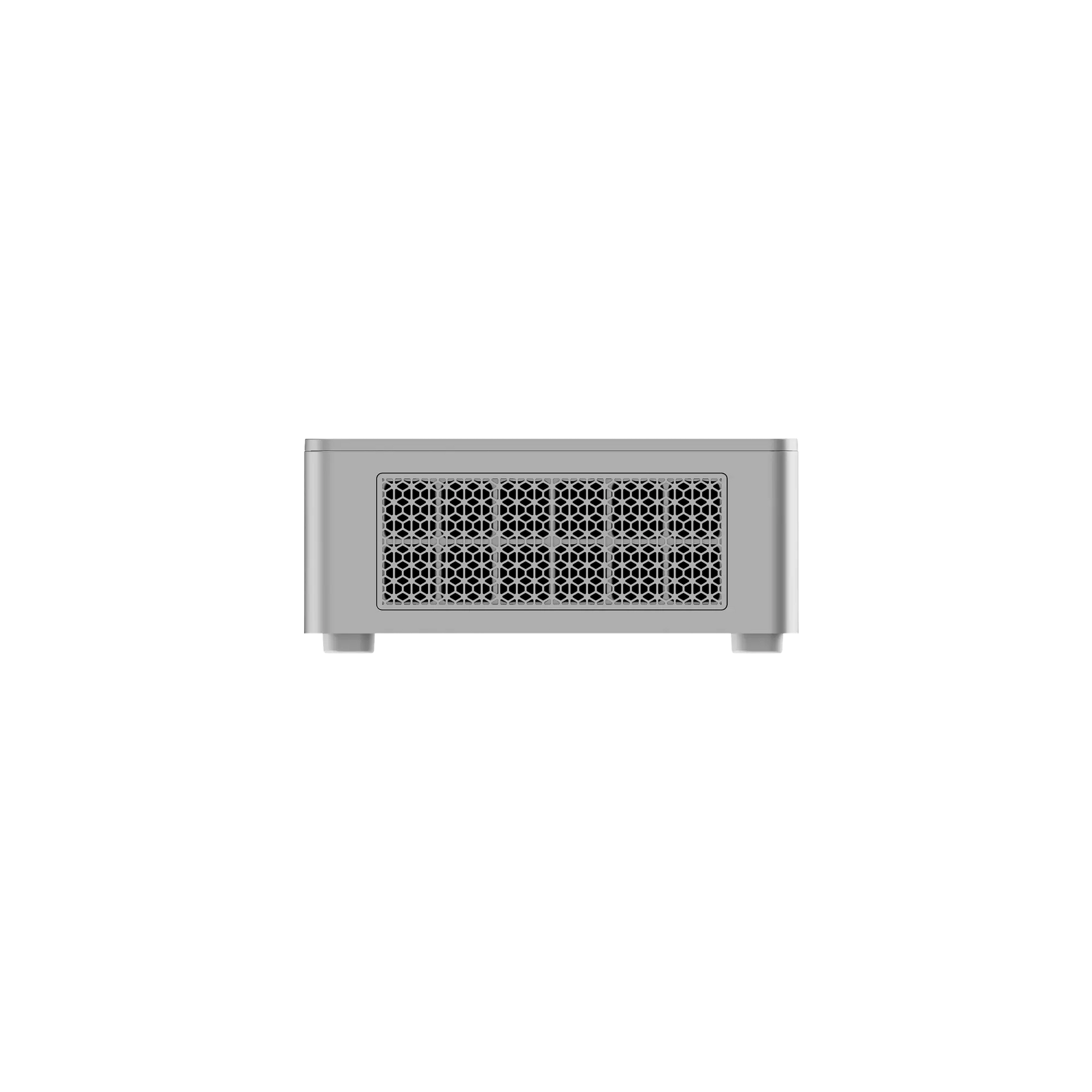

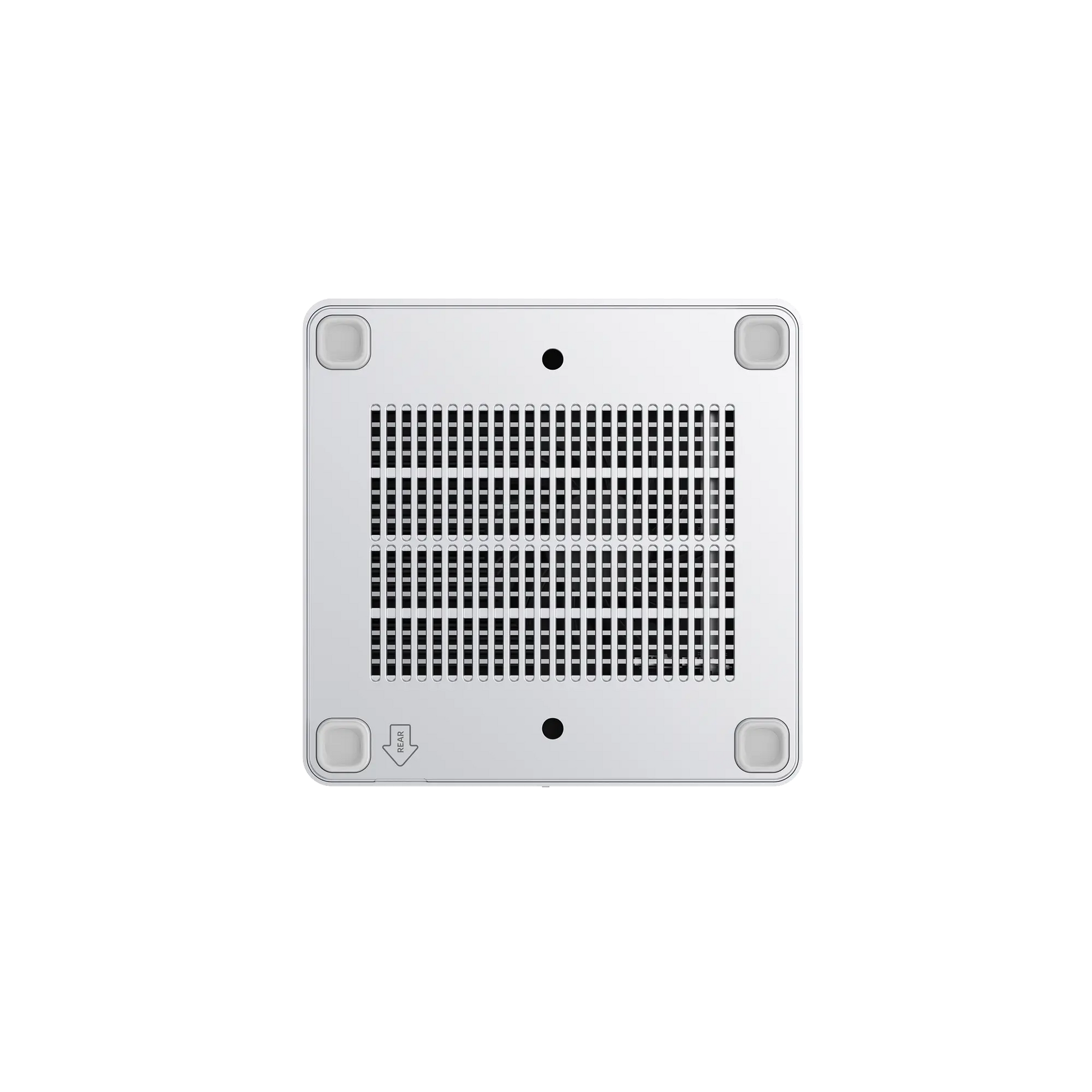

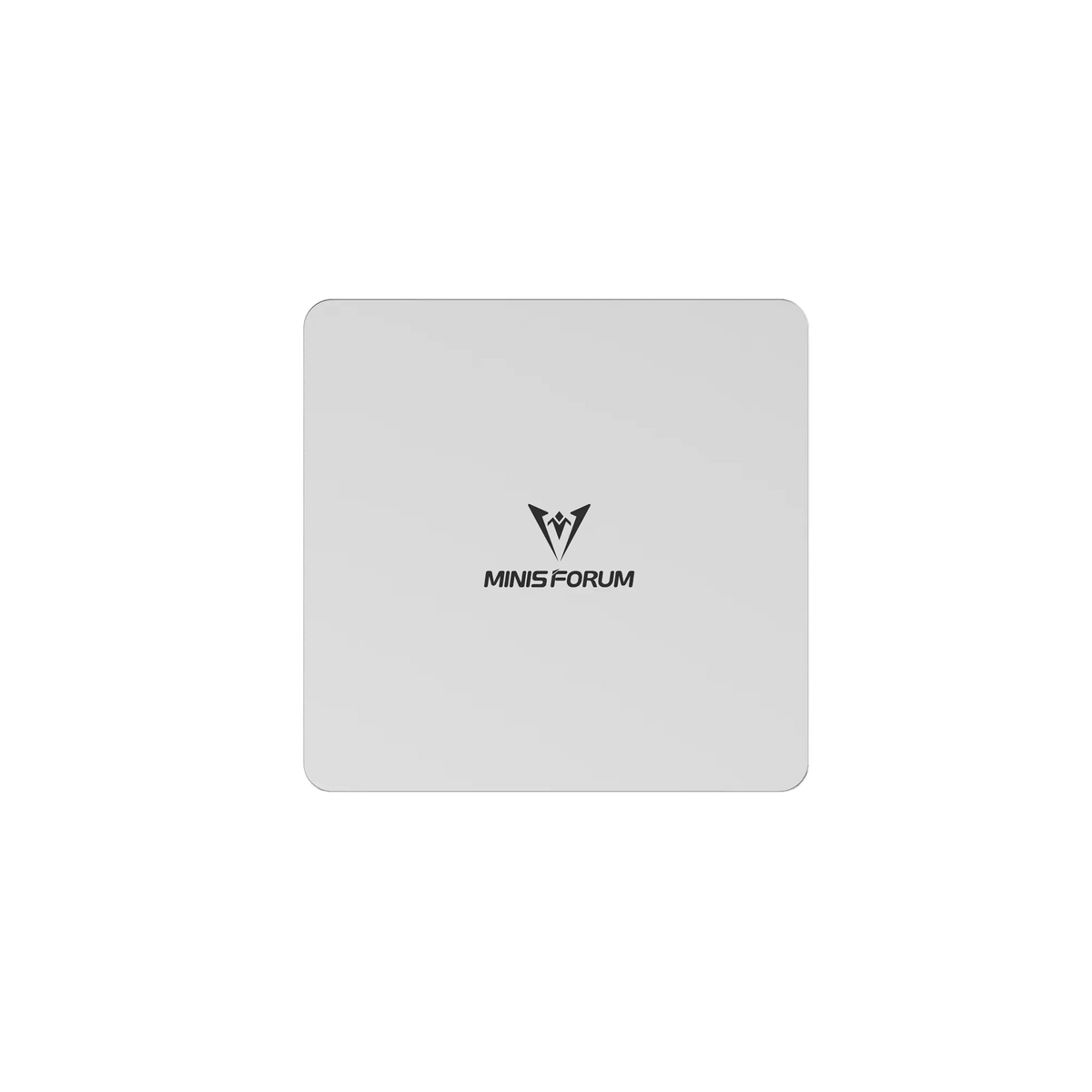

Minisforum UM750 Neo
Angebotspreis
€489,00
Normaler Preis
€609,00
Note:
In stock at German warehouse, fast shipping available.
- AMD Ryzen™ 5 7545U
- LPDDR5 - 6400Mhz,Max.32GB
- Dual M.2 2280 PCIE 4.0,up to 4TB
- 2.5G & WIFI 6E & BT 5.2
- Windows 11 | USB4 Port (PD power compatible)
Liquid error (sections/h285_processor line 40): invalid url input
Liquid error (sections/h285_processor line 45): invalid url input
Ready Core for Daily Computing
UM750 Neo brings AMD Ryzen™ Z1 performance into a compact mini PC.
With
6 cores, 12 threads, and up to 4.9GHz boost frequency, it delivers responsive
performance for daily productivity, multitasking, video meetings, light creative
work, and everyday entertainment.
6 cores, 12 threads, and up to 4.9GHz boost frequency, it delivers responsive
performance for daily productivity, multitasking, video meetings, light creative
work, and everyday entertainment.
6/12
cores/threads
16MB
L3 Cache
4.9 GHz
Max. Boost Clock
6/12
cores/threads
16MB
L3 Cache
4.9 GHz
Max. Boost Clock
Smooth Multitasking for Real Daily Work
High-speed Memory
Motherboard-integrated 6400MT/s memory delivers significantly faster response speeds compared to standard 5600MT/s.
Reduces lag whether running heavy software or multitasking, significantly boosting productivity.
6400MT/s
High Speed Memory
Massive Storage
Supports dual M.2 2280 PCIe 4.0 SSDs for blazing-fast data storage and retrieval, meeting demands for high-capacity, high-speed storage.
Maximum Support
8TB
Storage Space
Liquid error (sections/h285_processor line 40): invalid url input
Liquid error (sections/h285_processor line 45): invalid url input
Efficient Cooling System
The system utilizes phase-changAe material (PCM) cooling technology, featuring dedicated CPU heatsinks plus active cooling for memory and storage. Compared to single-fan designs, it reduces temperatures by 25%, enhancing both performance and device longevity.
Large Diamete
Silent Fan
＜40dB
Full Load Noise
USB4: High-Speed Transfer
& Adaptive Power
Full-featured USB4 ports deliver blazing 40Gbps speeds for effortless handling of large files, complex projects, and demanding applications - dramatically boosting productivity.
Up to
40Gbps
USB4 Port
Supports 65-100W PD input for host power plus 15W output capability, delivering flexible power options for diverse usage scenarios.
Display Reverse Charging
65-100W
PD IN
Single PD Cable Connection
15W PD Out
Video Out
All-in-One Smart Assistant
Pre-installed Windows 11, ready to use out of the box, seamlessly blending work and play.
Delivers exceptional performance and convenience for both demanding workloads and leisure activities.
Windows 11
OS
UM750 Neo SPEC
CPU
AMD Ryzen™ Z1
GPU
AMD Radeon™ Graphics
Memory
LPDDR5 6400MT/s
Storage
1 × M.2 2280（PCIe 4.0 x4）
1 × M.2 2280 (PCIe 4.0 x2)
Wireless Connectivity
Wi-Fi 6e | Bluetooth 5.2
Video Output
1 × HDMI® 2.1 (4K@60Hz)
1 × DP (4K@120Hz)
1 × Type C_USB4 (up to 8K@60Hz/4K@120Hz)
Audio Output
1 × HDMI®
1 × DP
1 × 3.5mm Combo Jack
Audio Input
1 × 3.5mm Combo Jack
I/O Ports

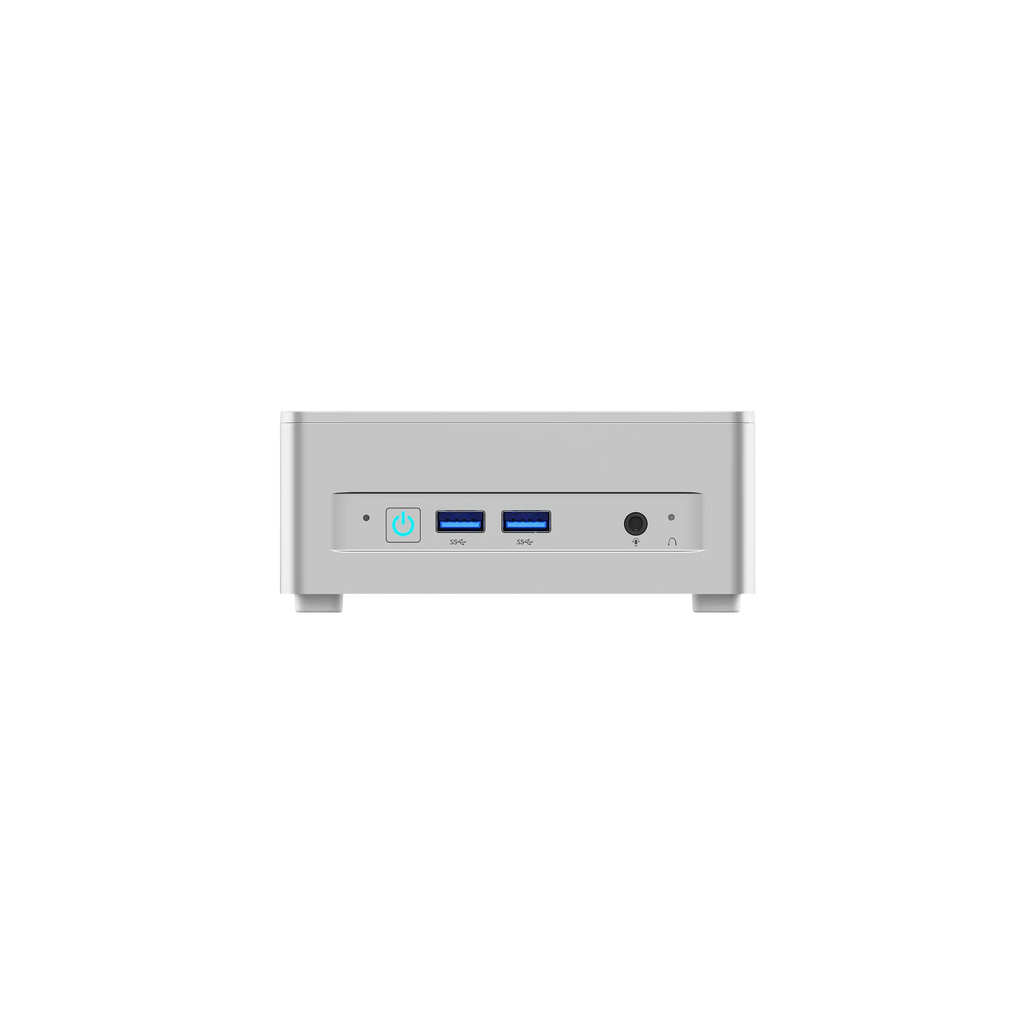

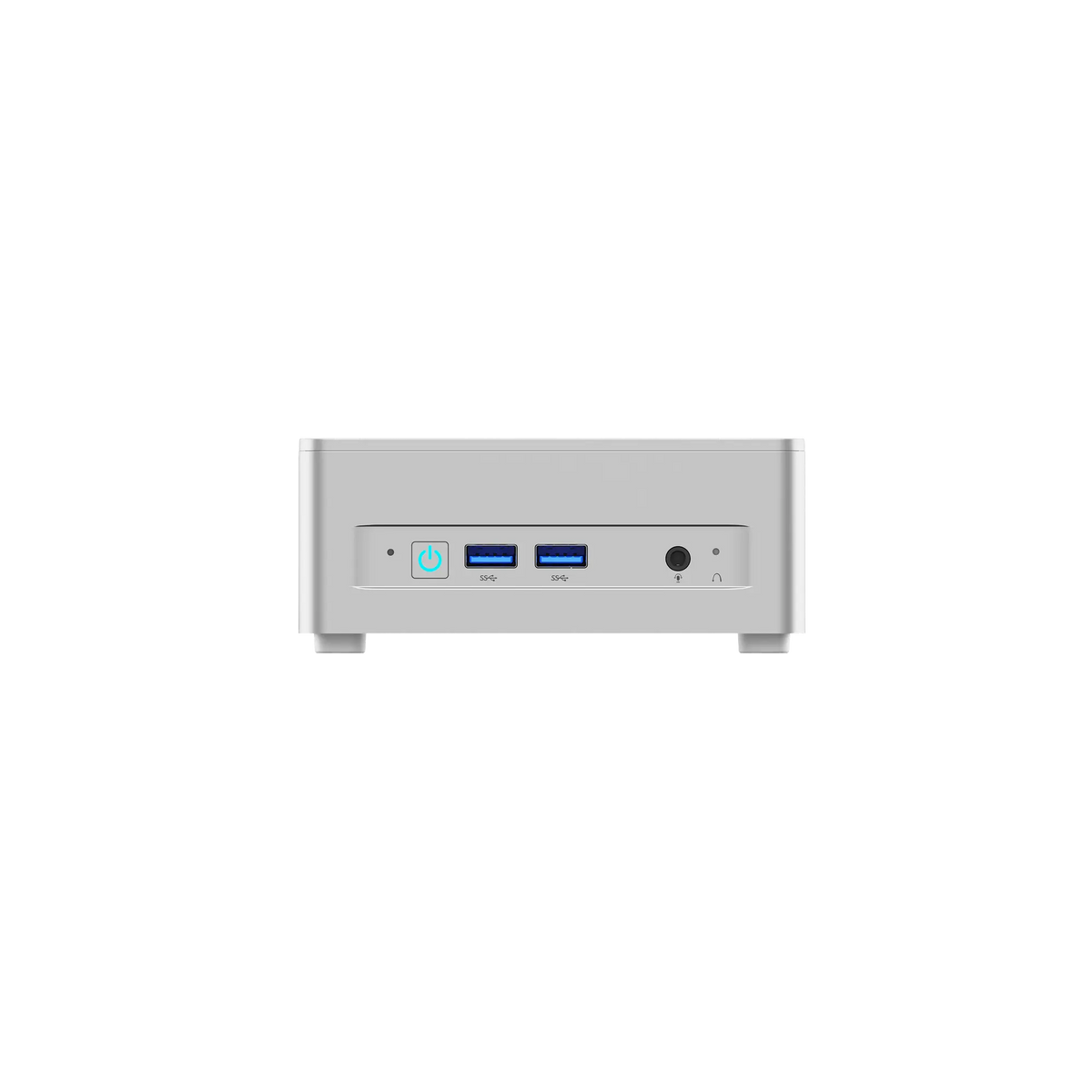

Front
2 × USB Type A(USB3.2 Gen2)
1 × 3.5mm Combo Jack
1 × Reset Hole
1 × Power Button

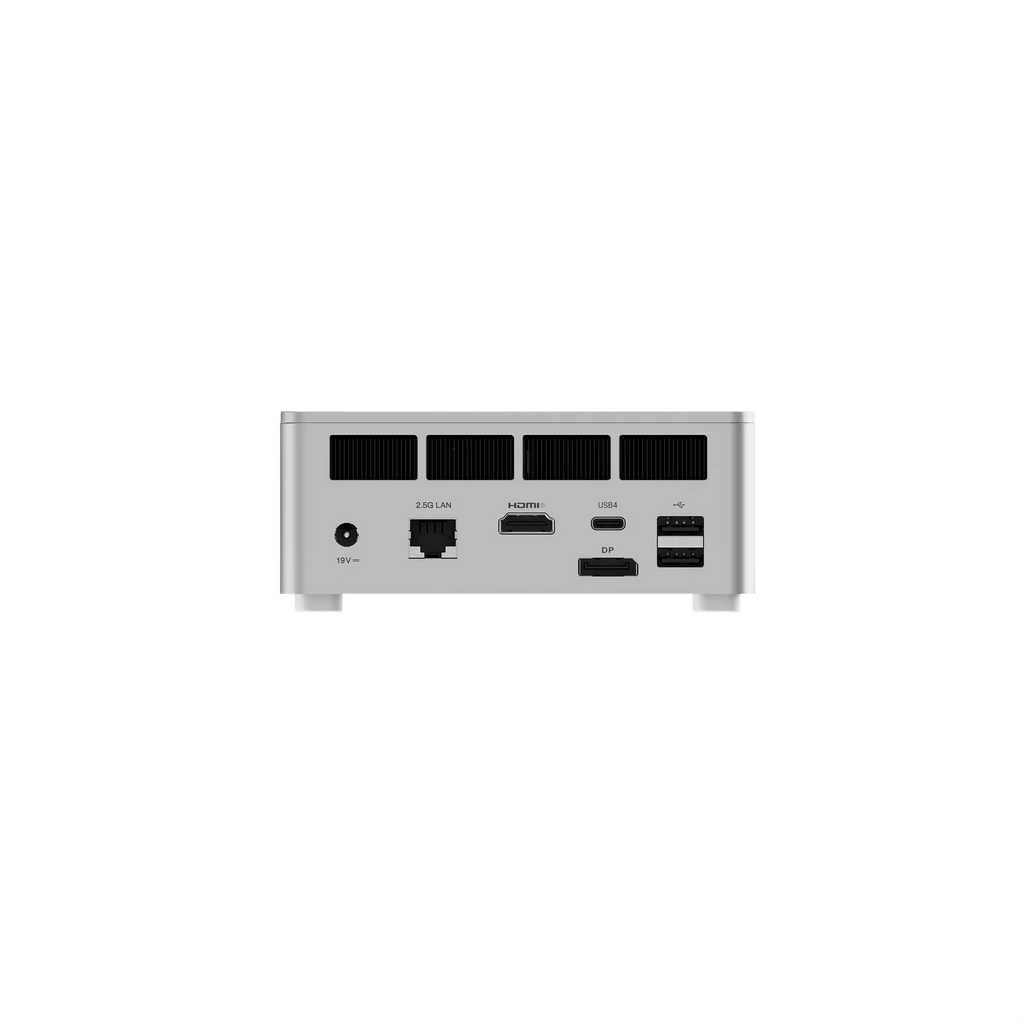

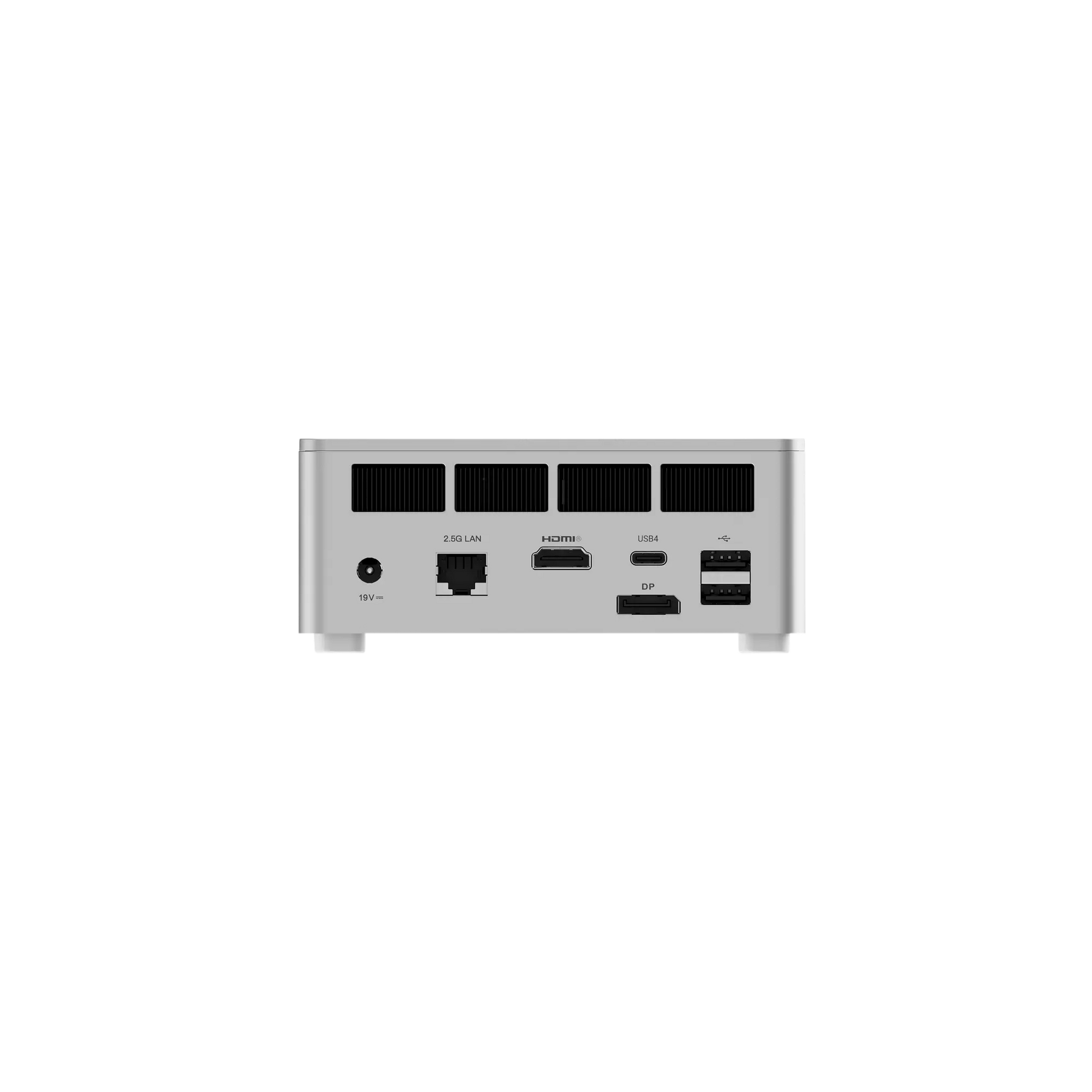

Rear
1 × DC-IN Jack (DC 5.5*2.5 19V3.42A)
1 × Type C_USB4
(40Gbps+Alt DP+PD IN 65-100W+PD OUT 15W)
2 × USB_Type A(USB2.0)
1 × 2.5 GbE LAN (RJ45)(RTL8125BG)
1 × DP 1.4 (4K/120Hz)
1 × HDMI® 2.1 (4K/60Hz)
Button/Hole
1 × Power Button
1 × Reset Hole
Power Adapter
DC 19V 3.42A
OS Support
Windows 11
Dimensions
130 × 126 × 47.2mm
Weight
0.6Kg
