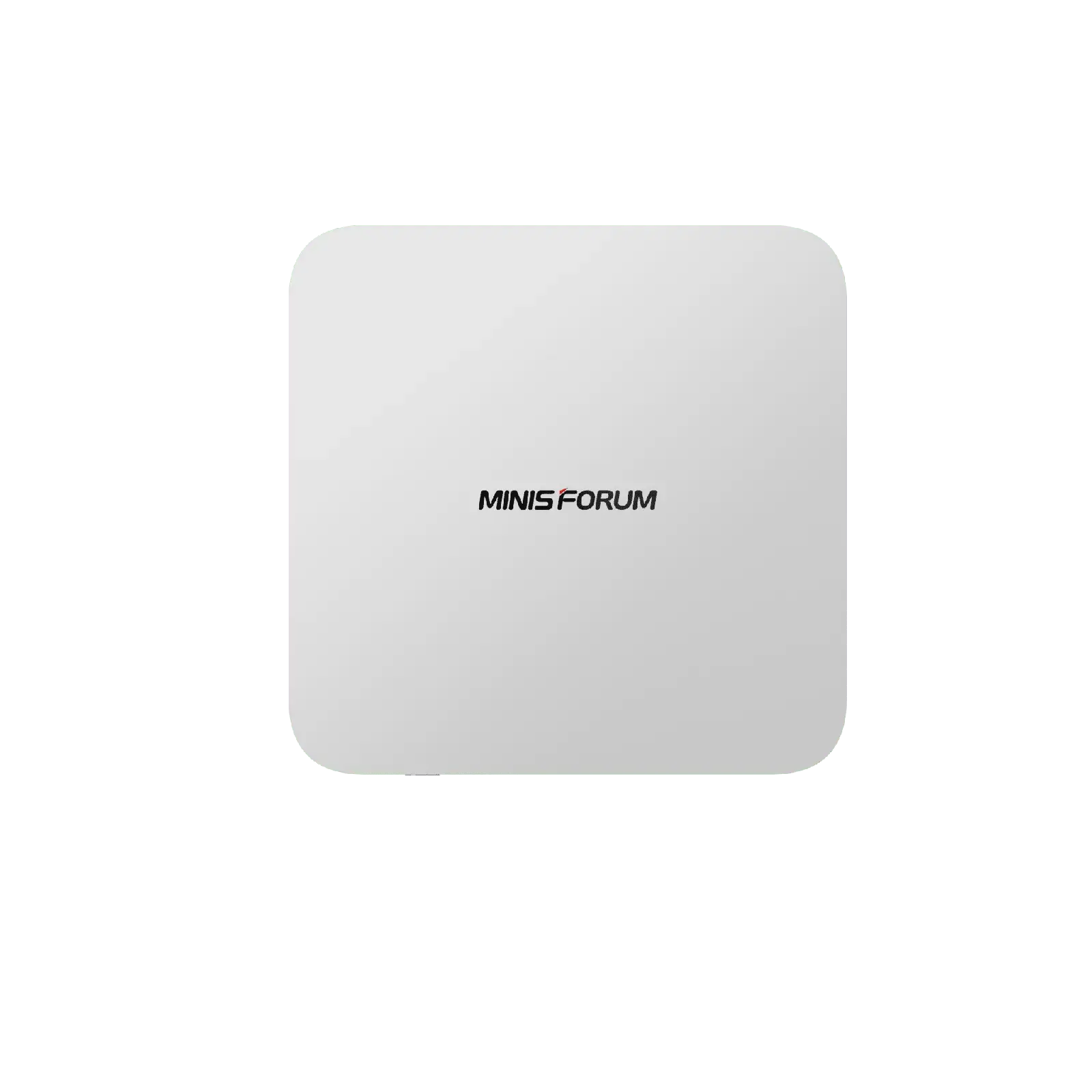

Minisforum M1 Pro-285H
Support method

Duties Included

30-Days Hassle-Free Local Returns



Definieren Sie Ihre Desktop-Produktivität neu
Master every scenario
AI Productivity
For modern work
Desktop Aesthetics
Professional performance
Für Streaming gemacht
Flüssig & Professionell
Compact MINI
Epic gaming experience
AI productivity for modern work
Equipped with top-notch AI performance and quad-display output, it effortlessly handles local AI deployment, data processing, and remote collaboration. The integrated noise-cancelling sound card enables professional video conferencing.

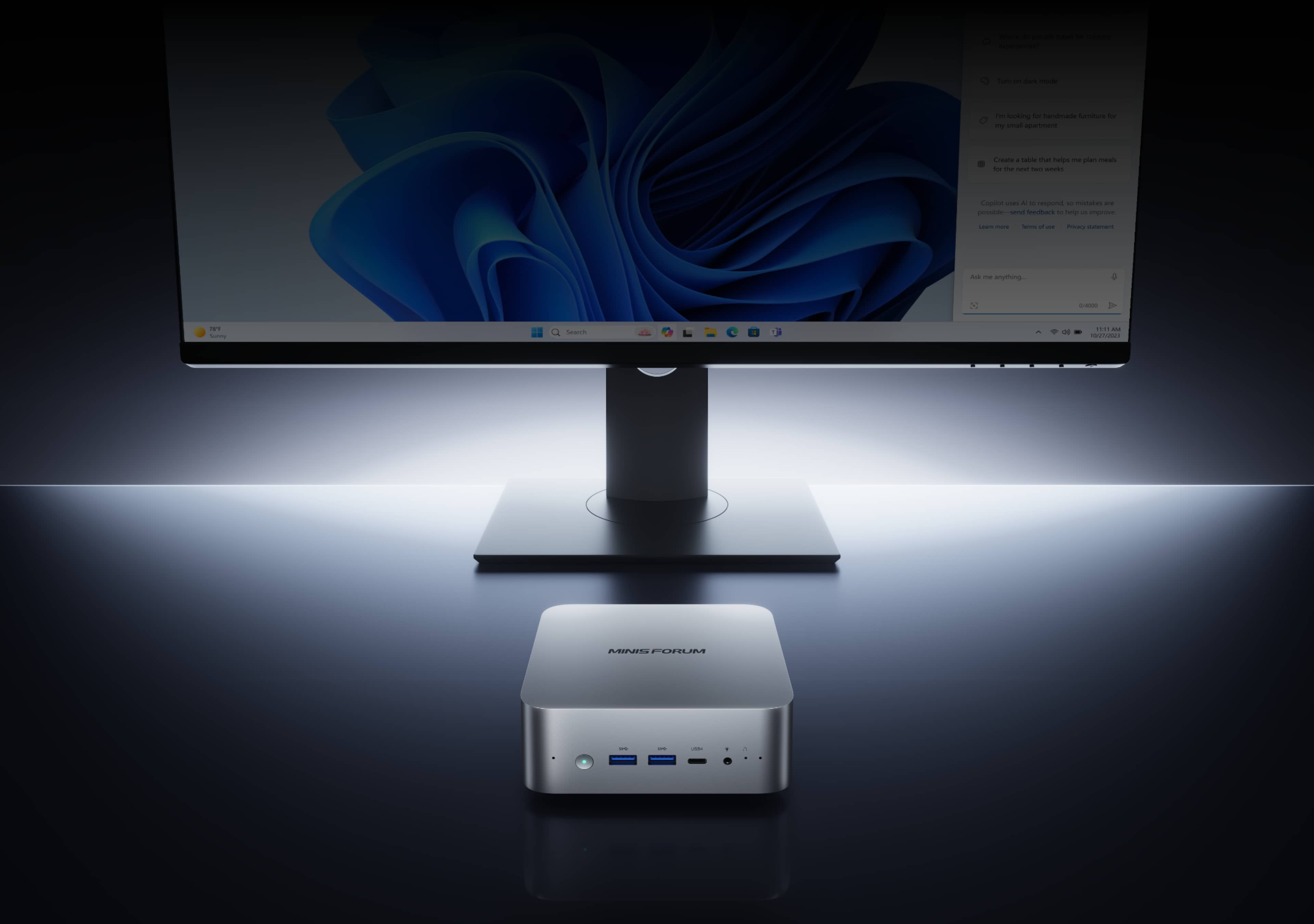

Desktop aesthetics, professional performance
Combines elegant metal design with high-performance technology – supports DDR5 high-speed memory, RAID, and GPU expansion. Ideal for virtual machines, Docker, and AI workflows at your desk.



Für Streaming gemacht – flüssig & professionell
Mit dedizierter Soundkarte und USB-Audio-Unterstützung für herausragende Klangqualität. Quad-Display-Ausgabe plus WiFi 7 & 2.5G Ethernet garantieren hochwertige Streaming-Erlebnisse und präzise Steuerung.



Kompaktes, aber episches Gaming
Expandable with an external GPU and 65W of power for smooth AAA and ray tracing gaming. Lightning-fast storage and SSDs for fast loading times, plus immersive sound and multi-display support for the ultimate gaming experience.




AI-driven Productivity
Equipped with top-notch AI performance and quad-display output, it effortlessly handles local AI deployment, data processing, and remote collaboration. The integrated noise-cancelling sound card enables professional video conferencing.

Desktop Aesthetics
Combines elegant metal design with high-performance technology – supports DDR5 high-speed memory, RAID, and GPU expansion. Ideal for virtual machines, Docker, and AI workflows at your desk.

Für Streaming gemacht
Mit dedizierter Soundkarte und USB-Audio-Unterstützung für herausragende Klangqualität. Quad-Display-Ausgabe plus WiFi 7 & 2.5G Ethernet garantieren hochwertige Streaming-Erlebnisse und präzise Steuerung.

Epic Gaming
Expandable with an external GPU and 65W of power for smooth AAA and ray tracing gaming. Lightning-fast storage and SSDs for fast loading times, plus immersive sound and multi-display support for the ultimate gaming experience.

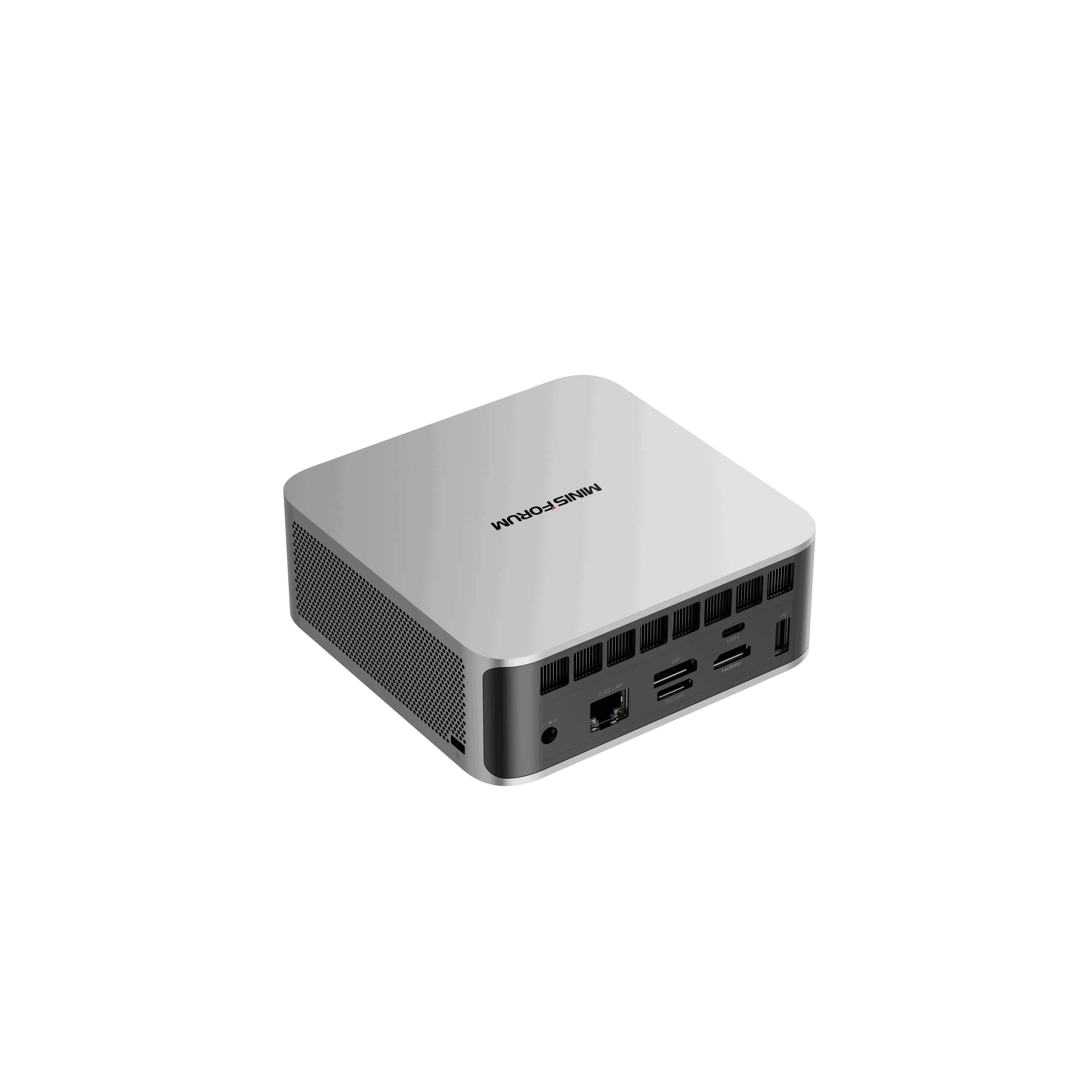

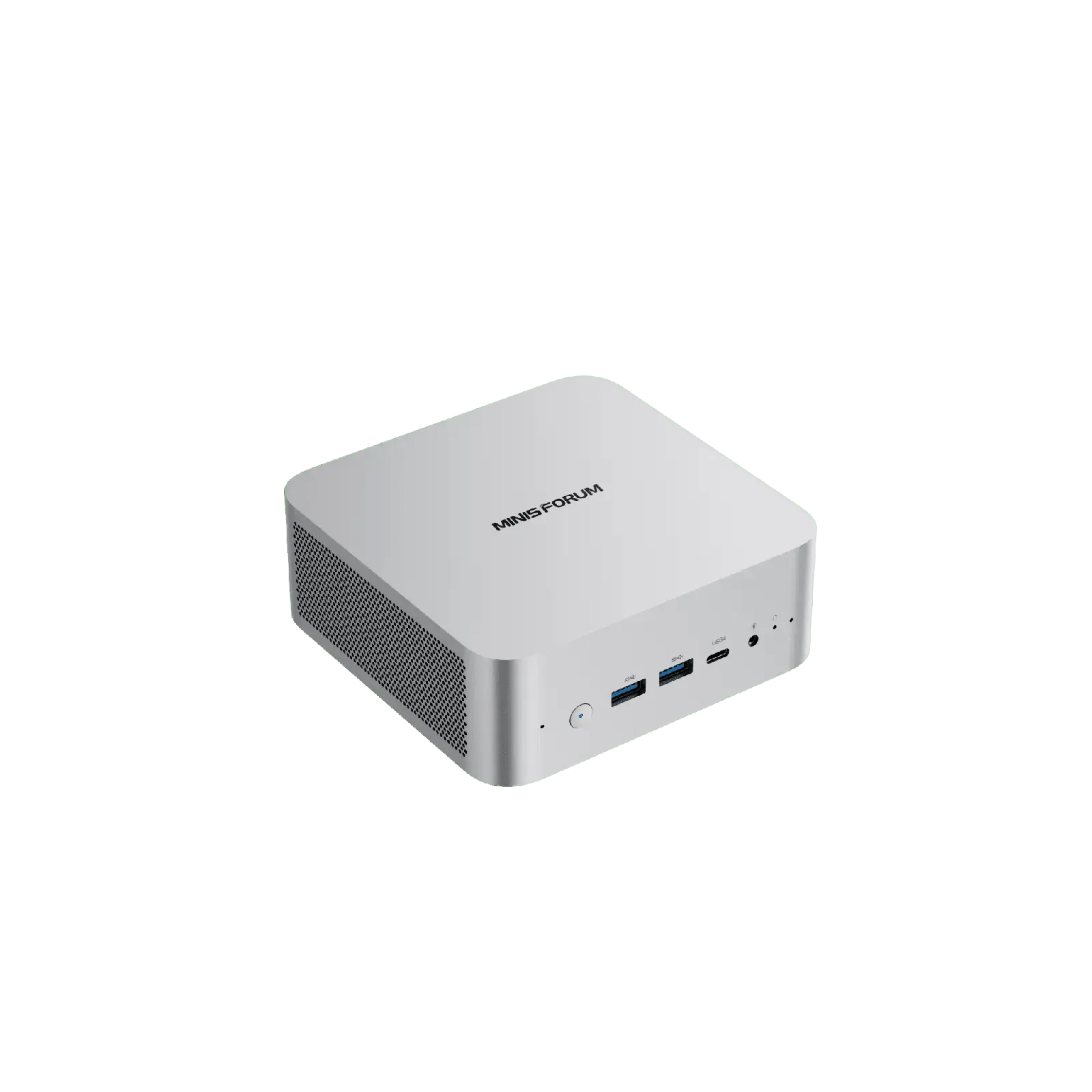

Lightweight metal, seamless elegance
Gefertigt aus Aluminium in Luft- und Raumfahrtqualität mit eloxiertem Unibody-Design. Angenehm griffig und sowohl für die Wandmontage als auch für die flache Aufstellung in jedem Arbeitsbereich geeignet.

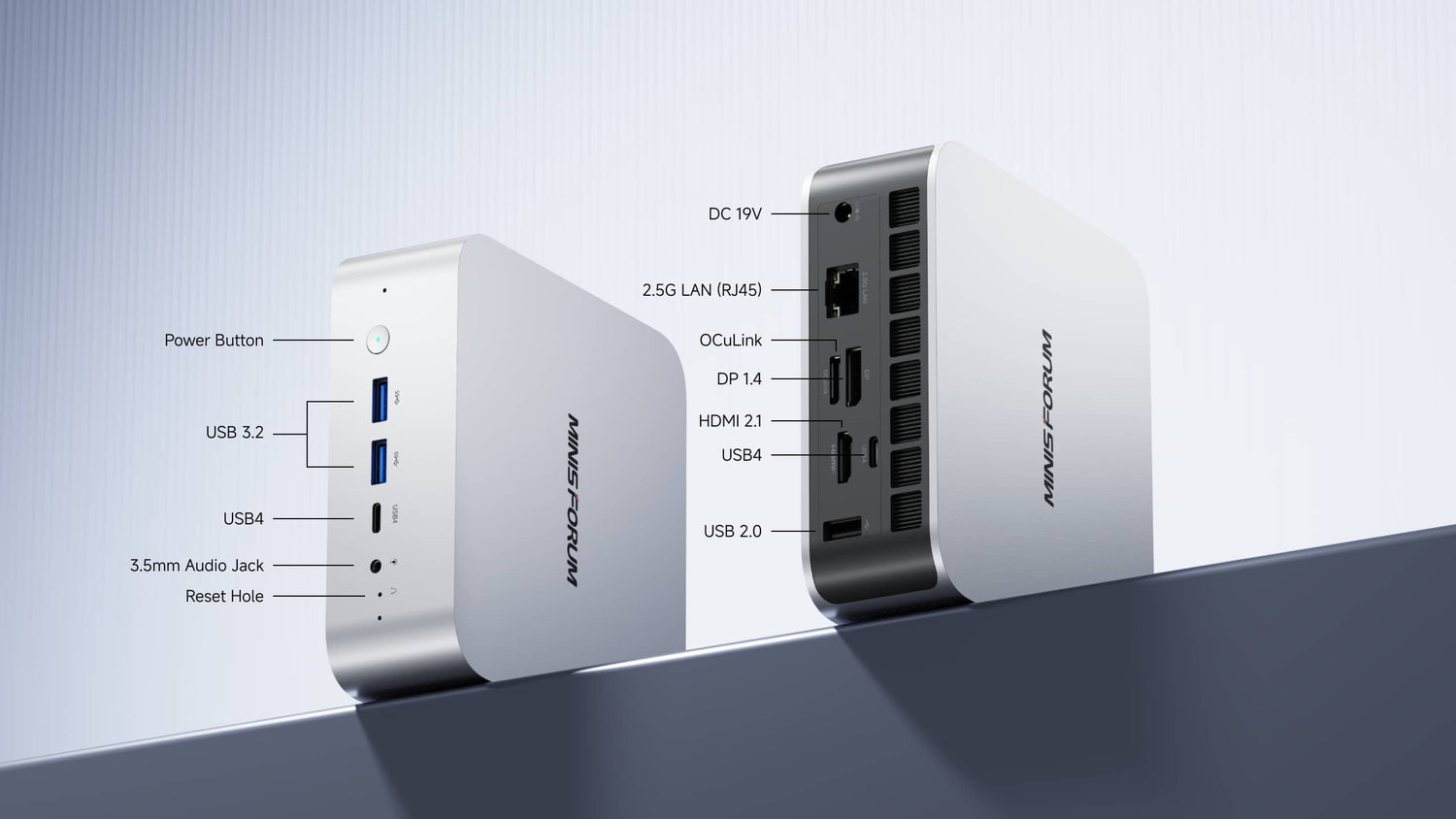

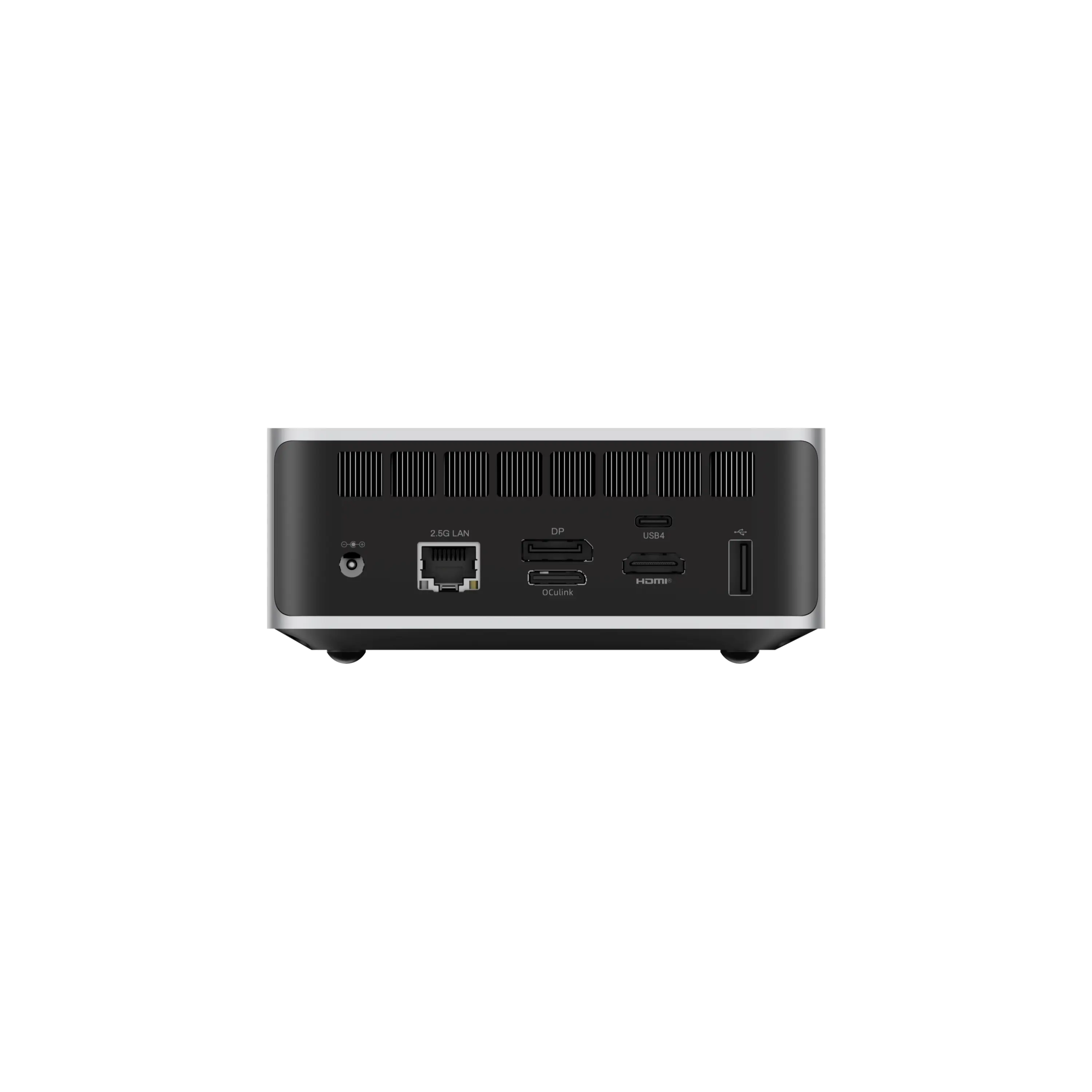

Schnelle und stabile Verbindungen
Ausgestattet mit einem 2,5-Gigabit-Ethernet-Port (bis zu 10 Gbit/s Geschwindigkeit Spitzen) für unterbrechungsfreies Streaming in HD-Qualität und schnelle Übertragung großer Dateien. WiFi 7 (5,8 Gbit/s) und Bluetooth 5.4 ermöglichen ultraschnelle drahtlose Verbindungen für jede Aufgabe.



Hochgeschwindigkeits-Erweiterung

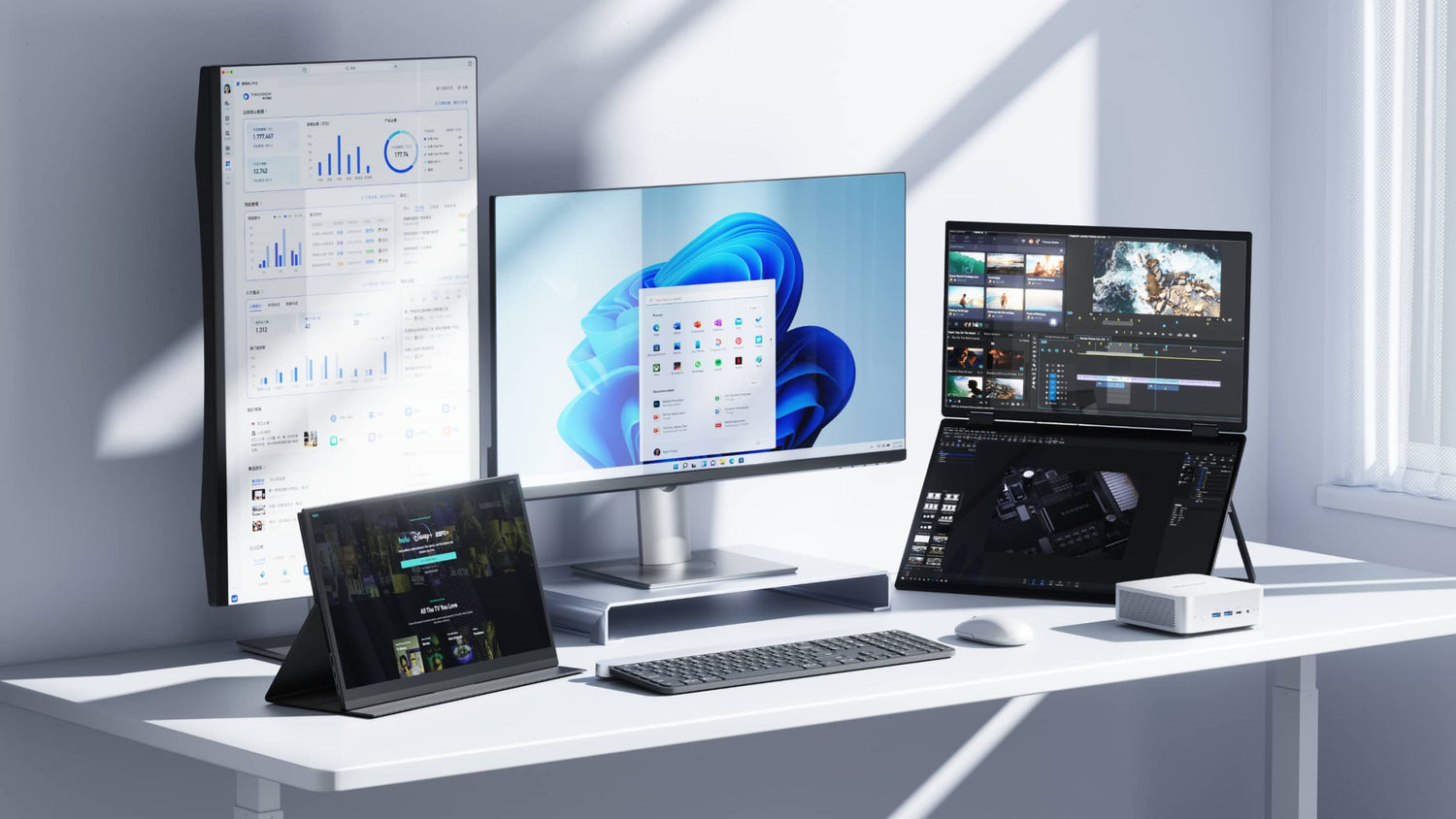

Multi-display workflow









Product Comparison




M1 Pro-125H
M1 Pro-285H
Intel® Core™ Ultra 5 Prozessor 125H
14 (4*P+8*E+2 LPE) Kerne / 18 Threads
Bis zu 4,5 GHz, TDP: 45W-65W
Intel® Core™ Ultra 9 Prozessor 285H
16 (6*P+8*E+2 LPE) Kerne / 16 Threads
Bis zu 4,5 GHz, TDP: 45W-65W
Intel® Arc™ Grafik
Intel® Arc™ 140T GPU
DDR5 SO-DIMM x2, 5600 MHz, max. 128 GB
DDR5 SO-DIMM x2, 6400 MHz, max. 128 GB

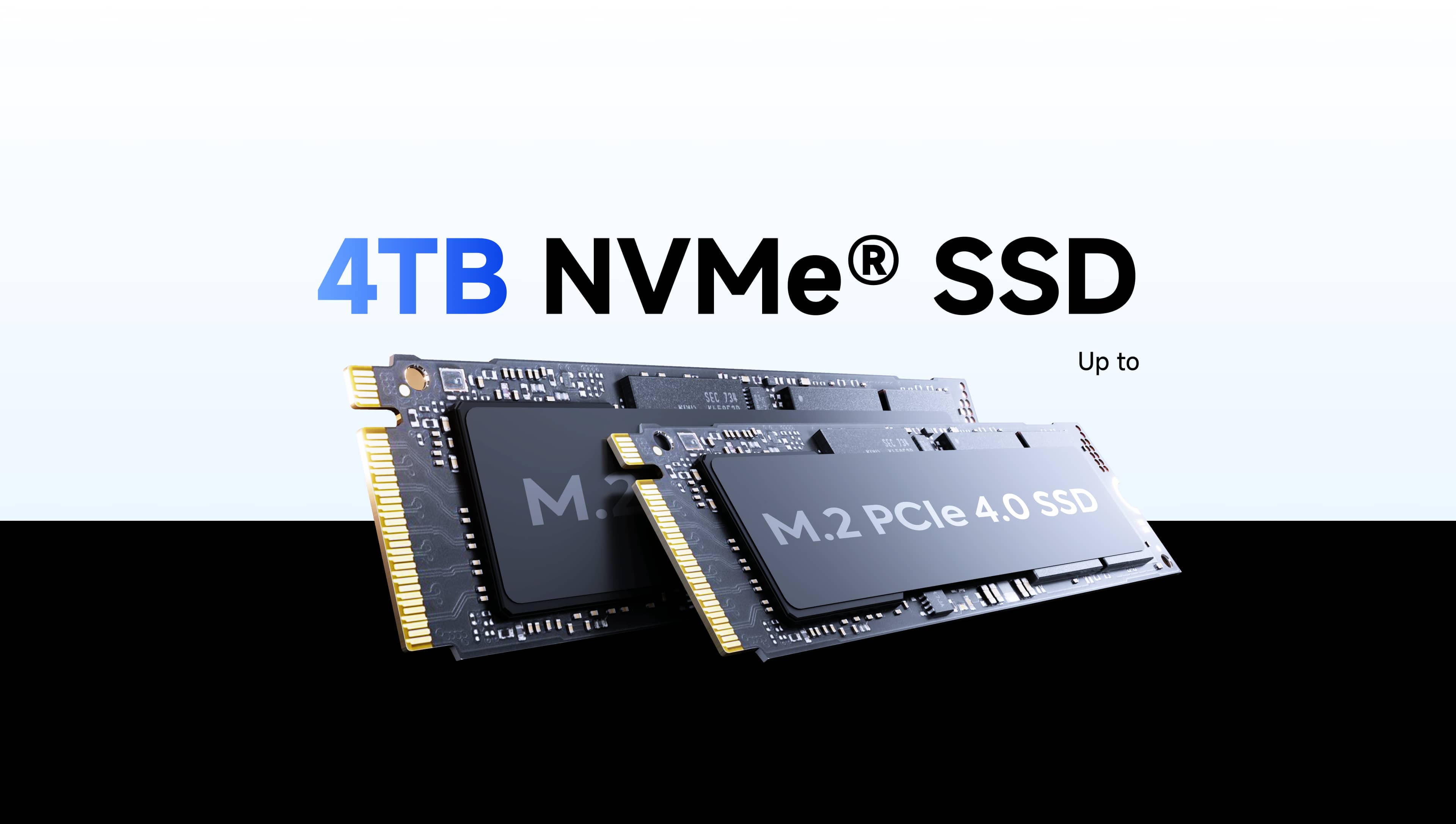

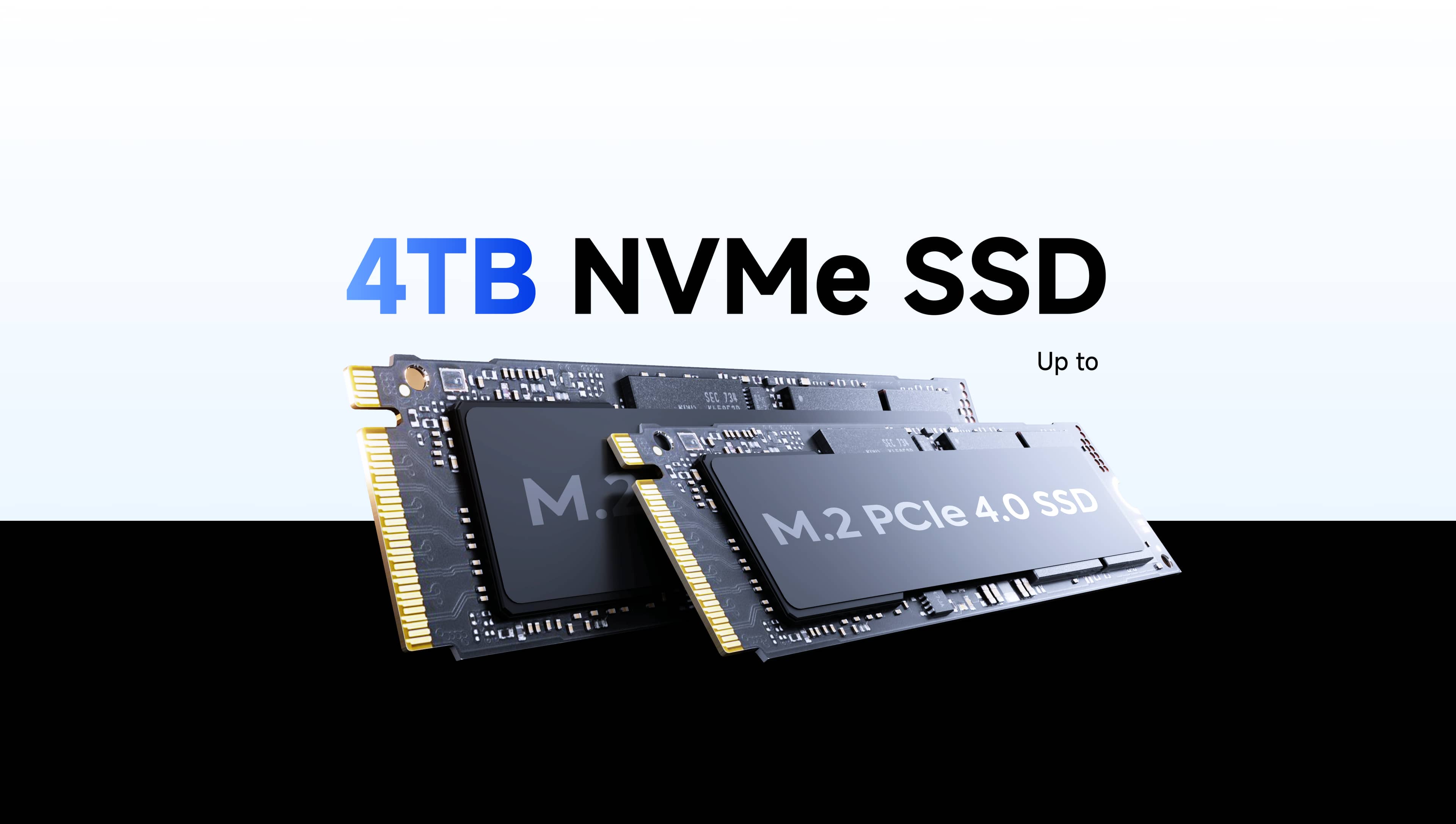

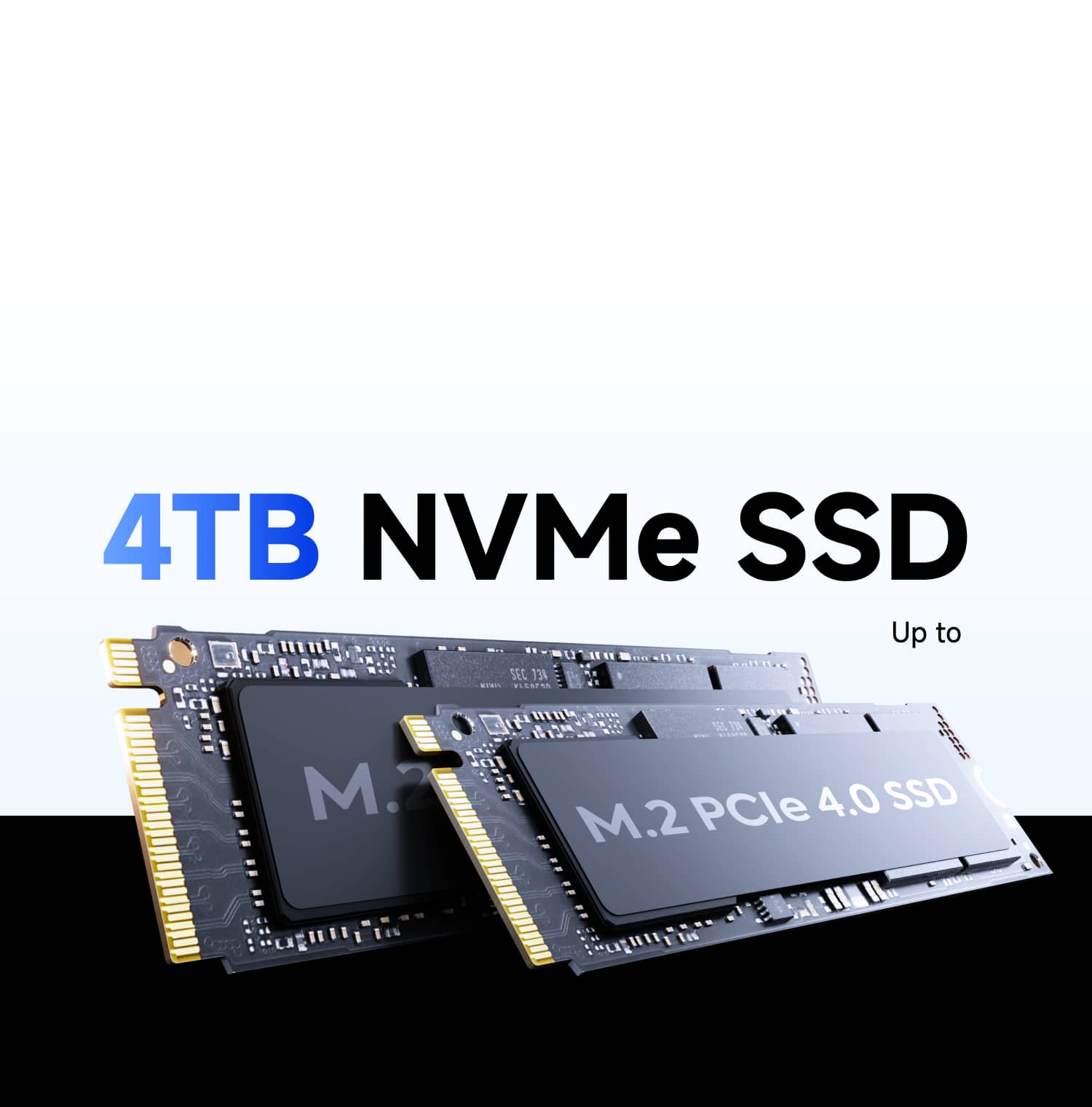

2×M.2 2280 NVME SSD-Steckplatz (bis zu 4 TB) (PCIe4.0x4)
2×M.2 2280 NVME SSD-Steckplatz (bis zu 4 TB) (PCIe4.0x4)
Phasenwechsel-Materiallüfter, max. 3200 U/min
Phasenwechsel-Materiallüfter, max. 3200 U/min
M.2 2230 E-Key WiFi/BT-Combo-Modul (nur PCIe)
WiFi7 (BE200) / BT 5.4
M.2 2230 E-Key WiFi/BT-Combo-Modul (nur PCIe)
WiFi7 (BE200) / BT 5.4
2,5-Gigabit-LAN (RJ45)
2,5-Gigabit-LAN (RJ45)
- HDMI2.1 TMDS x1 (Bis zu 4K@60Hz)
- DP1.4 x1 ((Bis zu 8K@60Hz/4K@144Hz)

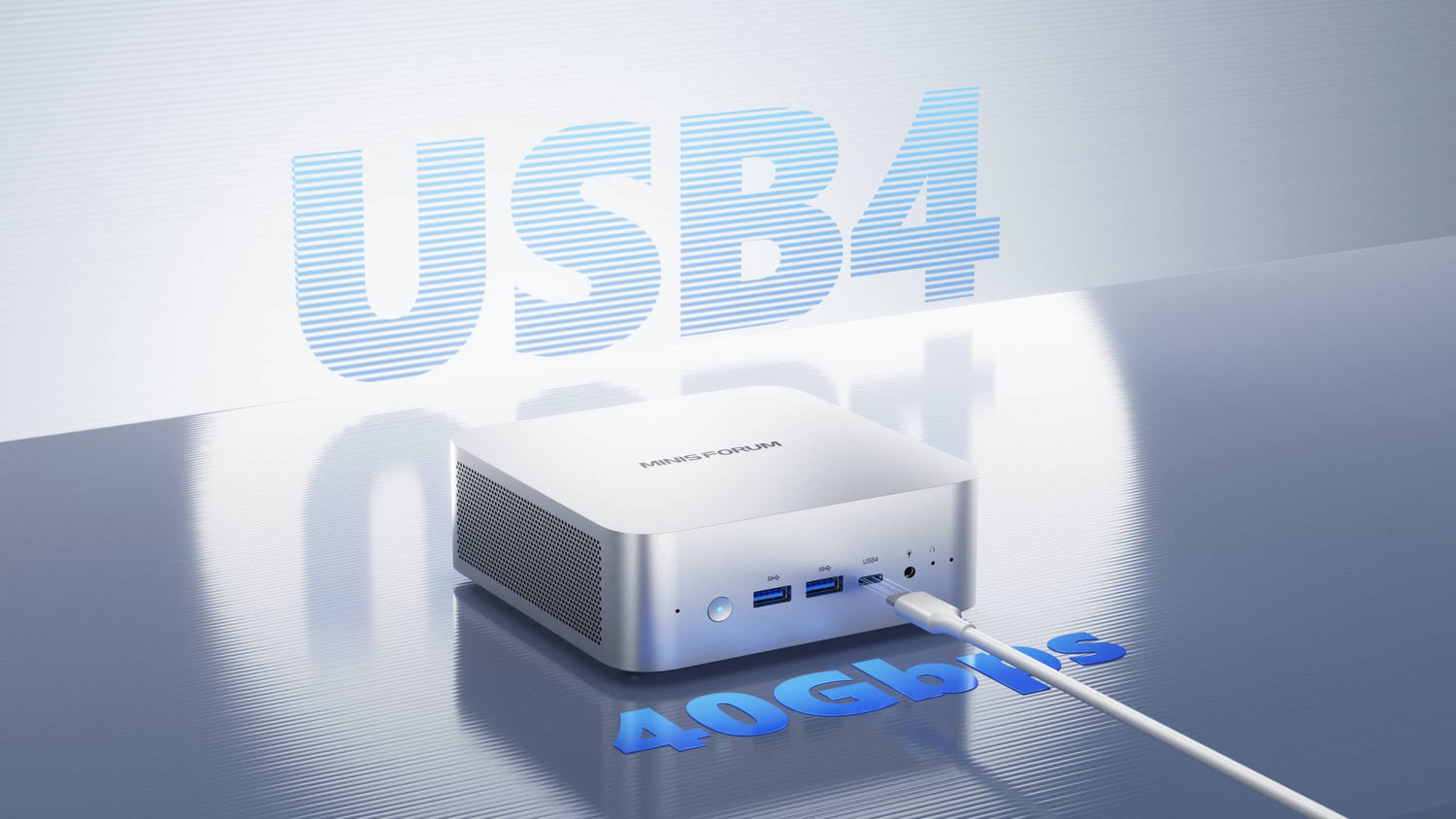

- USB4 x2 (Bis zu 8K@60Hz/4K@144Hz)
- HDMI2.1 TMDS x1 (Bis zu 4K@60Hz)
- DP1.4 x1 (Bis zu 4K@120Hz/4K@144Hz)
- USB4 x2 (Bis zu 8K@60Hz/4K@144Hz)
- HDMI x1
- 3,5-mm-Kombibuchse х1
- Lautsprecher x2
- HDMI x1
- 3,5-mm-Kombibuchse х1
- Lautsprecher x2
- DMIC x2
- 3,5-mm-Kombibuchse х1
- DMIC x2
- 3,5-mm-Kombibuchse х1
Windows 11
Windows 11
128 x 126 x 52 mm (L x B x H)
128 x 126 x 52 mm (L x B x H)
0,6 kg
0,6 kg
19 V/6,32 A, 120 W
19 V/6,32 A, 120 W
